Scotts 190499 Garden Sprayer User Manual

Multi-Nozzle, 2-Gallons

Introduction

The Scotts 190499 Garden Sprayer is a versatile, multi-purpose tool designed for various household and gardening applications. Its exclusive all-in-one nozzle simplifies switching between three distinct spray patterns: stream, cone, and fan. Constructed from durable Polyethylene (PE), this 2-gallon sprayer is built for longevity and ease of use.

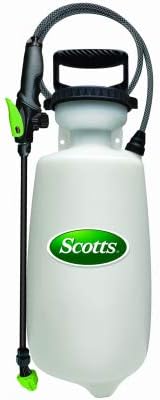

Figure 1: The Scotts 190499 Garden Sprayer, a 2-gallon capacity unit with a multi-nozzle design, shown in its upright position.

Маанилүү коопсуздук маалыматы

Always read and understand all instructions before using this product. Failure to follow these instructions may result in injury or property damage.

Wear protective clothing, including gloves and safety goggles, when handling chemicals or operating the sprayer.
Териге жана көзгө тийбеңиз. тийген учурда суу менен жакшылап чайкоо керек.
Do not ingest any substances sprayed with this device.
If ingested, seek medical help immediately.
Store the sprayer in a cool, dry place, out of reach of children and pets.
Ensure the sprayer is depressurized before opening or storing.

Орнотуу жана чогултуу

The Scotts 190499 Garden Sprayer comes largely pre-assembled. Follow these steps for initial setup:

Компоненттерди таңгактан чыгаруу: Carefully remove the sprayer, 3-in-1 nozzle, cleaning kit, and shoulder strap from the packaging.
Attach Hose and Wand: Ensure the hose is securely connected to the sprayer tank and the spray wand is firmly attached to the hose handle.
Толтурууга даярданыңыз: Unscrew the pump assembly from the top of the tank by turning it counter-clockwise.
Танкты толтуруңуз: Pour the desired liquid (water, weed killer, fertilizer, etc.) into the 2-gallon tank. Do not overfill past the maximum fill line.
Secure Pump Assembly: Reinsert the pump assembly into the tank opening and screw it clockwise until it is hand-tight. Ensure a secure seal to maintain pressure.
Attach Shoulder Strap (Optional): If desired, attach the included shoulder strap to the designated loops on the sprayer for easier portability during use.

Иштөө нускамалары

Using your Scotts Garden Sprayer is straightforward. Follow these steps for effective application:

Pressurize the Tank: With the pump assembly securely in place, pump the handle up and down repeatedly until resistance is felt and the tank is pressurized. Approximately 10-20 pumps are usually sufficient, depending on the desired pressure.
Чачыратуучу үлгүнү тандаңыз: The exclusive 3-in-1 nozzle allows for quick changes in spray pattern.
- Агым: Twist the nozzle to the 'stream' setting for spot treating weeds or penetrating cracks.
- Конус: Twist the nozzle to the 'cone' setting for watering or fertilizing plants with a wider, gentler spray.
- Күйөрман: Twist the nozzle to the 'fan' setting for quickly covering large areas like decks, siding, or concrete walkways.
Чачууну баштоо: Aim the spray wand at the target area. Squeeze the trigger on the wand handle to begin spraying. For continuous spraying, push the trigger forward to lock it in the open position.
Чыгуу басымы: When finished spraying or before opening the tank, always release the pressure. This is typically done by pulling up on the pressure relief valve located on the pump assembly until air escapes.

Кароо жана тейлөө

Proper maintenance ensures the longevity and optimal performance of your sprayer.

Ар бир колдонуудан кийин тазалоо: After each use, especially when spraying chemicals, thoroughly rinse the tank, hose, and nozzle with clean water. Pump clean water through the sprayer to flush out any residue.
Соплолорду тазалоо: If the nozzle becomes clogged, use the included cleaning kit or a small brush to clear any debris.
Майлоо: Periodically apply a silicone-based lubricant to the pump O-rings and seals to maintain a good seal and smooth pumping action.
Сактагыч: Store the sprayer in a cool, dry place, away from direct sunlight and freezing temperatures. Ensure all pressure is released before storage.
эскирүү үчүн текшерүү: Regularly inspect the hose, wand, and seals for any signs of wear, cracks, or damage. Replace worn parts as needed.

Проблемаларды чечүү

Көйгөй	Мүмкүн себеп	Чечим
Эч кандай спрей же алсыз спрей	Insufficient pressure; Clogged nozzle; Loose connections.	Pump more to build pressure; Clean the nozzle; Tighten all connections.
Leaking from pump or connections	Loose pump assembly; Worn O-rings/seals; Damaged hose/connections.	Ensure pump is tightly screwed on; Inspect and lubricate/replace O-rings; Check hose and connections for damage.
Trigger lever stays on/spraying continuously	Trigger mechanism stuck or damaged; Pressure not fully released.	Ensure the trigger lock is disengaged; Fully release pressure using the relief valve; Inspect trigger for debris or damage. If damaged, contact customer support.
Difficulty pumping	Dry or worn pump cup/O-ring; Debris in pump cylinder.	Lubricate pump cup/O-ring with silicone grease; Disassemble and clean pump cylinder.

Продукт спецификациялары

Бренд: Скоттс
Модель аты: Scotts 2 Gallon, Multi-Purpose Sprayer
Модель номери: 190499
Көлөмү: 2 галлон
Материал: Полиэтилен (ПЭ)
Түсү: Ак
Элемент Салмагы: 4 фунт
Продукциянын өлчөмдөрү: 8.5 x 8.5 x 21.5 дюйм
Кубат булагы: Manual Winding (Pump Action)
Камтылган компоненттер: 3-in-1 Nozzle, Cleaning Kit, Shoulder Strap
UPC: 841688005068
Өндүрүүчү: FOUNTAINHEAD/BURGESS PROD

Кепилдик жана колдоо

This Scotts Garden Sprayer is backed by a 5 жылдык кепилдик, ensuring quality and durability. For warranty claims, technical support, or replacement parts, please contact Scotts customer service.

Please refer to the product packaging or the official Scotts webакыркы байланыш маалыматы жана деталдуу кепилдик шарттары үчүн сайт.
