1. Киришүү
This manual provides detailed instructions for the proper installation, operation, and maintenance of your Dakota Micro AHD 7-inch Waterproof Monitor, model DM-WH7. This monitor is designed to complement Dakota Micro's ruggedized camera lines, offering seamless compatibility with various camera formats including CVBS, AHD, NTSC, and PAL. Its waterproof design ensures reliable performance in diverse weather conditions.
Сураныч, оптималдуу иштешин жана узак иштөөсүн камсыз кылуу үчүн продуктуну колдонуудан мурун бул колдонмону кылдат окуп чыгыңыз.
2. Продукт бүтүп калдыview
2.1 Негизги өзгөчөлүктөрү
- Бардык аба ырайы шарттарына ылайыктуу суу өткөрбөйт дизайн.
- Integrated sunshield for improved visibility in bright light.
- Includes monitor wire harness with watertight connections.
- Compatible with CVBS, AHD, NTSC, and PAL camera formats.
- 7-inch screen size for clear viewing.
2.2 Компоненттер камтылган
- Dakota Micro AHD 7-inch Waterproof Monitor (DM-WH7)
- Monitor Wire Harness with watertight connections
- Power Cable (e.g., cigarette lighter adapter)
- Монтаждык кашаа жана жабдуу
2.3 Визуалдык маалымдама
Сүрөт 1: Алдыңкы view of the Dakota Micro AHD 7-inch Waterproof Monitor, showing the screen, control buttons, and integrated sunshield.
Figure 2: The monitor wire harness, featuring multiple watertight connectors for camera inputs and power.

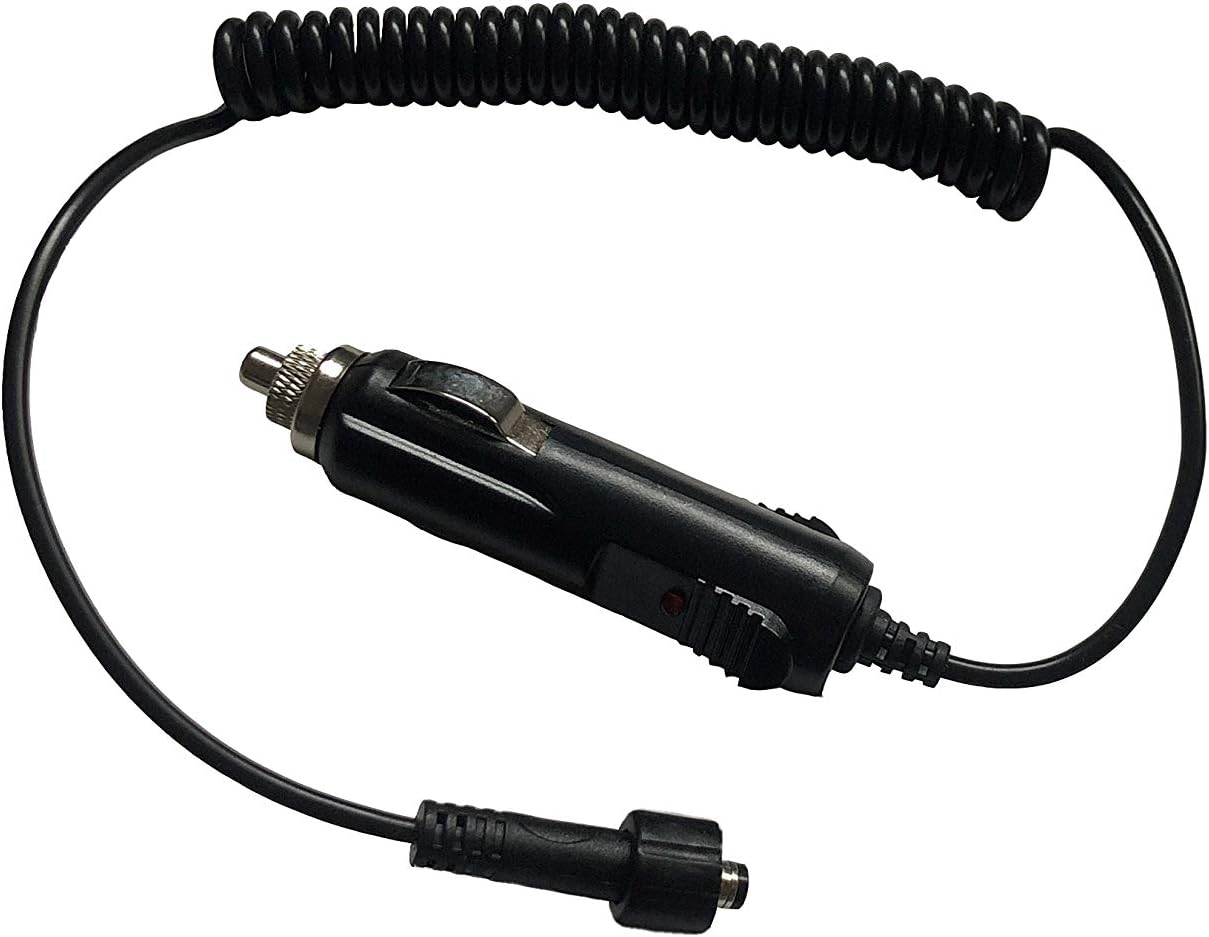

Figure 3: The power cable with a cigarette lighter adapter for convenient power supply.
3. Орнотуу жана орнотуу
3.1 Мониторду орнотуу
- Жайгашкан жерди тандаңыз: Select a stable, flat surface in your vehicle or equipment where the monitor will be easily visible and accessible, but will not obstruct your view же автотранспорттун иштешине тоскоолдук кылуу.
- Кронштейнди бекитүү: Use the provided mounting bracket and hardware to securely attach the monitor to the chosen surface. Ensure all screws are tightened to prevent vibration.
- Бурчту тууралоо: Adjust the monitor's angle for optimal viewing, then tighten the adjustment knobs to fix its position.
3.2 Кубатты туташтыруу
- Кубат кабелин туташтыруу: Plug the power cable into the designated power input on the monitor's wire harness. Ensure a secure, watertight connection.
- Кубат Булагына туташуу: Insert the cigarette lighter adapter into your vehicle's 12V power outlet. The monitor should power on or indicate readiness.
- Alternative Wiring (Optional): For a permanent installation, consult a qualified technician to hardwire the monitor directly to your vehicle's electrical system, ensuring proper fusing and voltage.
3.3 Камераларды туташтыруу
- Identify Camera Inputs: The monitor harness provides multiple inputs for cameras. Identify the appropriate input for your camera type (AHD, CVBS, NTSC, PAL).
- Connect Camera Cables: Connect your Dakota Micro camera cables to the corresponding inputs on the monitor's wire harness. Ensure all connections are watertight and securely fastened.
- Маршруттук кабелдер: Carefully route all cables to avoid pinching, abrasion, or interference with moving parts. Use cable ties or clips to secure them.
4. Иштөө нускамалары
4.1 Күйгүзүү/өчүрүү
- Күйгүзүү: басыңыз Күч button (usually marked with a circle and vertical line icon) on the monitor's front panel. The screen will illuminate.
- Өчүрүү: басып, кармап туруңуз Күч button for a few seconds until the screen turns off.
4.2 Камераны алмаштыруу Views
If multiple cameras are connected, use the AV or Канал тандоо button on the monitor's front panel to cycle through the available camera inputs. Each press will switch to the next connected camera.
4.3 Орнотууларды тууралоо
The monitor features an M (Меню) button to access display settings.
- Менюга кирүү: басыңыз M button to open the on-screen display (OSD) menu.
- Чабыттоо: колдонуу Up жана Төмөн arrow buttons to navigate through menu options (e.g., Brightness, Contrast, Color, Mirror/Flip).
- Маанилерди тууралоо: колдонуу Солго жана Туура arrow buttons to adjust the selected setting's value.
- Менюдан чыгуу: басыңыз M button again or wait for the menu to time out to exit.
Note: Specific button functions may vary slightly. Refer to the icons on your monitor for precise identification.
5. Техникалык тейлөө
- Тазалоо: жумшак колдонуу, damp cloth to clean the monitor screen and casing. Avoid abrasive cleaners or solvents that could damage the surfaces.
- Туташуу текшерүүлөрү: Periodically inspect all cable connections for tightness and signs of wear or corrosion. Ensure watertight seals are intact.
- Сактагыч: If storing the monitor for an extended period, disconnect it from power and store it in a clean, dry environment within its operating temperature range.
- Sunshield: Ensure the sunshield is free from obstructions and clean for optimal glare reduction.
6. Кыйынчылыктарды
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Монитор күйбөйт. | Электр менен камсыздоо жок; байланышы бошоп калган; сактагычы күйүп кеткен. | Check power cable connection; ensure vehicle's 12V outlet is functional; check vehicle's fuse box. |
| Сүрөт көрсөтүлгөн жок. | Camera not connected; incorrect input selected; faulty camera/cable. | Verify camera connections; cycle through AV inputs; test with a known working camera/cable. |
| Image is distorted or poor quality. | Loose cable connection; incompatible camera format; interference. | Secure all connections; ensure camera format matches monitor compatibility; check for strong electromagnetic interference sources. |
| Баскычтар жооп бербейт. | Убактылуу программалык камсыздоонун катасы; физикалык зыян. | Try powering off and on the monitor; if problem persists, contact support. |
7. Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Бренд | Dakota Micro |
| Модел | DM-WH7 |
| Screen Size | 7 дюйм |
| Шайкеш түзмөктөр | Monitor (for various camera types) |
| Орнотуу түрү | Monitor (vehicle-mounted) |
| Оптикалык сенсор технологиясы | CMOS (for compatible cameras) |
| Шайкештик | CVBS, AHD, NTSC, PAL camera formats |
| Өзгөчөлүктөр | Waterproof, Built-in Sunshield, Watertight Connections |
| UPC | 817436014699 |
8. Кепилдик жана колдоо
For warranty information, technical support, or service inquiries, please contact Dakota Micro directly.
- Өндүрүүчү: Dakota Micro
- Webсайт: расмий сапар Dakota Micro Store on Amazon көбүрөөк маалымат жана байланыш маалыматы үчүн.
- Продукт ASIN: B08FTH4VHZ
Always refer to the manufacturer's official website or included documentation for the most current warranty terms and support procedures.
