ANCEL FX9000 OBD2 сканеринин колдонуучу колдонмосу

Продукт бүттүview

The ANCEL FX9000 is an advanced all-system diagnostic scanner designed for comprehensive vehicle analysis. It offers a wide range of functions including full OBD2 modes, 26 special reset services, and supports automatic VIN scanning for quick vehicle identification. With its user-friendly interface and one-click WiFi updates, it provides efficient and convenient diagnostic solutions for both professional mechanics and DIY enthusiasts.

Image: The ANCEL FX9000 diagnostic scanner, showcasing анын дисплей жана башкаруу баскычтары.

Image: Diagram illustrating the extensive automotive coverage of the ANCEL FX9000, including American, Asian, and European vehicles.

Пакеттин мазмуну жана орнотуу

Before using your ANCEL FX9000, please ensure all components are present and follow the setup instructions below.

Image: The ANCEL FX9000 device, carrying case, user manual, OBD2 cable, and power adapter included in the package.

1. асуда

Carefully remove all items from the packaging. Verify that you have the ANCEL FX9000 main unit, OBD2 diagnostic cable, power adapter, and user manual.

2. Баштапкы күйгүзүү жана заряддоо

The device comes with a built-in Lithium-ion battery. For first-time use, it is recommended to fully charge the device using the provided power adapter. Connect the power adapter to the device's charging port and plug it into a standard electrical outlet. The charging indicator will illuminate.

3. Унаага туташуу

1. Locate the vehicle's 16-pin OBD2 diagnostic port. This port is typically found under the dashboard on the driver's side.
2. Ensure the vehicle's ignition is in the "OFF" position.
3. Connect the OBD2 diagnostic cable to the vehicle's OBD2 port.
4. Connect the other end of the diagnostic cable to the ANCEL FX9000 unit.
5. Turn the vehicle's ignition to the "ON" position (engine can be off). The FX9000 will automatically power on and establish communication with the vehicle.

Иштөө нускамалары

The ANCEL FX9000 features an intuitive touch screen interface and physical buttons for navigation. Below are key operational procedures.

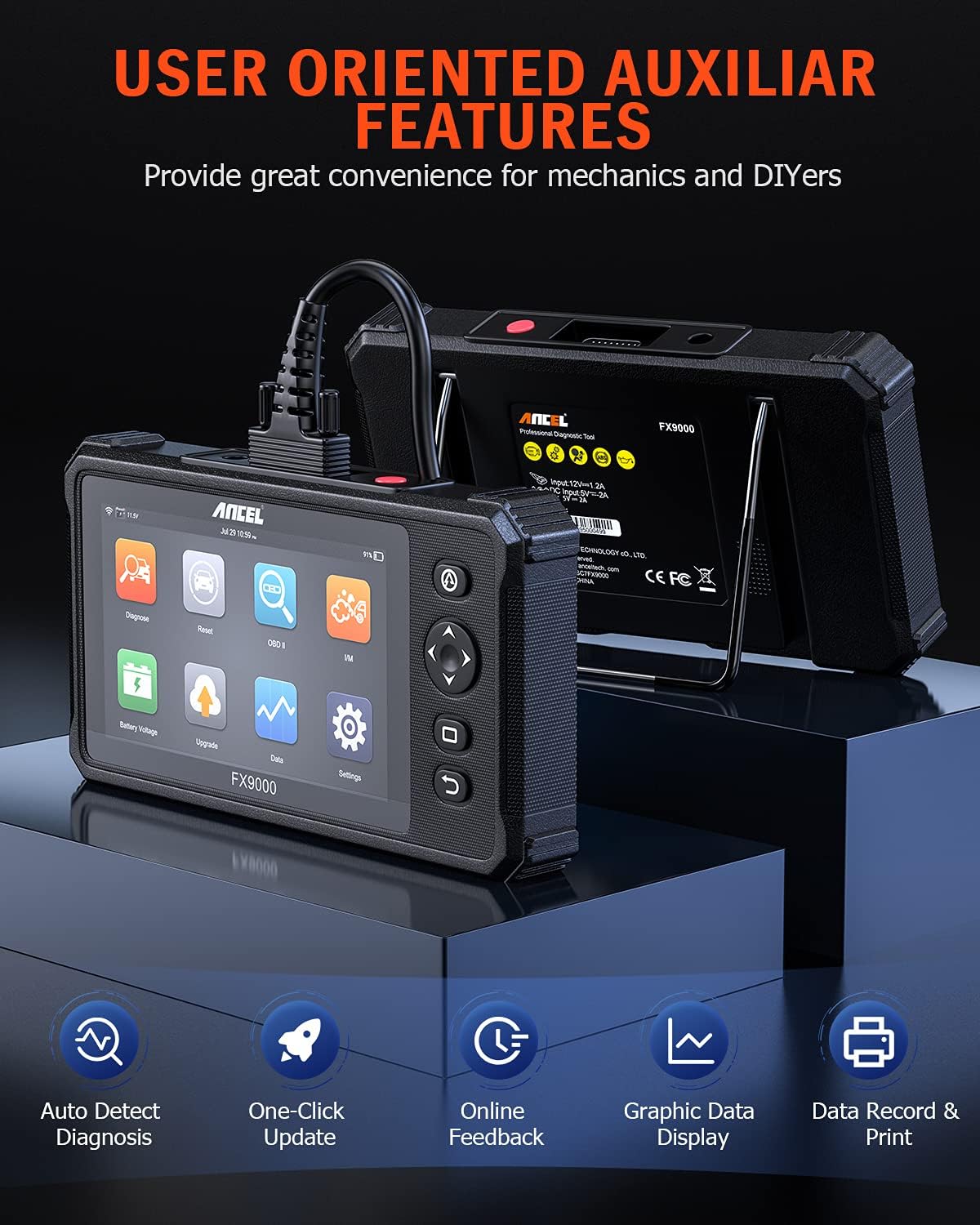

Image: The ANCEL FX9000 display showing main menu icons for diagnosis, updates, data, and settings, highlighting user-oriented features.

1. Негизги меню навигациясы

The main screen displays various icons for different functions:

• Диагноз коюу: Initiates full system diagnostics.
• Кайтаруу: Accesses special reset functions.
• OBD II: Standard OBD2 functions (read/clear codes, live data).
• Мен/М: I/M Readiness status.
• Жаңыртуу: Программалык камсыздоону жаңыртуу үчүн.
• Маалыматтар: Review saved diagnostic data.
• Орнотуулар: Configure device preferences.

2. Performing a Full System Diagnostic

1. From the main menu, tap on the "Diagnose" icon.
2. The device will automatically perform a VIN scan to identify the vehicle. Confirm the vehicle information displayed.
3. Select "Full System Scan" to initiate a comprehensive diagnostic check across all available vehicle systems (Engine, ABS, Transmission, SRS, etc.).
4. Review the diagnostic results, which will highlight any detected fault codes (DTCs).

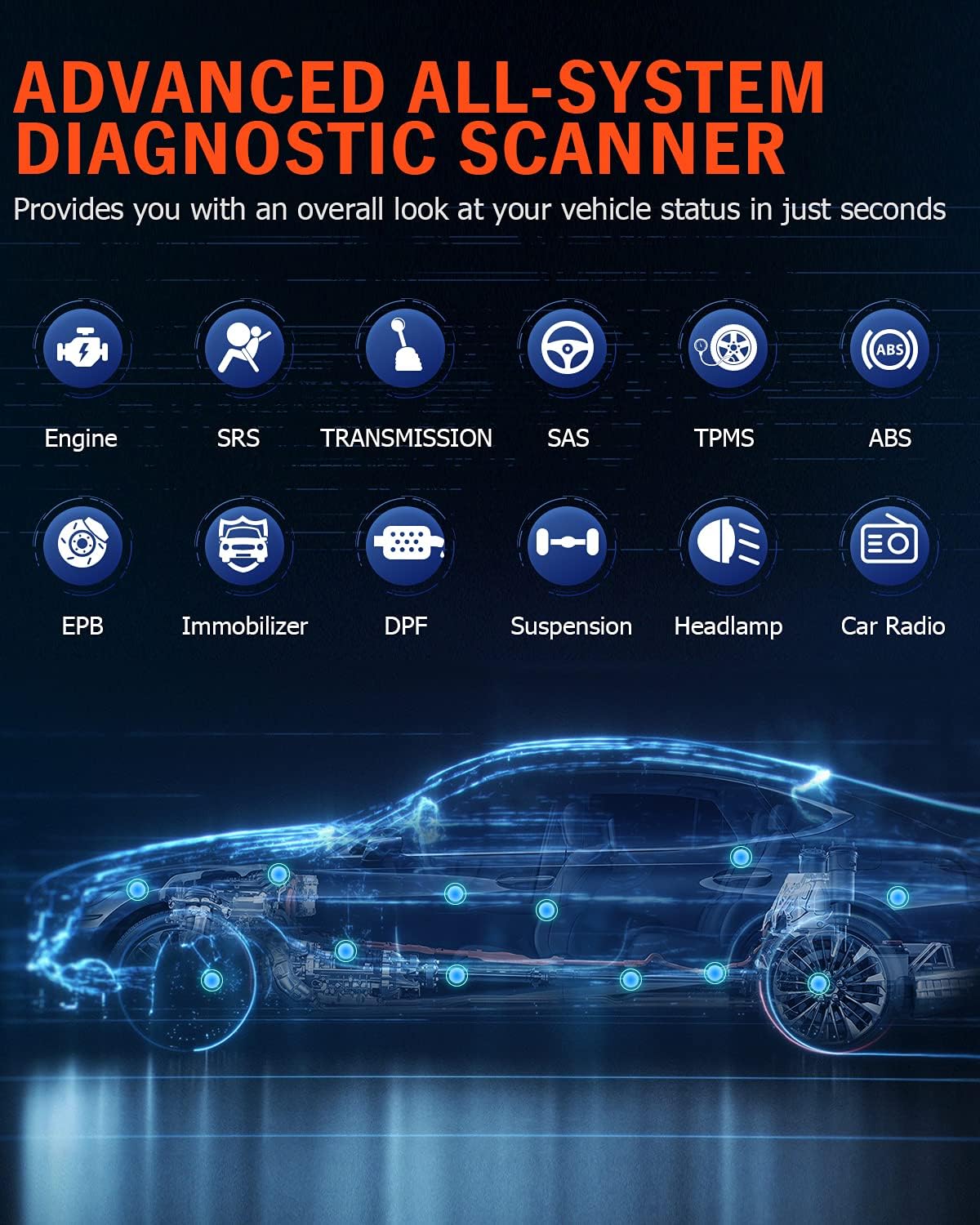

Image: Icons representing various vehicle systems diagnosable by the ANCEL FX9000, including Engine, SRS, Transmission, SAS, TPMS, ABS, EPB, Immobilizer, DPF, Suspension, Headlamp, and Car Radio.

3. Using Special Reset Functions

The FX9000 supports 26 common maintenance and reset services.

1. From the main menu, tap on the "Reset" icon.
2. Select the desired reset function from the list (e.g., "Oil Light Reset", "ABS Bleeding", "DPF Regeneration", "IMMO Service", "SAS Calibration", "EPB Reset", "TPMS Reset").
3. Follow the on-screen prompts to complete the procedure. Specific steps may vary by vehicle make and model.

Image: Visual representation of various reset functions available on the ANCEL FX9000, such as TPMS Reset, Oil Light Reset, Injector Coding, SAS Calibration, DPF Regeneration, ABS Bleeding, EPB Reset, Gearbox Matching, Battery Reset, IMMO Keys, Sunroof Reset, Suspension Reset, AFS Reset, Gear Learning, and TPS Reset.

4. OBD2 Test Modes

Access standard OBD2 functions by tapping the "OBD II" icon.

• Окуу коддору: Учурдагы, күтүлүп жаткан жана туруктуу Диагностикалык Кыйынчылык Коддорун (DTC) көрсөтөт.
• Таза коддор: Erases DTCs from the vehicle's computer. Ensure the underlying issue is resolved before clearing codes.
• Жандуу маалыматтар: Displays real-time data streams from various sensors in text or graph format.
• View Кадр дайындарын тоңдуруп коюу: Shows a snapshot of vehicle conditions when a fault code was set.
• I/M даярдыгы: Чыгарылыштарга байланыштуу мониторлордун абалын текшерет.
• O2 сенсор тести: O2 сенсор монитордун тестинин жыйынтыктарын чыгарат.
• Борттогу монитор тести: Чыгарууларга байланыштуу кыймылдаткычтын компоненттери жана системалары боюнча жыйынтыктарды алат.
• EVAP системасы сыноо: Буулануучу эмиссияны көзөмөлдөө системасын сыноодон өткөрөт.
• Унаа жөнүндө маалымат: Displays VIN, Cal ID, and CVN.

Image: A circular diagram illustrating the full OBDII test modes available on the ANCEL FX9000, including Read Codes, Clear Codes, Data Stream, EVAP Test, I/M Readiness Test, O2 Sensor Test, On-Board Monitor Test, Vehicle Info, and View Фреймдин берилиштерин тоңдуруу.

Техникалык тейлөө

1. Түзмөктү тазалоо

Түзмөктүн экранын жана корпусун жумшак, d менен сүртүңүзamp кездеме. Экранга же экранга зыян келтириши мүмкүн болгон абразивдүү тазалоочу каражаттарды же эриткичтерди колдонуудан алыс болуңуз.asing.

2. Программалык камсыздоону жаңыртуу

The ANCEL FX9000 supports one-click software updates via WiFi. Regular updates ensure optimal performance, expanded vehicle compatibility, and new features.

1. Connect the device to a stable Wi-Fi network via "Settings" > "Wi-Fi".
2. From the main menu, tap on the "Upgrade" icon.
3. The system will check for available updates. Follow the on-screen instructions to download and install them.

3. Батареяга кам көрүү

Батареянын иштөө мөөнөтүн узартуу үчүн, аппаратты экстремалдык температурага дуушар кылбаңыз. Эгер аппарат узак мөөнөткө колдонулбаса, аны жарым-жартылай кубаттоо менен (болжол менен 50%) сактап, бир нече ай сайын кайра заряддаңыз.

Проблемаларды чечүү

If you encounter issues not listed here or require further assistance, utilize the "Feedback" function on the device to send a report to ANCEL technical support for professional help.

Техникалык шарттар

Image: Visual representation of the ANCEL FX9000's technical specifications, including Android 7.0 OS, 7" HD Touch Screen, 6000mAh Battery, WiFi, 16GB ROM, 2GB RAM, and 1024*600 Screen Pixels.

• Модел: FX9000
• Операция системасы: Android 7.1
• Экран: 7-inch HD Touch Screen (1024*600 pixels)
• Батарея: 1 Lithium-ion (6000mAh)
• Эстутум: 2 ГБ ОЗУ, 16 ГБ ROM
• Байланыш: Wi-Fi
• Өлчөмдөрү (L x W x Y): 29.5 x 7.5 x 23 см (болжол менен 11.6 x 3.0 x 9.1 дюйм)
• Элемент Салмагы: 1.61 килограмм (болжол менен 3.55 фунт)
• Колдоого алынган протоколдор: J1850 VPM, J1850PWM, ISO9141, KWP 2000, CAN
• Унаа шайкештиги: Most 1996 and newer 12V OBD II compliant cars and light trucks.
• Колдоого алынган тилдер: English, French, Spanish, Russian, Japanese, German, Italian, Portuguese, Korean.

Кепилдик жана колдоо

ANCEL products are designed for reliability and performance. For any technical assistance or warranty inquiries, please contact ANCEL customer support.

• Техникалык колдоо: Use the "Feedback" function within the device's software to directly send diagnostic reports and inquiries to ANCEL's technical team.
• Продукциянын кайтарылышы: If you are not satisfied with your product and choose to return it, please mark it as unsellable to prevent a used device from being resold to other customers.
• Шайкештикти текшерүү: Before purchase, it is recommended to verify compatibility with your specific vehicle model. Special functions may have specific vehicle requirements.
