1. Киришүү
The BLUEAIR DustMagnet 5210i is an advanced air purifier designed to improve indoor air quality by effectively removing airborne particles such as dust, pet dander, smoke, mold, pollen, bacteria, and viruses. Featuring HEPASilent™ dual filtration technology and smart capabilities, this unit provides efficient and quiet air purification for small to medium-sized rooms.
This manual provides essential information for the safe and effective use of your DustMagnet 5210i air purifier, including setup, operation, maintenance, and troubleshooting.
2. Коопсуздук маалыматы
Please read all safety instructions carefully before operating the appliance to reduce the risk of fire, electric shock, or injury.
- Always unplug the air purifier before moving, cleaning, or performing maintenance.
- Шайманды шнур же сайгыч бузулуп иштетпеңиз.
- Электр шнурын ысытылган беттерден алыс кармаңыз.
- Аба тазалагычты нымдуу жерде колдонбоңуз же damp чөйрөлөр, мисалы, жуунучу бөлмөлөр.
- Түзмөктүн айланасында жакшы желдетүүнү камсыз кылыңыз; аба кирүүчү же чыгуучу тешиктерди жаппаңыз.
- Бул шайман физикалык, сезүү же акыл-эс жөндөмү начар адамдар тарабынан колдонууга арналбайт, эгерде жооптуу адамдын көзөмөлү астында же көрсөтмөсүз.
- Only use original BLUEAIR replacement filters.
3. Продукт бүтүп калдыview
The DustMagnet 5210i features a sleek design with a convenient tabletop surface. It utilizes HEPASilent™ dual filtration technology for maximum filtration with minimum noise. Key components include the control panel, air inlets, air outlets, and dual filters.
Figure 3.1: BLUEAIR DustMagnet 5210i Air Purifier. This image shows the complete air purifier unit, highlighting its compact and modern design suitable for various room settings.
3.1 Башкаруу панели
The top of the unit features an intuitive control panel with touch buttons and LED indicators for easy operation.
Figure 3.2: Control Panel. This image details the control panel buttons and LED indicators, including On/Off, WiFi, Filter Replacement Warning, Fan Speed, Auto Mode, and Night Mode.
- Күйгүзүү/өчүрүү баскычы: Аппаратты күйгүзөт же өчүрөт.
- WiFi көрсөткүчү: Shows connection status to the Blueair app.
- Фильтрди алмаштыруу жөнүндө эскертүү: Illuminates when it's time to replace filters.
- Желдетүүчү ылдамдык баскычы: Cycles through fan speeds (1, 2, 3).
- Автоматтык режим баскычы: Activates automatic fan speed adjustment based on air quality.
- Night Mode Button: Lowers fan speed and dims LED lights for quiet operation.
3.2 HEPASilent™ Dual Filtration Technology
This technology combines mechanical filtration with electrostatic charging to capture 99.97% of airborne particles down to 0.1 micron, including smoke, dust, viruses, and pet dander. The integrated carbon filter also traps light household odors.
Figure 3.3: HEPASilent™ Dual Filtration Technology. This image illustrates the concept of HEPASilent technology, showing how it achieves maximum filtration with minimum noise compared to traditional HEPA.
4. Орнотуу
4.1 Пакеттен чыгаруу жана жайгаштыруу
- Аба тазалагычты таңгагынан кылдаттык менен чыгарып алыңыз.
- Place the unit on a flat, stable surface. Ensure there is at least 4 inches (10 cm) of clear space around the unit for optimal airflow.
- The DustMagnet 5210i is designed for rooms up to 212 sq. ft. for optimal performance.
4.2 Чыпканы орнотуу
The unit comes with two combo-filters. Ensure they are correctly installed before first use.
- Агрегатты розеткадан сууруп алыңыз.
- Open the filter compartments (refer to product diagram for location).
- Insert the filters. For the top filter, ensure the white accordion folds face upwards. For the bottom filter, ensure the black charcoal side faces upwards. While filter direction does not affect efficiency, this orientation is recommended for consistency.
- Close the filter compartments securely.
4.3 Кубат туташтыруу
Электр шнурын жерге туташтырылган электр розеткасына сайыңыз.
4.4 Connecting to the Blueair App
For advanced features and remote control, download the Blueair app from your smartphone's app store. Follow the in-app instructions to connect your DustMagnet 5210i to your home Wi-Fi network.
Figure 4.1: Blueair App Interface. This image displays the Blueair app interface, showing smart sensor tracking, Clean Air ETA, Welcome Home function, Night Mode, and Voice Control integration with Alexa and Google Home.
Колдонмо сизге мүмкүнчүлүк берет:
- Track real-time air quality.
- Желдеткичтин ылдамдыгын жана иштөө режимдерин алыстан тууралаңыз.
- Set schedules and activate features like 'Welcome Home'.
- Monitor filter life and receive replacement reminders.
- Integrate with Amazon Alexa and Google Home for voice control.
5. Иштөө нускамалары
5.1 Күйгүзүү/өчүрүү
басыңыз On/Off башкаруу панелиндеги баскычты басып, түзмөктү күйгүзүңүз же өчүрүңүз.
5.2 Желдетүүчү ылдамдыгын жөндөө
басыңыз Fan Speed button to cycle through three fan speeds (1, 2, 3). The corresponding LED indicator will light up.
5.3 Авто режим
басыңыз Auto Mode button to activate. In Auto Mode, the air purifier automatically adjusts its fan speed based on the detected air quality, optimizing performance and energy consumption.
5.4 Түнкү режим
басыңыз Түнкү режим button. This mode lowers the fan speed to its quietest setting (23 dB) and dims the LED lights for an undisturbed sleep environment.

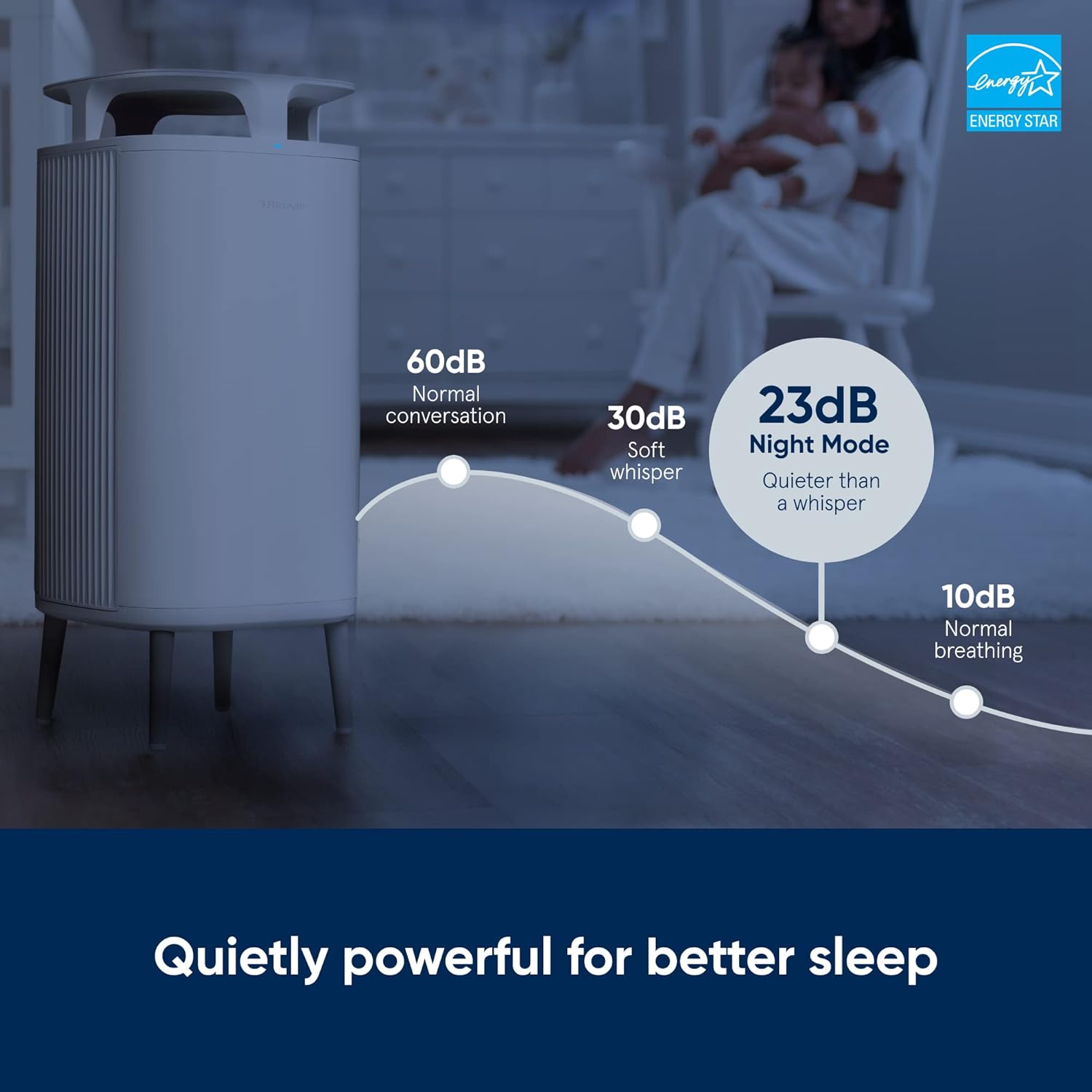

Figure 5.1: Night Mode Sound Levels. This image illustrates the low noise level of the air purifier in Night Mode (23 dB), comparable to a whisper, ensuring quiet operation for better sleep.
5.5 Балдардан кулпу
To prevent unintended changes to settings, activate the Child Lock feature via the Blueair app. This deactivates the control buttons on the unit itself, allowing control only through the app.
5.6 Абанын сапатынын көрсөткүчү
The unit features a 5-color LED indicator that provides real-time feedback on your indoor air quality. Refer to the Blueair app for detailed information on pollutant levels.
5.7 Расмий продукт Video
Видео 5.1: Продукт бүттүview. Бул видео жалпы маалымат беретview of the BLUEAIR DustMagnet 5210i Air Purifier, demonstrating its features and operation.
6. Техникалык тейлөө
6.1 Фильтрди алмаштыруу
The filter replacement warning indicator on the control panel will illuminate when it's time to replace the filters. For optimal performance, filters should be replaced approximately every 6 months, depending on usage and air quality.
- Аба тазалагычты розеткадан сууруп алыңыз.
- Open the filter compartments.
- Remove the old filters and dispose of them responsibly.
- Install new original BLUEAIR combo-filters, ensuring correct orientation as described in Section 4.2.
- Close the filter compartments securely.
- Plug the unit back in. The filter warning light should reset automatically. If not, consult the troubleshooting section or the Blueair app.
6.2 Агрегатты тазалоо
Regular cleaning helps maintain the efficiency and appearance of your air purifier.
- Сырткы: Сырткы беттерин жумшак менен сүртүңүз, гamp кездеме. Абразивдүү тазалагычтарды же эриткичтерди колдонбоңуз.
- Алдын ала чыпкалар: The stainless steel pre-filters can be gently wiped clean to remove accumulated dust.
- Do not immerse the unit in water or allow water to enter the air outlets.
7. Кыйынчылыктарды
If you experience issues with your DustMagnet 5210i, refer to the table below for common problems and solutions. For more detailed troubleshooting, consult the Blueair app or the official Blueair support webсайт.
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Түзмөк күйбөйт. | No power, power cord loose. | Электр тармагына туташууну текшериңиз, розетка иштеп турганын текшериңиз. |
| Airflow is weak or air quality not improving. | Clogged filters, unit in low fan speed. | Check filter replacement indicator; replace filters if needed. Increase fan speed or activate Auto Mode. |
| Filter replacement indicator remains on after changing filters. | Sensor not reset, filter not installed correctly. | Ensure filters are seated properly. Consult the Blueair app for manual reset instructions if necessary. |
| Cannot connect to Wi-Fi or Blueair app. | Incorrect Wi-Fi password, router issues, unit too far from router. | Verify Wi-Fi password. Restart router and air purifier. Move unit closer to router. Ensure 2.4GHz network is used. |
| Агрегаттан адаттан тыш ызы-чуу. | Obstruction in fan, loose component. | Unplug the unit and check for any foreign objects. If noise persists, contact customer support. |
8. Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Модель номери | 5210i |
| Бренд | КӨК ЭЭР |
| Продукциянын өлчөмдөрү (D x W x Y) | 9.1" x 9.1" x 20.5" (23.1 см x 23.1 см x 52.1 см) |
| Элемент Салмагы | 6.03 фунт (2.74 кг) |
| Полдун аянты | 212 Square Feet (optimal) |
| Ызы-чуу деңгээли | 23 dB (Night Mode) - 31 dB (Low) |
| Ватtage | 22 ватт (максимум) |
| Бөлүкчөлөрдү кармоо өлчөмү | 0.1 микрон |
| Controller Type | Touch Panel, Blueair App, Amazon Alexa, Google Home |
| Specification Met | AHAM Certified, ENERGY STAR rated |
| UPC | 689122015200 |
Figure 8.1: Air Changes Per Hour (ACH) and Time to Clean Air. This table illustrates the performance of the air purifier across different room sizes, showing the time required to achieve clean air and the corresponding ACH rating.
9. Кепилдик жана колдоо
9.1 Кепилдик маалыматы
BLUEAIR products are manufactured to the highest quality standards. For detailed warranty terms and conditions, please refer to the warranty card included with your product or visit the official BLUEAIR webсайт. Кепилдик дооматтар үчүн сатып алганыңыздын далилин сактаңыз.
9.2 Кардарларды колдоо
For technical assistance, replacement parts, or general inquiries, please contact BLUEAIR customer support. You can find contact information on the official BLUEAIR website or through the Blueair app.
