Jansite Portable Cordless Tire Inflator User Manual

1. Киришүү

Thank you for choosing the Jansite Portable Cordless Tire Inflator. This device is designed for convenient and efficient inflation of various items, including car tires, bicycle tires, motorcycle tires, sports balls, and inflatable toys. Featuring a powerful 150PSI capacity, a 3000mAh rechargeable battery, a digital LED display, and an automatic shut-off function, this inflator provides a reliable solution for your inflation needs. Please read this manual thoroughly before use to ensure proper operation and safety.

This image displays the main unit of the Jansite Portable Cordless Tire Inflator alongside its flexible inflation hose and a set of interchangeable nozzles for different applications.

2. Коопсуздук нускамалары

Жарааттарды же зыянды болтурбоо үчүн, ар дайым төмөнкү коопсуздук чараларын сактаңыз:

• Аппаратты балдардан алыс кармаңыз.
• Үйлөгүчтү нымдуу шарттарда же тез күйүүчү суюктуктардын же газдардын жанында иштетпеңиз.
• Avoid prolonged continuous operation. Allow the device to cool down after 10-15 minutes of use to prevent overheating.
• Толтурулуп жаткан нерсе үчүн басымдын туура орнотулушун камсыз кылыңыз. Ашыкча инфляция олуттуу жаракат же зыян алып келиши мүмкүн.
• Do not point the inflation nozzle at people or animals.
• Берилген аксессуарларды жана кубаттоочу кабелди гана колдонуңуз.
• If the device shows signs of damage, do not use it. Contact customer support.

3. Пакеттин мазмуну

Сураныч, бардык буюмдар бар экенин текшерүү үчүн пакетти текшериңиз:

This image displays all items included in the product package: the main inflator unit, inflation hose, various nozzles, a carrying pouch, a user manual, and a USB charging cable.

• Jansite Portable Cordless Tire Inflator Unit
• Ийкемдүү үйлөтүүчү шланг
• Presta Valve адаптери
• Ball Needle
• Swim Ring Nozzle
• USB заряддоо кабели
• Сактоочу баштык
• Колдонуучунун Колдонмосу (бул документ)

4. Продукт бүтүп калдыview

Familiarize yourself with the components and controls of your inflator:

A detailed diagram illustrating the physical dimensions of the inflator (221mm height, 55mm width) and labeling its control panel components, including the power display, power switch, unit switch, digital LCD display, pressure value adjustment buttons, USB input/output, and internal storage for small nozzles.

1. Power Display: Батареянын деңгээлин көрсөтөт.
2. Кубат которгучу: Аппаратты күйгүзөт/өчүрөт.
3. Бирдикти которуштуруу: Cycles through pressure units (PSI, BAR, KPA, KG/CM²).
4. Digital LCD дисплей: Shows current and preset pressure.
5. Pressure Value Adjustment Buttons (+/-): Increases or decreases target pressure.
6. USB киргизүү: Үйлөгүчтү заряддоо үчүн.
7. Output for Power Bank: Тышкы түзмөктөрдү кубаттоо үчүн.
8. Small Nozzle Storage: Convenient compartment for accessories.

5. Аппаратты заряддоо

Before first use, fully charge the inflator. The device features a 3000mAh rechargeable battery.

• Connect the provided USB charging cable to the USB input port on the inflator.
• Connect the other end of the USB cable to a suitable USB power adapter (not included) or a computer USB port.
• The power display will indicate the charging status. Once fully charged, the indicator will show a full battery.
• Толук кубаттоо адатта бир нече саатка созулат.

This image highlights the inflator's separate battery design, emphasizing its long standby time of approximately 120 days, which contributes to extended battery life.

6. Операция

6.1. Basic Inflation Steps

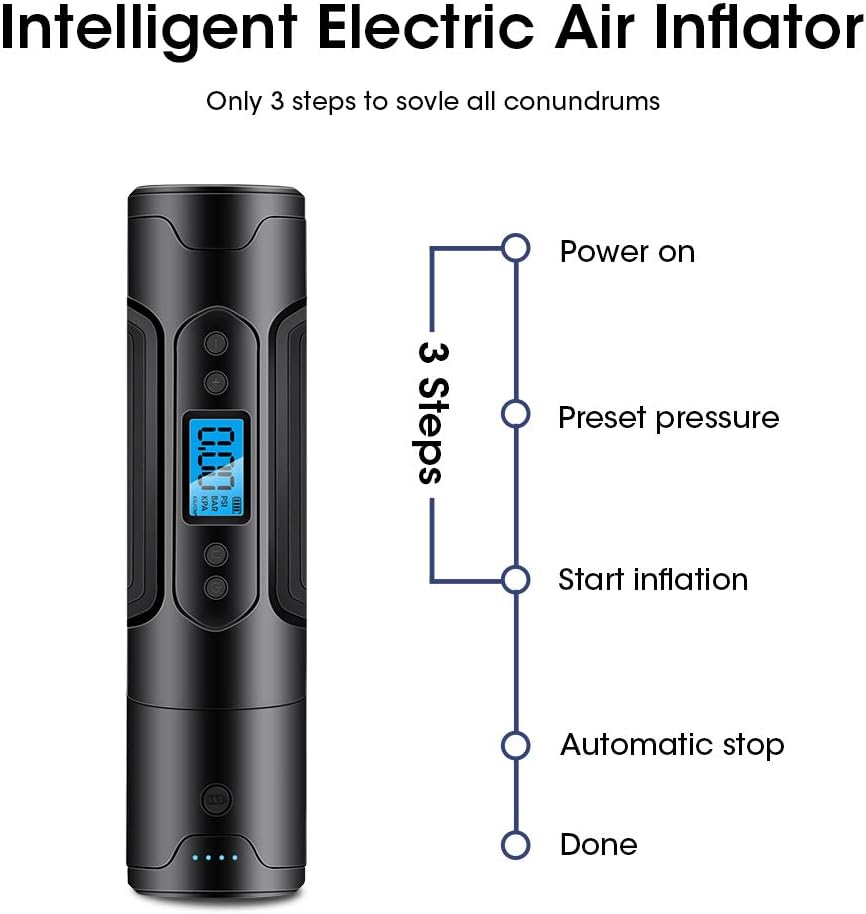

This diagram outlines the simple three-step process for using the inflator: Power on, Preset pressure, and Start inflation, followed by automatic stopping when the target pressure is reached.

1. Күйгүзүү: Press the Power Switch to turn on the device. The digital display will illuminate.
2. Бирдикти тандоо: Press the Unit Switch to cycle through desired pressure units (PSI, BAR, KPA, KG/CM²).
3. Максаттуу басымды коюу: Use the Pressure Value Adjustment Buttons (+/-) to set your desired target pressure. Refer to the item's manufacturer recommendations for correct pressure.
4. Туташтыруу шланг: Screw the flexible inflation hose onto the inflator's air outlet. Attach the appropriate nozzle to the hose if needed (e.g., for balls or swim rings).
5. Элементке туташуу: Securely connect the inflation hose/nozzle to the valve stem of the item you wish to inflate.
6. Инфляциянын башталышы: Press the Power Switch again to begin inflation. The display will show the current pressure increasing.
7. Автоматтык токтотуу: Алдын ала коюлган максаттуу басымга жеткенде, үйлөгүч автоматтык түрдө токтойт.
8. Ажыратуу: Carefully disconnect the hose from the item and then from the inflator.

6.2. LED жарыгын колдонуу

The inflator is equipped with an LED light for illumination in low-light conditions.

• To turn on the LED light, press and hold the Power Switch for 3 seconds while the device is on.
• To turn off the LED light, press and hold the Power Switch for 3 seconds again.

6.3. Power Bank функциясы

The detachable battery can be used as a power bank to charge other USB-powered devices.

An illustration showing the inflator's dual functionality: its detachable battery can act as a power bank to charge mobile devices, and the integrated LED light provides emergency illumination for up to 7 hours at 80 lumens.

• Ensure the inflator's battery is charged.
• Connect your device's USB charging cable to the USB output port on the inflator.
• Үйлөгүч түзмөгүңүздү кубаттай баштайт.

Иллюстрациялык көрсөтүүasing the key features of the Jansite air pump, including its digital pressure display, integrated power bank functionality, LED light for illumination, and automatic shut-off capability upon reaching the preset pressure.

An image demonstrating the versatility of the inflator, showing its use for inflating car tires, bicycle tires, sports balls, and various swim rings or inflatable toys.

7. Техникалык тейлөө

• Тазалоо: Аппаратты жумшак, кургак чүпүрөк менен сүртүңүз. Катуу химиялык заттарды же абразивдүү тазалагычтарды колдонбоңуз.
• Сактагыч: Store the inflator in a cool, dry place, away from direct sunlight and extreme temperatures. Ensure the battery is partially charged (around 50%) if storing for extended periods to prolong battery life.
• Батареяга кам көрүү: Charge the battery regularly, even if not in use, to maintain its health. Avoid completely draining the battery frequently.

8. Кыйынчылыктарды

9. Техникалык шарттар

10. Кепилдик жана колдоо

Jansite is committed to providing quality products. For any questions, technical support, or warranty inquiries regarding your Portable Cordless Tire Inflator, please refer to the contact information provided with your purchase or visit the official Jansite webсайт.

Кепилдик дооматтары үчүн сатып алганыңыздын далилин сактап коюңуз.
