KarParts360 Heater Core Installation and Maintenance Guide

1. Киришүү

This manual provides essential information regarding the KarParts360 Front Heater Core, designed as a direct replacement for specific Acura and Honda models. It covers product specifications, installation considerations, operational function, maintenance recommendations, and troubleshooting tips. Proper installation and maintenance are crucial for optimal performance and longevity of the component.

2. Продукттун спецификациялары

The KarParts360 Heater Core is engineered to meet or exceed DOT & SAE compliance standards, ensuring a precise fit and reliable performance.

• Бренд: KarParts360
• Бөлүк түрү: Жылыткыч өзөгү
• Жайгашкан жери: Фронт
• Негизги өлчөмдөрү: 8.25 inches (Length) x 6.88 inches (Width) x 1 inch (Thickness)
• Кирүү көлөмү: 0.75 дюйм
• Розетканын көлөмү: 0.63 дюйм
• Replaces DPI Number: 8024
• OEM бөлүктүн номери: 79110S84A01
• Модель номери: CLX-M0-USA-REPH503002-CL360A72
• Салмагы: Болжол менен 2.6 фунт
• Продукциянын өлчөмдөрү: 15.09 x 12.23 x 5.83 дюйм (упаковка)

Сүрөт 1: Алдыңкы view of the KarParts360 Heater Core, showing the core and inlet/outlet pipes.

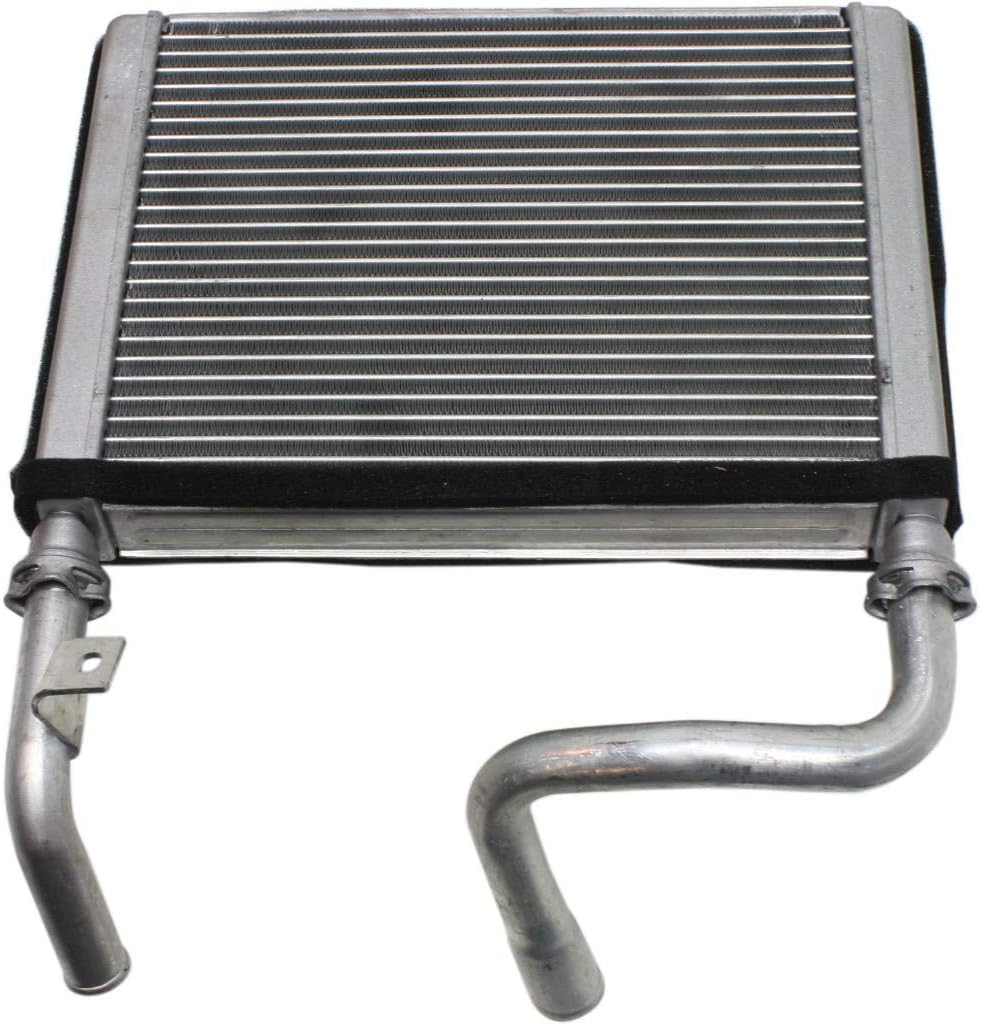

Сүрөт 2: Жогорку view of the KarParts360 Heater Core, highlighting the fin structure.

3. Шайкештик жөнүндө маалымат

This heater core is designed for direct replacement in the following vehicle models:

• Acura MDX: 2001, 2002, 2003, 2004, 2005, 2006
• Хонда Аккорд: 1998, 1999, 2000, 2001, 2002
• Honda Pilot: 2003, 2004, 2005, 2006, 2007, 2008

Important: Please confirm the OEM part number (79110S84A01) or Partslink number matches your current part exactly before purchasing or installing to ensure proper fitment.

Image 3: Vehicle orientation diagram. The heater core is a front-located component, typically central, but this diagram helps clarify 'left' (driver side) and 'right' (passenger side) for other parts.

4. Орнотуу боюнча көрсөтмөлөр

Installation of a heater core involves working with the vehicle's cooling system and interior components. Due to the complexity and potential for coolant leaks or damage to other vehicle systems, professional installation by a certified mechanic is highly recommended.

4.1. General Steps (Overview)

1. Биринчи коопсуздук: Ensure the vehicle is turned off, cooled down, and properly supported. Disconnect the battery.
2. Муздаткычты төгүү: Safely drain the engine coolant into a suitable container.
3. Access Heater Core: This typically involves removing dashboard components, which can be extensive.
4. Шлангдарды ажыратыңыз: Carefully disconnect the heater hoses from the old heater core. Be prepared for residual coolant.
5. Remove Old Core: Unfasten and remove the old heater core.
6. Install New Core: Position the new KarParts360 heater core and secure it. Reconnect heater hoses, ensuring clampлар тыгыз.
7. Кайра чогултуу: Reinstall all removed dashboard and interior components.
8. Муздаткычты кайра толтуруу: Refill the cooling system with the manufacturer-specified coolant. Bleed the system to remove air pockets.
9. Сыноо системасы: Start the vehicle, check for leaks, and verify proper heater operation. Monitor coolant levels.

4.2. Коопсуздук чаралары

• Ар дайым тиешелүү жеке коргонуу шаймандарын (ЖКК), анын ичинде коргоочу көз айнектерди жана кол каптарды кийиңиз.
• Муздаткыч уулуу. Аны этияттык менен колдонуп, жергиликтүү эрежелерге ылайык туура жок кылыңыз.
• Ensure the vehicle is completely cool before working on the cooling system to avoid burns from hot coolant or steam.
• Refer to your vehicle's specific service manual for detailed, model-specific instructions.

5. Функция жана иштөө

The heater core is a small radiator-like device located within the vehicle's dashboard. Its primary function is to transfer heat from the engine's hot coolant to the air that is then blown into the passenger cabin, providing warmth. Engine coolant circulates through the heater core, and a fan blows air across its fins, warming the air before it enters the vehicle's interior through the vents. This process is controlled by the vehicle's climate control system.

6. Техникалык тейлөө

While the heater core itself typically requires no direct maintenance, its longevity is heavily dependent on the overall health of the vehicle's cooling system. Regular maintenance of the cooling system will help prevent premature failure of the heater core.

• Coolant Flushes: Follow your vehicle manufacturer's recommendations for regular coolant flushes and replacements. This prevents corrosion and buildup of contaminants that can clog the heater core.
• Use Correct Coolant: Always use the type and concentration of coolant specified by your vehicle manufacturer. Mixing different types of coolant can lead to chemical reactions and system damage.
• Агышууларды текшерүү: Periodically inspect cooling system hoses, connections, and the radiator for any signs of leaks. Address any leaks promptly to maintain proper coolant levels and pressure.
• Monitor Temperature Gauge: Pay attention to your vehicle's temperature gauge. Overheating can put excessive stress on all cooling system components, including the heater core.

7. Жалпы көйгөйлөрдү чечүү

If you experience issues with your vehicle's heating system, the heater core may be a contributing factor. Here are common symptoms of a failing heater core:

• Жылуулук жок же жетишсиз жылуулук: If the engine reaches operating temperature but the cabin air remains cold or only slightly warm, the heater core might be clogged or have air trapped in it.
• Sweet Odor Inside Cabin: A distinct sweet smell, similar to maple syrup, often indicates a coolant leak from the heater core into the cabin.
• Foggy Windows: Coolant leaking from the heater core can evaporate and condense on the inside of the windshield and windows, causing them to fog up.
• Муздаткычтын агып кетиши: Visible puddles of coolant on the passenger side floorboard are a strong indicator of a leaking heater core.
• Мотордун ысып кетиши: While less common, a severely clogged heater core can restrict coolant flow, potentially contributing to engine overheating.

If you observe any of these symptoms, it is advisable to have your vehicle inspected by a qualified technician.

8. Кепилдик жана юридикалык маалымат

This KarParts360 heater core is a premium aftermarket replacement product. It is designed to be an exact fit to original equipment manufacturer (OEM) specifications. All items are DOT and SAE certified, constructed with high-quality material to ensure structural strength and integrity.

8.1. Юридикалык жоопкерчиликтен баш тартуу

Бул продукт түздөн-түз алмаштырылуучу рыноктон кийинки продукт. Ал OEM эмес жана тизмеде көрсөтүлгөн унаа өндүрүүчүсү тарабынан өндүрүлбөйт жана сатылбайт. Биз унаа өндүрүүчүсү менен байланышта эмеспиз.

8.2. Колдоо

For further assistance or inquiries regarding this product, please refer to the KarParts360 official website or contact their customer support channels. Always provide your product model number (CLX-M0-USA-REPH503002-CL360A72) and OEM part number (79110S84A01) when seeking support.
