1. Продукт бүтүп калдыview
This manual provides instructions for the JIARUIXIN 12V Central Control Switch, designed as a replacement part for children's electric ride-on vehicles. This multi-function unit integrates power supply, central control, Bluetooth connectivity, music playback, and power display features.

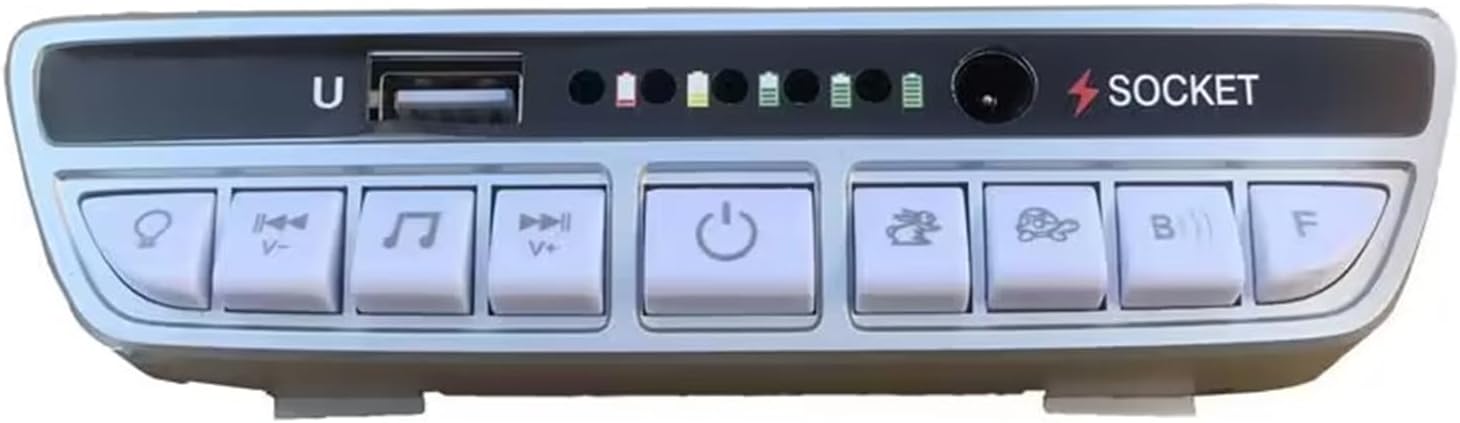

Сүрөт 1.1: Алдыңкы view of the JIARUIXIN 12V Central Control Switch. This image displays the user interface with various buttons and ports, including a USB port, power indicator lights, and a power socket.
Негизги өзгөчөлүктөрү:
- Music playback functionality.
- Storytelling feature.
- Integrated power supply display.
- Adjustable speed settings.
- Bluetooth connection capability.
2. Орнотуу жана орнотуу
This central control switch is intended for installation in 12V children's powered ride-on cars. Ensure the vehicle's power system is compatible with a 12V unit before proceeding. Professional installation is recommended if you are unfamiliar with electrical components.
Орнотуу кадамдары:
- Биринчи коопсуздук: Disconnect the main power source from the children's electric vehicle before beginning any installation.
- Access the Control Panel Area: Carefully remove any covers or panels necessary to access the existing control unit or the designated installation area.
- Шайкештикти текшерүү: Compare the appearance and connectors of the new JIARUIXIN control switch with the original unit or the vehicle's wiring harness. Ensure all connections match.
- Зымдарды туташтыруу: Connect the wiring harness from the vehicle to the corresponding ports on the new central control switch. Pay close attention to polarity and connector types.
- Агрегатты коопсуздандырыңыз: Mount the central control switch securely within the designated slot or housing in the vehicle.
- Кубатты кайра туташтыруу: Once the unit is securely installed and all connections are verified, reconnect the vehicle's main power source.
- Сыноо функциясы: Power on the vehicle and test all functions of the new control switch, including power display, music, Bluetooth, and speed adjustment.
Сүрөт 2.1: Арткы view of the JIARUIXIN 12V Central Control Switch circuit board. This image shows the various electronic components and connection ports on the reverse side of the control unit, crucial for wiring during installation.
Important: Ensure the purchased part has the same appearance and connector configuration as the original unit to ensure proper fit and function.
3. Иштөө нускамалары
The JIARUIXIN 12V Central Control Switch offers several functions for an enhanced ride-on experience. Familiarize yourself with the button layout and indicators.
Image 3.1: Close-up of the JIARUIXIN 12V Central Control Switch front panel. This image highlights the individual buttons and their corresponding icons, such as power, music controls, and mode selections.
Баскыч функциялары:
- Кубат баскычы (⏻): Бирдикти күйгүзүү же өчүрүү үчүн басыңыз.
- Music Playback (♫): Press to play or pause music. Use the adjacent buttons (V- / V+) to skip tracks or adjust volume.
- Bluetooth Connection (B): Activate Bluetooth mode to pair with a compatible device for audio streaming. Refer to your device's Bluetooth pairing instructions.
- Speed Adjustment (F): Cycles through available speed settings (e.g., slow, medium, fast) for the electric vehicle.
- Storytelling/Mode Button (Icon varies): Activates storytelling mode or switches between different operational modes.
- Power Display Indicators: A series of LED lights (typically 4-5) indicate the current battery charge level of the 12V system.
- USB Port (U): For connecting USB devices, potentially for music playback from a USB drive.
- Socket (⚡ SOCKET): Power input/output port for the 12V system.
4. Техникалык тейлөө
To ensure the longevity and proper function of your JIARUIXIN Central Control Switch, follow these maintenance guidelines:
- Тазалоо: Use a soft, dry cloth to wipe the surface of the control panel. Avoid using abrasive cleaners or solvents, which can damage the plastic and electronic components.
- Курчап турган чөйрөнү коргоо: Keep the unit dry and away from direct sunlight or extreme temperatures. Moisture can cause damage to the internal circuitry.
- Туташуу текшерүүлөрү: Мезгил-мезгили менен бардык зымдарды байланыштарды текшерип, алар бекем жана коррозияга учурабайт.
- Сактагыч: If the electric vehicle is stored for an extended period, ensure the control unit is clean and dry.
5. Кыйынчылыктарды
If you encounter issues with your central control switch, refer to the following common problems and solutions:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Түзмөк күйбөйт. | No power from vehicle battery; loose connection; faulty unit. | Check vehicle battery charge. Verify all wiring connections are secure. If issues persist, the unit may require replacement. |
| Music/Sound not working. | Volume too low; incorrect mode selected; faulty speaker connection. | Increase volume. Ensure correct mode (e.g., Bluetooth, USB) is selected. Check speaker wiring. |
| Bluetooth байланышы ишке ашпай калды. | Device not in pairing mode; interference; unit not in Bluetooth mode. | Ensure both devices are in pairing mode. Move closer to the unit. Select Bluetooth mode on the control switch. |
| Speed adjustment not working. | Motor or wiring issue; faulty speed button. | Check connections to the motor. If other functions work, the speed button or internal component may be faulty. |
Эгер көйгөйдү чечүү кадамдары маселени чечпесе, кардарларды колдоо кызматына же квалификациялуу техникке кайрылыңыз.
6. Техникалык шарттар
- Модел: 12V
- Продукциянын өлчөмдөрү: 5.3 x 2.6 x 1.3 дюйм
- Элемент Салмагы: 1.66 унция
- Кубат киргизүү: 12V DC (for children's electric vehicles)
- Функциялары: Music playback, storytelling, power display, speed adjustment, Bluetooth connection.
- Өндүрүүчү: JIARUIXIN
7. Коопсуздук маалыматы
Эскертүү:
- This product is for external use only within the specified children's electric vehicles.
- Keep away from naked flames or direct heat sources.
- Do not attempt to modify or disassemble the unit beyond what is described in this manual. Unauthorized modifications can lead to malfunction, electric shock, or fire.
- Ensure installation is performed by an adult or under adult supervision.
- Орнотуудан же тейлөөдөн мурун ар дайым электр кубатын ажыратыңыз.
8. Кепилдик жана колдоо
For warranty information or technical support, please refer to the original purchase documentation or contact the manufacturer, JIARUIXIN, through their official channels. Keep your purchase receipt as proof of purchase.
Кошумча жардам алуу үчүн, сиз иш сапары менен болот JIARUIXIN Store on Amazon.
