Einhell GC-PM 40/1 термикалык газон чапкыч колдонуучунун колдонмосу

1. Киришүү

This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Einhell GC-PM 40/1 Thermal Lawn Mower. This robust and reliable gardening tool is designed for mowing medium-sized lawn areas up to 800 m².

Please read this manual thoroughly before operating the lawn mower to ensure proper use and to prevent injury or damage. Keep this manual in a safe place for future reference.

Figure 1: The Einhell GC-PM 40/1 Thermal Lawn Mower, a robust and reliable tool for lawn care.

2. Коопсуздук нускамалары

Always observe the following safety precautions when operating your lawn mower:

• Колдонмону окуу: Familiarize yourself with all controls and proper use before starting the engine.
• Жеке коргонуу каражаттары: Wear sturdy footwear, long trousers, and eye protection. Do not operate barefoot or in open sandals.
• Аймакты тазалоо: Before mowing, clear the area of stones, sticks, wires, and other debris that could be thrown by the blade.
• Байкоочуларды алыс кармаңыз: Ensure children, pets, and other people are kept at a safe distance (at least 15 meters) from the mowing area.
• Күйүүчү май иштетүү: Refuel outdoors only. Do not smoke while refueling. Allow the engine to cool before adding fuel. Store fuel in approved containers.
• Мотордун иштеши: Do not operate the engine in enclosed spaces where carbon monoxide fumes can accumulate.
• Slope Safety: Mow across the face of slopes, never up and down. Exercise extreme caution when changing direction on slopes. Avoid mowing excessively steep slopes.
• Бычактын коопсуздугу: Never place hands or feet near rotating parts. Always stop the engine and disconnect the spark plug wire before performing any adjustments, cleaning, or maintenance.
• Тейлөө: Regularly check all nuts, bolts, and screws to ensure the equipment is in safe working condition. Replace worn or damaged parts immediately.

3. Продукт бүтүп калдыview

The Einhell GC-PM 40/1 is a push-type thermal lawn mower designed for efficient lawn maintenance. Key features include:

• Мотор: A powerful 4-stroke, 1-cylinder engine delivering 1.2 kW of power with a maximum speed of 2,900 RPM.
• Кесүү туурасы: A generous 40 cm cutting width for efficient coverage.
• Кесүү бийиктигин тууралоо: Features a 3-level single-wheel cutting height adjustment, allowing settings from 30 mm to 60 mm.
• Чөп чогултуучу баштык: Equipped with a durable 45-liter fabric grass collection bag. It includes a fill-level indicator and two handles for easy emptying.
• Рул: A foldable handlebar for compact storage and easy transport. The starting cable is conveniently located on the handlebar for effortless starting.
• Турак жай: Constructed with a robust and aesthetically pleasing solid plastic housing.

Сүрөт 2: Жакын пландан view of the mower's engine and durable plastic deck.

Figure 3: The 45-liter fabric grass collection bag with its fill-level indicator.

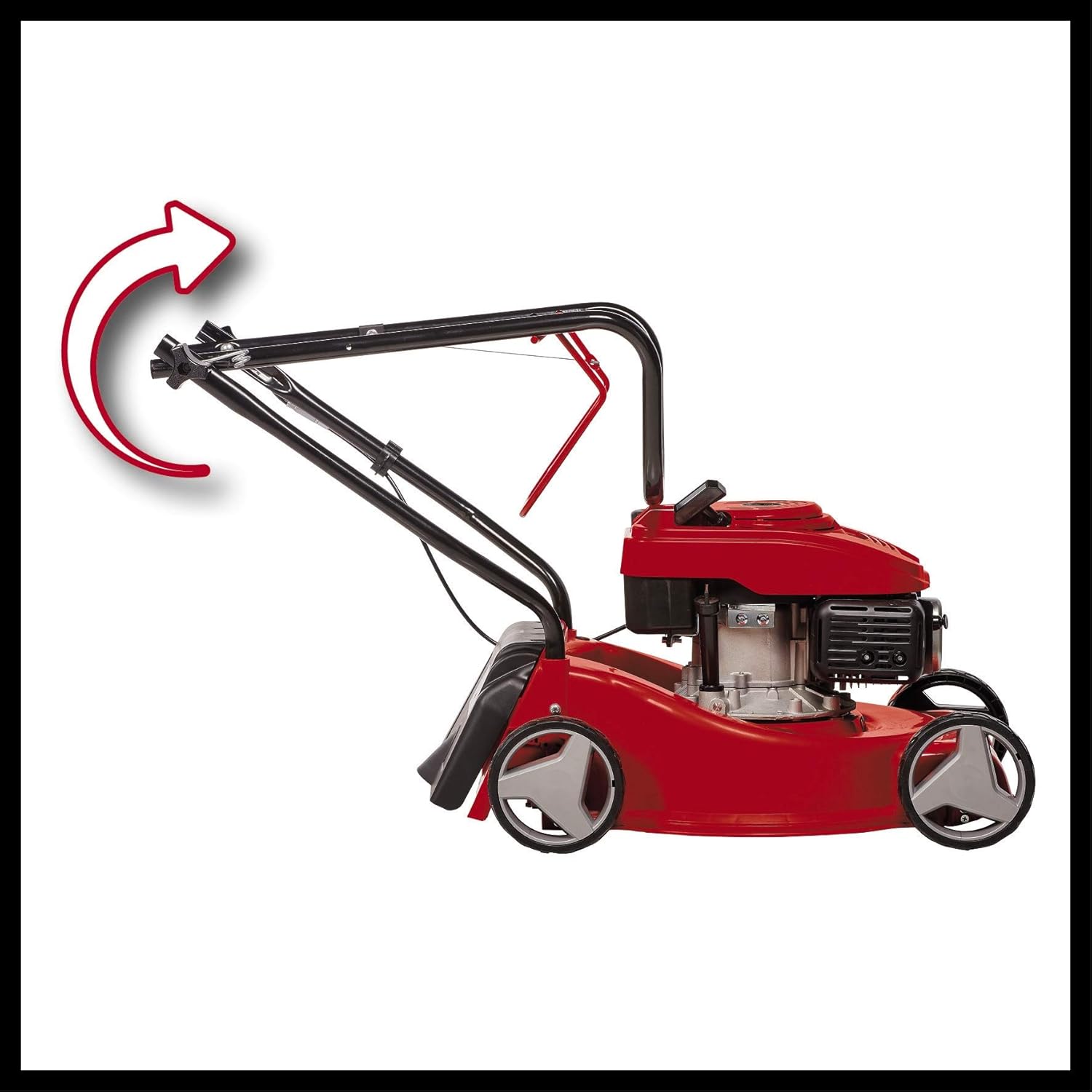

Figure 4: The foldable handlebar design for convenient storage and transport.

Figure 5: The 3-level single-wheel cutting height adjustment mechanism.

4. Орнотуу

Before first use, the lawn mower requires some assembly and preparation.

4.1 Рулдун монтажы

1. Unfold the lower handlebar section and secure it with the provided bolts and wing nuts.
2. Attach the upper handlebar section, ensuring the starting cable is routed correctly and not pinched. Secure with the remaining bolts and wing nuts.

4.2 Мотор майын кошуу

The engine is supplied without oil. It is crucial to fill the engine with appropriate 4-stroke engine oil before starting. Refer to the engine manual for specific oil type and capacity. Do not overfill.

4.3 Күйүүчү май кошуу

Use fresh, unleaded petrol (gasoline) with an octane rating of at least 91 RON. Do not use E85 or other ethanol blends not approved for small engines. Fill the fuel tank carefully, avoiding spills. Ensure the fuel cap is securely tightened.

4.4 Алгачкы текшерүүлөр

• Бардык бекиткичтер бекем экендигин текшериңиз.
• Шамдын зымы бекем туташтырылганын текшериңиз.
• Verify the grass collection bag is correctly attached.

5. Иштөө

Чөп чапкычыңызды коопсуз жана натыйжалуу иштетүү үчүн бул кадамдарды аткарыңыз.

5.1 Кесүү бийиктигин тууралоо

The cutting height can be adjusted to 3 levels (30-60 mm) using the single wheel adjustment mechanism. Ensure the engine is off and the spark plug wire is disconnected before making adjustments. Lift the mower slightly and move the adjustment lever to the desired height setting.

5.2 Моторду ишке киргизүү

1. Ensure the fuel tank is filled and the oil level is correct.
2. Press the primer bulb (if present) 3-5 times until fuel is visible.
3. Hold the engine brake lever against the handlebar.
4. Pull the starter cord firmly and steadily until the engine starts. Do not let the cord snap back.

5.3 Чөп чабуу

Push the mower at a steady pace. For best results, overlap each pass slightly. Avoid mowing wet grass, as it can clog the mower and lead to an uneven cut. The mower is recommended for areas up to 800 m².

Figure 6: A user operating the Einhell GC-PM 40/1 lawn mower on a lawn.

5.4 Моторду токтотуу

Release the engine brake lever to stop the engine. Wait for all moving parts to come to a complete stop before approaching the mower.

5.5 Emptying the Grass Bag

When the fill-level indicator on the grass bag shows it is full, stop the engine and allow the blade to stop. Carefully remove the grass bag using its two handles and empty the clippings. Reattach the bag securely before resuming operation.

6. Техникалык тейлөө

Үзгүлтүксүз техникалык тейлөө сиздин чөп чапкычыңыздын узак мөөнөттүү иштешин жана оптималдуу иштешин камсыз кылат.

6.1 Тазалоо

After each use, clean the mower deck and grass bag. Remove grass clippings and debris. Do not use high-pressure water directly on the engine or electrical components.

6.2 Engine Oil Check and Change

Check the engine oil level before each use. Change the engine oil after the first 5 hours of operation, and then every 25 hours or annually, whichever comes first. Refer to the engine manual for detailed instructions.

6.3 Учкунды текшерүү

Inspect the spark plug annually or every 50 hours. Clean or replace if necessary. Ensure the gap is set correctly according to the engine manual.

6.4 Аба чыпкасын тазалоо

Clean the air filter regularly, especially in dusty conditions. A dirty air filter can reduce engine performance. Refer to the engine manual for cleaning instructions.

6.5 Blade Inspection

Regularly inspect the cutting blade for sharpness and damage. A dull or damaged blade can lead to poor cutting performance and excessive vibration. Have the blade sharpened or replaced by a qualified service technician if needed.

6.6 Сактоо

For long-term storage, clean the mower thoroughly. Drain the fuel tank or add a fuel stabilizer. Remove the spark plug and add a small amount of engine oil into the cylinder, then slowly pull the starter cord a few times to distribute the oil. Store the mower in a dry, well-ventilated area. The foldable handlebar allows for compact storage.

7. Кыйынчылыктарды

Бул бөлүм сиз кабылышы мүмкүн болгон жалпы көйгөйлөрдү карайт.

If you encounter problems not listed here or if solutions do not resolve the issue, please contact customer support.

8. Техникалык шарттар

9. Кепилдик жана колдоо

This product comes with a manufacturer's warranty. Spare parts availability is guaranteed for 2 years from the date of purchase.

For warranty claims, technical support, or to order spare parts, please contact your authorized Einhell dealer or visit the official Einhell webсайт. Колдоо кызматына кайрылганда моделиңиздин номерин (3404832) жана сатып алууну тастыктаган документти даярдап коюңуз.
