MICHELIN 009538 аба компрессорунун колдонуучу колдонмосу

1. Киришүү

Thank you for choosing the MICHELIN 009538 Air Compressor. This high-performance, portable air compressor is designed for efficient and convenient inflation of various items, including vehicle tires, bicycle tires, sports balls, and inflatable recreational items. Featuring a patented Direct Drive motor, it offers quiet, fast, and powerful inflation up to 7 bar (100 PSI).

Please read this manual thoroughly before operating the device to ensure safe and optimal performance. Keep this manual for future reference.

Figure 1: MICHELIN 009538 Air Compressor

2. Коопсуздук нускамалары

ЭСКЕРТҮҮ: Бул коопсуздук нускамаларын аткарбоо электр шокуна, өрткө жана/же олуттуу жаракатка алып келиши мүмкүн.

• Always read the entire user manual before operating the air compressor.
• Ensure the power source is 230V AC and matches the compressor's requirements.
• Компрессорду нымдуу шарттарда же күйүүчү суюктуктардын же газдардын жанында иштетпеңиз.
• Балдарды жана үй жаныбарларын компрессордон алыс кармаңыз.
• Do not leave the compressor unattended while it is running.
• Ашыкча үйлөтүүдөн алыс болуңуз. Үйлөтүлүп жаткан буюм үчүн сунушталган басымды ар дайым текшерип туруңуз.
• Allow the compressor to cool down after extended use to prevent overheating.
• Do not modify the compressor or its components.
• Disconnect the power plug from the outlet when not in use or before cleaning.
• Оригиналдуу аксессуарларды жана алмаштыруучу тетиктерди гана колдонуңуз.

3. Продукциянын компоненттери жана таңгактын мазмуну

The MICHELIN 009538 Air Compressor package includes the following items:

• MICHELIN 009538 Air Compressor unit with integrated 85 cm inflation hose and 230V power cable.
• Brass screw-on nozzle for tire valves.
• Air bleed valve for pressure adjustment.
• Various inflation nozzles for bicycles, balls, and inflatable toys.

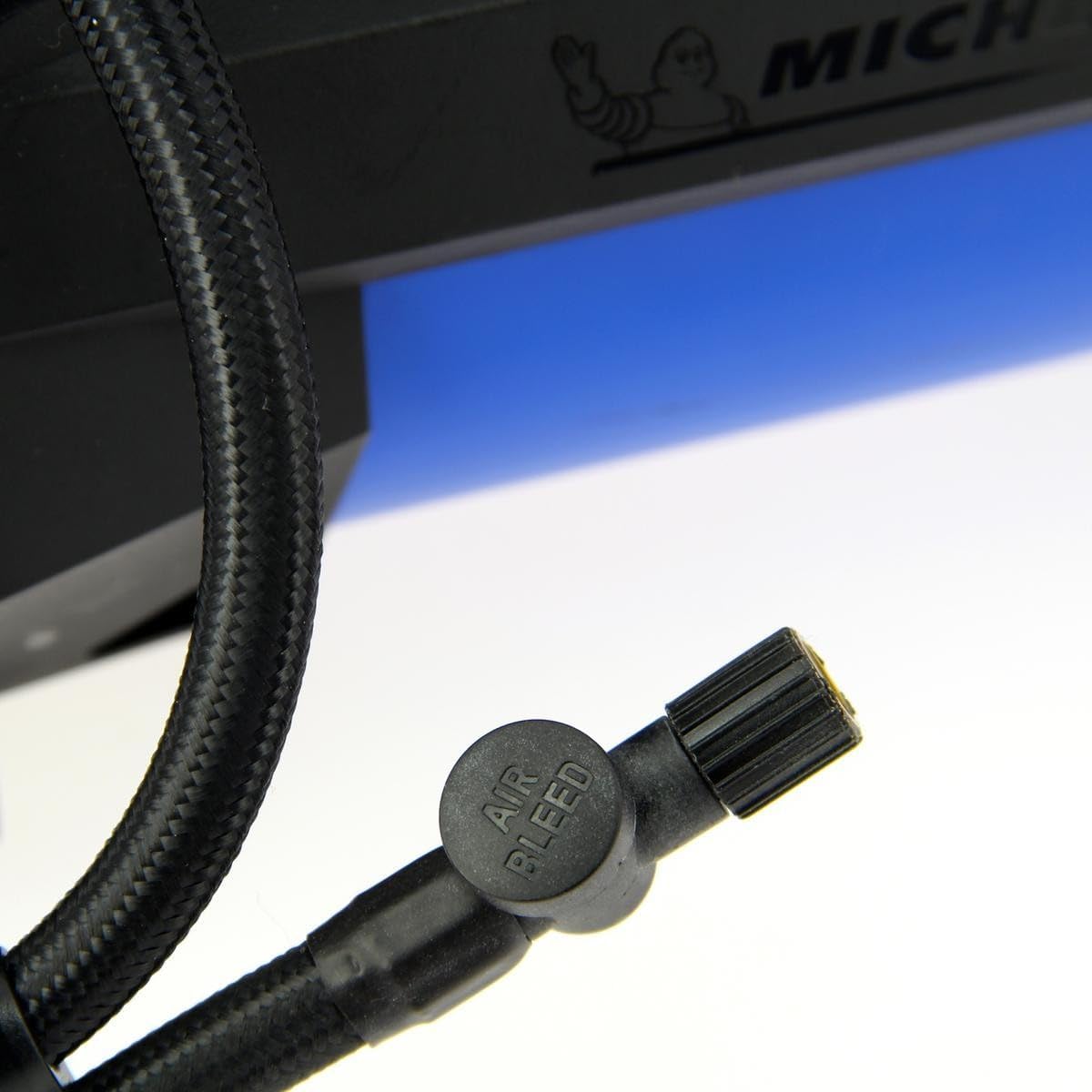

Figure 2: Air Bleed Valve and Brass Nozzle

Figure 3: Included Inflation Nozzles

The compressor features convenient storage for the valve cap and additional nozzles directly on the unit.

Figure 4: Nozzle Storage Compartment

4. Орнотуу

1. Unpack the Compressor: Компрессорду жана бардык кошумча жабдууларды таңгактан этияттык менен алып чыгыңыз.

2. Кубат туташуу: Plug the 230V power cable into a standard 230V AC wall outlet. Ensure the outlet is easily accessible.

3. Инфляцияга даярдануу:

   • Identify the item you wish to inflate and its recommended pressure (e.g., from a vehicle's door jamb sticker or tire sidewall).
   • Select the appropriate inflation nozzle if required (e.g., for bicycle valves, sports balls). For standard car/motorcycle tires, the brass screw-on nozzle is typically used directly.
   • Attach the selected nozzle securely to the inflation hose.

5. Иштөө нускамалары

5.1 Жалпы операция

1. Элементке туташуу: Screw the brass nozzle onto the tire valve stem or firmly insert the appropriate adapter into the item's inflation port.



   Figure 5: Compressor connected to a tire

2. Күйгүзүү: Press the power button on the compressor. The backlit digital display will illuminate, showing the current pressure.



   6-сүрөт: Санариптик дисплей



   7-сүрөт: Детальдуу view of the digital display

3. Каалаган басымды коюу: Use the '+' and '-' buttons to set the target pressure. The display allows you to switch between BAR, PSI, and KPA units.

4. Инфляциянын башталышы: Press the inflation button to begin inflating. The compressor will automatically stop once the preset pressure is reached.

5. Прогресс мониторинги: The digital display will show the real-time pressure during inflation.

6. Ажыратуу: Once inflation is complete, turn off the compressor (if it hasn't stopped automatically) and carefully disconnect the nozzle from the item.

5.2 Using the Air Bleed Valve

If you accidentally over-inflate an item, use the integrated air bleed valve to release pressure. Simply press the button on the valve to slowly release air until the desired pressure is achieved.

5.3 LED жарыгын колдонуу

The compressor is equipped with an LED light for illumination in low-light conditions. Press the light button to turn it on or off.

Figure 8: LED Light and Carry Handle

5.4 Approximate Inflation Times

The following table provides approximate inflation times for various tire sizes. These times are for reference only and may vary based on the initial pressure, ambient temperature, and specific tire condition.

Figure 9: Tire Inflation Times Reference

Note: These times are approximate guide only.

6. Техникалык тейлөө

Regular maintenance ensures the longevity and optimal performance of your MICHELIN Air Compressor.

• Тазалоо: Компрессордун сыртын жумшак менен сүртүңүз, гamp кездеме. Катуу химиялык заттарды же абразивдүү тазалагычтарды колдонбоңуз. Тазалоодон мурун бирдиктин розеткадан ажыратылганын текшериңиз.
• Hose and Nozzle Care: Inspect the inflation hose and nozzles regularly for any signs of wear, cracks, or damage. Replace if necessary.
• Сактагыч: Store the compressor in a dry, cool place, away from direct sunlight and extreme temperatures. Ensure the hose and power cable are neatly coiled and the nozzles are stored in their designated compartments on the unit.
• Вентиляция: Аба агымынын жакшы болушун камсыз кылуу жана ысып кетүүнүн алдын алуу үчүн желдетүү тешиктерин чаңдан жана таштандылардан таза кармаңыз.

7. Кыйынчылыктарды

If you encounter issues with your MICHELIN Air Compressor, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact MICHELIN customer support.

8. Техникалык шарттар

9. Кепилдик жана колдоо

For warranty information and customer support, please refer to the documentation provided with your purchase or visit the official MICHELIN webсайт. Ар кандай кепилдик дооматтары үчүн сатып алганыңыздын далилин сактаңыз.

If you require technical assistance or have questions not covered in this manual, please contact MICHELIN customer service.
