1. Киришүү
Thank you for choosing the MEIKEE 42W LED Floodlight with Motion Sensor. This product is designed to provide efficient and reliable outdoor lighting with enhanced security features. Please read this manual carefully before installation and operation to ensure proper use and longevity of your device. Keep this manual for future reference.
Figure 1: MEIKEE 42W LED Floodlight with Motion Sensor
2. Продукциянын өзгөчөлүктөрү
- Интегралдык кыймыл сенсору: Automatically activates lighting upon detecting activity, offering enhanced security. Adjustable lighting duration settings: 45s, 120s, or 600s. Includes a 10-second test mode for setup.
- Супер жаркыраган жарыктандыруу: Equipped with 56 integrated LEDs, providing a maximum brightness of 3600 lumens. Offers a wide 270° lighting angle for extensive coverage.
- Sensitive and Adjustable Motion Detector: Features a 180° sensitive motion detector with a detection range of up to 12 meters. The sensor can be rotated 180° horizontally and 90° vertically for flexible positioning.
- Жөнгө салынуучу жарык баштары: Three adjustable projector heads allow for flexible light direction. The two side heads can be adjusted 180° left/right and 90° up/down, while the main head adjusts 180° up/down.
- Туруктуу жана аба ырайы: IP66 rated for water and dust resistance, ensuring reliable operation outdoors throughout the year.
- Энергияны үнөмдүү: Designed to save electricity by only activating when motion is detected at night, rather than providing constant illumination.

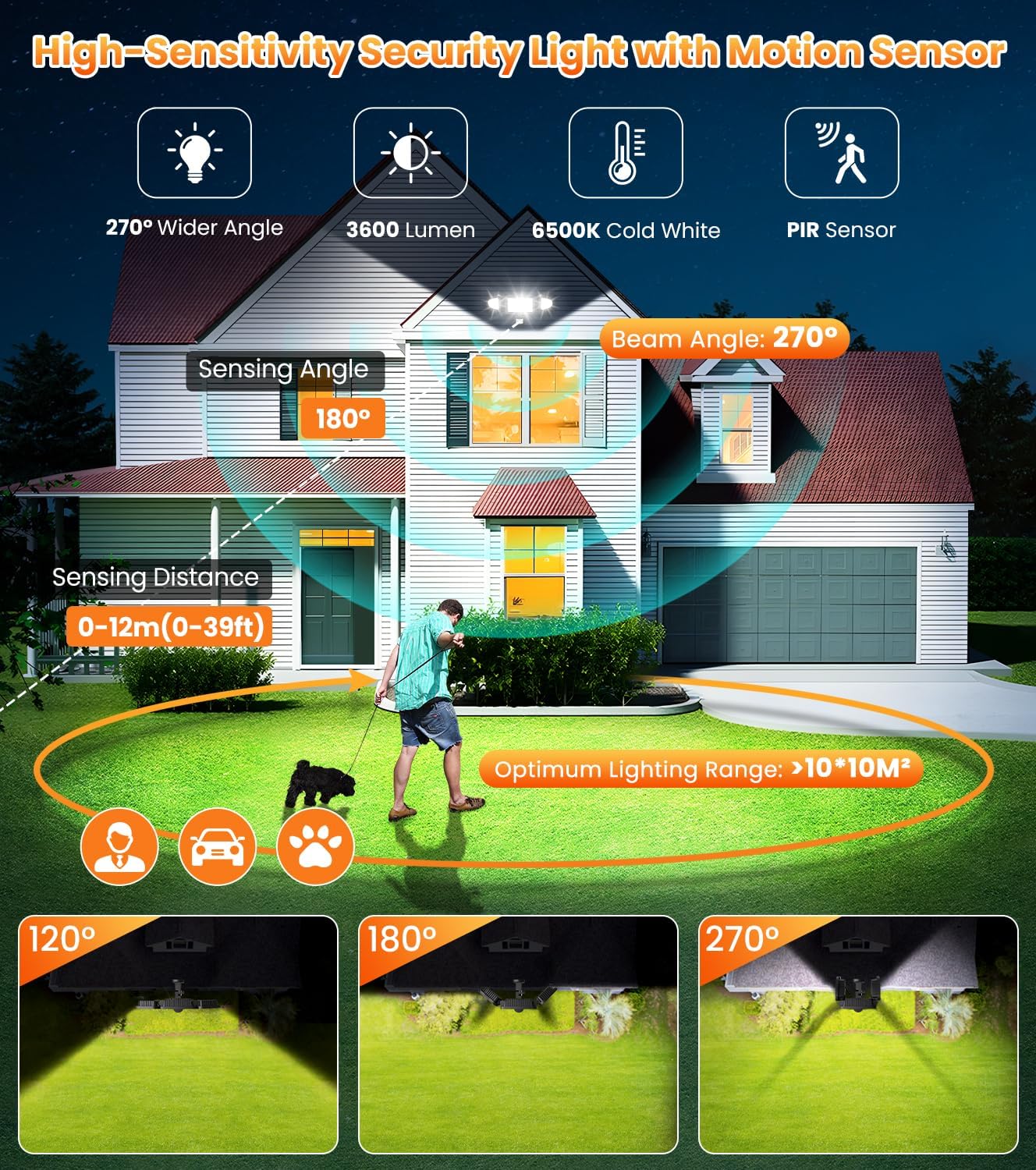

Figure 2: Key Features and Coverage Area
3. Пакеттин мазмуну
Сураныч, пакетте төмөнкү нерселерди текшериңиз:
- 1 x MEIKEE 42W LED Floodlight with Motion Sensor
- 1 x Screw Pack (for installation)
4. Коопсуздук маалыматы
WARNING: Risk of electric shock. Installation should be performed by a qualified electrician.
- Орнотуудан, тейлөөдөн же тазалоодон мурун электр кубаты өчүрүлгөнүн текшериңиз.
- This product is double insulated and does not require an earth wire.
- Do not stare directly at the LED light source for extended periods, as it may cause eye discomfort.
- If the cable is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons to avoid a hazard.
- Продукцияны өз алдынча оңдоого же өзгөртүүгө аракет кылбаңыз. Жардам алуу үчүн кардарларды колдоо кызматына кайрылыңыз.
- Орнотуучу беттин туруктуу экенин жана прожектордун салмагын көтөрө алаарын текшериңиз.
5. Орнотуу жана орнотуу
Туура орнотуу үчүн бул кадамдарды аткарыңыз:
- Монтаждоо бетин даярдаңыз: Choose a suitable location on a wall or eaves. Ensure the power is off at the main circuit breaker.
- Кронштейнди орнотуу: Use the provided screws and anchors to securely attach the mounting bracket to the desired surface.
- Зымдарды туташтыруу: Connect the floodlight's power cable to your electrical supply. This product is double insulated, so connect the live (brown) and neutral (blue) wires. No earth wire connection is required. Ensure all connections are secure and insulated.
- Attach the Floodlight: Secure the floodlight unit to the mounted bracket.
- Жарык баштарын жана сенсорду тууралоо: Adjust the three light heads and the motion sensor to your desired angles for optimal coverage. Refer to Figure 6 for adjustment ranges.

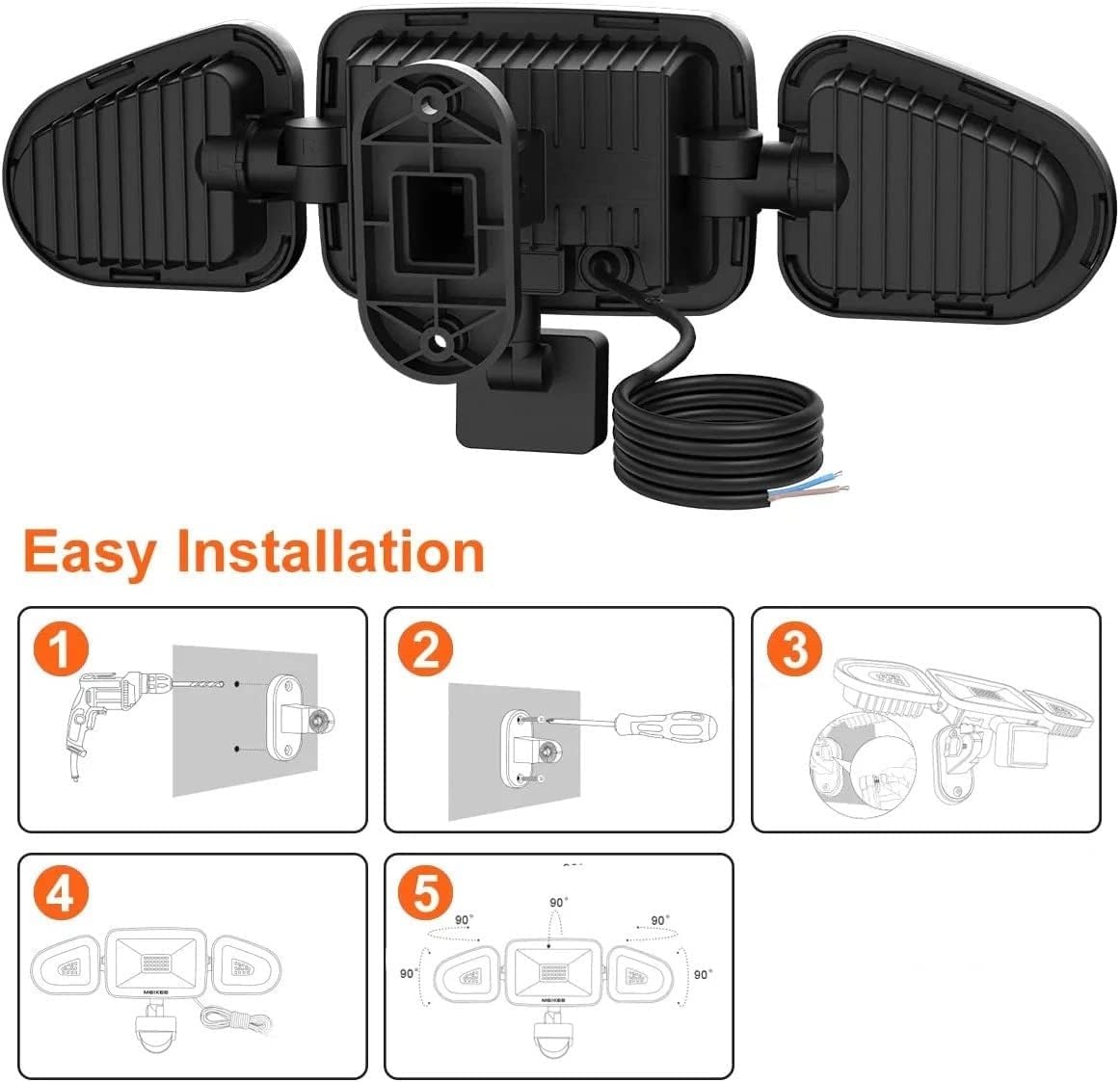

3-сүрөт: Орнотуу кадамдары
Figure 4: Product Dimensions and Wiring Information
6. Иштөө нускамалары
6.1 Motion Sensing Modes
The floodlight offers two primary motion sensing modes:
- 24H Sensing Mode: The motion sensor is active both day and night. The light will turn on whenever motion is detected, regardless of ambient light conditions.
- Night Sensing Mode: The motion sensor is only active at night or in low-light conditions. The light will turn on only when motion is detected during these periods, conserving energy during the day.

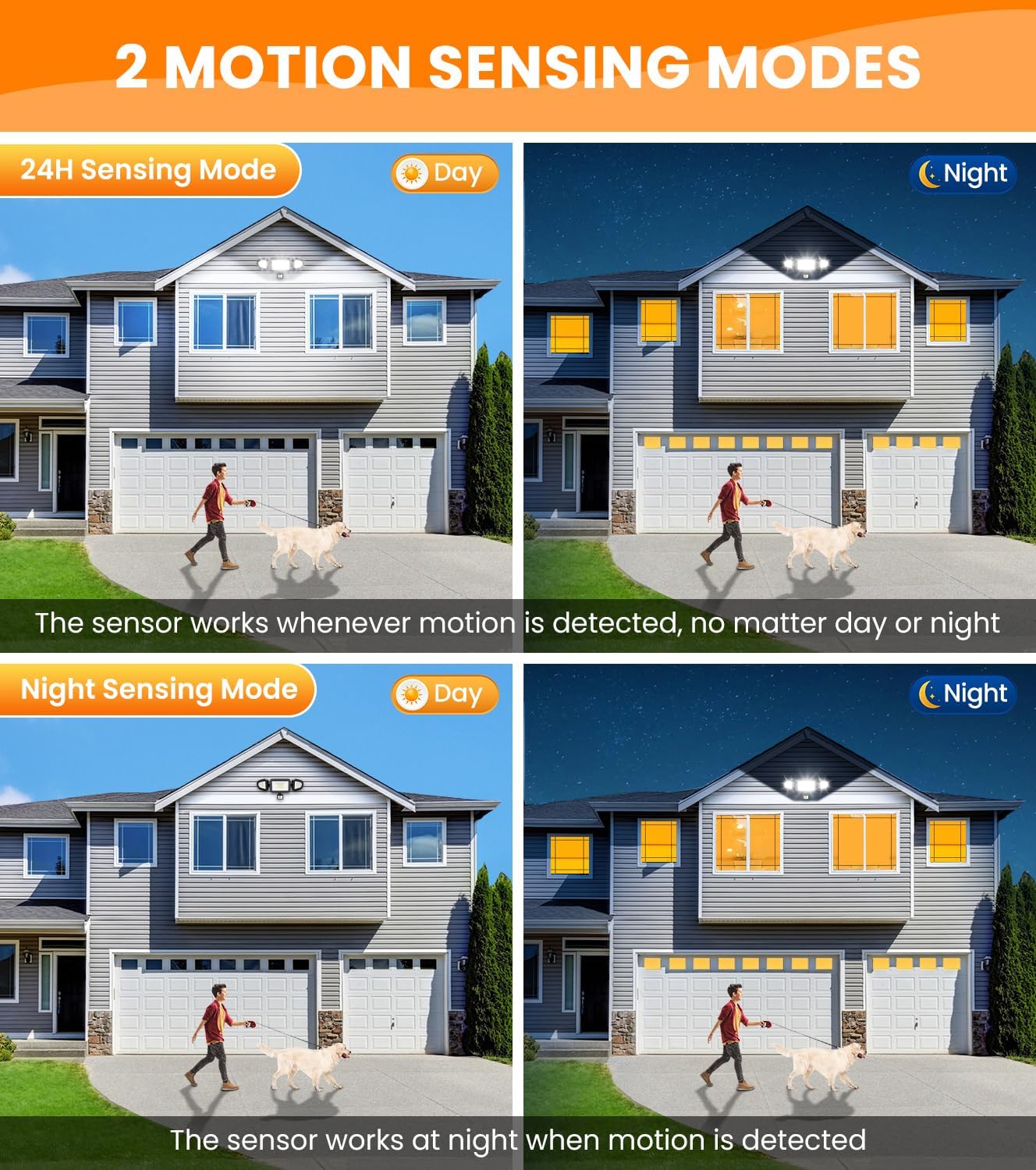

Figure 5: Motion Sensing Modes
6.2 Lighting Duration Adjustment
You can set how long the light remains on after motion is detected. The available durations are:
- 45 секунд
- 120 секунд
- 600 секунд
Ошондой эле бар Test Mode (10 seconds) for initial setup and adjustment of the sensor's sensitivity and coverage.
Figure 6: Lighting Duration Settings
6.3 Жарык баштарын жана сенсорду жөндөө
The light heads and motion sensor can be adjusted to cover specific areas:
- The two side light heads can be rotated up to 180° horizontally (left/right) and 90° vertically (up/down).
- The main light head can be adjusted up to 180° vertically (up/down).
- The PIR motion sensor can be rotated 360° horizontally and 180° vertically.
Figure 7: Adjustable Components
6.4 Типтүү колдонмолор
This floodlight is suitable for various outdoor areas:
Figure 8: Application Scenarios (Doorway, Garage, Garden, Yard)
7. Техникалык тейлөө
- Тазалоо: Ensure the power is off before cleaning. Wipe the floodlight and sensor with a soft, damp кездеме. Абразивдүү тазалагычтарды же эриткичтерди колдонбоңуз.
- Текшерүү: Periodically check the floodlight for any signs of damage to the housing, cable, or mounting. If any damage is found, discontinue use and contact customer support.
- LED алмаштыруу: The LED module is integrated and cannot be replaced by the user. If the LED fails, the entire lamp алмаштыруу керек.
8. Кыйынчылыктарды
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Жарык күйбөйт | Электр энергиясы жок Sensor settings incorrect Ambient light too high (in Night Sensing Mode) | Электр байланыштарын жана өчүргүчтү текшериңиз Adjust sensor sensitivity and mode (24H/Night) Test in darker conditions or switch to 24H Sensing Mode |
| Жарык тынымсыз күйүп турат | Continuous motion detected Сенсордун бузулушу | Ensure no constant movement in detection zone Contact customer support if problem persists |
| Light turns on too frequently/infrequently | Sensor sensitivity too high/low Obstructions in detection zone | Adjust sensor sensitivity Clear any obstructions or reposition the sensor |
9. Техникалык шарттар
| Өзгөчөлүк | Спецификация |
|---|---|
| Бренд | MEIKEE |
| Модель номери | TSFA0042 |
| Энергияны керектөө | 42 Ватт |
| Жарык агымы | 3600 лм |
| Түс температурасы | 6500K (Cold White) |
| Тtage | 230 вольт |
| Материал | Акрилонитрил бутадиен стирол (ABS) |
| IP рейтинги | IP66 |
| Motion Sensor Angle | 180° |
| Кыймыл сенсорунун диапазону | 12 метрге чейин |
| Lighting Angle | 270° |
| Продукциянын өлчөмдөрү (L x W x Y) | 10 x 20 x 15 cm (approx. 36.6 x 14.6 x 13.5 cm based on other spec) |
| Элемент Салмагы | 760 грамм |
| Энергия эффективдүүлүгү классы | F |
Figure 9: Energy Efficiency Label (Class F)
Көбүрөөк маалымат алуу үчүн, баш багыңыз EPREL маалымат базасы.
10. Кепилдик жана колдоо
MEIKEE products are designed for quality and durability. For any product-related inquiries, technical support, or warranty claims, please contact our customer service team.
Электрондук почта: meikee@meikeelighting.com
Please provide your model number (TSFA0042) and purchase details when contacting support to expedite assistance.
