1. Киришүү
Thank you for choosing the MINIX 66W Turbo 3-Port GaN Wall Charger (NEO P1). This compact and powerful charger is designed to provide ultra-fast charging for a wide range of devices, from laptops to smartphones, utilizing advanced Gallium Nitride (GaN) technology. Its versatile design includes multiple ports and international plug adapters, making it an ideal companion for both daily use and travel.
2. Коопсуздук маалыматы
- Заряддоочу түзүлүштү суюктуктарга, нымдуулукка же өтө жогорку температурага дуушар кылбаңыз.
- Заряддагычты кулап түшпөңүз же катуу таасирлерге дуушар болбоңуз.
- Кубаттоочу түзүлүштү бөлүктөргө бөлүүгө, оңдоого же өзгөртүүгө аракет кылбаңыз.
- Ensure the charger is used within its specified input voltage диапазону (100-240V AC).
- Балдар жетпеген жерде сактаңыз.
- Колдонулбаган учурда заряддагычты розеткадан ажыратыңыз.
- If the charger shows any signs of damage or malfunction, discontinue use immediately.
3. Пакеттин мазмуну
- MINIX NEO P1 66W Turbo 3-Port GaN Wall Charger Body
- UK Pin Adapter
- EU Pin Adapter
- Сактоочу баштык
4. Продукт бүтүп калдыview

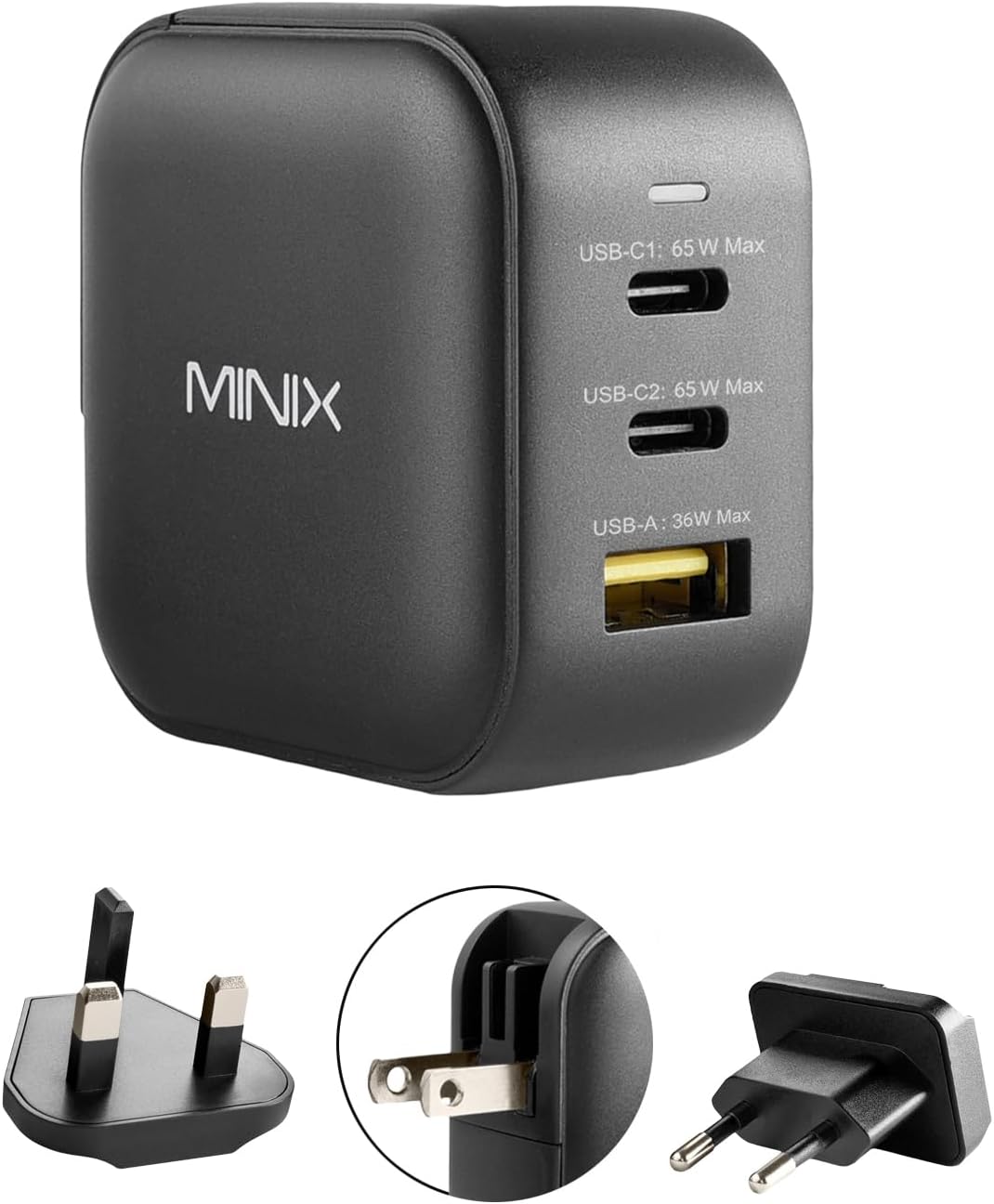

Сүрөт 1: Алдыңкы view of the MINIX NEO P1 charger showing 2 USB-C ports (65W Max each) and 1 USB-A port (36W Max).
The MINIX NEO P1 features a compact design with a foldable US plug. It includes two USB-C Power Delivery (PD) ports and one USB-A Quick Charge (QC) 3.0 port. A small LED indicator is present on the top surface to show power status. The charger comes with interchangeable UK and EU pin adapters for international compatibility.
2-сүрөт: Детальдуу view of the MINIX NEO P1 charger highlighting its dimensions (53mm x 53mm x 30.7mm) and port specifications: 2 x USB-C Ports (65W PD3.0, 5~15V/3A, 20V/3.25A) and 1 x USB-A Port (36W QC3.0, 5V/3A, 9V/2A, 12V/1.5A, 20V/1.8A).
5. Орнотуу
5.1 Attaching International Plug Adapters
The MINIX NEO P1 comes with a built-in foldable US plug. For use in other regions, attach the appropriate international adapter:
- Fold the built-in US plug flat into the charger body.
- Align the desired UK or EU pin adapter with the slots on the charger body.
- Slide the adapter firmly into place until it clicks securely.
Figure 3: Demonstrates how to attach the EU plug adapter to the charger body.
Figure 4: Visual representation of the US, UK, and EU plug types compatible with the charger.
5.2 Электр розеткасына туташтыруу
Once the correct plug adapter is attached, insert the charger firmly into a compatible wall outlet. The LED indicator on the charger will light up, confirming it is receiving power.
6. Иштөө нускамалары
6.1 Түзмөктөрдү заряддоо
Connect your devices to the available USB-C or USB-A ports using appropriate charging cables. The MINIX NEO P1 features Dynamic Smart Detection, which automatically adjusts the power output of each port based on the connected devices to ensure efficient and safe charging.
Figure 5: The MINIX NEO P1 charger actively charging a laptop, tablet, and smartphone, demonstrating its multi-device capability.
6.2 Электр энергиясын бөлүштүрүү
The total power output of the charger is 66W. The power is dynamically distributed among the ports as follows:
Figure 6: Power distribution diagram for the MINIX NEO P1. When using one port, USB-C ports can deliver up to 65W, and USB-A up to 36W. When using two ports, power is split (e.g., 45W/20W for USB-C, or 45W/18W for USB-C and USB-A). When using all three ports, power is distributed as 45W/15W/5W.
6.3 Расмий продукт Video
Видео 1: Бүттүview of the MINIX 66W Turbo 3-Port GaN Wall Charger, showcasing its features and compact design.
7. Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Продукциянын өлчөмдөрү | 2.09 x 2.09 x 1.21 дюйм |
| Элемент Салмагы | 7 унция |
| Модель номери | NEO P1 |
| Жалпы USB порттору | 3 (2 x USB Type C, 1 x USB Type A) |
| Ватtage | 65 ватт (макс) |
| Киргизүү көлөмүtage | 100-240V AC, 50~60Hz, 1.8A |
| Өзгөчөлүктөр | Fast Charging, Lightweight Design, Short Circuit Protection, Travel-friendly (foldable plugs, UK/EU pin converters) |
| Коргоо | Ашыкча ток, Ашыкча томtage, Ашыкча температура, Кыска туташуулардан коргоо |
| Шайкеш түзмөктөр | MacBook Air 13'' (2018) / MacBook 12'' / MacBook Pro 13'' / MacBook Pro 15'', Microsoft Surface Pro 7 / Surface Laptop 3 / Surface Go, iPad Pro 12.9'' / iPad Pro 10.5'' / iPad Pro 11'' / iPad Air 10.5'' / iPad mini / AirPods Pro, iPhone 16/15/14/13/12/11 Pro Max/10/ 8 Plus / 8 / 7 / 6, Samsung Galaxy S23/ S21/S20 Ultra / S20+ / S20 / S10+ / S10 / S10e / S9+ / S9 / S9 Plus / S8 / S8 Plus / Note 10 / 9 / 8 / 7, Google Pixel 4 / 4 XL / 3a / 3a XL / 3 / 3 XL / 2 / 2 XL / Pixel C |
8. Техникалык тейлөө
- Clean the charger with a dry, soft cloth. Do not use liquid cleaners.
- Заряддоо түзүлүштү колдонбогондо салкын, кургак жерде сактаңыз.
- Заряддоочу түзүлүштү жана кабелдерди эскирүү же бузулуу белгилерин дайыма текшерип туруңуз.
9. Кыйынчылыктарды
9.1 Түзмөк кубатталбай жатат
- Ensure the charger is properly plugged into a live power outlet and the LED indicator is on.
- Заряддоо кабели заряддагыч түзүлүшкө да, түзмөгүңүзгө да бекем туташтырылганын текшериңиз.
- Try using a different charging cable or port to rule out a faulty cable or port.
- Check if your device is compatible with the charger's power output.
9.2 Жай заряддоо
- Ensure you are using a high-quality charging cable that supports fast charging.
- Refer to the Power Distribution table (Section 6.2) to understand how power is shared when multiple devices are connected. Disconnecting other devices may increase charging speed for a single device.
- Verify that your device supports the fast charging protocols (PD, QC 3.0) offered by the charger.
10. Кепилдик жана колдоо
MINIX products are backed by a manufacturer's warranty. For detailed warranty information, product support, or technical assistance, please visit the official MINIX webсайтка же кардарларды тейлөөгө кайрылыңыз. Кепилдик дооматтар үчүн сатып алуу дүмүрчөгүңүздү сактаңыз.
