Weiser SmartCode 10 Electronic Door Lock User Manual

1. Продукт бүтүп калдыview

The Weiser SmartCode 10 is a commercial-grade electronic lever lock designed for secure and convenient keyless entry. It features an auto-lock function, simple programming, and supports up to 30 customizable user access codes. This lock is ideal for various applications including hotels, motels, office buildings, retail stores, and multi-family housing.

Figure 1.1: Weiser SmartCode 10 Electronic Door Lock (Exterior and Interior)

Figure 1.2: Recommended Uses for SmartCode 10 Commercial Lever

2. Орнотуу жана орнотуу

The Weiser SmartCode 10 lock is designed for easy installation with minimal tools. A screwdriver is typically the only tool required.

2.1. Камтылган компоненттер

• Electronic Door Assembly Unit (Interior and Exterior)
• Рычагдар
• SmartKey куралы
• 2 Ачкычтар
• Лач
• Бурамалар
• Strike Plate
• Аллен Wrench
• Spindle Manual

2.2. Орнотуу кадамдары

Refer to the detailed Spindle Manual included in your package for specific, step-by-step installation instructions. General steps include:

1. Prepare the door: Ensure the door bore hole and backset are compatible with the lock.
2. Бекемди жана чаптоочу пластинаны орнотуңуз.
3. Assemble the exterior and interior electronic units.
4. Connect the cable between the units.
5. Secure the lock to the door with the provided screws.
6. рычагдарды орнотуу.
7. Insert the 9V battery (see Section 3.4).
8. Perform the door handing process as described in the manual to calibrate the lock.

Figure 2.1: Installed Weiser SmartCode 10 Lock (Interior View)

3. Иштөө нускамалары

3.1. Keyless Entry and Backlit Keypad

The SmartCode 10 allows entry using a personalized code on the keypad. The keypad is backlit and remains lit for 5 seconds after inactivity, ensuring visibility in low-light conditions.

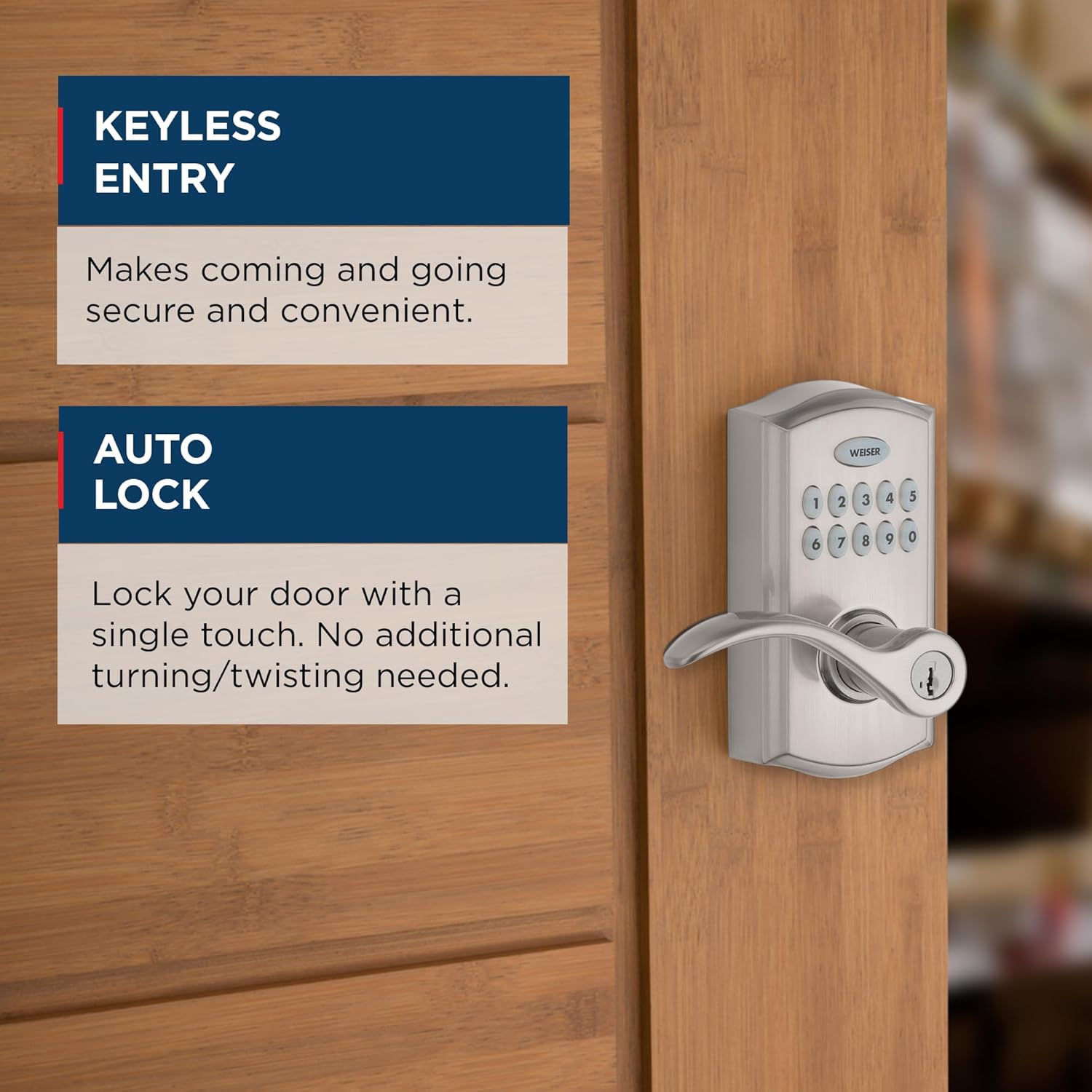

Figure 3.1: Keyless Entry and Auto Lock Features

3.2. User Access Codes

The lock supports up to 30 unique user access codes. These codes can be customized and shared with employees, maintenance personnel, or service providers. Refer to the programming guide in your manual for instructions on adding, deleting, or modifying user codes.

Figure 3.2: Multiple User Access Codes

3.3. Auto-Lock and Passage Mode

The SmartCode 10 features an auto-lock function, which automatically locks the door after entry. The interior turn piece allows you to switch between 'Auto-Lock' and 'Passage Mode'.

• Auto-lock Mode: The door always locks after entry. A key or code is required for re-entry.
• Өтүү режими: The door remains unlocked, allowing free entry without a code or key.

Property managers can disable the passage function, ensuring the unit auto-locks every time and requires a key or code for entry. This is ideal for restrooms or utility closets.

Figure 3.3: Auto-Lock Mode vs. Passage Mode

3.4. Emergency Egress

For safety, the interior lever is always free to allow exit at any time, regardless of the lock's status.

Figure 3.4: Emergency Egress Feature

3.5. SmartKey Re-key Technology

The SmartCode 10 features SmartKey re-key technology, which protects against advanced break-in techniques and allows you to re-key the lock yourself in seconds. This feature makes lost or unreturned keys obsolete.

Figure 3.5: SmartKey Security Overview

Figure 3.6: How to Re-key in Seconds

4. Техникалык тейлөө

4.1. Батареяны алмаштыруу

The SmartCode 10 operates on a 9V alkaline battery. When the battery is low, the lock will provide an audible and/or visual indicator. To replace the battery:

1. Locate the battery cover on the interior assembly of the lock.
2. Батареянын капкагын алып салыңыз.
3. Carefully remove the old 9V battery.
4. Туура полярдуулукту камсыз кылуу үчүн жаңы 9V щелочтуу батарейканы салыңыз.
5. Батареянын капкагын алмаштырыңыз.

It is recommended to replace the battery annually or when the low battery indicator appears to ensure optimal performance.

4.2. Тазалоо

Кулпунун сыртын жумшак, гamp кездеме. Абразивдүү тазалагычтарды же эриткичтерди колдонуудан алыс болуңуз, анткени алар финишке зыян келтириши мүмкүн.

5. Кыйынчылыктарды

If you encounter issues with your SmartCode 10 lock, try the following common troubleshooting steps:

• Кулпу жооп бербей жатат: Check the battery. Replace with a new 9V alkaline battery if necessary.
• Клавиатура күйбөйт: This usually indicates a low battery. Replace the battery.
• Коддор иштебей жатат: Ensure you are entering the correct code. Try reprogramming the user codes as per the manual. Perform the door handing process again.
• Кулпу ишке кирбей/ажыратылбай жатат: Check for any obstructions in the door frame or latch. Ensure the lock is properly aligned and secured to the door. Re-perform the door handing process.
• Unexpected auto-locking: Verify the lock is not in 'Disable Passage Mode' if you intend for it to remain unlocked.

For persistent issues, refer to the detailed troubleshooting section in your Spindle Manual or contact customer support.

6. Техникалык шарттар

Сүрөт 6.1: Продукциянын өлчөмдөрү

7. Кепилдик маалыматы

The Weiser SmartCode 10 Electronic Door Lock comes with a Өмүр бою механикалык жана бүтүрүү кепилдик. This warranty covers defects in material and workmanship for the lifetime of the product, provided it is installed and maintained according to the manufacturer's instructions. For specific terms and conditions, please refer to the warranty documentation included with your product or visit the official Weiser webсайт.

8. Кардарларды колдоо кызматы

Көбүрөөк жардам, техникалык колдоо же кепилдик боюнча дооматтар үчүн Weiser кардарларды тейлөө кызматына кайрылыңыз. Байланыш маалыматын расмий Weiser сайтынан таба аласыз webсайтында же продуктуңуз менен бирге берилген документтерде.

Вайзердин расмий өкүлү Webсайт: www.weiserlock.com
