Introduction
Thank you for choosing the HONEY JOY 5-in-1 Portable Baby Playard. This manual provides essential information for the safe assembly, operation, maintenance, and care of your product. Please read all instructions carefully before use and retain this manual for future reference.
Image: The HONEY JOY 5-in-1 Portable Baby Playard in dark gray, featuring the main playard, bassinet, and changing table components, along with a folded carry bag.
Маанилүү коопсуздук эскертүүлөрү
- Always ensure all components are securely fastened before placing a child in the playard or bassinet.
- Do not leave children unattended in the playard or on the changing table.
- Discontinue use of the bassinet when the infant begins to push up on hands and knees or has reached 22 lbs, whichever comes first.
- The changing table is designed for infants up to 22 lbs. Always use the safety belt provided.
- Never add extra padding, pillows, comforters, or mattresses to the playard, as this can cause suffocation.
- Чогултуу учурунда кичинекей бөлүктөрүн балдардан алыс кармаңыз.
- Regularly inspect the product for damaged hardware, loose joints, missing parts, or sharp edges. Do not use if any part is broken or missing.
Орнотуу жана чогултуу
Follow these steps to assemble your HONEY JOY Pack and Play. For a visual guide, please refer to the assembly video below.
Unfolding the Playard
- Remove the playard from the carry bag and unfasten the mattress.
- Keep the bed standing vertically.
- Open the short armrests of the bed by pulling upwards until they lock into place.
- Open the long armrests of the bed by pulling upwards until they lock into place.
- Press down the bottom center of the playard until it is fully extended and flat.
- Place the mattress inside the playard, securing it with the attached straps.
Image: Visual guide demonstrating the four steps to quickly unfold the playard without tools: keeping the bed vertical, opening short armrests, opening long armrests, and pressing down the bottom.
Ассамблея видеосу
Video: An official HONEY JOY assembly video demonstrating the step-by-step process of setting up the Pack and Play with Bassinet and Diaper Changing Table.
Иштөө нускамалары
The HONEY JOY Pack and Play offers multiple configurations to adapt to your child's growth and your family's needs.
5-ин-1 Функционалдык
- Baby Crib: For newborns and infants, use the full-size bassinet insert to provide a raised sleeping surface.
- Infant Bed: The bassinet can be used independently as a portable infant bed.
- Activity Center (Playard): As your child grows, remove the bassinet insert to create a spacious playard for safe play.
- Diaper Changing Table: Attach the changing table for convenient diaper changes. Always use the safety belt.
- Nursery Center: Combine the features for a complete nursery solution.
Image: A collage illustrating the five functions of the playard: Baby Crib, Diaper Changing Table, Activity Center, Baby Bassinet, and Infant Bed.
Removable Full-Size Newborn Bassinet
The bassinet is suitable for infants aged 0-6 months or up to 22 lbs. It features a thick mattress, adjustable canopy, and hanging toys. The bassinet can be used within the playard or detached for standalone use.
Image: Details of the portable newborn bassinet, highlighting its carry handle, thick and soft mattress, adjustable feet, and adjustable canopy.
Жалаяк алмаштыруучу стол
The removable diaper changing table supports infants up to 22 lbs. It includes protective plates to prevent falls and a safety belt for secure use.
Image: A parent using the removable diaper changing table, with an inset showing the protective plates designed to prevent falls.
Ташуу жана сактоо
The playard is designed for easy folding and transport. It includes a carry bag and two lockable wheels for mobility.

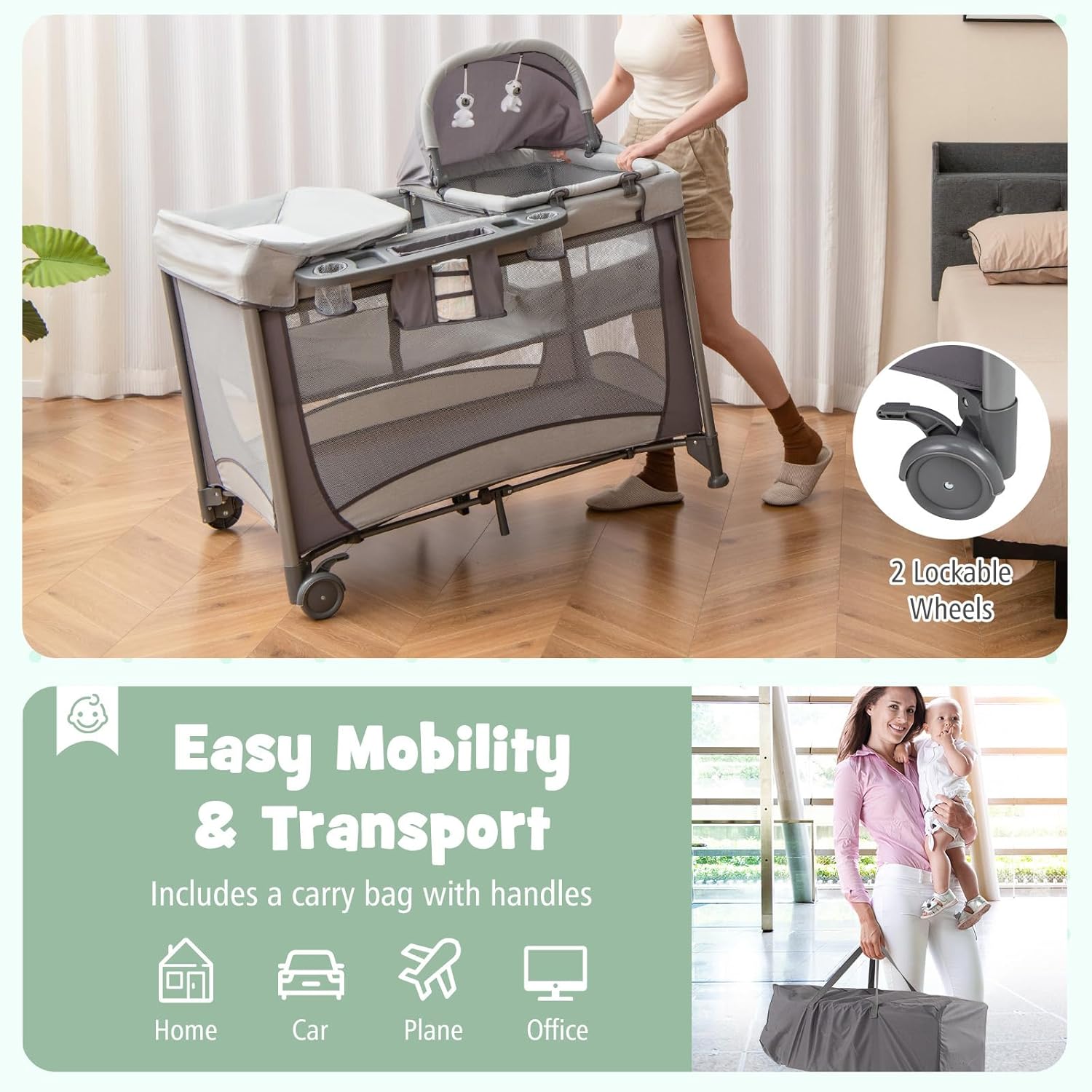

Image: Demonstrates the playard's easy mobility with two lockable wheels and its portability with an included carry bag, suitable for various travel scenarios.
Кошумча функциялар
- Side Storage Rack: Provides convenient storage for diapers, bottles, and other baby necessities.
- Cute Hanging Toys: Engage your baby and aid in grasping ability and visual development.
- Smooth & Rounded Edges: Designed for safety and comfort.
- 360° Breathable Mesh Cloth: Enhances air ventilation and allows for convenient observation of your child.
Image: Highlights key features including a skin-friendly mattress, side storage rack, cute hanging toys, and smooth, rounded edges for safety.

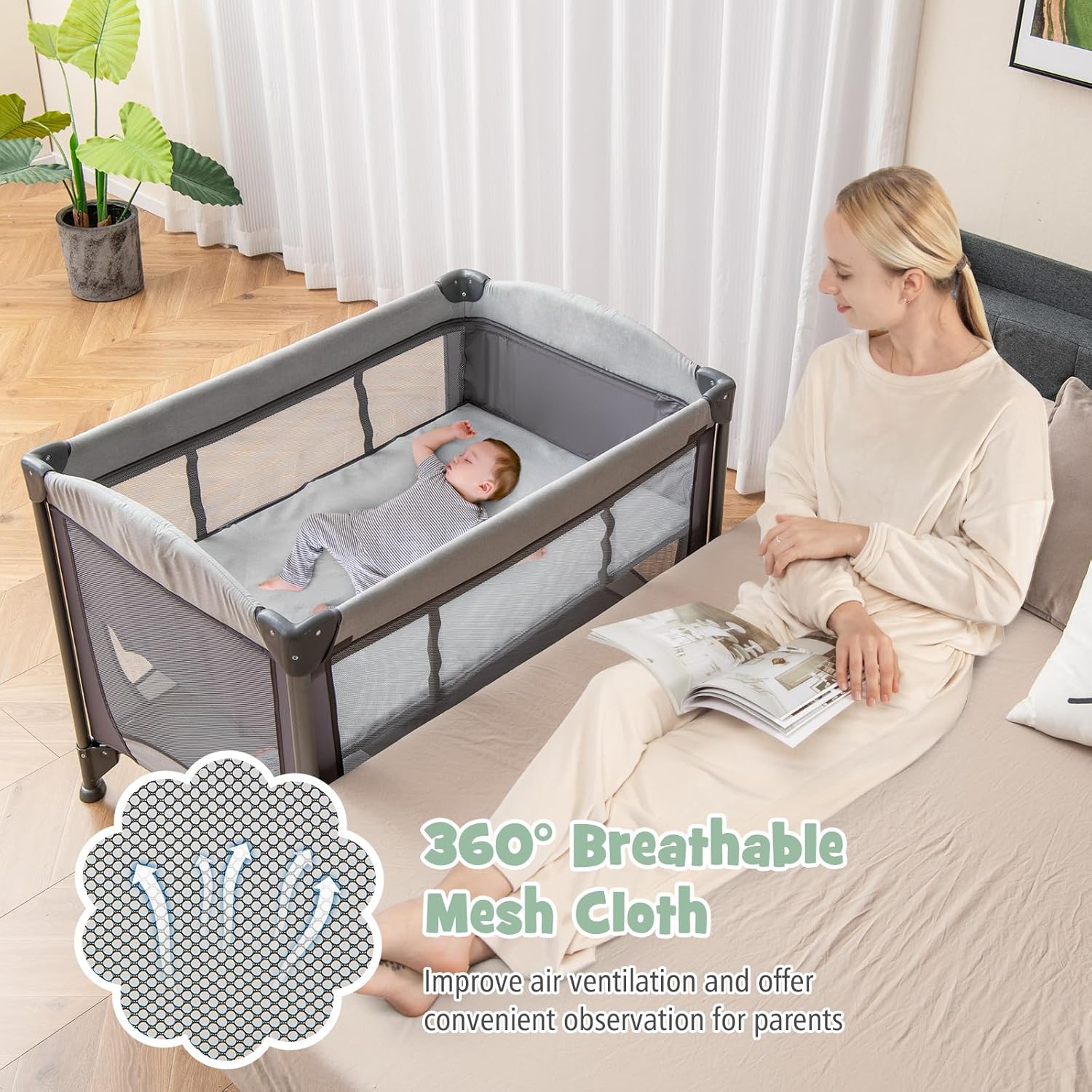

Image: A baby sleeping in the playard, emphasizing the 360° breathable mesh cloth for improved air ventilation and parental observation.
Техникалык тейлөө жана кам көрүү
- Тазалоо: Wipe down fabric surfaces with a damp cloth and mild soap. Allow to air dry completely. Do not use harsh chemicals or abrasive cleaners.
- Сактагыч: When not in use, fold the playard and store it in the provided carry bag in a cool, dry place away from direct sunlight.
- Текшерүү: Periodically check all parts for wear, tear, or damage. Ensure all locking mechanisms are functioning correctly.
Проблемаларды чечүү
If you encounter any issues with your HONEY JOY Pack and Play, please refer to the following common solutions:
- Playard кулпуланган жок: Ensure all four side rails are fully extended and locked into place before pressing down the center base. The center base will not lock if the side rails are not fully engaged.
- Бүктөөнүн кыйынчылыгы: Ensure the center base is pulled upwards before attempting to release the side rail locking mechanisms.
- Missing parts or damage: Do not use the product. Contact HONEY JOY customer support immediately for assistance.
Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Модель номери | HJ-0736-US |
| Бренд | БАЛ КУБАНЫЧ |
| Түс | кара боз |
| Материал | Iron, Polypropylene, Oxford |
| Пакеттин өлчөмдөрү | 33 x 15 x 12 дюйм |
| Элемент Салмагы | 33 фунт |
| Maximum Weight Recommendation (Playpen) | 33 фунт |
| Maximum Weight Recommendation (Bassinet/Changing Table) | 22 фунт |
| Жаш аралыгы (сүрөттөө) | Newborn to 36 months |
| Катталган өлчөмү | 30 дюйм (L) x 20 дюйм (W) x 10 дюйм (H) |
| UPC | 685764515863 |
Image: Detailed product dimensions for the playard and bassinet, along with weight capacities for the baby playpen (33 lbs), baby crib (22 lbs), changing table (22 lbs), and bassinet (22 lbs).
Кепилдик жана колдоо
HONEY JOY products are designed for quality and durability. For information regarding product warranty, returns, or customer support, please refer to your purchase documentation or contact HONEY JOY customer service directly. You may also visit the official HONEY JOY store on Amazon for additional resources: HONEY JOY Store.
