1. Продукт бүтүп калдыview
The ET MF-400 is a high-efficiency special heat exchanger designed for use in natatoriums, swimming pools, and spas. Its primary function is to transfer heat from a primary heat source (such as a heat pump or boiler) to the pool water, maintaining the desired water temperature.
This heat exchanger is constructed entirely from 304 дат баспас болоттон жасалган, both for its outer shell and inner components, ensuring durability and resistance to corrosion in typical pool environments. It is engineered for optimal heat transfer performance.
Important Note: This heat exchanger is not suitable for use with corrosive liquids, including seawater or saltwater. Use with such liquids will void the warranty and may cause damage to the unit and surrounding systems.

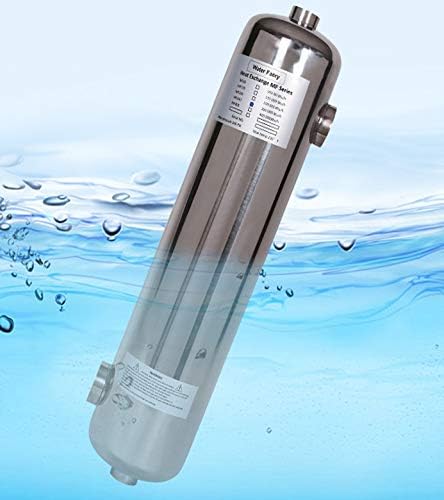

Сүрөт 1.1: Алдыңкы view of the ET MF-400 Heat Exchanger, showing its cylindrical stainless steel body and connection ports.
2. Components and Structure
The MF-400 heat exchanger features a robust design for efficient heat transfer. Key structural components include:
- 304 Stainless Steel Shell: The main cylindrical body of the heat exchanger, providing structural integrity and corrosion resistance. (Diameter Ø133x1.5mm)
- Internal Heat Exchange Tubes: Numerous smaller tubes made of 304 stainless steel (Diameter Ø10x0.6mm) run through the shell, facilitating the transfer of heat between the two fluid circuits.
- Black Insulation Paintcoat: Applied to the exterior to minimize heat loss and improve efficiency.
- Stainless Steel Holders: Brackets for secure mounting of the unit.
Сүрөт 2.1: Кесилген view illustrating the internal components of the heat exchanger, including the stainless steel shell, internal tubes, insulation, and mounting holders.
3. Орнотуу жана орнотуу
Proper installation is crucial for the efficient and safe operation of your ET MF-400 heat exchanger. It should be integrated into your pool's circulation system, typically after the filter and before the main heat source (if applicable, or directly connected to the heat source's secondary loop).
3.1 System Integration Diagram

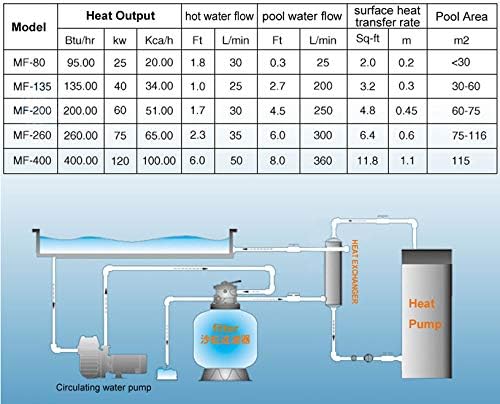

Figure 3.1: Schematic diagram showing the typical integration of the heat exchanger within a swimming pool heating system, including the circulating water pump, filter, heat exchanger, and heat pump.
3.2 Орнотуу кадамдары (Жалпы көрсөтмөлөр)
- Жайгашкан жери: Choose a suitable location that allows for easy access for maintenance and is protected from direct weather exposure. Ensure adequate space for plumbing connections.
- Монтаждоо: Securely mount the heat exchanger using its stainless steel holders to a stable surface.
- Сантехникалык байланыштар:
- Connect the pool water inlet/outlet to the appropriate ports on the heat exchanger. This loop typically comes from the pool filter.
- Connect the hot water (primary circuit) inlet/outlet from your heat source (e.g., boiler, heat pump) to the other set of ports on the heat exchanger.
- Агып кетүүнү текшерүү: After all connections are made, pressurize the system and carefully check for any leaks before full operation.
- Изоляция: Ensure proper insulation of all hot water pipes to maximize efficiency.
It is highly recommended that installation be performed by a qualified professional to ensure compliance with local codes and optimal system performance.
4. Иштөө нускамалары
The ET MF-400 heat exchanger operates passively once integrated into your pool's heating system. Its function is to facilitate the transfer of heat from the primary heating circuit to the pool water circuit.
4.1 Алгачкы ишке киргизүү
- Ensure both the pool circulation pump and the primary heat source (e.g., heat pump, boiler) are operational and circulating water through their respective loops.
- Verify that there are no air pockets in the heat exchanger by bleeding air from the system if necessary.
- Monitor the pool water temperature and adjust the settings on your primary heat source to achieve the desired pool temperature.
4.2 Нормалдуу иштөө
Once installed and running, the heat exchanger requires no direct user interaction for its heat transfer function. Its efficiency is dependent on the flow rates and temperatures of both the primary and secondary circuits, as well as the cleanliness of the internal surfaces.
5. Техникалык тейлөө
Regular maintenance ensures the longevity and optimal performance of your heat exchanger.
- Үзгүлтүксүз текшерүү: Periodically inspect the exterior of the heat exchanger for any signs of corrosion, leaks, or physical damage.
- Суунун сапаты: Maintain proper water chemistry in your pool to prevent scaling or corrosion within the heat exchanger. High levels of calcium hardness can lead to scale buildup, reducing efficiency.
- Тазалоо: If a significant drop in heat transfer efficiency is observed, the internal tubes may require cleaning to remove scale or debris. This typically involves chemical descaling, which should be performed by a qualified technician.
- Кыштоо: In colder climates, ensure the heat exchanger is completely drained during winterization to prevent freezing and potential damage.
6. Кыйынчылыктарды
This section provides guidance for common issues you might encounter. For complex problems, contact a qualified technician.
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Insufficient Heat Transfer |
|
|
| Байланыштардан агып кетүүлөр |
|
|
| Corrosion on Unit |
|
|
7. Техникалык шарттар
Detailed specifications for the ET MF-400 Heat Exchanger are provided below. These values are based on a pool water temperature increase of 0.5°C per hour and may be affected by external surroundings.
| Параметр | Value (MF-400) |
|---|---|
| Heat Output (Btu/hr) | 400,000 |
| Жылуулук чыгаруу (кВт) | 120 |
| Heat Output (Kcal/h) | 100,000 |
| Hot Water Flow (Ft) | 6.0 |
| Hot Water Flow (L/min) | 50 |
| Cold Water Flow (Ft) | 8.0 |
| Cold Water Flow (L/min) | 360 |
| Surface Heat Transfer (Sq-ft) | 11.8 |
| Surface Heat Transfer (m²) | 1.1 |
| Recommended Pool Area (m²) | 115-175 |
| Курулуш материалы | 304 Stainless Steel (Outer and Inner) |
| Пакеттин өлчөмдөрү | 43.31 x 7.87 x 7.87 дюйм |
| Элемент Салмагы | 19.8 фунт |
| Элемент моделинин номери | MF-400 |
Figure 7.1: This image provides a detailed table outlining heat output, flow rates, surface heat transfer, and recommended pool area for various MF series models, including the MF-400. Additionally, it includes a dimensional drawing of the heat exchanger, indicating key measurements (A, B, C, D, E, F) for installation planning.
8. Кепилдик маалыматы
Specific warranty details for the ET MF-400 Heat Exchanger are not provided in this manual. Please refer to your purchase documentation or contact the seller/manufacturer directly for comprehensive warranty terms and conditions.
Note: Use with corrosive liquids such as seawater or saltwater will void any applicable warranty.
9. Кардарларды колдоо кызматы
For technical assistance, troubleshooting beyond this manual, or inquiries regarding parts and service, please contact your point of purchase or the manufacturer, ET. Contact information may be available on the product packaging or the official ET webсайт.
