Avenli Pool 300 x 207 x 65 cm Steel Frame Above Ground Pool Set User Manual

Продукт бүттүview

This manual provides essential information for the setup, operation, maintenance, and troubleshooting of your Avenli Pool 300 x 207 x 65 cm Steel Frame Above Ground Pool Set. Please read these instructions carefully before assembly and use to ensure safe and efficient operation.

Figure 1: Avenli Pool 300 x 207 x 65 cm Steel Frame Above Ground Pool Set.

Камтылган компоненттер:

• Pool Liner (reinforced 3-layer PVC material)
• Steel Frame компоненттери
• Filter Pump (1.136 Liters/hour)
• Hoses for Filter Pump Connection
• Фильтр картридж
• 2x Blind Plugs for Pump Connections
• Hose Connection and Adapter for Draining
• Ремонт жамаачы

Орнотуу нускамалары

The assembly of the Avenli Pool is designed to be straightforward and typically takes approximately 30 minutes with two people, without the need for additional tools. Ensure you have a level and stable surface for installation.

1. Site Preparation:

Choose a flat, level area free of sharp objects. The overall footprint of the pool will be larger than the stated pool dimensions due to the frame structure.

2. Рамка монтажы:

Unpack all steel frame components. Connect the horizontal and vertical frame pieces according to the included diagram. The steel frame provides stability and support for the pool liner.

Figure 2: Assembly Diagram illustrating quick setup and frame components.

Figure 3: Detail of a corner frame connection.

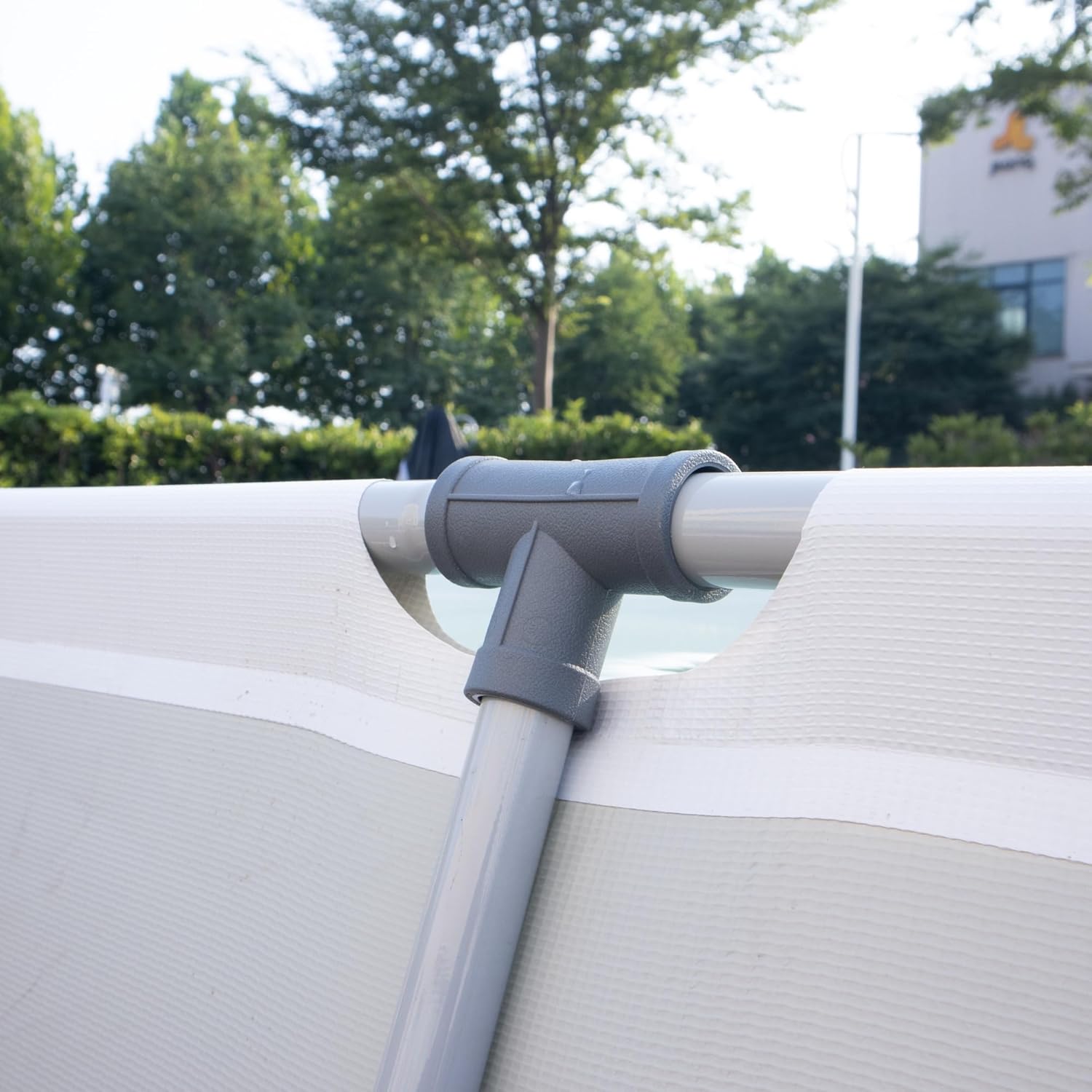

Figure 4: Detail of a side frame connection.

3. Liner Installation:

Carefully spread the pool liner within the assembled frame, ensuring it is centered and smooth. The liner is made from robust, reinforced 3-layer PVC material.

4. Filter Pump Connection:

Connect the filter pump (1.136 Liters/hour) using the provided hoses. Ensure all connections are secure to prevent leaks. If you do not intend to use the filter system immediately, use the two included blind plugs to seal the pump connections on the pool liner.

Figure 5: The included filter pump.

Figure 6: Blind plugs and hose adapter for pump connections and draining.

Иштөө нускамалары

1. Filling the Pool:

Begin filling the pool with water. The pool has a capacity of 3,701 liters at 90% fill level. As the pool fills, smooth out any wrinkles in the liner from the center outwards.

2. Filter Pump Operation:

Once the pool is filled to the appropriate level, operate the filter pump to circulate and filter the water. Refer to the separate filter pump manual for detailed operating instructions and safety guidelines.

Figure 7: The filter cartridge for the pump.

3. Draining the Pool:

To drain the pool, use the provided hose connection and adapter. This allows for easy drainage with a standard garden hose.

Техникалык тейлөө

1. Water Quality:

Regularly check and maintain proper water chemistry (pH, chlorine levels) to ensure clean and safe swimming conditions. Consult a pool chemical guide for appropriate levels and treatment methods.

2. Filter Cartridge Cleaning/Replacement:

The filter cartridge should be cleaned regularly by rinsing it with a garden hose. Replace the filter cartridge every two weeks or more frequently depending on usage and water condition to maintain optimal filtration performance.

3. Pool Cleaning:

Remove debris from the pool surface using a skimmer net. Brush the pool walls and floor as needed to prevent algae growth and remove dirt. Vacuum the pool floor if necessary.

4. Кышка даярдоо жана сактоо:

Before storing the pool for the off-season, completely drain the water. Clean and dry all components thoroughly to prevent mold and mildew. Disassemble the frame and liner, and store them in a dry, protected area away from extreme temperatures and direct sunlight.

Проблемаларды чечүү

1. Leaks:

If a small leak occurs in the pool liner, use the included repair patch for a quick and easy fix. Ensure the area around the leak is clean and dry before applying the patch. For larger leaks or structural issues, contact customer support.

2. Pump Not Operating:

Check power connections and ensure the pump is properly plugged in. Verify that the filter cartridge is not clogged and that water flow is not obstructed. Refer to the filter pump's specific manual for detailed troubleshooting steps.

3. Water Quality Issues:

If water appears cloudy or green, check chemical levels and adjust as necessary. Ensure the filter pump is running for sufficient periods and that the filter cartridge is clean.

Техникалык шарттар

Кепилдик жана колдоо

For information regarding product warranty, please refer to the documentation provided at the time of purchase or contact your retailer. Warranty terms may vary by region and retailer.

For technical support, spare parts, or further assistance, please contact Avenli customer service or your authorized dealer. Contact details can typically be found on the product packaging or the manufacturer's official webсайт.
