Fujitsu General K 9309997011 & K 9316474017 UTR-FC03-2 & UTR-FC03-3 HVAC Filter Combo Instruction Manual

Introduction

This manual provides essential instructions for the installation, operation, and maintenance of your Fujitsu General K 9309997011 & K 9316474017 UTR-FC03-2 & UTR-FC03-3 HVAC Filter Combo. These filters are designed to maintain optimal air quality and system efficiency in compatible Fujitsu General HVAC systems. Please read this manual thoroughly before installation and use to ensure proper function and longevity of your HVAC system.

Important: Always verify the size and compatibility of these filters with your specific HVAC unit model before ordering and installation to ensure proper fit and function. Refer to your HVAC system's user manual for specific filter requirements.

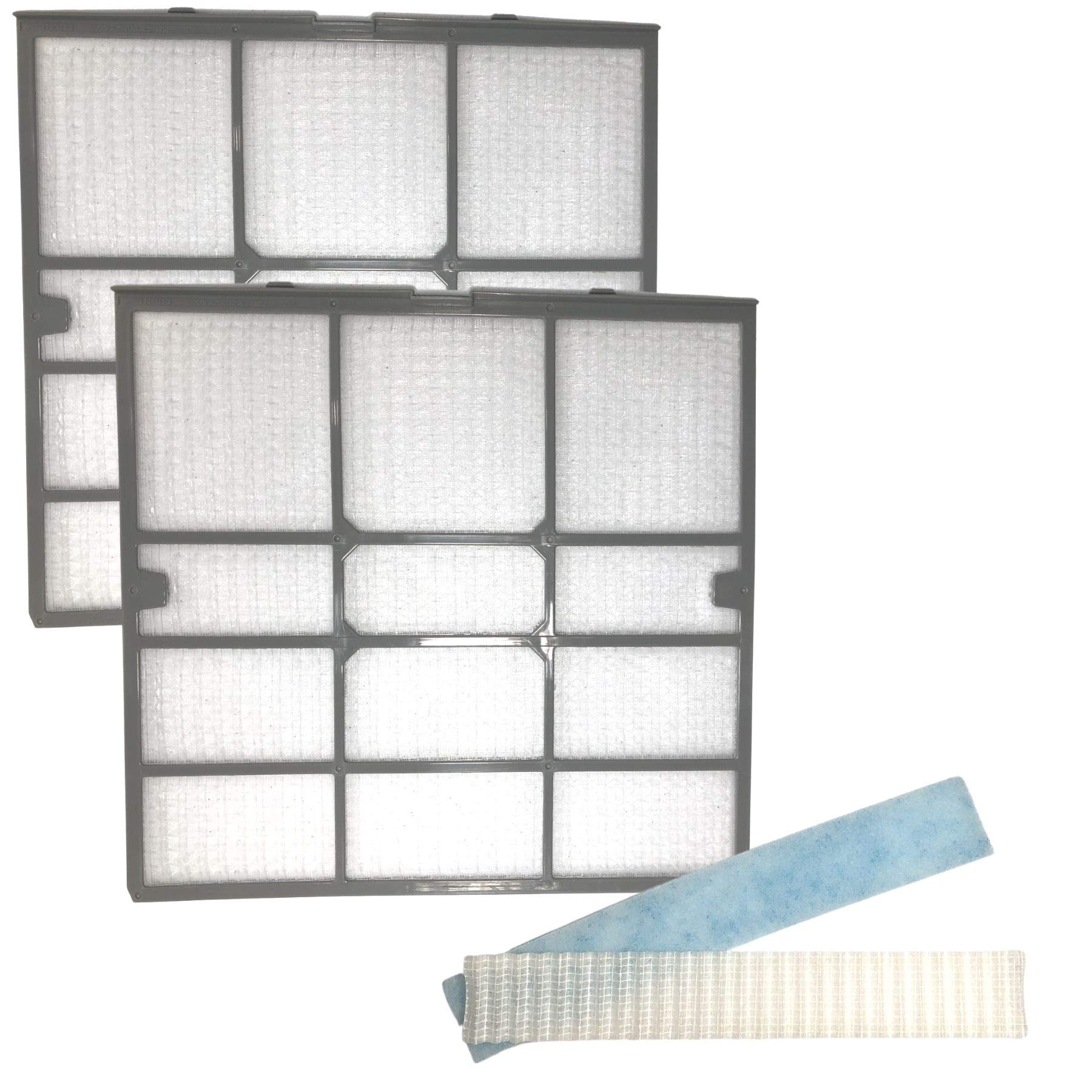

Image: Fujitsu General K 9309997011 & K 9316474017 UTR-FC03-2 & UTR-FC03-3 HVAC Filter Combo. This image displays the packaging and the filters, highlighting their design and compatibility with Fujitsu General HVAC systems.

Орнотуу жана орнотуу

Follow these steps to correctly install your new Fujitsu General HVAC filters:

1. Биринчи коопсуздук: Before beginning, ensure your HVAC system (furnace or air handler) is completely turned off at the thermostat and the circuit breaker to prevent accidental startup and injury.
2. Чыпкалоочу уячаны табыңыз: Identify the filter access slot on your HVAC unit. This is typically located in the return air duct or within the air handler itself.
3. Эски чыпканы алып салуу: Open the access panel or grille. Carefully slide out the old, dirty filter. Note its orientation, especially the airflow direction arrow.
4. Note Airflow Direction: Each new Fujitsu General filter has an arrow printed on its frame. This arrow indicates the direction of airflow. Ensure the arrow points towards the furnace or air handler (away from the return air duct).
5. Жаңы чыпка киргизүү: Slide the new Fujitsu General filter into the slot, making sure the airflow arrow is correctly oriented. Ensure the filter fits snugly without bending or leaving gaps around the edges.
6. Кирүү панелин жабуу: Securely close the filter access panel or grille.
7. Күчтү калыбына келтирүү: Turn the power back on to your HVAC system at the circuit breaker and set your thermostat to your desired setting.

Иштөө нускамалары

Fujitsu General HVAC filters are passive components designed to clean the air circulating through your system. They do not require active operation beyond proper installation.

• Үзгүлтүксүз текшерүү: It is recommended to inspect your filters monthly, especially during periods of heavy HVAC use or if you have pets or allergies.
• Алмаштыруу графиги: For optimal performance and air quality, replace these filters every 1 to 3 months, depending on usage, environmental conditions, and household factors. Refer to your HVAC system's recommendations for specific replacement intervals.
• Системанын натыйжалуулугу: A clean filter allows your HVAC system to operate more efficiently, reducing energy consumption and extending the lifespan of your equipment.

Техникалык тейлөө

The Fujitsu General K 9309997011 & K 9316474017 UTR-FC03-2 & UTR-FC03-3 filters are disposable and designed for single use. They cannot be cleaned or washed for reuse.

• Replacement is Key: The primary maintenance for these filters is timely replacement. A dirty filter can restrict airflow, reduce system efficiency, and negatively impact indoor air quality.
• Жоюу: Колдонулган чыпкаларды жергиликтүү таштандыларды жок кылуу көрсөтмөлөрүнө ылайык жок кылыңыз.

Проблемаларды чечүү

If you encounter issues after installing your new filters, consider the following common solutions:

• Фильтр туура келбейт:
  • Аракет: Double-check the dimensions of the filter against the required size for your HVAC unit. Ensure you have the correct model number. If the size is incorrect, do not force the filter, as this can damage the unit or create air gaps. Contact your supplier for an exchange.
• Reduced Airflow After Replacement:
  • Аракет: Verify that the filter's airflow arrow is pointing in the correct direction (towards the furnace/air handler). Ensure the filter is fully seated and not obstructed. Check that the access panel is securely closed.
• Unusual Noises (Whistling, Rattling):
  • Аракет: This could indicate that the filter is not seated properly, allowing air to bypass it, or that the filter is too restrictive for your system. Re-seat the filter firmly. If noises persist, consult your HVAC system's manual or a qualified technician.

Продукт спецификациялары

Кепилдик жана колдоо

For information regarding product warranty, please refer to the packaging or contact the original seller or Fujitsu General directly. Warranty terms and conditions may vary.

If you require further assistance or have questions not covered in this manual, please contact your product supplier or a certified HVAC technician.
