BATAVIA HVLP Electric Paint Sprayer - Instruction Manual

1. Киришүү

Thank you for choosing the BATAVIA HVLP Electric Spray Paint Gun. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your paint sprayer. Please read all instructions carefully before use to ensure optimal performance and safety.

Маанилүү коопсуздук маалыматы

It is advisable to practice on a piece of scrap wood or cardboard before beginning on your intended work piece. All objects to be sprayed should be thoroughly cleaned before spraying. Areas not to be sprayed may, in certain cases, need to be masked or covered. Read all operating instructions and safety precautions before operating equipment.

This product is ETL Certified, ensuring product quality and safety. Always prioritize safety during operation.

2. Камтылган компоненттер

Your BATAVIA HVLP Electric Spray Paint Gun package includes the following items:

• 1 x Power Paint Sprayer
• 4 х Насадкалар (1.5 мм, 2.0 мм, 2.5 мм, 3.0 мм)
• 1 x Guide Instruction Manual
• 1 x тазалоочу щетка
• 1 x Viscosity Cup
• 1 x External Check Valve Tube
• 3 x Check Valves
• 1 x Container Sealing Pad

Ensure all components are present and undamaged before proceeding with setup.

3. Орнотуу

3.1 Ассамблея

The paint sprayer is designed for easy assembly without tools. Simply insert the spray gun into the main housing and lock it securely.

3.2 Боёк даярдоо

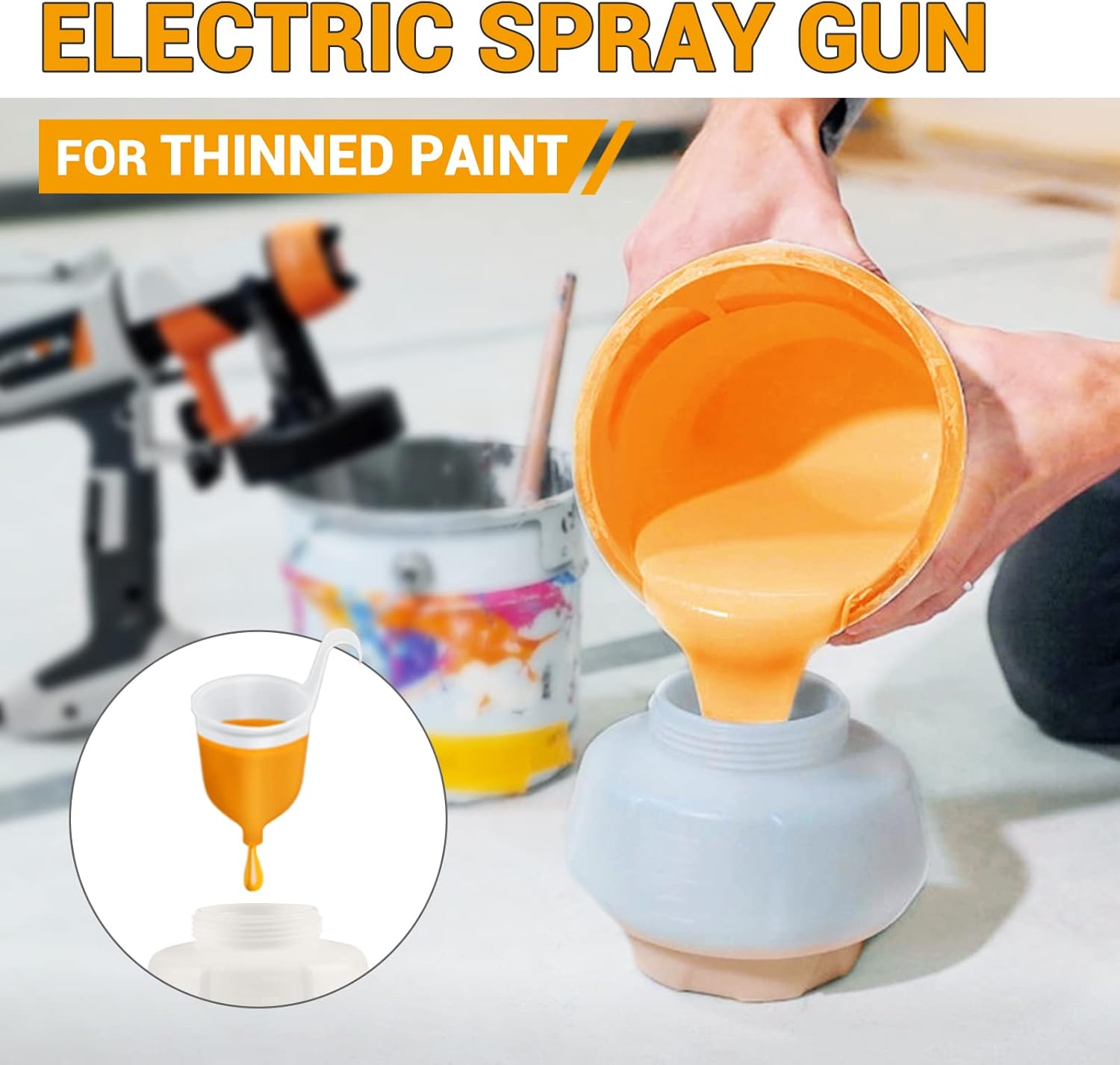

Proper paint preparation is crucial for optimal spraying results. The sprayer supports a maximum viscosity of up to 100-DINs, suitable for most paint types including latex paint, stains, sealers, urethanes, varnishes, lacquers, and chalk type paint.

• Use the included viscosity cup to test the paint viscosity. If the paint is too thick, dilute it with the appropriate liquid thinning material recommended by the paint manufacturer.
• Pour the prepared paint into the 1200ml large capacity container. Tighten the container securely to the spray gun.

3.3 Nozzle Selection and Spray Patterns

The sprayer comes with 4 nozzle sizes (1.5mm, 2.0mm, 2.5mm, 3.0mm) and supports 3 spray patterns (vertical, horizontal, circular) to meet different spraying needs.

• 1.5mm & 2.0mm Nozzles: Ideal for thin paints like sealers, varnish, dyes, polyurethane, chalk, and milk type paint.
• 2.5mm & 3.0mm Nozzles: Suitable for thicker paints such as low viscosity primer and latex wall paint.
• To change the spray pattern, switch the air cap to adjust between vertical, horizontal, or circular spray.

3.4 Adjustable Flow Control

Adjust the paint output thickness using the control valve knob on the sprayer. This allows for precise control of the paint flow rate, saving paint and ensuring a smooth finish.

3.5 Suction Tube Direction

To reduce the number of refills, adjust the suction tube direction based on your spraying angle:

• Spraying Downwards: Point the end of the pickup tube towards the front of the gun.
• Spraying Upwards: Point the end of the pickup tube towards the rear of the gun.

4. Иштөө нускамалары

4.1 Pre-Spray Preparation

Before spraying, ensure the painting area is clean and dust-free to prevent dust from blowing into your freshly sprayed surface. Mask or cover any areas you do not wish to spray.

4.2 Чачыратуу техникасы

• Сыноочу спрей: For first-time use or when changing paint, test spraying on a piece of paper or scrap wood to adjust settings and ensure proper spray pattern.
• Аралык: Position the sprayer perpendicular to the surface, typically 6-8 inches away for best results. A hand's length is usually a good distance.
• Motion: Always spray in full, even passes. Avoid short, jerky motions or flexing your wrist, as this can lead to an uneven coating.
• Ылдамдыгы: Maintain a consistent speed for full coverage. Do not spray too slowly, as this can cause paint to run.
• Кабатталып турат: Overlap each pass slightly to obtain the most consistent and professional finish possible.
• Coats: Apply a thin coat on the first pass and allow it to dry before applying a second, slightly heavier coat for optimal coverage and finish.

4.3 Official Product Video: How to Paint with the Maxxspray

This video demonstrates the proper techniques for painting with the BATAVIA Maxxspray, including preparation, spray patterns, and movement for an even finish.

4.4 Official Product Video: Maxxspray - Easy to Use

This video highlights the ease of use and versatility of the Maxxspray for various painting tasks.

5. Техникалык тейлөө

Proper cleaning and maintenance are essential to ensure the longevity and optimal performance of your paint sprayer. Clean immediately after usage to ensure normal operation for the next use.

5.1 Чачыраткычты тазалоо

• Unplug the spray gun and press the trigger to allow any remaining material inside the spray gun to flow back into the container.
• Unscrew the container and empty any remaining material back into its original container.
• Pour a small amount of the appropriate cleaning solution (e.g., water for water-based paints, mineral spirits for oil-based paints) into the container. Reattach the container and flush the spray gun by spraying the cleaning solution into a waste bucket or designated area. Always flush outdoors if possible.
• Гайканы бурап, аба капкагын жана саптаманы алып салыңыз.
• Clean the container, suction tube, air cap, and nozzle thoroughly with the provided cleaning brush or rinse in water.
• Wipe the exterior of the container and the gun clean with a damp кездеме.

5.2 Фильтрди текшерүү

Regularly inspect the filter in the air compressor (located at the rear of the main unit) to see if it is excessively dirty. If so, clean it to ensure proper airflow and prevent motor strain.

5.3 Official Product Video: How to Clean the Maxxspray

This video provides a step-by-step guide on how to effectively clean your BATAVIA Maxxspray after use.

6. Кыйынчылыктарды

If you encounter issues with your paint sprayer, consider the following common troubleshooting tips:

• Inconsistent Spray/Splats: This can be caused by paint that is too thick, an incorrect nozzle size, or a clogged nozzle. Ensure paint viscosity is correct, select the appropriate nozzle, and thoroughly clean the nozzle and air cap.
• Чачыратпаңыз/Төмөнкү басым: Check if the container is securely tightened. Ensure the suction tube is properly positioned and not clogged. Verify the air filter is clean and not obstructed.
• Paint Runs: This usually indicates applying too much paint or spraying too slowly. Adjust your spraying speed and distance from the surface. Apply thinner coats.

Көбүрөөк маалымат алуу үчүн, көйгөйдү чечүү үчүн шилтемеге кайрылыңыз Көйгөйлөрдү чечүү боюнча колдонмо (PDF) онлайн жеткиликтүү.

7. Техникалык шарттар

8. Кепилдик жана колдоо

BATAVIA offers an 18-month warranty service for this product. We are committed to providing quick customer service within 24 hours. If you have any questions or require assistance, please do not hesitate to contact us immediately. We are always here to help you.
