1. Киришүү
This instruction manual provides essential information for the proper installation, operation, maintenance, and troubleshooting of your Teka Universe Reversible Built-in Sink, model 115170001. Please read this manual thoroughly before installation and use to ensure safe and efficient operation and to preserve the product's longevity.
2. Продукт бүтүп калдыview
The Teka Universe sink is a high-quality, reversible built-in kitchen sink designed for modern kitchens. It features two basins and an integrated draining board, offering versatility and functionality.
- Материал: Stainless steel with a polished finish.
- Дизайн: Two basins and a reversible draining board, allowing for flexible installation to suit your kitchen layout.
- Орнотуу: Designed for recessed (built-in) installation into an 80 cm cabinet.
- Дренаж: Equipped with a manual valve drain featuring a 3½-inch basket and siphon.
- Basin Тереңдик: Each basin has a depth of 170 mm.
- Жалпы өлчөмдөрү: Approximately 50 cm (Height/Depth) x 116 cm (Width) x 17 cm (Basin Depth).

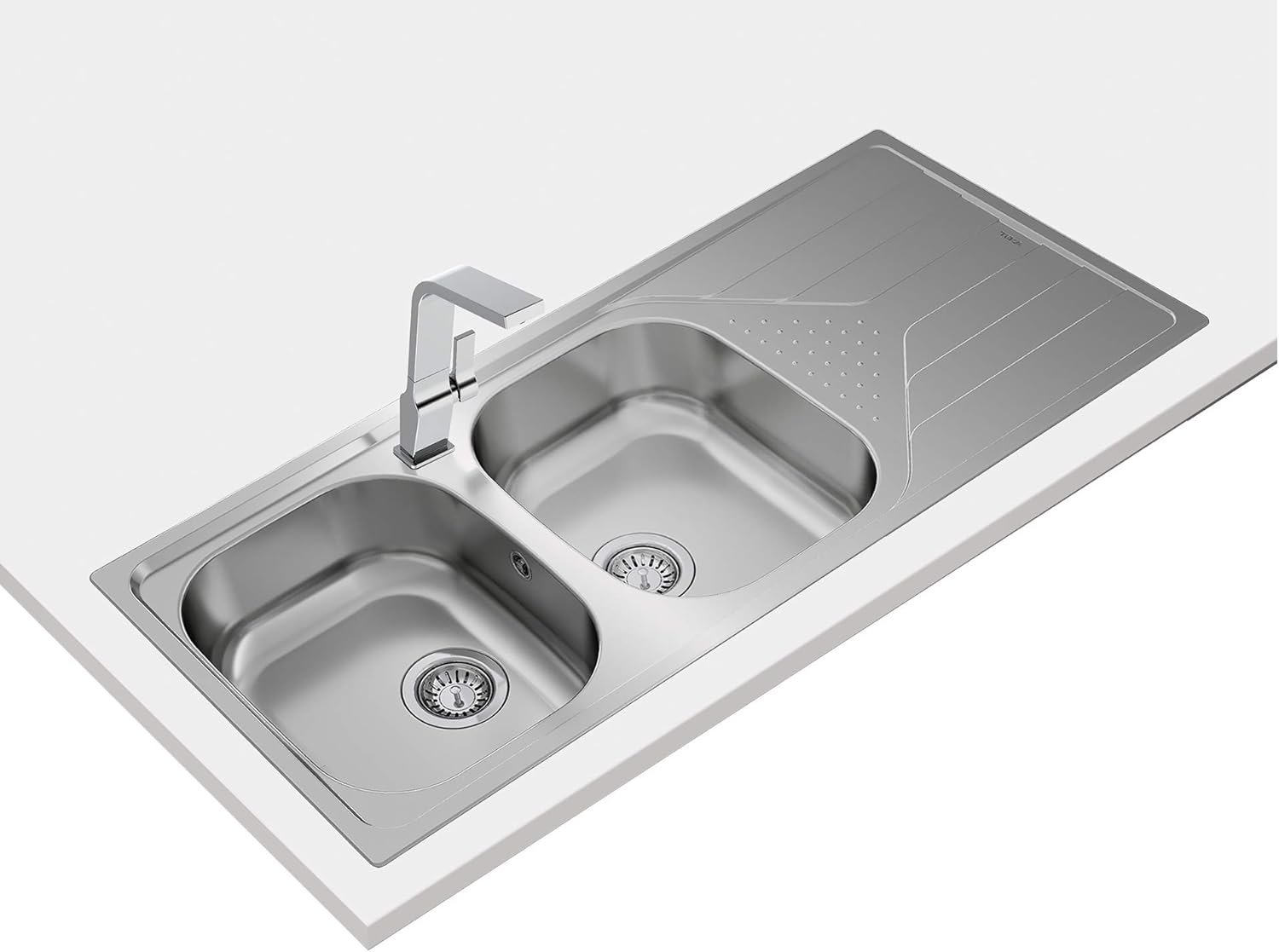

Сүрөт 2.1: The Teka Universe sink, featuring two stainless steel basins and a ribbed draining board, integrated into a kitchen countertop. A modern faucet is installed between the basins. This image shows the sink from an angled perspective, highlighting its polished finish and overall design.
3. Коопсуздук маалыматы
Орнотуу жана колдонуу учурунда төмөнкү коопсуздук чараларын сактаңыз:
- Ensure all plumbing connections are secure and watertight to prevent leaks and water damage.
- Handle the sink with care during installation to avoid injury or damage to the product.
- Do not use corrosive or highly abrasive cleaning agents, as these can damage the stainless steel finish.
- Avoid dropping heavy or sharp objects into the sink, which could cause dents or scratches.
- If installing a garbage disposal unit, follow the manufacturer's instructions carefully and ensure proper sealing.
4. Орнотуу жана орнотуу
The Teka Universe sink is designed for recessed installation into an 80 cm wide kitchen cabinet. Professional installation is recommended to ensure proper fit and function.
4.1 Орнотууга чейинки текшерүүлөр
- Verify that your cabinet opening is suitable for a sink with dimensions of approximately 116 cm (width) x 50 cm (depth).
- Ensure all components, including the sink, drain basket, and siphon, are present and undamaged.
- Note that the sink does not come with a pre-drilled faucet hole. You will need appropriate tools for drilling the faucet hole if required.
4.2 Орнотуу кадамдары
- Столду даярдаңыз: Cut the countertop opening according to the provided template (if included) or the sink's exact dimensions. Ensure edges are smooth and sealed against moisture.
- Determine Reversibility: Decide whether the draining board should be on the left or right side. The sink is designed to be reversible.
- Drill Faucet Hole (if needed): If installing a faucet directly on the sink, carefully mark and drill the faucet hole using appropriate tools for stainless steel.
- Герметикти колдонуу: Столдун үстүндөгү раковинанын тешигинин периметри боюнча силикон герметиктин мончогун сүйкөңүз.
- Раковинаны жайгаштырыңыз: Carefully lower the sink into the countertop opening. Ensure it is properly aligned and seated.
- Раковинаны бекитүү: Use the provided mounting clips (if applicable) to secure the sink to the underside of the countertop. Tighten evenly to create a tight seal.
- Install Drain Components: Assemble the 3½-inch basket drain and siphon according to the instructions provided with those components. Connect to your household plumbing.
- Connect Faucet (if applicable): Install and connect your kitchen faucet to the water supply lines.
- Агышуу үчүн сыноо: Turn on the water supply and fill the basins. Check all connections for leaks.
Сүрөт 4.1: Үстүбүздөгү чыгым view of the Teka Universe sink, illustrating its two basins and the integrated draining board. This perspective clearly shows the layout and the polished stainless steel surface, useful for planning installation orientation.
Сүрөт 4.2: Бурчтуу view of the Teka Universe sink, demonstrating its reversible design with the draining board positioned on the right. This highlights the flexibility in installation to match various kitchen layouts.
5. Иштөө нускамалары
Using your Teka Universe sink is straightforward. The two basins allow for multi-tasking, such as washing dishes in one and rinsing in the other, or preparing food. The draining board provides a convenient area for drying dishes or preparing ingredients.
- Суу агымы: Control water flow and temperature using your installed kitchen faucet.
- Дренаж: The manual basket drain allows you to open or close the drain to fill the basin or allow water to flow out. The basket also catches food debris, preventing clogs.
- Draining Board: Utilize the ribbed draining board for air-drying dishes, glasses, or produce. The grooves are designed to direct excess water back into the sink.
6. Техникалык тейлөө жана кам көрүү
Regular cleaning and proper care will maintain the polished finish and extend the life of your stainless steel sink.
- Күнүмдүк тазалоо: After each use, rinse the sink thoroughly with water and wipe it dry with a soft, clean cloth to prevent water spots and mineral buildup.
- Жалпы тазалоо: For routine cleaning, use a mild dish soap and warm water. Apply with a soft sponge or cloth, then rinse and dry.
- Абразивтерден качыңыз: Do not use abrasive cleaners, steel wool, wire brushes, or scouring pads, as these can scratch the stainless steel surface.
- Химиялык заттар: Avoid contact with strong acids, bleach, or harsh chemical cleaners, which can stain or corrode stainless steel. If accidental contact occurs, rinse immediately and thoroughly.
- Drain Basket: Regularly empty and clean the drain basket to prevent food accumulation and odors.
- Чийүүлөрдүн алдын алуу: While stainless steel is durable, it can scratch. Use cutting boards for food preparation and avoid dragging heavy or sharp objects across the sink surface.
7. Кыйынчылыктарды
Бул бөлүмдө раковинаңыз менен кездешиши мүмкүн болгон кеңири таралган көйгөйлөр каралат.
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Суу агып чыгат | Loose plumbing connections, improper sealant application, damaged siphon. | Check and tighten all plumbing connections. Reapply silicone sealant if necessary. Inspect siphon for cracks or damage and replace if found. |
| Жай дренаж | Clogged drain basket, blockage in the siphon or drain pipes. | Remove and clean the drain basket. Disassemble and clean the siphon. If blockage persists, a plumber may be required. |
| Суу тактары/тактар | Hard water deposits, not drying the sink after use. | Wipe the sink dry after each use. For existing spots, use a stainless steel cleaner or a solution of vinegar and water, then rinse and dry thoroughly. |
| Бетиндеги тырыктар | Abrasive cleaning materials, sharp objects, heavy use. | Use only soft cloths and non-abrasive cleaners. Avoid dragging sharp objects. Minor scratches can sometimes be minimized with specialized stainless steel scratch removal kits, following product instructions carefully. |
8. Техникалык шарттар
Detailed technical specifications for the Teka Universe Reversible Built-in Sink, model 115170001:
- Бренд: Тека
- Модель номери: 115170001
- Материал: Дат баспаган болот
- Бүткөн түрү: Жылмаланган
- Түсү: Болот
- Орнотуу түрү: Recessed (Built-in) / Countertop
- Overall Dimensions (L x W x D): 116 cm x 50 cm x 17 cm (approx. 45.7" x 19.7" x 6.7")
- Basin Тереңдик: 170 мм (болжол менен 6.7 дюйм)
- Cabinet Size Requirement: 80 cm base unit
- Б саныasins: 2
- Дренаждын түрү: Manual valve drain with 3½" basket and siphon
- Форма: Төрт бурчтуу
- Элемент Салмагы: 4.62 кг (болжол менен 10.16 фунт)
- Стиль: Заманбап
9. Кепилдик жана колдоо
For warranty information, technical support, or to purchase replacement parts, please contact Teka customer service directly or refer to the official Teka webсайт. Сатып алуу квитанциясын кепилдик дооматтары үчүн сатып алуунун далили катары сактаңыз.
Өндүрүүчү: Тека
Webсайт: www.teka.com (Please verify the official website for your region)
