1. Киришүү
This user manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your VONROC V18-2 Pressure Washer. Please read this manual thoroughly before using the appliance and keep it for future reference. Proper understanding of these instructions will ensure optimal performance and extend the lifespan of your pressure washer.
2. Коопсуздук нускамалары
Always observe basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and personal injury. This pressure washer is designed for outdoor use only and must be connected to a grounded outlet.
- Электр коопсуздугу: кубат менен камсыз кылуу Voltage specified on the rating label. Use a residual current device (RCD) with a tripping current not exceeding 30 mA. Do not operate the appliance with a damaged cord or plug.
- Жеке коопсуздук: Always wear appropriate personal protective equipment, including safety glasses, hearing protection, and protective footwear. Do not direct the water jet at people, animals, electrical equipment, or the appliance itself.
- Суу менен камсыздоо: Connect the pressure washer to a cold water supply only. Ensure the water inlet filter is clean and properly installed. Do not use the appliance with contaminated water.
- Операция: Keep the work area clear of bystanders. Never leave the pressure washer unattended while it is running. Before performing any maintenance or cleaning, always switch off the appliance, unplug it from the power source, and release any residual pressure.
- Химиялык заттар: Use only detergents recommended for pressure washers. Follow the detergent manufacturer's instructions for use and disposal.
3. Продукт бүтүп калдыview
The VONROC V18-2 Pressure Washer is a powerful cleaning tool designed for various outdoor tasks. It features an 1800W motor, delivering 140 bar of working pressure and a flow rate of 420 L/h. Key components include the main unit, high-pressure hose, spray gun, adjustable nozzle, turbo nozzle, detergent tank, and patio cleaner.
1-сүрөт: The VONROC V18-2 Pressure Washer shown with its complete set of accessories, including the main unit, spray gun, high-pressure hose, and various nozzles.
2-сүрөт: А деталдуу view of all included accessories: spray gun, extension lances, adjustable nozzle, turbo nozzle, patio cleaner, high-pressure hose, and cleaning needle.
Негизги өзгөчөлүктөрү:
- Күчтүү тазалоо: 1800W motor with 140 bar pressure for effective dirt removal.
- Интегралдык сактагыч: Built-in hose reel, spray gun holder, and accessory holders for organized storage.
- Ар тараптуу саптамалар: Includes a turbo nozzle for stubborn dirt and an adjustable nozzle for sensitive surfaces.
- Кир жуугуч идиш: Integrated detergent tank for easy application of cleaning solutions.
- Кеңейтилген мүмкүнчүлүк: 8-meter high-pressure hose and 5-meter power cable for large cleaning areas.
- Туруктуу курулуш: Robust aluminum pump and copper motor windings for long-lasting performance.
4. Орнотуу
Басымдуу жуугучту чогултуу жана колдонууга даярдоо үчүн бул кадамдарды аткарыңыз.
- Дөңгөлөктөрдү жана тутканы бекитүү: Securely attach the wheels and the transport handle to the main unit according to the diagrams in the quick start guide.
- Жогорку басымдагы шлангды туташтыруу: Connect one end of the high-pressure hose to the outlet on the pressure washer and the other end to the spray gun. Ensure connections are tight.
- Assemble Spray Gun: Attach the desired lance (extension or direct) and nozzle (adjustable or turbo) to the spray gun. Twist until securely locked.
- Суу менен камсыздоону туташтыруу: Connect a garden hose (not included) to the water inlet on the pressure washer. Ensure the water inlet filter is in place. Connect the other end of the garden hose to a cold water tap.
- Fill Detergent Tank (Optional): If using detergent, unscrew the cap of the integrated detergent tank and fill it with a suitable pressure washer detergent. Do not overfill.
3-сүрөт: Жакын план view of the integrated detergent tank, showing the inlet for detergent and the water connection point.
5. Иштөө нускамалары
Баштоодон мурун, бардык туташуулар бекем орнотулганын жана суу менен камсыздоо күйгүзүлгөнүн текшериңиз.
- Абаны тазалоо: Squeeze the trigger on the spray gun to release any air from the system. Allow water to flow through until a steady stream is achieved.
- Күйгүзүү: Plug the power cord into a grounded electrical outlet. Turn the ON/OFF switch on the pressure washer to the 'ON' position. The motor will start.
- Тазалоону баштоо: Direct the spray gun at the surface to be cleaned, maintaining a safe distance. Squeeze the trigger to start the high-pressure water flow.
- Насадкаларды колдонуу:
- Жөнгө салынуучу насос: Rotate the nozzle head to adjust the spray pattern from a concentrated jet to a wide fan spray, suitable for various cleaning tasks and sensitive surfaces.
- Турбо сопло: Provides a rotating jet for powerful cleaning of stubborn dirt on hard, durable surfaces like concrete or stone.
- Жуучу каражатты колдонуу: If using detergent, ensure the detergent tank is filled. The pressure washer will automatically draw detergent when operating at low pressure or with a specific detergent nozzle (if included). Follow detergent instructions for optimal mixing and application.

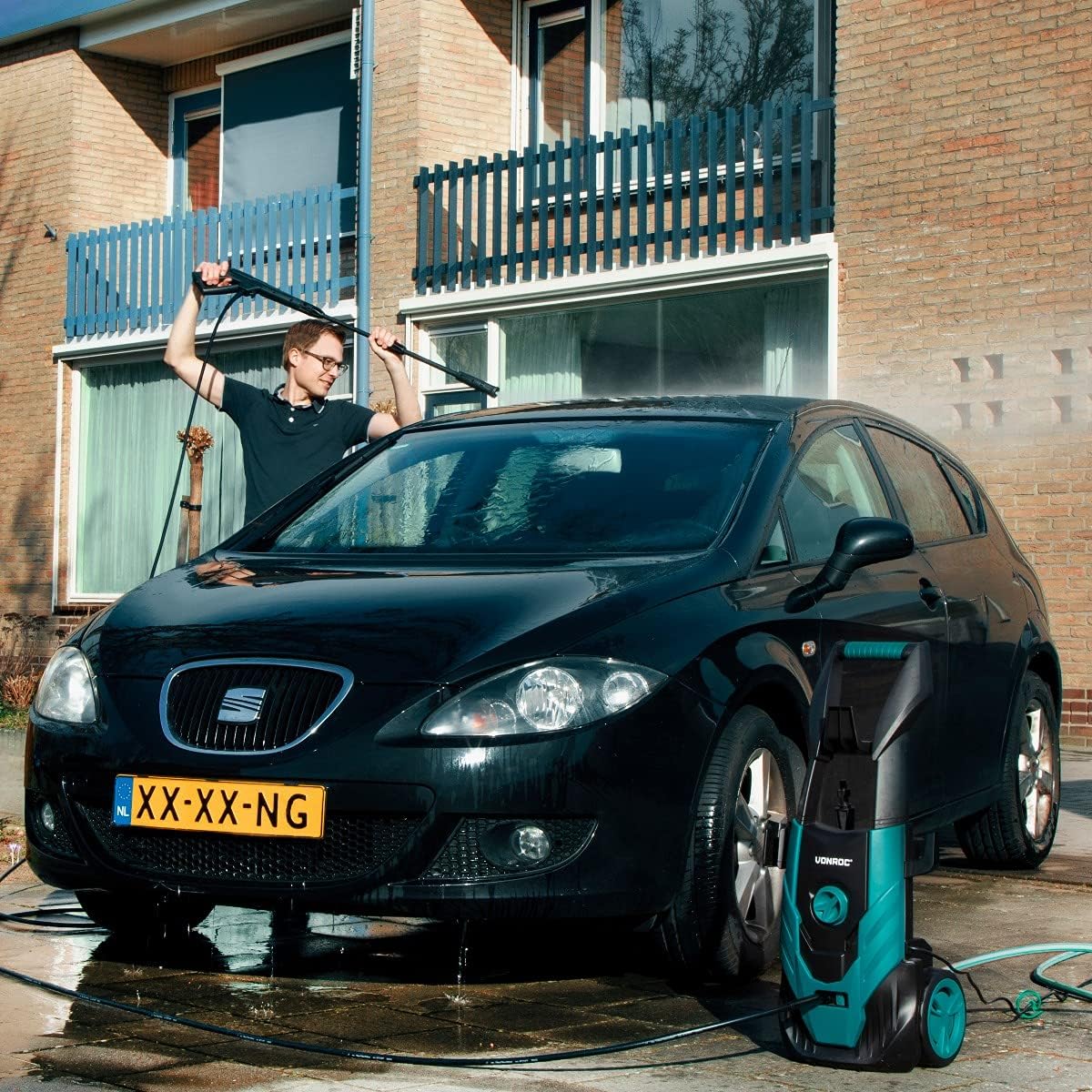

4-сүрөт: An individual demonstrating the use of the pressure washer for cleaning a car, highlighting its versatility for vehicle maintenance.
5-сүрөт: A close-up shot illustrating the effective cleaning of a car wheel, showing the precision and power of the water jet.
6-сүрөт: The pressure washer in action, cleaning a patio surface and demonstrating its capability to remove dirt and grime from outdoor flooring.
Өчүрүү:
- Бүркүтүүчү тапанчаны бошотуңуз.
- Turn the ON/OFF switch to the 'OFF' position.
- Суу менен камсыздоону өчүрүңүз.
- Squeeze the spray gun trigger to release any residual pressure in the system.
- Электр шнурын электр розеткасынан сууруп алыңыз.
6. Техникалык тейлөө
Үзгүлтүксүз тейлөө сиздин басымдуу жуугучуңуздун узак иштөөсүн жана оптималдуу иштешин камсыз кылат.
- Тазалоочу саптамалар: If the nozzle becomes clogged, use the included cleaning needle to clear any debris from the nozzle opening.
- Суу кириш чыпкасы: Насоско таштандылардын киришине жол бербөө үчүн суу кирүүчү чыпканы үзгүлтүксүз текшерип жана тазалап туруңуз.
- Сактагыч: Before storing, drain all water from the pump, hose, and spray gun to prevent freezing damage in cold weather. Store the pressure washer in a dry, frost-free location. Utilize the integrated storage features for the hose and accessories.
7-сүрөт: The pressure washer configured for compact storage, demonstrating the integrated hose and accessory holders for neat organization.
7. Кыйынчылыктарды
Жалпы маселелер жана алардын чечимдери үчүн бул бөлүмдү караңыз.
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Мотор иштебейт | Электр менен камсыздоо жок; КҮЙГҮЗҮҮ/ӨЧҮРҮҮ баскычы өчүк; Термикалык ашыкча жүктөлүү иштетилген. | Check power connection and outlet; Turn ON/OFF switch to 'ON'; Allow motor to cool down. |
| Кысым жок же төмөн басым | Water supply off or restricted; Air in pump; Clogged nozzle; Water inlet filter dirty. | Turn on water supply, check hose for kinks; Purge air from system; Clean nozzle; Clean water inlet filter. |
| Пульсациялоочу спрей | Air in pump; Clogged nozzle; Insufficient water supply. | Purge air from system; Clean nozzle; Ensure adequate water flow. |
| Кир жуугуч каражат бөлүнбөйт | Detergent tank empty; Detergent nozzle not selected (if applicable); Clogged detergent line. | Refill detergent tank; Ensure correct nozzle/setting for detergent application; Clean detergent line. |
8. Техникалык шарттар
Technical data for the VONROC V18-2 Pressure Washer.
- Бренд: ВОНРОК
- Модел: V18-2
- Кубат булагы: Электр зымдары
- Күч: 1800 Вт
- Макс. басым: 140 бар
- Макс. Flow Rate: саатына 420 литр
- Шлангдын узундугу: 8 метр
- Электр кабелинин узундугу: 5 метр
- Продукциянын өлчөмдөрү: 35L x 32W x 65H сантиметр
- Элемент Салмагы: 8.92 килограмм
- Түсү: Кара, Көк
- Макс. Суунун температурасы: 50°C
9. Кепилдик жана колдоо
VONROC products are manufactured to high-quality standards. In the unlikely event of a defect, please refer to your purchase documentation for warranty details. For technical support, spare parts, or service inquiries, please contact VONROC customer service through their official website or the retailer where the product was purchased. Always provide your model number (V18-2) and proof of purchase when contacting support.
