1. Продукт бүтүп калдыview
The Vent-Axia Silent 7.5W Extractor Fan (Model 479086) is designed to provide efficient and extremely quiet ventilation for bathrooms. This unit features a high-efficiency motor and a built-in timer, ensuring optimal air extraction without compromising on performance or comfort. It is suitable for both ceiling and wall-mounted installations.

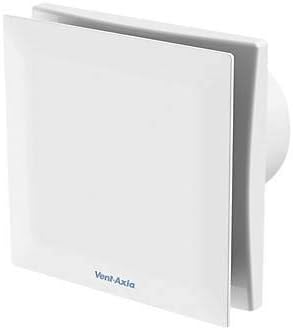

Сүрөт 1.1: Алдыңкы view of the Vent-Axia Silent 7.5W Extractor Fan, showcasing its white, square design.
Негизги өзгөчөлүктөрү:
- Extremely quiet operation with a noise level of 12dBA at 3m.
- High efficiency motor for reduced energy consumption.
- Integrated timer function for controlled operation.
- Шыпка же дубалга орнотуу үчүн ылайыктуу.
- Equipped with a backdraft shutter.
- Variable speed capability.
- Extraction Rate: 22 Liters/second.
2. Коопсуздук маалыматы
Please read all safety instructions carefully before installing or operating the fan. Failure to comply with these instructions may result in electric shock, fire, or personal injury.
- Электр коопсуздугу: Installation must be carried out by a qualified electrician in accordance with all local and national wiring regulations. Ensure the power supply is disconnected at the mains before commencing any installation or maintenance work.
- Вентиляция: Ensure adequate ventilation is provided to the room where the fan is installed to prevent backflow of gases from open flues of fuel-burning appliances.
- Суунун жакындыгы: Do not install the fan directly above a bath or shower unless specifically designed for such an application and protected by a suitable RCD.
- Балдар жана аялуу адамдар: Бул шайман физикалык, сезүү же акыл-эс жөндөмү начар же тажрыйбасы жана билими жок адамдар (анын ичинде балдар) үчүн, эгерде алардын коопсуздугуна жооптуу адам тарабынан көзөмөлсүз же шайманды колдонуу боюнча көрсөтмө болбосо, колдонууга арналбайт.
- Зыян: Do not operate the fan if the power cord or casing is damaged. Contact a qualified service technician for repairs.
3. Пакеттин мазмуну
Пакетти ачканда, бардык компоненттер бар экенин жана бузулбаганын текшериңиз:
- Vent-Axia Silent 7.5W Extractor Fan unit
- Instruction Manual
- Mounting screws and wall plugs (may vary by region/supplier)
Note: Ducting is not included and must be purchased separately if required for your installation.
4. Орнотуу жана орнотуу
Маанилүү: All electrical work must be performed by a qualified electrician. Ensure the main power supply is switched off before beginning installation.
4.1 Монтаждалуучу жер
- Choose a suitable location on the wall or ceiling, away from direct water spray.
- Ensure there is sufficient space for the fan unit and any necessary ducting.
- Mark the drilling points for mounting screws.
4.2 Электрдик туташуу
- Disconnect the main power supply to the circuit where the fan will be installed.
- Open the fan casing to access the terminal block.
- Connect the live (L), neutral (N), and switched live (SL) wires from your electrical supply to the corresponding terminals on the fan. Refer to the wiring diagram provided inside the fan casing or in the detailed manual.
- Бардык туташуулардын бекем жана туура изоляцияланганын текшериңиз.
- Close the fan casing коопсуз.
4.3 Таймерди жөндөө
The fan features an adjustable run-on timer. This allows the fan to continue operating for a set period after the light switch (or other trigger) is turned off.
- With the power disconnected, locate the timer adjustment screw or dial inside the fan unit.
- Using a small screwdriver (if applicable), carefully turn the adjustment mechanism to set the desired run-on time. The typical range is from 30 seconds to 30 minutes.
- Once set, close the fan casing and restore power.
5. Иштөө нускамалары
The Vent-Axia Silent Extractor Fan operates automatically based on its electrical connection and timer settings.
- Стандарттык операция: When connected to a switched live supply (e.g., bathroom light switch), the fan will activate when the switch is turned on.
- Таймер функциясы: After the switch is turned off, the fan will continue to run for the duration set on its adjustable timer.
- Continuous Operation (if wired): Some installations may allow for continuous low-level ventilation, with a boost function when the switch is activated. Refer to your electrician for specific wiring configurations.
6. Техникалык тейлөө
Regular maintenance ensures optimal performance and longevity of your extractor fan. Always disconnect the power supply before performing any maintenance.
- Торду тазалоо: Сырткы торчону мезгил-мезгили менен жумшак, d менен сүртүп туруңузamp кездеме. Абразивдүү тазалагычтарды же эриткичтерди колдонбоңуз.
- Ички тазалоо: For deeper cleaning, carefully remove the front cover (refer to installation instructions for removal). Gently clean any dust or debris from the fan blades and internal surfaces using a soft brush or vacuum cleaner. Ensure no water enters the electrical components.
- Текшерүү: Annually inspect the fan for any signs of damage, loose connections, or unusual noises. If any issues are found, consult a qualified technician.
7. Кыйынчылыктарды
If you experience issues with your fan, refer to the table below for common problems and solutions. If the problem persists, contact a qualified electrician or Vent-Axia customer support.
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Желдеткич күйбөйт. | No power supply; loose wiring; faulty switch; motor failure. | Check circuit breaker/fuse. Ensure power is connected. Verify wiring connections (by qualified electrician). Test switch. |
| Күйөрман тынымсыз иштейт. | Timer set incorrectly; faulty timer; incorrect wiring. | Adjust timer setting. Consult electrician to check wiring. |
| Желдетүүчү ызы-чуу. | Obstruction in fan blades; loose mounting; motor bearing issue. | Disconnect power and check for obstructions. Ensure fan is securely mounted. If noise persists, motor may require service. |
| Начар экстракция. | Blocked ducting; dirty fan blades; undersized fan for room. | Check ducting for blockages. Clean fan blades. Ensure fan capacity matches room size. |
8. Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Бренд | Vent-Axia |
| Модель аты | 479086 |
| Түс | Ак |
| Электр желдеткич дизайн | Чыгаруучу желдеткич |
| Power Source | Электр зымдары |
| Тtage | 240 вольт |
| Ватtage | 7.5 ватт |
| Ызы-чуу деңгээли | 12 dB (at 3m) |
| Аба агымынын кубаттуулугу | 22 л/сек |
| Элемент Салмагы | 0.7 килограмм (1.54 фунт) |
| Бөлмө түрү | Ванна |
| Өзгөчөлүктөр | Extremely Quiet, High Efficiency Motor, Variable Speed, Timer |
| Ички/тышкы колдонуу | Indoor |
| Кабелдин узундугу | 118.11 дюйм |
| Кубат деңгээли саны | 2 |
9. Кепилдик жана колдоо
Кепилдик: This Vent-Axia Silent 7.5W Extractor Fan comes with a 1-Year Guarantee from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from improper installation, misuse, neglect, accidents, or unauthorized repairs.
Кардарларды колдоо: For technical assistance, troubleshooting beyond this manual, or warranty claims, please contact Vent-Axia customer support. Have your product model number (479086) and proof of purchase ready when contacting support.
Сиз, адатта, өндүрүүчүнүн расмий байланыш маалыматын таба аласыз webсайтында же продуктунун таңгагында.
