Elekpia Universal Remote Control for Hisense Roku TV

1. Киришүү

This manual provides comprehensive instructions for the Elekpia Universal Remote Control, model Elekpia-His-RK6035. This remote is designed as a direct replacement for various Hisense Roku TV models, offering immediate functionality without the need for programming or pairing. It includes dedicated shortcut buttons for popular streaming services.

2. Продукт бүтүп калдыview

The Elekpia Universal Remote Control features a standard layout for easy navigation and control of your Hisense Roku TV.

This image displays the front of the Elekpia Universal Remote Control. Key buttons visible include the Power button at the top, a directional pad with an "OK" button in the center, Back, Home, and various playback controls (Rewind, Play/Pause, Fast Forward). Dedicated shortcut buttons for Netflix, Hulu, and Vudu are also present, along with a Channel button.

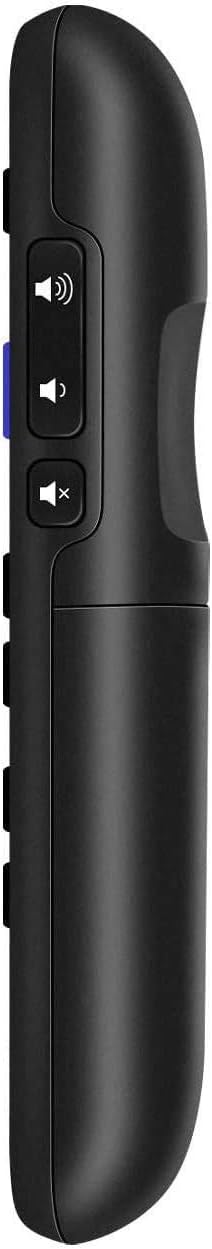

Бул сүрөт каптал профессионалды көрсөтөтfile of the Elekpia Universal Remote Control, highlighting the volume up, volume down, and mute buttons located on the left side of the remote.

3. Орнотуу

1. Батареяларды салыңыз: Open the battery compartment cover on the back of the remote control. Insert two AAA batteries (not included), ensuring correct polarity (+/-).
2. Жабуу бөлүм: Батарея бөлүкчөсүнүн капкагын бекем орнотуңуз.
3. Дароо колдонуу: The remote control is ready for immediate use with compatible Hisense Roku TVs. No programming or pairing is required.

4. Иштөө нускамалары

This remote control provides full functionality for your Hisense Roku TV.

• Кубат баскычы: басыңыз Күч button (red circle with line) to turn your TV on or off.
• Навигация: Use the directional pad (up, down, left, right arrows) to navigate menus and select options. Press the OK тандоолорду ырастоо үчүн баскыч.
• Үй баскычы: басыңыз Үй button (house icon) to return to the Roku Home screen.
• Артка баскычы: басыңыз Артка button (left arrow) to go back to the previous screen or menu.
• Үндү көзөмөлдөө: колдонуу Үндү көтөрүү жана Үндү төмөндөтүү buttons on the side of the remote to adjust audio levels. Press the Үнсүз button to silence the TV.
• Ойнотуу башкаруулары: колдонуу Артка түрүү, Ойнотуу/Тыныгуу, жана Fast Forward buttons for media playback.
• Ыкчам кайталоо: The Ыкчам кайра ойнотуу button (curved arrow) allows you to jump back a few seconds in video playback.
• Жылдыз баскычы: The Жылдыз button (*) provides quick access to options within certain apps or menus.
• Жарлык баскычтары: Dedicated buttons for Netflix, Hulu, жана Vudu allow direct access to these streaming services.

5. Шайкештик

This Elekpia remote control is specifically designed to be compatible with a wide range of Hisense Roku TV models. It functions as a direct replacement for original remotes such as HU-RCRIS-21G, HU-RCRUS-20, and HU-RCRUS-20G.

Compatible Hisense Roku TV Models include:

32H4E1, 32H4F, 32H4030F, 32H4070E, 32H4D, 32H4E, 32H4020E1, 32H4050E1, 32H4060E1, 32H4070E1, 32H4090E1, 32H4080E1, 32H4080E, 32H4040E, 32H4050E, 32H4020E, 32H4060E, 32H4090E, 40H4040E, 40H4F, 40H4030F, 40H4050E, 40H4070E, 40H4020E, 40H4030F1, 40H4E, 40H4D, 40H4090E, 40H4080E, 43H4030F, 43R6E, 43R7E, 43H4020E, 43H4040E, 43H4E, 43R7080E, 43R6E1, 43H4060E, 43H4050E, 43H4070E, 43H4080E, 43H4090E, 43H4D, 50R7E, 50R6E, 50H4D, 50R6E, 50R7F, 50R7050E, 50R6E1, 55R6000E, 55R6040F, 55R7F, 55R6E, 55R6070E3, 60R6E, 60R5800E, 58R6E, 55H4D, 55R7E, 65R6070E, 65R7E1, 65R6E, 65R6E1, H4 series, 65R7E, 65R6D, 65R8F, 65R7050E1, 75R6E1, 70R6270F, R6070 Series, H4030 Series, 70R629.

Маанилүү эскертүү: Бул алыстан башкаруу болуп саналат ЖОК compatible with Roku Stick or Roku Streaming Player devices. It does not support voice control or have a headphone jack.

This image visually clarifies compatibility. It shows a Hisense Roku TV screen with a "YES" indicator, confirming compatibility. Below, various Roku Stick and Roku Streaming Player models are displayed with a "NOT Compatible" label, emphasizing that the remote is not designed for these devices.

6. Кыйынчылыктарды

• Алыстан жооп бербейт:
  • Батареялардын туура полярдуулукта жана туура салынганын текшериңиз.
  • Эски батареяларды жаңы AAA батареялары менен алмаштырыңыз.
  • Пульт менен телевизордун инфракызыл кабыл алгычынын ортосундагы тоскоолдуктарды текшериңиз.
  • Ensure you are within a reasonable range and have a clear line of sight to the TV.
• Атайын баскычтар иштебейт:
  • Clean the remote control buttons and surrounding areas to remove any debris that might be causing sticking.
  • If only specific buttons are unresponsive after checking batteries, the remote may be faulty and require replacement.
• Чектелген диапазон:
  • The remote operates using infrared (IR) technology. Ensure there are no strong light sources (like direct sunlight) interfering with the IR signal.
  • Move closer to the TV and ensure a direct line of sight.

7. Техникалык шарттар

8. Техникалык тейлөө

• Тазалоо: Wipe the remote control with a soft, dry cloth. Avoid using liquid cleaners or abrasive materials.
• Батареяны алмаштыруу: Replace batteries promptly when the remote's performance degrades. Remove batteries if the remote will not be used for an extended period to prevent leakage.
• Сактагыч: Пультту күн нурунан жана экстремалдык температурадан алыс, салкын, кургак жерде сактаңыз.

9. Кепилдик жана колдоо

For warranty information or technical support regarding your Elekpia Universal Remote Control, please refer to the seller's specific policies or contact the retailer where the product was purchased. Keep your purchase receipt for warranty claims.
