1. Киришүү
Thank you for choosing the CUCKOO Yuva UTC RO + UV Multi-Stage Water Purifier. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new water purifier. Please read this manual thoroughly before using the product and retain it for future reference.
The CUCKOO Yuva CP-YR701UW is an advanced under-sink water purification system featuring a powerful RO membrane, in-tank UV LED sterilization, and an intuitive digital touch faucet for convenient and hygienic access to purified water.
2. Коопсуздук маалыматы
To ensure safe operation and prevent damage to the product or injury to users, please observe the following safety precautions:
- Always connect the purifier to a grounded electrical outlet. Do not use extension cords or adapters.
- Ensure the water supply pressure is within the recommended range for the purifier.
- Do not expose the main unit or electrical components to water or excessive moisture.
- Keep the purifier away from direct sunlight and heat sources.
- Only use genuine CUCKOO replacement filters and parts.
- Do not attempt to repair or modify the unit yourself. Contact authorized service personnel for assistance.
- Кандайдыр бир тейлөө же тазалоо иштерин жүргүзүү алдында блокту розеткадан сууруп алыңыз.
3. Продукт бүтүп калдыview
The CUCKOO Yuva CP-YR701UW consists of a compact main purification unit and a sleek digital touch faucet.
This image displays the compact CUCKOO Yuva water purifier main unit alongside its sleek, stainless steel smart touch faucet, designed for under-sink installation.
Негизги өзгөчөлүктөрү:
- Smart Under-Counter Design: Space-efficient unit fits discreetly under your sink.
- Digital Touch Faucet: Stainless steel faucet with a digital display for single-touch dispensing and filter status.
- Мульти-Сtage Фильтрация: Combines Sediment, Carbon, RO Membrane, and Post-Carbon filters for comprehensive purification.
- In-Tank UV LED Sterilization: Automatic UV sterilization within the 7.5L storage tank ensures hygiene and prevents bacterial growth.
- Чыпкалоо өмүрүн көзөмөлдөө: Faucet display provides real-time filter status and replacement alarms.
A detailed diagram illustrating the advanced multi-stage filtration system of the CUCKOO Yuva purifier, including sediment filter, high-precision PP cotton, activated carbon block, 0.0001µm RO membrane, and coconut-shell activated carbon layers, ensuring 99.99% contaminant removal efficiency.
This image shows the 7.5-liter inbuilt water tank of the CUCKOO Yuva purifier, emphasizing its automatic UV sterilization feature. The diagram explains that UV activation occurs every 4.5 hours for 90 minutes, keeping stored water contamination-free.
4. Орнотуу жана орнотуу
The CUCKOO Yuva CP-YR701UW is designed for under-sink installation. Professional installation is recommended to ensure proper setup and functionality. An installation kit is included with your purchase.

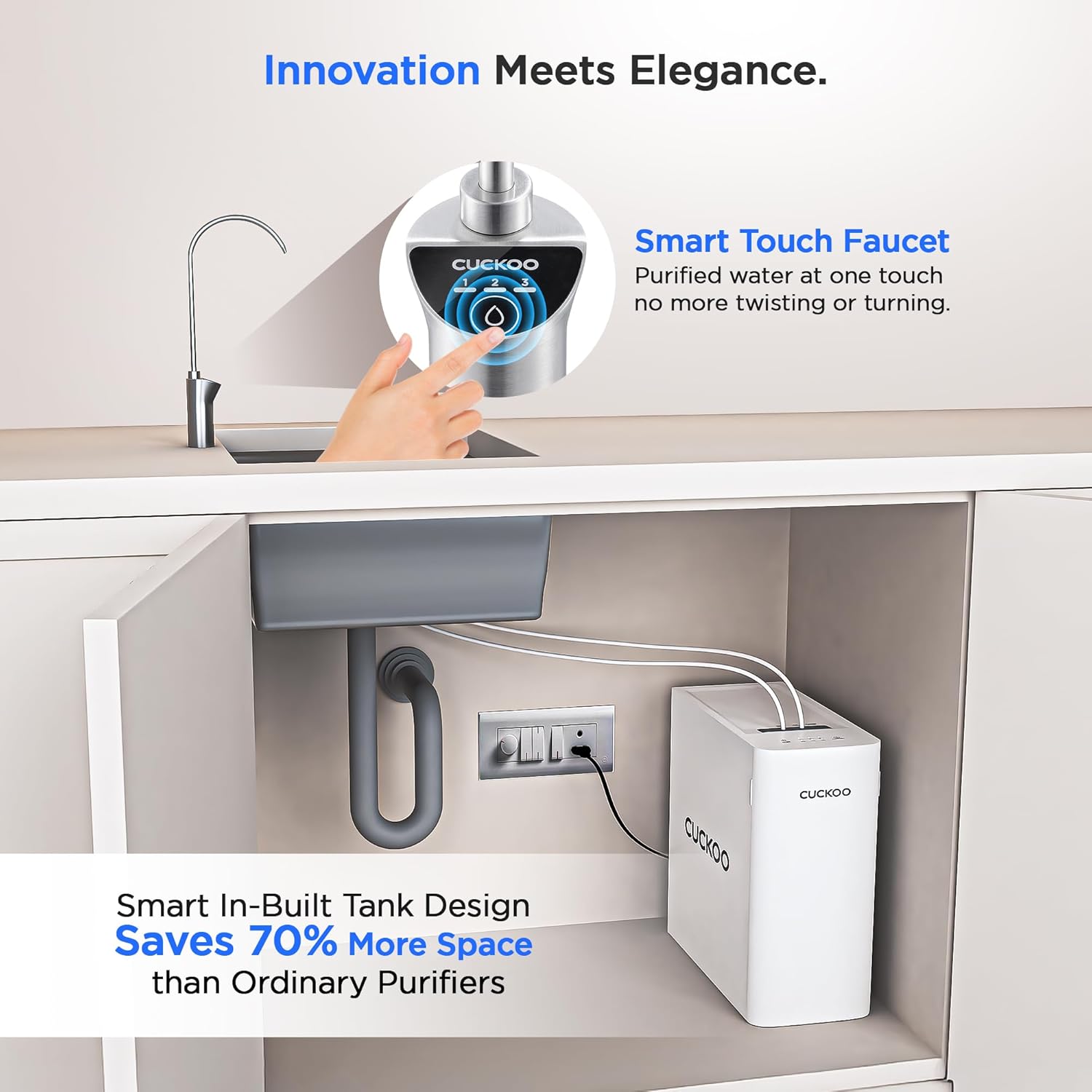

An illustration showing the CUCKOO Yuva water purifier neatly installed under a kitchen sink, demonstrating its space-saving design. The smart touch faucet is visible above the counter.
General Installation Steps (Consult professional installer for details):
- Сайт тандоо: Choose a suitable location under the kitchen sink, ensuring adequate space for the main unit and access for maintenance.
- Кран орнотуу: Install the digital touch faucet on the countertop, typically requiring a standard faucet hole.
- Суу менен камсыздоо байланышы: Connect the purifier to the cold water supply line using the provided adapters and tubing.
- Дренаж туташуусу: Install the drain saddle valve onto the sink's drain pipe for wastewater discharge.
- Электр байланышы: Plug the purifier into a grounded electrical outlet.
- Системаны тазалоо: Perform an initial flush of the system as per installer instructions to remove air and carbon fines.
5. Иштөө нускамалары
Суу чыгаруу:
- The digital touch faucet allows for easy water dispensing. Simply touch the dispensing button on the faucet to start and stop the flow of purified water.
- The system is designed for fast dispensing, providing instant access to purified water.
Чыпкалоо өмүрүн көзөмөлдөө:
A close-up of the CUCKOO Yuva smart touch faucet, highlighting its digital display with multi-color LED indicators for filter life: blue for normal, purple for 30 days left, red flashing for 7 days left, and solid red for expired.
- The smart touch faucet features a multi-color LED indicator to display the status of your filters:
- Көк: Кадимки иштөө.
- Кызгылт көк: Approximately 30 days of filter life remaining.
- Кызыл жаркылдоо: Approximately 7 days of filter life remaining.
- Кызыл: Filter has expired and requires replacement.
- Pay attention to these indicators to ensure optimal purification performance.
In-Tank UV LED Sterilization:
- The purifier automatically activates its in-tank UV LED sterilization system.
- This process occurs every 4 hours and 30 minutes for a duration of 15 minutes to ensure the stored water remains free from microbial contamination.
6. Техникалык тейлөө
Regular maintenance is crucial for the longevity and performance of your CUCKOO Yuva water purifier.
Фильтрди алмаштыруу:
- The smart faucet's LED indicators will alert you when filters need replacement.
- When a filter expires (red indicator), it must be replaced promptly to maintain water quality.
- After replacing filters, use the intuitive one-touch control panel on the main unit to reset the filter replacement cycle. Refer to the main unit's display for specific instructions on resetting.
- Only use genuine CUCKOO replacement filters.
Тазалоо:
- Wipe the exterior of the main unit and faucet with a soft, damp кездеме. Абразивдүү тазалагычтарды же эриткичтерди колдонбоңуз.
- Ensure the faucet's digital display area remains clean for optimal touch responsiveness.
7. Кыйынчылыктарды
If you encounter issues with your water purifier, refer to the table below for common problems and solutions. If the problem persists, contact CUCKOO customer support.
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| No water dispensing from faucet. | No power, water supply off, or system pressure issue. | Check power connection. Ensure water supply valve is open. Verify system pressure. |
| Суунун агымы жай. | Clogged filters, low water pressure, or air in the system. | Check filter status and replace if expired. Ensure adequate water supply pressure. Contact service if problem persists. |
| Faucet LED shows red (filter expired). | Filter has reached its lifespan. | Replace the indicated filter immediately and reset the filter cycle on the main unit. |
| Water taste or odor is unusual. | Expired filters, new filter not flushed properly, or contamination. | Check filter status and replace if needed. Flush the system thoroughly after filter replacement. |
| Faucet touch function is unresponsive. | Wet hands, debris on sensor, or electrical issue. | Ensure hands are dry. Clean the faucet sensor area. If issue persists, contact support. |
| Water TDS level is not reducing. | RO membrane issue or bypass valve open. | Ensure RO membrane is not expired. Contact service for inspection. |
8. Техникалык шарттар
Below are the technical specifications for the CUCKOO Yuva UTC RO + UV Water Purifier Model CP-YR701UW:
| Өзгөчөлүк | Деталь |
|---|---|
| Модель аты | CP-YR701UW |
| Орнотуу түрү | Раковинанын астында |
| Продукциянын өлчөмдөрү (L x W x Y) | 11.4L x 19.1W x 20.9H Сантиметр |
| Элемент Салмагы | 6.55 кг |
| Power Source | Электр зымдары |
| Тtage | 220 вольт (AC) |
| Ватtage | 55 Ватт |
| Максималдуу агым ылдамдыгы | Мүнөтүнө 3 литр |
| Supported Water TDS Level (Max) | 2000 PPM |
| Өзгөчөлүктөр | Intuitive one touch control panel, Smart Faucet with Display, UV Led Sterilization |
| Резервуардагы УК стерилизациясы | Automatic activation every 4.5 hours for 90 minutes |
| Сертификаттар | NSF/ABSI 42 Certified |
Сүрөт шоуcasing the NSF/ABSI 42 certification logos, indicating that the CUCKOO Yuva water purifier meets rigorous international quality and safety standards for purified water.
9. Кепилдик жана колдоо
CUCKOO is committed to providing reliable products and excellent customer service.
Кепилдик маалыматы:
- Your CUCKOO Yuva water purifier comes with a standard manufacturer's warranty.
- Extended warranty options are available for purchase: 1 Year Extended Warranty and 2 Year Extended Warranty. Please refer to your purchase documentation for details on coverage and terms.
Кардарларды колдоо:
For installation, service, or any queries regarding your CUCKOO Yuva water purifier, please contact our customer support team. CUCKOO offers nationwide installation and service.
- WhatsApp колдоо: +91 76693 28341
- Refer to the contact information provided in your product packaging or on the official CUCKOO website for additional support channels.
An image displaying CUCKOO's commitment to customer support, featuring a building and contact details for quick installation, service, or queries, including a WhatsApp number: +91 76693 28341.
10. Видео ресурстар
No official product videos from the seller with relevant content were available for embedding based on the provided data. Please check the manufacturer's website or product page for any available video guides or demonstrations.
