1. Киришүү
This manual provides essential information for the safe and efficient installation, operation, and maintenance of the OSRAM OT100W/347-480V/1250C/2DIM/P6 Dimmable LED Power Supply. This device is a 100-watt, 347/480-volt, programmable, constant current LED driver designed for outdoor applications.
2. Коопсуздук маалыматы
WARNING: Read all instructions before installation and operation.
- Электр коркунучу: Disconnect power before servicing to prevent electric shock.
- Негиздөө: The case of the power supply must be properly grounded.
- Зымдар: Ensure all wiring complies with local and national electrical codes. Only Class 2 or non-Class 2 wiring is allowed as specified.
- Калифорния сунушу 65 Эскертүү: This product can expose you to chemicals, which are known to the State of California to cause cancer and reproductive harm. For more information, visit www.P65warnings.ca.gov.
- This device is a Class 2 LED power unit, Type HL, suitable for Dry, Damp, and Hazardous locations.
3. Продукциянын өзгөчөлүктөрү
- Чыгуу кубаттуулугу: 100 Watts maximum.
- Киргизүү көлөмүtage: 347-480VAC, 50/60 Гц.
- Чыгуу ток: Constant Current, programmable range of 600-1250mA.
- алсыздатуу: Dimmable with 0-10V dimming input (isolated).
- Натыйжалуулугу: Power Factor (PF) > 0.9, Total Harmonic Distortion (THD) < 20%.
- Экологиялык рейтинг: IP66 rated for protection against dust and powerful water jets, suitable for outdoor use.
- Сертификаттар: Complies with FCC 47 CFR part 15, Class A. UL Listed. RoHS compliant.
4. Техникалык шарттар
| Параметр | Нарк |
|---|---|
| Model Number (on label) | OT100W/347-480V/1250C/2DIM/P6 |
| Киргизүү көлөмүtage | 347-480VAC, 50/60 Гц |
| Киргизүү агымы (макс.) | 0.345A @ 347V, 0.255A @ 480V |
| Чыгуу кубаттуулугу (Max) | 100 Вт |
| Output Voltage Диапазон | 30-100VDC |
| Чыгуу токунун диапазону | 600-1250mA (Constant Current, Programmable) |
| Караңгылыкты көзөмөлдөө | 0-10V (100% to 10%) |
| Кубат фактору (PF) | > 0.9 |
| Жалпы гармоникалык бурмалоо (THD) | < 20% |
| Max Case Temperature (Tc) | 90°C макс |
| Өлчөмдөрү (L x W x Y) | 6.6" x 2.4" x 1.5" (1.5" Т x 6.6" Т x 1.5" Бийиктик) |
| IP рейтинги | IP66 |
| Өндүрүүчү | Осрам |
| UPC | 046135792076 |
5. Орнотуу жана орнотуу
Refer to the product label for detailed wiring instructions. Ensure all connections are secure and comply with local electrical codes.

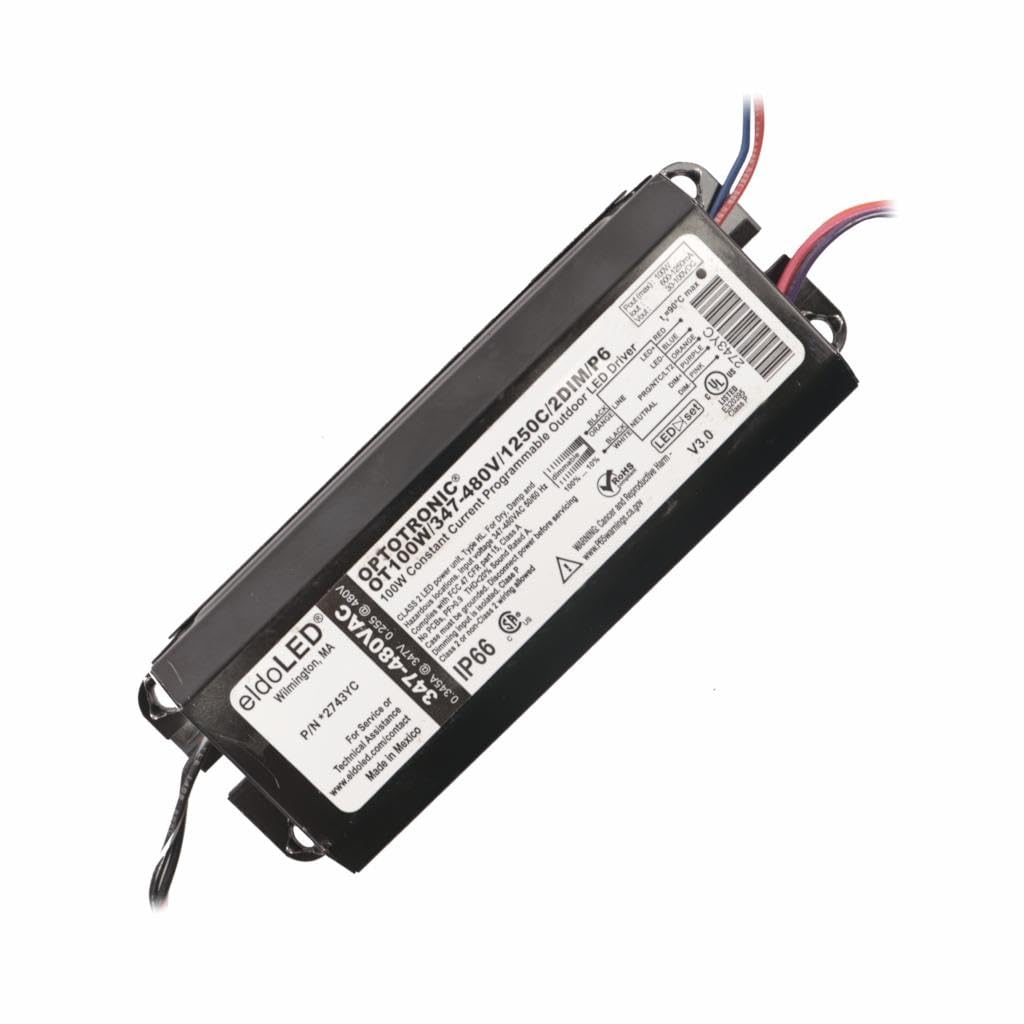

Figure 1: Osram OT100W/347-480V/1250C/2DIM/P6 LED Power Supply. The label on the device details its model number, input voltage (347-480VAC), output current range (600-1250mA), dimming capabilities, and wiring connections for line, neutral, LED output, and dimming control.
Зымдарды туташтыруу:
- Киргизүү (AC):
- Black wire: LINE
- White wire: NEUTRAL
- Output (DC to LED):
- Red wire: LED+
- Blue wire: LED-
- Dimming Control (0-10V):
- Purple wire: DIM+
- Pink wire: DIM-
- Негиздөө: Connect the power supply case to earth ground.
The dimming input is isolated. Ensure proper polarity for LED and dimming connections.
6. Иштөө нускамалары
This LED power supply is a constant current, programmable driver. The output current can be programmed within the 600-1250mA range to match the requirements of the connected LED load.
Караңгылоо функциясы:
The unit supports 0-10V dimming, allowing for light output adjustment from 100% down to 10%. Connect a compatible 0-10V dimmer to the purple (DIM+) and pink (DIM-) wires. A higher voltage on the dimming input corresponds to a higher light output.
7. Техникалык тейлөө
The OSRAM LED Power Supply is designed for reliable operation with minimal maintenance. However, periodic inspection is recommended.
- Тазалоо: Ensure the unit is free from excessive dust or debris, especially in outdoor environments. Use a dry, soft cloth for cleaning.
- Текшерүү: Зымдардын туташууларынын бекемдигин жана эскирүү же бузулуу белгилерин мезгил-мезгили менен текшерип туруңуз.
- Тейлөө: Always disconnect power to the unit before performing any maintenance or inspection to prevent electrical shock.
8. Кыйынчылыктарды
If the LED power supply is not functioning as expected, consider the following:
- Жарык чыгаруусу жок:
- Verify input power is present and correctly wired (LINE, NEUTRAL).
- Check LED output connections (LED+, LED-) for correct polarity and secure contact.
- Ensure the LED load is compatible with the power supply's output voltage жана учурдагы диапазон.
- Караңгылык маселелери:
- Confirm the 0-10V dimmer is compatible and correctly wired (DIM+, DIM-).
- Check dimming control voltage деңгээли.
- Ашыкча ысып кетүү:
- Электр булагынын айланасында жетиштүү желдетүүнү камсыз кылыңыз.
- Айлана-чөйрөнүн температурасы иштөө чегинде экенин текшериңиз.
For further assistance, refer to the support section.
9. Кепилдик маалыматы
Specific warranty details for the OSRAM OT100W/347-480V/1250C/2DIM/P6 LED Power Supply are typically provided at the point of purchase or on the official OSRAM website. Please retain your proof of purchase for warranty claims. Standard warranty terms usually cover defects in materials and workmanship under normal use.
10. Колдоо жана байланыш
For technical assistance, product inquiries, or support, please contact OSRAM customer service or visit the official OSRAM webсайт.
- Өндүрүүчү: Осрам
- Онлайн колдоо: Refer to the official OSRAM webакыркы колдоо ресурстары жана байланыш маалыматы үчүн сайт.
- EldoLED Technical Assistance: For service or technical assistance related to EldoLED components, visit www.eldoled.com/contact.
