Hakko B1087 тазалоочу төөнөгүч колдонуучунун колдонмосу

1. Киришүү

This manual provides instructions for the proper use and maintenance of the Hakko B1087 Cleaning Pin. This product is designed for cleaning desoldering guns, specifically compatible with Hakko Mfr. No. 817 and 809 models. Please read this manual thoroughly before use to ensure safe and effective operation.

2. Коопсуздук маалыматы

Травматизмди же буюмга зыян келтирбөө үчүн төмөнкү коопсуздук чараларын сактаңыз:

• Always ensure the desoldering gun is powered off and cooled down before attempting any cleaning or maintenance.
• Handle the cleaning pin with care. The wire tip is fine and can cause injury if not handled properly.
• Do not use excessive force when inserting or removing the cleaning pin, as this may damage the desoldering gun or the pin itself.
• Балдар жетпеген жерде сактаңыз.
• Store the cleaning pins in a safe, dry place when not in use.

3. Продукт бүтүп калдыview

The Hakko B1087 Cleaning Pin is a specialized tool used to clear blockages and maintain the performance of Hakko desoldering guns. Each pack contains three silver metal cleaning pins, each with a 1.0mm wire diameter and 4.0-inch length.

Figure 1: Three Hakko B1087 Cleaning Pins. Each pin features a coiled spring handle and a thin, straight metal wire for cleaning.

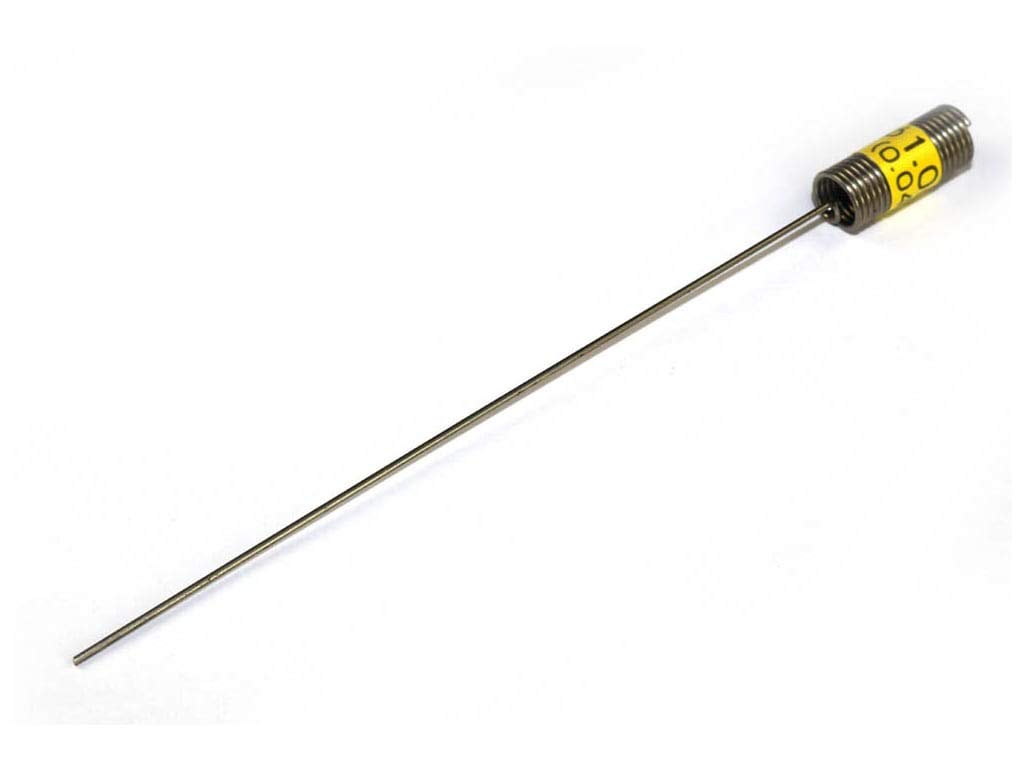

Сүрөт 2: Жакын пландан view of a single Hakko B1087 Cleaning Pin, highlighting the 1.0mm wire and the coiled handle with measurement markings.

4. Орнотуу

No specific setup is required for the cleaning pin itself. Ensure your desoldering gun is prepared for maintenance according to its own instruction manual. Typically, this involves:

1. Powering off the desoldering gun.
2. Allowing the tip and nozzle to cool completely to a safe handling temperature.
3. Removing the nozzle from the desoldering gun, if necessary, to access the internal passages.

5. Иштөө нускамалары

Follow these steps to effectively clean your desoldering gun using the Hakko B1087 Cleaning Pin:

1. Prepare the Desoldering Gun: As mentioned in the Setup section, ensure the desoldering gun is off, cool, and the nozzle is accessible.
2. Insert the Cleaning Pin: Gently insert the thin wire end of the B1087 cleaning pin into the nozzle opening or the internal passage of the desoldering gun.
3. Бөгөттөрдү тазалоо: Carefully push and pull the cleaning pin through the passage. Rotate the pin slightly as you move it to help dislodge any solder residue or debris. Do not force the pin if it meets significant resistance.
4. Зарылчылыкка жараша кайталаңыз: Continue until the passage is clear. You may need to remove the pin, clear any debris from its tip, and reinsert it multiple times.
5. Inspect and Reassemble: Once the passage is clear, inspect the nozzle and internal components for any remaining debris. Reassemble the desoldering gun according to its specific instructions.

Эскертүү: For stubborn blockages, it may be helpful to gently heat the nozzle slightly (if safe to do so according to your desoldering gun's manual) to soften solder before using the cleaning pin. Always exercise caution.

6. Техникалык тейлөө

Proper maintenance of the cleaning pin ensures its longevity and effectiveness:

• Колдонгондон кийин тазалоо: After each use, wipe the cleaning pin with a clean, dry cloth to remove any solder residue.
• Зыянды текшерүү: Periodically inspect the wire for bends, kinks, or breakage. A damaged pin may not effectively clean and could potentially damage the desoldering gun.
• Сактагыч: Store the cleaning pins in their original packaging or a protective container to prevent damage to the delicate wire.
• Алмаштыруу: Replace the cleaning pin if it becomes bent, broken, or no longer effectively clears blockages.

7. Кыйынчылыктарды

If you encounter issues while using the cleaning pin:

• Pin does not insert easily:
  • Ensure the desoldering gun is completely cool.
  • Verify you are using the correct size cleaning pin (1.0mm for this model).
  • Do not force the pin. Try gently rotating it while inserting.
  • If the blockage is severe, consider applying a small amount of flux to the area (if compatible with your desoldering gun) or gently heating the nozzle to soften the solder.
• Pin bends or breaks:
  • This indicates excessive force was applied or the blockage is too stubborn for the pin.
  • Replace the bent or broken pin immediately.
  • Re-evaluate the blockage; it might require a different cleaning method or professional service for the desoldering gun.

8. Техникалык шарттар

9. Кепилдик жана колдоо

For specific warranty information regarding the Hakko B1087 Cleaning Pin, please refer to the documentation provided with your original purchase or contact Hakko customer support directly. As a consumable item, cleaning pins typically have limited or no warranty against wear and tear.

For further assistance or technical support, please visit the official Hakko website or contact their customer service department. You can often find contact information on the product packaging or the Hakko brand store on Amazon: Hakko Store.
