Introduction
The Blink Video Doorbell + Sync Module 2 system provides comprehensive home security and convenience, allowing you to monitor your front door from anywhere. This manual will guide you through the setup, operation, maintenance, and troubleshooting of your device.
Key features include 1080p HD day and infrared night vision video, two-way audio, customizable notifications, and flexible power options (wireless or wired). The Sync Module 2 enables local storage of video clips, offering an alternative to cloud subscriptions.

Figure 1: Blink Video Doorbell highlighting its main features: 2-year battery life, weather resistance, two-way audio, and chime notifications via the Blink app.
Пакеттин мазмуну
Баштоодон мурун, бардык компоненттер бар экенин текшериңиз:
- Blink Video Doorbell
- Blink Sync Module 2
- 2 x 1.5V AA Lithium Metal Batteries (non-rechargeable)
- Mounting Kit (including angle mount, screws, and anchors)
- Power adapter for Sync Module 2

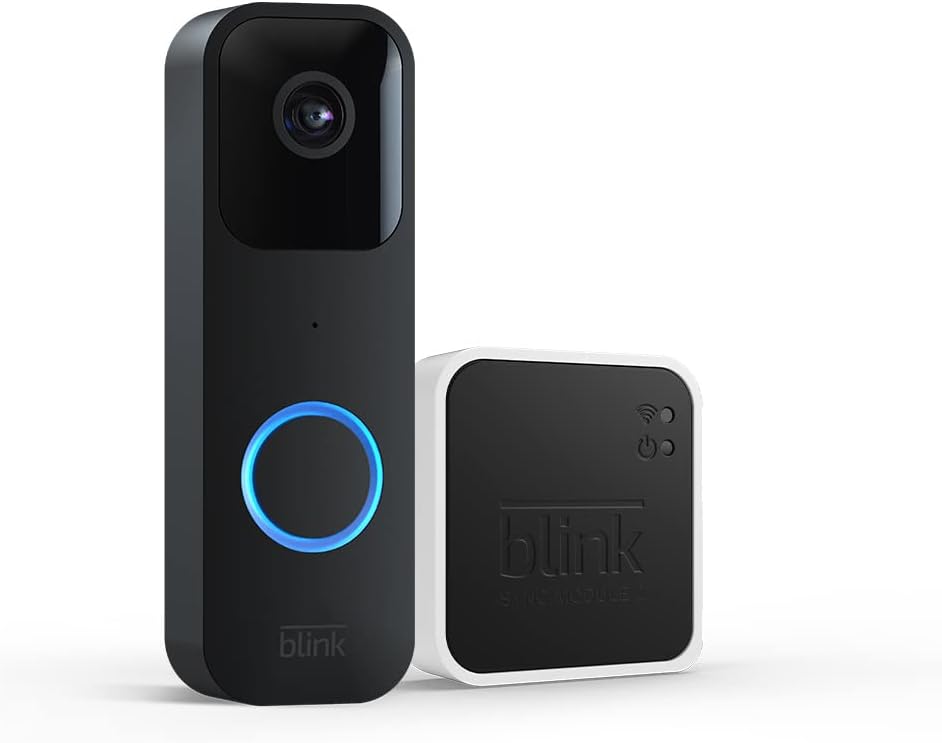

Figure 2: The Blink Video Doorbell and its accompanying Sync Module 2.
Орнотуу жана орнотуу
1. Колдонмону жүктөп алуу жана каттоо эсебин түзүү
жүктөп алыңыз Blink HomeMonitor app from your device's app store (iOS 12.5+, Android 6.0+, or Fire OS 7+). Create a Blink account or log in if you already have one.
2. Sync Module 2 Setup
- Plug in the Sync Module 2 using the provided power adapter.
- Open the Blink app and follow the on-screen instructions to add the Sync Module 2 to your account and connect it to your 2.4 GHz Wi-Fi network (802.11b/g/n).
3. Video Doorbell Battery Installation
The Blink Video Doorbell is powered by two 1.5V AA lithium metal batteries. These are non-rechargeable. Ensure you use lithium batteries for optimal performance and battery life.
- Remove the back plate of the doorbell.
- Insert the two AA lithium batteries, observing polarity.
- Арткы плитаны кайра бекитиңиз.

Figure 3: Simple installation of the Blink Video Doorbell onto its mounting bracket.
4. Mounting the Video Doorbell
The doorbell can be installed wirelessly or connected to existing doorbell wiring (16-24 VAC). For wired installations, ensure compliance with local electrical codes; professional installation may be required.
- Зымсыз орнотуу: Use the provided mounting kit (screws and anchors) to secure the doorbell to your desired location. Ensure good Wi-Fi signal strength at the installation point.
- Зым орнотуу: Connect the doorbell to your existing doorbell wiring. This allows your existing chime to sound and can extend battery life by using external power. The batteries are still required even with wired power.
Once mounted, add the Video Doorbell to your Blink system via the app, following the guided setup process.
Operating Your Blink Video Doorbell
Эшиктин коңгуроосуна жооп берүү
When someone presses your Blink Video Doorbell, you will receive a notification on your smartphone. Tap the notification to view live 1080p HD video and engage in two-way audio communication with the visitor, regardless of your location.

Figure 4: Answering a doorbell call and viewing live video on your smartphone via the Blink app.

Figure 5: The Blink Video Doorbell button, which illuminates when pressed.
Кыймылды аныктоо жана эскертмелер
The doorbell features a motion sensor that can trigger recordings and send alerts to your phone. You can customize motion detection zones and sensitivity settings within the Blink app to minimize false alerts and optimize battery life.
Видео жазуу жана сактоо
- Булуттагы сактагыч: A 30-day free trial of the Blink Subscription Plan allows you to save and share video clips in the cloud. After the trial, a subscription is required for cloud storage.
- Жергиликтүү сактагыч: With the Sync Module 2, you can store video clips locally on a USB flash drive (sold separately). This provides a subscription-free option for video storage.
Alexa интеграциясы
The Blink Video Doorbell is compatible with Amazon Alexa. You can link your Blink account to your Alexa account to receive doorbell announcements on Echo devices and view live feeds on Echo Show devices by voice command.
Техникалык тейлөө
Батареяны алмаштыруу
The doorbell uses two 1.5V AA lithium metal batteries. Battery life is estimated up to two years, but actual duration depends on device settings, usage, and environmental factors. The Blink app will notify you when battery levels are low. To replace, remove the doorbell from its mount, open the battery compartment, replace with new lithium batteries, and re-mount.
Тазалоо
Эшиктин коңгуроосунун сыртын жумшак, d менен сүртүңүзamp cloth as needed to remove dust and dirt. Avoid using harsh chemicals or abrasive cleaners.
Программалык камсыздоо жаңыртуулары
Ensure your Blink app and device firmware are kept up-to-date for optimal performance and new features. Updates are typically managed through the Blink Home Monitor app.
Проблемаларды чечүү
- No Notifications/Live View Кечигүү: Ensure strong Wi-Fi signal at the doorbell location. Check internet connection. Verify app notification settings are enabled.
- Кыска батареянын иштөө мөөнөтү: Reduce motion detection sensitivity, decrease clip length, or consider wired installation if possible. Ensure lithium batteries are used.
- Doorbell Not Ringing Existing Chime: Verify correct wired installation and ensure the chime setting is enabled in the Blink app.
- Sync Module 2 Offline: Check power connection and Wi-Fi connectivity for the Sync Module 2.
- Видеонун сапаты начар: Ensure adequate lighting. Check Wi-Fi signal strength.
For further assistance, refer to the official Blink support page or contact customer service.
Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Video Resolution | 1080p HD day, infrared HD night vision |
| талаасы View | горизонталдуу 135 градус, вертикалдуу 80 градус |
| Frame Rate | Макс 30 кадр/сек |
| Аудио | Динамиктин чыгышы жана эки тараптуу аудио жаздыруу |
| Power (Doorbell) | 2 x 1.5V AA Lithium Metal Batteries (non-rechargeable) or 16-24 VAC existing doorbell wiring |
| Power (Sync Module 2) | 100-220 V AC to 5 V DC converter (included) |
| Өлчөмдөр | 130 x 42 x 34 мм |
| Салмагы | 91 грамм |
| Иштөө температурасы | -20 градустан 45 градуска чейин суук |
| Байланыш | 2.4 GHz Wi-Fi (802.11b/g/n) |
| Смартфонго болгон талаптар | iOS 12.5+, Android 6.0+, or Fire OS 7+ |
Кепилдик жана колдоо
The Blink Video Doorbell + Sync Module 2 comes with a 2 жылдык чектелген өндүрүүчүнүн кепилдиги. This warranty is in addition to your statutory consumer rights and does not affect them.
For detailed support, installation guides, and frequently asked questions, please visit the official Blink support page:
