Yofidra Extendable Garden Hose User Manual

Introduction

Thank you for choosing the Yofidra Extendable Garden Hose. This manual provides essential information for the safe and efficient use of your new garden hose. Please read it thoroughly before first use and keep it for future reference.

Image: The Yofidra Extendable Garden Hose, showcasing its flexibility and lightweight design, ideal for various home and outdoor activities.

Коопсуздук маалыматы

• Do not drink water from the hose. It is not intended for potable water.
• Do not leave the hose under pressure when not in use. Always turn off the water supply and drain the hose after each use.
• Store the hose in a shaded area to prolong its lifespan, especially during extreme temperatures.
• Көзөмөл болбогондо, балдар жетпеген жерде сактаңыз.
• Avoid dragging the hose over sharp objects or abrasive surfaces that could damage the outer fabric.

Продукт компоненттери

Your Yofidra Extendable Garden Hose package includes the following items:

• Extendable Garden Hose (Orange-Black, 7.5m/25ft)
• 10-Mode Spray Nozzle
• Solid Brass Connectors (pre-attached)
• 1/2" and 3/4" Faucet Adapters
• Hose Holder/Hanger
• Additional Rubber Washers
• Thread Seal Tape (PTFE tape)

Сүрөт: толук view of the Yofidra Extendable Garden Hose kit, including the hose, spray nozzle, brass connectors, faucet adapters, hose holder, and sealing accessories.

Leak-Proof Design Features

The hose is engineered for durability and leak prevention:

• Solid Brass Connectors: Provide a secure and corrosion-resistant connection.
• 3450D High-Density Fabric: Forms the robust outer layer, protecting the inner hose.
• 3-Layer Latex Core: Ensures flexibility and expansion under pressure.
• Leak-Proof Rubber Washer: Creates a tight seal at connection points.

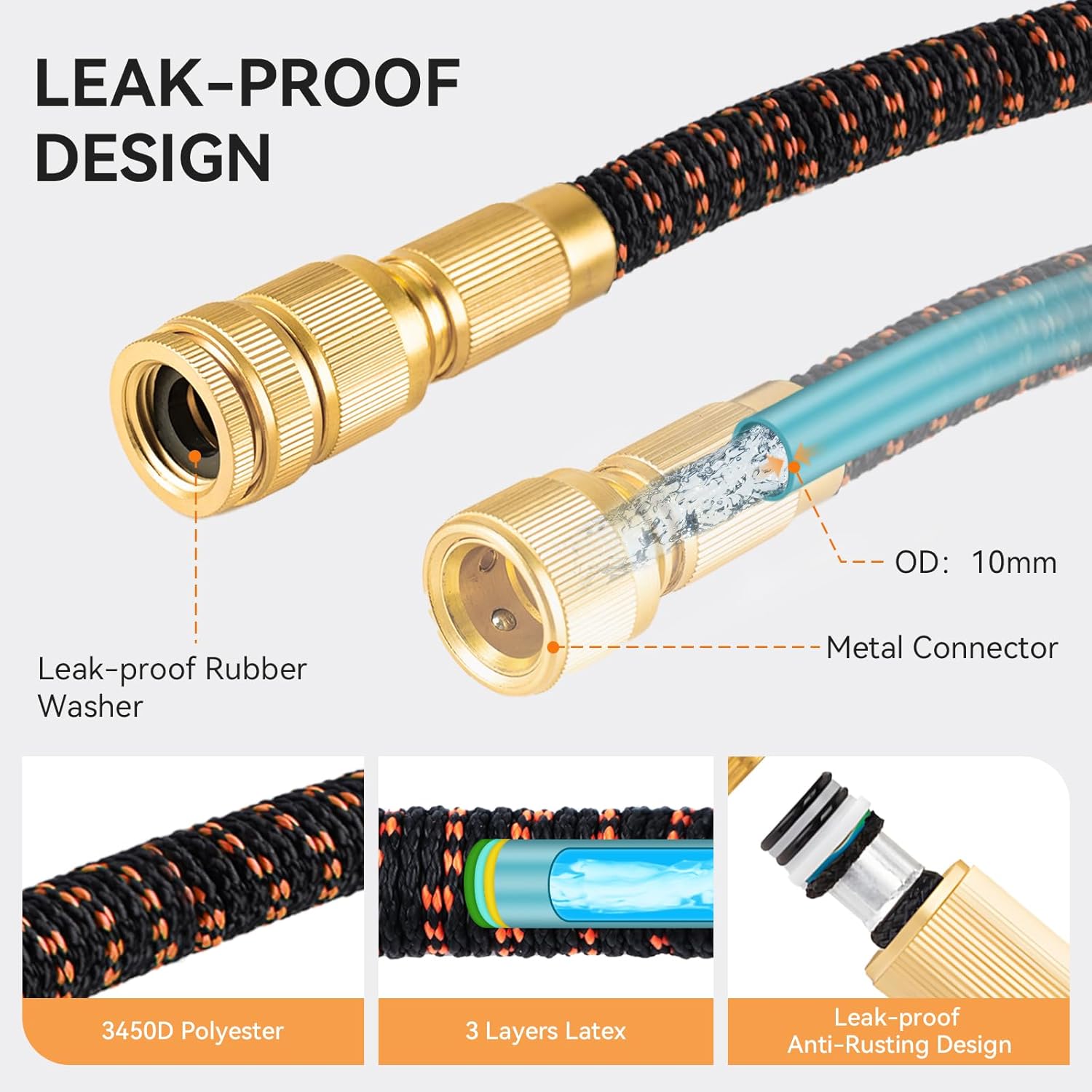

Сүрөт: деталдуу view of the hose's leak-proof design, highlighting the rubber washer, metal connector, 3450D polyester outer layer, and 3-layer latex inner core.

Орнотуу нускамалары

1. Choose the Correct Faucet Adapter: The hose is compatible with both 1/2" and 3/4" faucets. Select the appropriate brass adapter for your faucet.
2. Attach Adapter to Faucet: Screw the chosen adapter onto your outdoor faucet. If necessary, use the included thread seal tape on the faucet threads for a watertight seal.
3. Connect Hose to Adapter: The hose comes with pre-attached brass connectors. Slide down the collar on the hose connector and push it firmly onto the faucet adapter until it clicks into place. Release the collar to secure the connection.
4. Бүркүтүүчү саптаманы тиркөө: Screw the 10-mode spray nozzle onto the other end of the hose. Ensure it is hand-tightened to prevent leaks.

Image: Step-by-step visual guide on connecting the hose to standard 1/2" and 3/4" outdoor faucets using the provided adapters.

Image: Illustration demonstrating the universal compatibility of the hose with different 1/2" and 3/4" faucet designs.

Иштөө нускамалары

Hose Expansion

The Yofidra hose is designed to expand up to three times its original length when water pressure is applied. The 7.5m/25ft hose will expand from an original length of 2.5m/8ft.

1. Бардык байланыштар коопсуз экенин текшериңиз.
2. Slowly turn on the water supply at the faucet.
3. The hose will begin to expand as it fills with water. Allow it to fully expand before use.

Image: Visual representation of the hose's expansion capability, showing its length at 1X, 2X, and 3X under water pressure, along with working pressure and temperature ranges.

Image: A table illustrating the original and extended lengths for different sizes of the Yofidra hose, demonstrating its 3X expansion capability.

Using the 10-Mode Spray Nozzle

The included spray nozzle offers 10 distinct spray patterns for various tasks:

• Сойкуч: Gentle, wide stream for deep watering.
• Толук: Powerful, full stream for general cleaning.
• Бурч: Angled spray for hard-to-reach areas.
• Конус: Conical spray for delicate plants.
• Туман: Fine mist for seedlings or humidifying.
• Душ: Soft shower for watering flowers and plants.
• 1/2 Vert (Half Vertical): Half-vertical flat spray.
• Flach (Flat): Flat, wide spray for rinsing.
• Борбор: Concentrated stream from the center.
• Jet: High-pressure stream for tough cleaning.

To change the spray pattern, simply rotate the bezel on the front of the nozzle to align with your desired setting.

Image: An illustration detailing the 10 distinct spray patterns available on the nozzle, with a 360-degree rotation indicator.

Image: A woman demonstrating the use of the 10-mode spray nozzle for watering plants in a garden setting.

Типтүү колдонмолор

• Багбанчылык: Watering plants, flowers, and lawns.
• Тазалоо: Washing cars, bikes, patios, and outdoor furniture.
• Үй жаныбарларына кам көрүү: Bathing pets.
• Recreation: Cooling down on hot days.

Сүрөт: Коллаж көрсөтүүasing diverse applications of the hose, such as washing a car, watering a garden, bathing a dog, and cleaning a wooden deck.

Техникалык тейлөө

• Колдонгондон кийин дренаждоо: After each use, turn off the water supply at the faucet. Open the spray nozzle to release any remaining water pressure and allow the hose to fully retract to its original length.
• Сактагыч: Store the hose in a cool, shaded area, especially during winter months or prolonged periods of non-use. Use the included hose holder for convenient and organized storage.
• Тазалоо: If the hose or nozzle becomes dirty, wipe them with a damp кездеме. Катуу химиялык заттарды же абразивдүү тазалагычтарды колдонбоңуз.
• Байланыштарды текшерүү: Periodically inspect the brass connectors and rubber washers for wear or damage. Replace washers if they appear cracked or flattened to prevent leaks.

Image: The Yofidra hose demonstrating its lightweight and compact nature, showing it can be easily coiled and hung on the provided hose holder for storage.

Проблемаларды чечүү

Техникалык шарттар

Кепилдик жана колдоо

For any questions, concerns, or warranty claims regarding your Yofidra Extendable Garden Hose, please contact Yofidra customer support directly through the retailer's platform or the official Yofidra website. Please have your purchase details and model number (sku001860_3) ready when contacting support.

We are committed to providing a joyful gardening experience and are here to assist you.
