ESSEBAGNO Kissy Black Thermostatic Shower Column User Manual

Модель: 9015981

1. Киришүү

Thank you for choosing the ESSEBAGNO Kissy Black Thermostatic Shower Column. This manual provides essential information for the safe installation, operation, and maintenance of your new shower system. Please read these instructions carefully before installation and retain them for future reference.

ESSEBAGNO Kissy Black Thermostatic Shower Column

Image 1.1: The ESSEBAGNO Kissy Black Thermostatic Shower Column.

2. Коопсуздук маалыматы

Коопсуз иштөөнү камсыз кылуу жана зыяндын алдын алуу үчүн төмөнкү коопсуздук көрсөтмөлөрүн сактаңыз:

  • Орнотуу жергиликтүү сантехника жана курулуш нормаларына ылайык квалификациялуу адис тарабынан аткарылышы керек.
  • Ар кандай орнотуу же тейлөө иштерин баштоодон мурун суу менен камсыздоо өчүрүлгөнүн текшериңиз.
  • Орнотуудан кийин бардык туташууларда агып кетүүлөрдү текшериңиз.
  • Do not use abrasive cleaners or harsh chemicals on the product's finish, as this may cause damage.
  • The thermostatic mixer is designed to maintain a constant water temperature. Always test the water temperature before stepping into the shower.

3. Пакеттин мазмуну

Орнотууну баштоодон мурун бардык компоненттер бар экендигин текшериңиз:

  • Shower Column (main vertical bar)
  • Термостатикалык аралаштыргыч
  • Жамгыр душунун башчысы
  • Колдук душ кабинасы
  • Душ шланг
  • Wall Mount Brackets and Fixings
  • Орнотуу боюнча колдонмо

4. Орнотуу жана орнотуу

Follow these steps for proper installation of your shower column:

  1. Орнотуу аймагын даярдоо: Ensure the wall surface is clean, flat, and capable of supporting the shower column. Turn off the main water supply.
  2. Термостатикалык аралаштыргычты орнотуу: Connect the thermostatic mixer to the hot and cold water supply lines according to local plumbing standards. Ensure a watertight seal using appropriate sealant or PTFE tape. Secure the mixer to the wall using the provided fixings.
  3. Install the Shower Column: Attach the main vertical shower column to the thermostatic mixer. Secure the upper part of the column to the wall using the wall mount bracket and fixings. Ensure the column is vertical and stable.
  4. Attach Shower Heads: Connect the rain shower head to the upper arm of the column. Connect the shower hose to the handheld shower head and then to the designated outlet on the thermostatic mixer.
  5. Агышуу үчүн сыноо: Slowly turn on the main water supply and check all connections for any leaks. Address any leaks immediately.
Technical drawing with dimensions for ESSEBAGNO Kissy Shower Column

Image 4.1: Technical drawing showing dimensions for installation. Note the adjustable height range of 780-1140mm for the main column.

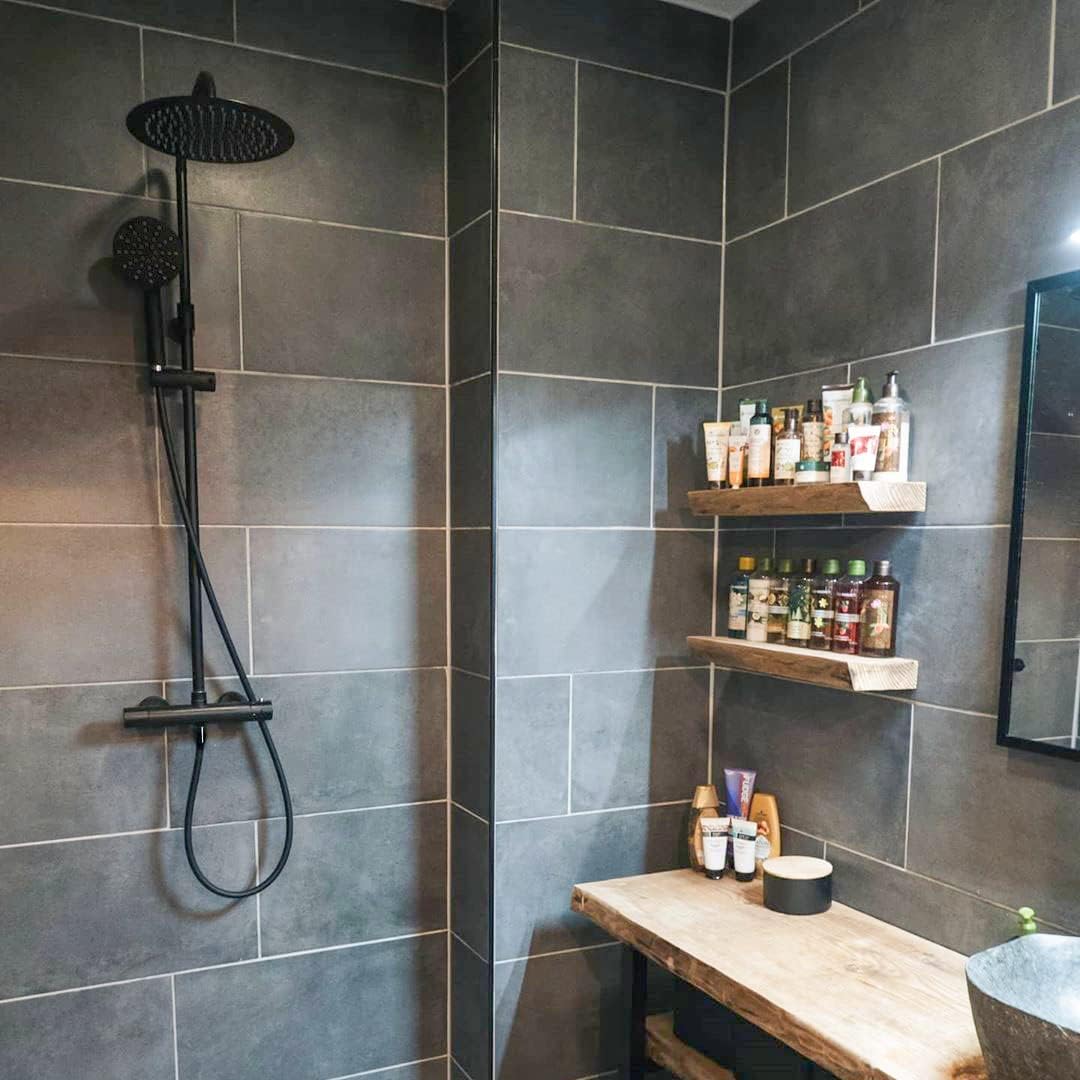

Installed ESSEBAGNO Kissy Black Thermostatic Shower Column in a modern bathroom

Сүрөт 4.2: Мисample of the shower column installed in a tiled shower area.

5. Иштөө нускамалары

The ESSEBAGNO Kissy shower column features a thermostatic mixer for precise temperature control and a diverter to switch between the rain shower and handheld shower.

  • Температураны көзөмөлдөө: Use the temperature knob on the thermostatic mixer to set your desired water temperature. The mixer will automatically maintain this temperature, compensating for fluctuations in hot and cold water pressure. A safety stop is typically set at 38°C (100°F) to prevent accidental scalding. Press the override button to exceed this temperature.
  • Суу агымын көзөмөлдөө: Use the flow control knob to turn the water on/off and adjust the water volume.
  • Кайтарым функция: The diverter knob or lever allows you to switch the water flow between the overhead rain shower and the handheld shower head.
Close-up of the thermostatic mixer on the ESSEBAGNO Kissy Shower Column

Image 5.1: Detail of the thermostatic mixer with temperature and flow controls.

Close-up of the rain shower head on the ESSEBAGNO Kissy Shower Column

Image 5.2: The overhead rain shower head provides a wide, even spray.

Close-up of the handheld shower head on the ESSEBAGNO Kissy Shower Column

Image 5.3: The adjustable handheld shower head for targeted rinsing.

6. Техникалык тейлөө

Regular cleaning and maintenance will prolong the life and appearance of your shower column.

  • Аягын тазалоо: Clean the black finish with a soft cloth and mild soap and water. Rinse thoroughly and dry with a soft cloth to prevent water spots. Avoid abrasive sponges, scouring pads, or chemical cleaners containing ammonia, bleach, or alcohol.
  • Cleaning Shower Heads: Periodically clean the nozzles of both shower heads to remove limescale buildup. Many shower heads feature flexible silicone nozzles that can be rubbed to dislodge mineral deposits. For stubborn buildup, soak the shower head in a solution of white vinegar and water.
  • Термостатикалык картридж: If you experience issues with temperature control, the thermostatic cartridge may need cleaning or replacement. This should be done by a qualified plumber.

7. Кыйынчылыктарды

Жалпы көйгөйлөр жана аларды чечүү жолдору үчүн төмөнкү таблицаны караңыз:

КөйгөйМүмкүн себепЧечим
Суу агымы жок же басымы төмөнWater supply off, clogged shower heads, kinked hoseCheck water supply, clean shower head nozzles, straighten hose
Water temperature too hot/cold or fluctuatingThermostatic cartridge issue, incorrect installation of hot/cold linesConsult a qualified plumber to inspect/replace cartridge or check connections
Байланыштардан агып кетүүлөрLoose connections, worn seals/washersTighten connections, replace seals/washers as needed
Өткөргүч туура эмес которулуудаDiverter mechanism obstructed or faultyInspect for obstructions, if issue persists, contact support or a plumber

If you encounter problems not listed here or if the suggested solutions do not resolve the issue, please contact ESSEBAGNO customer support or a qualified plumber.

8. Техникалык шарттар

ӨзгөчөлүкДеталь
БрендESSEBAGNO
Модель номери9015981
Продукт коду10008130
Өлчөмдөр (Продукт)2.2 x 37.5 x 114 см (болжол менен)
Салмагы (пункт)4.78 кг
БүтүрүүБоёлгон (Кара)
МатериалЖез
Туткалардын саны1 (агым/температураны көзөмөлдөө үчүн)
Handle MaterialМеталл
Монтаж түрүДубалга орнотуу

9. Кепилдик жана колдоо

ESSEBAGNO products are manufactured to high-quality standards. For specific warranty details, please refer to the warranty card included with your purchase or visit the official ESSEBAGNO website. For technical support, spare parts, or service inquiries, please contact your retailer or ESSEBAGNO customer service directly.

Колдоо кызматына кайрылганда моделиңиздин номерин (9015981) жана сатып алуу күнүн көрсөтүңүз.
