1. Киришүү
This instruction manual provides essential information for the safe and efficient installation, operation, and maintenance of the Uponor Vario M Flow Meter Manifold, Model 1085950. Please read this manual thoroughly before installation and keep it for future reference. This product is designed for use in heating systems, particularly underfloor heating applications.
2. Коопсуздук маалыматы
- Орнотуу жана техникалык тейлөө жергиликтүү эрежелерге жана стандарттарга ылайык квалификациялуу адистер тарабынан гана аткарылышы керек.
- Ensure the system is depressurized and cooled before performing any work on the manifold.
- Орнотуу жана тейлөө учурунда тиешелүү жеке коргонуу шаймандарын (ЖКК) кийиңиз.
- Do not exceed the specified maximum operating pressure (6 bar) or temperature (60 °C).
- Check all connections for leaks after installation and commissioning.
3. Продукт бүтүп калдыview
The Uponor Vario M Flow Meter Manifold (Model 1085950) is an 8-output collector designed for precise control and distribution of heating water in underfloor heating systems. It features integrated flow meters for each circuit, allowing for individual flow adjustment and monitoring.

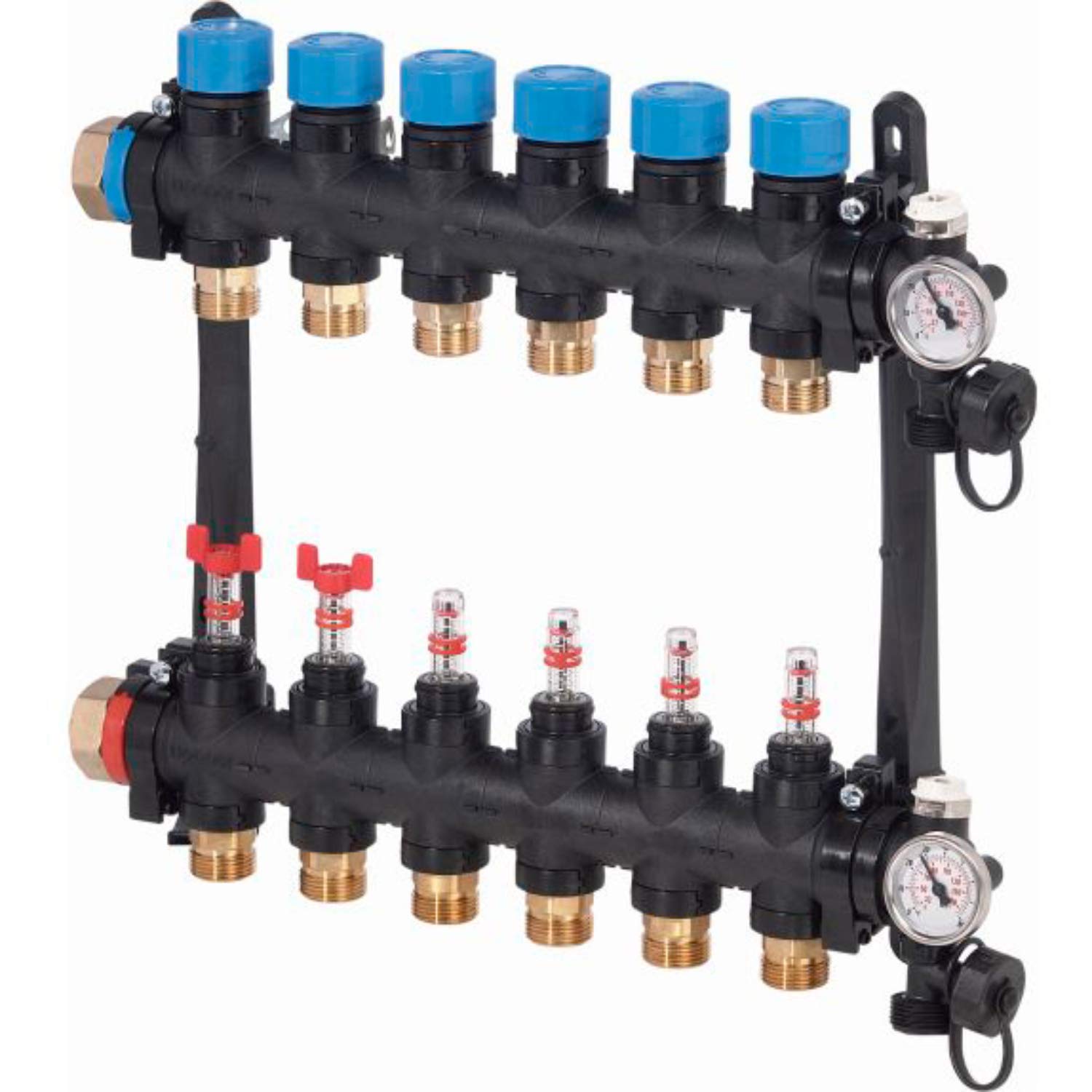

Image showing the Uponor Vario M Flow Meter Manifold with 8 outlets, featuring flow meters on the top bar and connection points below.
Компоненттери:
- Manifold body (reinforced polyamide)
- 8 Flow meters (integrated)
- Монтаждоо кронштейндери
- Термометрлер
- Flushers
- Дренаждык тыгындар
- G3/4" Eurocone threaded connections for heating circuits
- G1 main connection (right or left) with sealing gasket
4. Орнотуу жана орнотуу
- Монтаждоо: Securely attach the manifold to a suitable wall or mounting surface using the provided brackets. Ensure it is level and easily accessible for connections and adjustments.
- Негизги байланыш: Connect the main supply and return lines to the G1 connections on the manifold. Ensure a tight seal using the provided gasket. The manifold supports both right and left main connections.
- Circuit Connections: Connect the individual heating circuits to the 8 G3/4" Eurocone threaded outlets. Use appropriate fittings and ensure all connections are leak-free. The circuit separation is 50 mm.
- Жууп-тазалоо жана толтуруу: Before commissioning, flush the system thoroughly to remove air and debris. Fill the system with water and vent any remaining air.
- басым сыноо: Perform a pressure test according to local regulations to ensure system integrity.
5. Иштөө нускамалары
- Агымды жөндөө: Each circuit is equipped with an integrated flow meter. To adjust the flow rate for a specific circuit, rotate the adjustment cap on the flow meter until the desired flow (indicated in liters per minute) is achieved.
- Температура мониторинги: The integrated thermometers provide a visual indication of the supply and return temperatures.
- System Balancing: Adjust the flow meters on each circuit to balance the heating system, ensuring even heat distribution across all zones.
6. Техникалык тейлөө
- Үзгүлтүксүз текшерүү: Periodically inspect the manifold and all connections for any signs of leaks, corrosion, or damage.
- Тазалоо: Clean the exterior of the manifold with a soft, damp кездеме. Абразивдүү тазалагычтарды же эриткичтерди колдонбоңуз.
- Flow Meter Check: Ensure flow meters are operating freely and accurately. If a flow meter becomes stuck or provides inconsistent readings, it may require cleaning or replacement by a qualified technician.
- Жуууу: The system should be flushed periodically as part of general heating system maintenance to remove sludge and maintain efficiency. Use the integrated flushers and drain plugs for this purpose.
7. Кыйынчылыктарды
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| No flow or low flow in a circuit | Air in the circuit, closed valve, clogged flow meter, pump issue | Bleed air from the circuit, check valve position, inspect/clean flow meter, check pump operation. |
| Байланыштарда агып кетүү | Loose connection, damaged gasket/seal, incorrect fitting | Tighten connections, replace damaged gaskets/seals, ensure correct fittings are used. |
| Inconsistent heating across zones | System imbalance, air in circuits | Adjust flow meters to balance the system, bleed air from all circuits. |
8. Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Модель номери | 1085950 |
| Өндүрүүчү | Упонор |
| Чыгуулардын саны | 8 |
| Circuit Connections | G3/4" Eurocone male thread |
| Негизги байланыш | G1 (right or left, with sealing gasket) |
| Circuit Separation | 50 мм |
| Материал | Reinforced Polyamide (UNE-EN-1264) |
| Номиналдуу басым | 6 бар |
| Максималдуу иштөө температурасы | 60 °C |
| Өлчөмдөрү (L x W x Y) | 51 см х 5 см х 25 см |
| Салмагы | 3 кг |
| Түс | Кара |
9. Кепилдик жана колдоо
Uponor products are manufactured to high-quality standards. For warranty information, please refer to the specific warranty terms provided with your purchase or visit the official Uponor website. For technical support, spare parts, or service inquiries, please contact your local Uponor distributor or customer service representative. Always provide the model number (1085950) when seeking support.
