1. Продукт бүтүп калдыview
The Einhell GC-HH 18/45 Li T-Solo is a battery-powered telescopic hedge trimmer designed for efficient and ergonomic hedge maintenance. It is part of the Einhell Power X-Change system, allowing for interchangeable use of 18V lithium-ion batteries across various tools.
1-сүрөт: Толук view of the Einhell GC-HH 18/45 Li T-Solo Battery Hedge Trimmer.
Негизги өзгөчөлүктөрү:
- Power X-Change системасы: Compatible with all 18V Power X-Change lithium-ion batteries.
- Жогорку сапаттагы бычактар: Laser-cut and diamond-sharpened steel blades for precise cutting. Maximum cutting length of 410mm at 1,400 cuts per minute.
- Adjustable Motor Head: Motor head can be tilted to 7 positions for versatile use.
- Rotating Main Grip: Provides flexible handling and ergonomic work positions.
- Telescopic Extension: Includes an extension rod for reaching taller hedges.
- Мыкты курулуш: Features a durable metal gear for extended service life.
- Ыңгайлуу операция: Equipped with an additional rubber gripping surface and a carrying strap for secure and ergonomic handling.
- Сактагыч: Supplied with a stable quiver for safe storage and transport.
Figure 2: The Einhell GC-HH 18/45 Li T-Solo is part of the Power X-Change family, allowing battery interchangeability.
2. Коопсуздук нускамалары
Always observe basic safety precautions when using electrical tools to reduce the risk of fire, electric shock, and personal injury. Read all instructions carefully before operating the hedge trimmer.
Жалпы коопсуздук эскертүүлөрү:
- Жумуш аймагынын коопсуздугу: Жумушчу жерди таза жана жакшы жарыктандырыңыз. Жарылуучу чөйрөдө, мисалы, күйүүчү суюктуктар, газдар же чаң бар жерде электр шаймандарын иштетпеңиз.
- Электр коопсуздугу: Жерге туташтырылган же жерге төшөлгөн беттерге денеге тийбеңиз. Электр шаймандарын жамгырга же нымдуу шарттарга тийгизбеңиз.
- Жеке коопсуздук: Always wear eye protection, hearing protection, and heavy-duty gloves. Dress appropriately; avoid loose clothing or jewelry that can get caught in moving parts. Secure long hair.
- Куралды колдонуу жана кам көрүү: Куралды мажбурлабаңыз. Колдонмоңуз үчүн туура куралды колдонуңуз. Кандайдыр бир тууралоолорду жасоодон, аксессуарларды алмаштыруудан же электр шаймандарын сактоодон мурда батареянын топтомун шаймандан ажыратыңыз.
- Хедж триммердин өзгөчө коопсуздугу: Keep hands away from the cutting blades. Do not attempt to remove cut material or hold material to be cut when blades are moving. Ensure all guards are in place and functioning correctly.
- Батареяны колдонуу жана сактоо: Use only with specified battery packs and chargers. Do not short-circuit a battery pack. Do not expose battery packs to heat or fire.
3. Компоненттер
Familiarize yourself with the main components of your Einhell GC-HH 18/45 Li T-Solo hedge trimmer for safe and effective operation.
Figure 3: Key components include the robust metal gear, extendable guide pole, and balanced battery position.
- Кесүүчү бычактар: Laser-cut and diamond-sharpened for efficient trimming.
- Мотор башчысы: Contains the motor and cutting mechanism, adjustable for various angles.
- Телескопиялык уюл: Allows for extended reach, featuring an 84 cm extension.
- Main Grip: Ergonomically designed, with a rotating function for optimal working positions.
- Батарея бөлүмү: Located at the base of the main grip for balanced weight distribution.
- Ташуу боосу: For comfortable and secure handling during operation.
Figure 4: The guide pole is separable and includes an 84 cm extension for reaching high hedges.
Figure 5: The motor head can be tilted to 7 positions for fatigue-free work and optimal cutting angles.

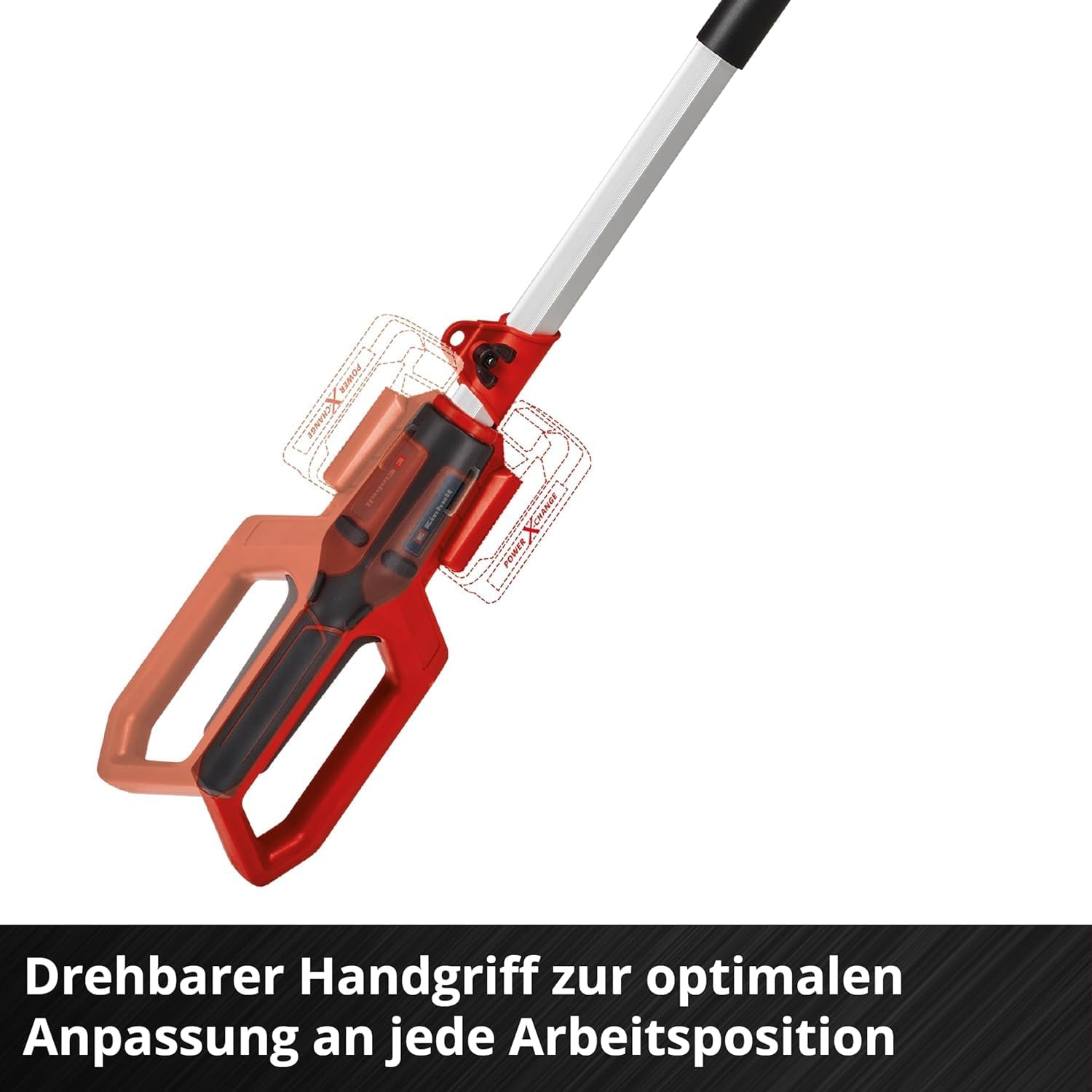

Figure 6: The main handle rotates for optimal adaptation to any working position, enhancing ergonomics.
Сүрөт 7: Жакын пландан view of the laser-cut and diamond-sharpened steel blades, designed for precision.
Figure 8: The included carrying strap helps distribute weight for comfortable and prolonged use.
4. Орнотуу
Proper setup ensures safe and efficient operation of your hedge trimmer.
4.1 Attaching the Telescopic Pole:
- Батарея аспаптан алынганын текшериңиз.
- Align the two sections of the telescopic pole.
- Push the sections together until they click securely into place. Ensure the locking mechanism is engaged.
- To extend the pole, loosen the locking collar, pull the inner pole to the desired length, and tighten the collar firmly.
4.2 Батареяны орнотуу:
- Хедж триммердин өчүрүлгөнүн текшериңиз.
- Slide a charged Einhell Power X-Change 18V battery pack into the battery compartment at the base of the main grip until it locks into place.
- Батареяны чыгаруу үчүн, чыгаруу баскычын басып, батареяны сыртка жылдырыңыз.
4.3 Attaching the Carrying Strap:
- Attach the clips of the carrying strap to the designated attachment points on the hedge trimmer.
- Adjust the strap length for comfortable and balanced carrying, ensuring the tool's weight is evenly distributed.
5. Иштөө нускамалары
Follow these guidelines for safe and effective operation of your hedge trimmer.
5.1 Pre-Operation Checks:
- Inspect the hedge trimmer for any damage, loose parts, or worn blades.
- Ensure all guards are in place and secure.
- Check that the battery is fully charged and correctly installed.
- Clear the work area of any obstacles, debris, or people/pets.
5.2 Баштоо жана токтотуу:
- To start, firmly grip the main handle and press the safety switch, then squeeze the trigger switch.
- To stop, release the trigger switch. The blades will stop moving.
5.3 Adjusting the Motor Head and Grip:
- Мотор башчысы: To adjust the angle of the motor head, press the release button/lever on the motor head and tilt it to one of the 7 available positions. Release the button to lock it in place.
- Main Grip: To rotate the main grip, press the release mechanism (if applicable) and turn the grip to your desired orientation. Ensure it locks securely.
5.4 Кесүү ыкмалары:
- Хедж триммерди эки колуңуз менен бекем кармаңыз.
- Туруктуу бутту жана тең салмактуулукту сактаңыз.
- Вертикалдуу кесүү үчүн, триммерди ылдыйдан өйдө карай жаа кылып териңиз.
- For horizontal cuts, move the trimmer steadily along the top of the hedge.
- Avoid cutting branches thicker than the maximum cutting capacity (18mm).
Figure 9: An individual demonstrating the use of the telescopic hedge trimmer for high hedges.
5.5 Battery Runtime Information:
The operating time varies depending on the battery capacity used. Refer to the chart below for approximate runtimes.
Figure 10: Maximum runtime per battery charge for various Power X-Change battery capacities.
- 2.0 AH: Approximately 28 minutes
- 2.5 AH: Approximately 33 minutes
- 3.0 AH: Approximately 40 minutes
- 4.0 AH: Approximately 56 minutes
- 5.2 AH: Approximately 66 minutes
- 6.0 AH: Approximately 80 minutes
- 8.0 AH: Approximately 112 minutes
6. Техникалык тейлөө
Үзгүлтүксүз тейлөө сиздин хедж триммериңиздин узак мөөнөттүү жана оптималдуу иштешин камсыз кылат.
6.1 Бышакты багуу:
- Тазалоо: After each use, remove the battery and carefully clean the blades with a stiff brush to remove sap, leaves, and debris.
- Майлоо: Apply a light machine oil or blade lubricant to the cutting blades to prevent rust and ensure smooth operation.
- Курчтоо: If the blades become dull, they can be professionally sharpened or replaced. Refer to the manufacturer's guidelines for blade replacement.
6.2 General Cleaning and Storage:
- Wipe down the tool's housing with a damp кездеме. Катуу химиялык заттарды же абразивдүү тазалагычтарды колдонбоңуз.
- Хедж триммерди кургак, коопсуз жерде, балдар жетпеген жерде сактаңыз.
- Always use the stable quiver (blade guard) when storing or transporting the tool.
- Узак мөөнөткө сактоонун алдында батарейканы алып салыңыз.
7. Кыйынчылыктарды
Бул бөлүмдө сиз хедж триммериңиз менен кездешүүсү мүмкүн болгон жалпы маселелер каралат.
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Курал башталбайт | Battery not inserted correctly or discharged; Safety switch not engaged; Tool malfunction | Ensure battery is fully charged and correctly inserted. Press safety switch before trigger. If problem persists, contact support. |
| Начар кесүү көрсөткүчү | Dull or damaged blades; Blades clogged with debris; Cutting material too thick | Clean and lubricate blades. Sharpen or replace dull blades. Do not attempt to cut branches exceeding 18mm. |
| Ашыкча термелүү | Damaged blades; Loose components | Inspect blades for damage and replace if necessary. Check all connections and fasteners for tightness. |
| Мотор иштөө учурунда токтойт | Overload protection activated; Battery discharged | Reduce cutting load. Allow motor to cool. Recharge or replace battery. |
8. Техникалык шарттар
Detailed technical specifications for the Einhell GC-HH 18/45 Li T-Solo hedge trimmer.
- Бренд: Эйнхелл
- Модель номери: 3410585
- Кубат булагы: Battery Powered (18V Power X-Change system)
- Түсү: Кызыл
- Элемент Салмагы: Болжол менен 6.99 фунт (3.17 кг)
- Бышактын узундугу: 450 Миллиметр (45 см)
- Cutting Width (Max): 18 Миллиметр (0.7 дюйм)
- Материал: Alloy Steel, Rubber, Metal
- Бышактын материалы: Эритме болот
- Ылдамдыгы: 1400 RPM (мүнөтүнө кесүү)
- Продукциянын өлчөмдөрү: 81.89 x 2.95 x 5.31 дюйм (208 x 7.5 x 13.5 см)
Max. 18 mm cutting width
Length extension up to +67 cm
Durable metal gear
18 V Power X-Change
9. Кепилдик жана колдоо
For warranty information, product registration, or technical support, please refer to the documentation included with your purchase or visit the official Einhell webсайт. Кепилдик дооматтар үчүн сатып алганыңыздын далилин сактаңыз.
Онлайн ресурстар: For the most up-to-date information, FAQs, and additional support, please visit the official Einhell webсайтка же кардарларды тейлөө бөлүмүнө кайрылыңыз.
