Introduction
Сатып алганыңыз үчүн рахматasing the Dolphin SNB-161R Rechargeable Soundbar. This manual provides essential information for the safe and efficient operation of your device. Please read it thoroughly before use and retain it for future reference.
Маанилүү коопсуздук маалыматы
- Түзмөктү өтө жогорку температурага, нымдуулукка же түз күн нуруна дуушар кылбаңыз.
- Аппаратты түшүрүүдөн же катуу соккулардан сактаныңыз.
- Түзмөктү өз алдынча бөлүктөргө бөлбөңүз же оңдоого аракет кылбаңыз. Квалификациялуу тейлөө кызматкерлерине кайрылыңыз.
- Агрегатты суудан жана башка суюктуктардан алыс кармаңыз.
- Use only the specified charging cable and adapter.
Пакеттин мазмуну
Бардык буюмдардын бар экенине ынаныңыз:
- Dolphin SNB-161R Soundbar
- USB заряддоо кабели
- Көмөкчү аудио кабель
- Алыстан башкаруу
- Колдонуучунун Колдонмосу (бул документ)
Продукт бүттүview
The Dolphin SNB-161R is a portable rechargeable soundbar featuring a digital clock display, multi-color LED lights, and multiple connectivity options.
Фронт View
Сүрөт: алдыңкы view of the soundbar with its digital clock display.
Арткы панель жана туташуулар
Image: Rear panel of the soundbar detailing various input ports and controls.
The rear panel includes the ON/OFF switch, AUX input, USB port, SD card slot, and DC 5V charging port. The top panel features control buttons for playback, volume, mode selection, and clock settings.
Жайгашуу
Саундбарды кубаттоо
Before first use, fully charge the soundbar. Connect the USB charging cable to the DC 5V port on the rear of the soundbar and the other end to a USB power adapter (not included) or a computer USB port. The charging indicator will illuminate during charging and turn off when fully charged. A full charge provides over 10 hours of playtime.
Image: The soundbar in use, highlighting its extended battery life.
Күйгүзүү/өчүрүү
To power on the soundbar, slide the ON/OFF switch located on the rear panel to the 'ON' position. To power off, slide the switch to the 'OFF' position.
Саатты орнотуу
The digital clock displays time in 24-hour format only. To set the time:
- Press and hold the 'TIME SET' button (usually labeled with a clock icon) on the top panel or remote control. The hour digits will begin to flash.
- Use the 'PREV' and 'NEXT' buttons (or volume +/- on some models) to adjust the hour.
- Press the 'TIME SET' button again to switch to minute adjustment. The minute digits will flash.
- Use the 'PREV' and 'NEXT' buttons to adjust the minutes.
- Press the 'TIME SET' button one more time to confirm and exit clock setting mode.
Note: The clock display is exclusively in 24-hour (military) format and cannot be changed to 12-hour format.
Иштөө нускамалары
Режим тандоо
Press the 'MODE' button on the soundbar or remote control to cycle through available modes: Bluetooth, AUX, USB, SD, and FM Radio.
Bluetooth Жупташтыруу
- Turn on the soundbar and select Bluetooth mode. The soundbar will enter pairing mode, indicated by a flashing Bluetooth icon or audible prompt.
- Түзмөгүңүздө Bluetooth'ду иштетүү (смартфон, планшет, компьютер).
- Издөө 'Dolphin SNB-161R' in your device's Bluetooth list and select it to connect.
- Once paired, the soundbar will emit a confirmation tone, and the Bluetooth indicator will stop flashing.
Көмөкчү киргизүү (AUX)
Connect your audio device to the AUX port on the rear panel using the provided 3.5mm audio cable. Switch the soundbar to AUX mode. Audio will play directly from your connected device.
USB/SD карта ойнотуу
USB флэш-дискти же SD картаны салыңыз (MP3 аудио менен files) into the respective port on the rear panel. The soundbar will automatically switch to USB or SD mode and begin playing music. Use the playback controls (Play/Pause, Previous, Next) on the soundbar or remote.
Image: Connectivity options including USB, SD, and AUX ports.
FM радиосу
Switch the soundbar to FM Radio mode. Press the 'Play/Pause' button to auto-scan and save available stations. Use the 'PREV' and 'NEXT' buttons to navigate through saved stations.
Hands Free Чалуу
When connected via Bluetooth to a smartphone, the soundbar supports hands-free calling. When a call comes in, press the 'Play/Pause' button to answer. Press again to end the call. The built-in microphone allows for clear communication.
Image: Illustrates the hands-free calling feature via Bluetooth.
LED жарыктарды башкаруу
The soundbar features multi-color LED lights. Press the 'LIGHT' button (if available) on the soundbar or remote to cycle through different light modes or turn them off.

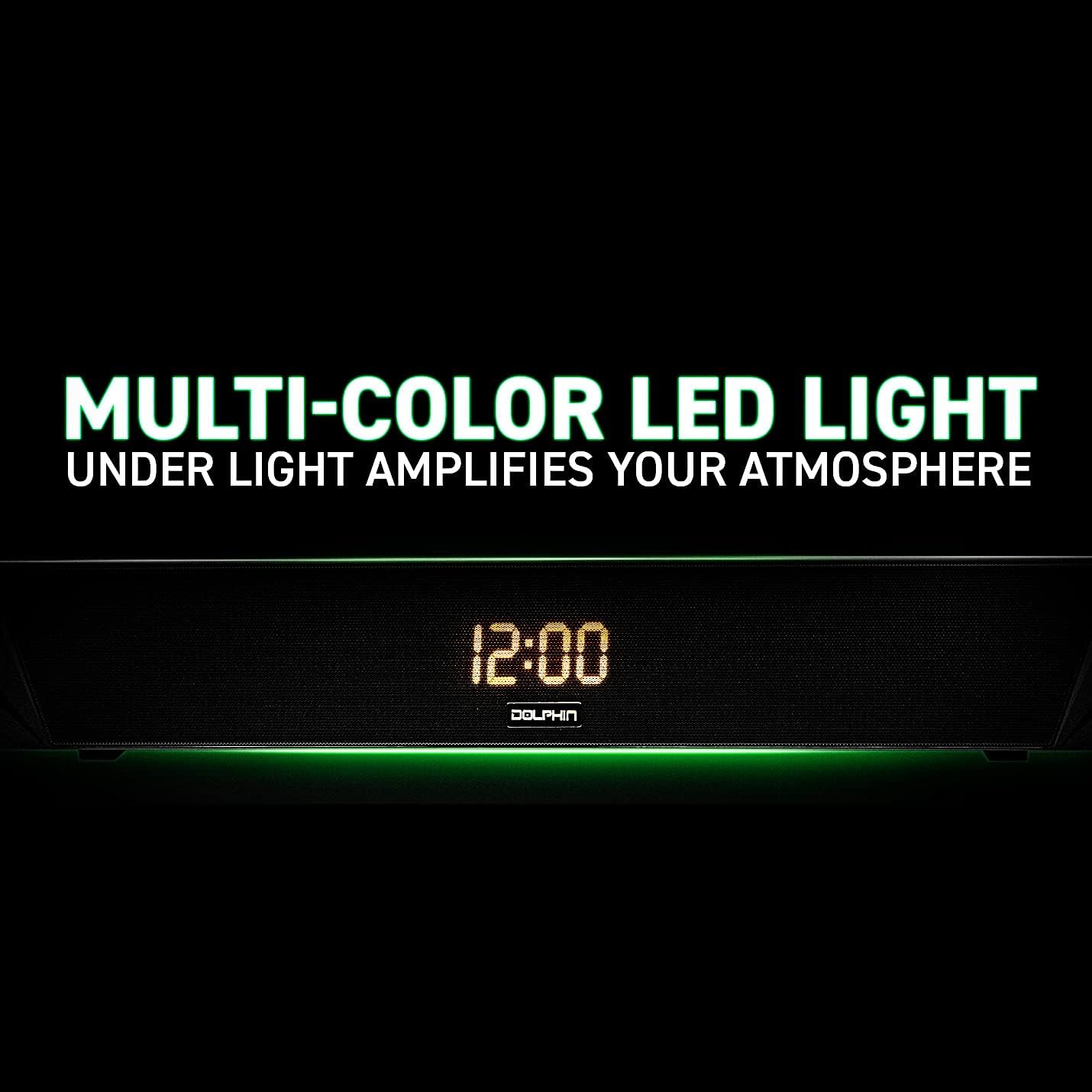

Image: The soundbar with its multi-color LED light feature active.
WaveSync технологиясы (эки динамикти жупташтыруу)
If you have two Dolphin SNB-161R soundbars, you can pair them together for a stereo experience:
- Ensure both soundbars are powered on and in Bluetooth mode, but not connected to any device.
- On one soundbar (this will be the primary unit), press and hold the 'WaveSync' button (or a dedicated pairing button, refer to specific button labels).
- The primary unit will search for the secondary unit. Once connected, both units will emit a confirmation tone.
- Now, connect your device to the primary soundbar via Bluetooth as described above. Audio will play in stereo through both units.
Image: Two soundbars demonstrating the WaveSync pairing feature.
Техникалык тейлөө
- Clean the soundbar with a soft, dry cloth. Do not use abrasive cleaners or solvents.
- Портторду чаңдан жана таштандылардан таза кармаңыз.
- Агрегатты узак убакытка колдонбогондо салкын, кургак жерде сактаңыз.
Проблемаларды чечүү
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Күч жок | Батарея түгөнүп калды; Кубат өчүргүч өчүрүлгөн. | Charge the soundbar; Slide the power switch to 'ON'. |
| Үн жок | Үн өтө төмөн; Туура эмес режим тандалды; Түзмөк туура эмес туташтырылган. | Increase volume; Select correct input mode (Bluetooth, AUX, USB, SD, FM); Reconnect device. |
| Bluetooth жупташтыруу ишке ашпай калды | Soundbar not in pairing mode; Device Bluetooth is off; Too far from soundbar. | Ensure soundbar is in Bluetooth pairing mode; Turn on device Bluetooth; Move device closer (within 10 meters). |
| Clock displays 24-hour format only | This model is designed for 24-hour display. | This is a design feature and cannot be changed to 12-hour format. Users must adapt to the 24-hour display. |
| Пульт иштебей жатат | Батарея түгөндү; Пульт менен үн тактасынын ортосундагы тоскоолдук. | Replace remote battery; Ensure clear line of sight to the soundbar's IR receiver. |
Техникалык шарттар
- Модель аты: SNB 161R
- Динамик түрү: Компьютер
- Өзгөчө өзгөчөлүгү: Portable
- Көлөмдүү үн каналынын конфигурациясы: 2.0
- Түсү: Кара
- Суу өткөрбөйт: Жок
- Башкаруу ыкмасы: Алыстан
- Зымсыз байланыш технологиясы: Bluetooth
- Кубат булагы: Батарея менен иштейт
- Динамиктин максималдуу чыгаруу күчү: 20 Ватт
- Байланыш технологиясы: Auxiliary, USB, SD, Bluetooth, FM Radio
- Аудио чыгаруу режими: Стерео
- Монтаж түрү: Бар тоо
- UPC: 810059430181
- Өндүрүүчү: Дельфин
Кепилдик жана колдоо
Чектелген Кепилдик
This Dolphin SNB-161R soundbar comes with a limited warranty against defects in materials and workmanship under normal use. The warranty period and terms may vary by region. Please retain your proof of purchase for warranty claims.
Кардарларды колдоо
For technical assistance, troubleshooting, or warranty inquiries, please contact Dolphin customer support through their official website or the retailer where the product was purchased. Please have your model number (SNB 161R) and proof of purchase ready.
