StarTech.com 4-Port USB C Hub 10Gbps Instruction Manual

Model: HB31C3A1CME

Introduction

This manual provides detailed instructions for the StarTech.com 4-Port USB C Hub (Model: HB31C3A1CME). This industrial-grade USB hub is designed to expand the connectivity of your computer in demanding environments, offering high-speed data transfer and robust power delivery.

Пакеттин мазмуну

1x StarTech.com 4-Port USB C Hub (HB31C3A1CME)
1x Universal Power Adapter (with regional plugs for NA, JP, UK, EU, ANZ)
1x Terminal Block Connector
1x USB Type-C to Type-C Cable (1m / 3.3 ft) with screw-lock
1x USB Type-C to Type-A Cable (1m / 3.3 ft) with screw-lock
1x Ыкчам баштоо колдонмосу

StarTech.com 4-Port USB C Hub and included accessories

Image: The StarTech.com 4-Port USB C Hub shown with all its included accessories, including the hub itself, universal power adapter, terminal block connector, USB-C to USB-C cable, and USB-C to USB-A cable.

Продукт өзгөчөлүктөрү

Өнөр жайлык деңгээлдеги дизайн: Rugged metal enclosure suitable for harsh industrial and commercial environments.
Жогорку ылдамдыктагы туташуу: Features 3x USB-A and 1x USB-C peripheral ports, supporting SuperSpeed USB 3.2 Gen 2 (10 Gbps). Backward compatible with USB 3.2 Gen 1 (5 Gbps) and USB 2.0 (480 Mbps).
Өркүндөтүлгөн коргоо: Includes 15kV Air and 8kV Contact electrostatic discharge (ESD) protection, and 350W surge protection.
Ийкемдүү кубат параметрлери: Self-powered via included 36W (12V/3A) AC to DC power adapter or built-in terminal block connector (7-24V DC input).
Заряддоо мүмкүнчүлүктөрү: Supports Battery Charge 1.2 (BC 1.2) providing 12W (2.4A) of power per port, up to a total of 30W shared across all ports. Ports can function as dedicated charging ports without host connection.
Коопсуз байланыштар: All USB-A and USB-C peripheral ports, as well as the host cables, feature screw-lock connectors to prevent accidental disconnections.
Монтаждалган дизайн: Built-in mounting ears allow for secure wall or surface installation.
Кеңири шайкештик: OS independent, supporting Windows, macOS, Linux, iPadOS, Chrome OS, and Android. Compatible with USB4, Thunderbolt 3, and Thunderbolt 4 ports.

Фронт view of StarTech.com USB C Hub showing USB-A and USB-C ports

Сүрөт: алдыңкы view of the hub, highlighting the three USB-A ports and one USB-C port, all with screw-lock capabilities.

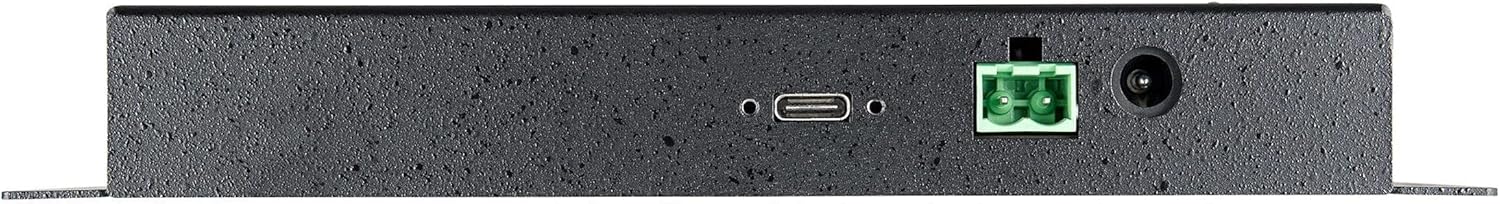

Артка view of StarTech.com USB C Hub showing power and host connections

Сүрөт: Артка view of the hub, showing the power input (DC jack and terminal block) and the host connection port.

Жайгашуу

1. Power Connection

The USB hub is self-powered and requires an external power source. Choose one of the following methods:

AC кубат адаптерин колдонуу: Connect the included universal power adapter to the DC input jack on the hub and then to a suitable AC power outlet. Ensure the correct regional plug is attached to the adapter.
Using the Terminal Block Connector: For industrial applications, connect a 7-24V DC power source to the built-in terminal block connector on the hub. Refer to the terminal block labeling for correct polarity (+V, GND).

2. Host Connection

Connect the hub to your computer using one of the included 1-meter (3.3 ft) host cables:

USB-C хосту: Use the USB Type-C to Type-C cable. Connect one end to the USB-C host port on the hub and the other end to a USB-C or Thunderbolt port on your computer.
USB-A Host: Use the USB Type-C to Type-A cable. Connect the USB-C end to the USB-C host port on the hub and the USB-A end to a USB-A port on your computer.

Ensure the screw-lock connectors are securely fastened to prevent accidental disconnections, especially in dynamic environments.

3. Монтаждоо (кошумча)

The hub features built-in mounting ears for secure installation on a wall or surface. Use appropriate screws (not included) to fix the hub in your desired location. This is ideal for permanent installations in industrial or commercial settings.

Иштөө нускамалары

Перифериялык түзүлүштөрдү туташтыруу

Once the hub is powered and connected to your host computer, you can connect your USB devices to the available peripheral ports:

USB-A түзмөктөрү: Connect up to three USB-A devices (e.g., external hard drives, keyboards, mice) to the blue USB-A ports on the front of the hub.
USB-C түзмөктөрү: Connect one USB-C device to the dedicated USB-C peripheral port on the front of the hub.

All peripheral ports also feature screw-lock capabilities for enhanced security. The hub is OS independent and does not require additional drivers for basic functionality.

Маалыматтарды өткөрүү

The hub supports SuperSpeed USB 3.2 Gen 2, providing data transfer rates up to 10 Gbps. It is backward compatible with USB 3.2 Gen 1 (5 Gbps) and USB 2.0 (480 Mbps) devices. Multiple Transaction Translators (MTT) ensure full bandwidth even when using a mix of different speed devices simultaneously.

Аппаратты заряддоо

The USB ports support Battery Charge 1.2 (BC 1.2), delivering up to 12W (2.4A) of power per port, with a total shared power draw of up to 30W across all ports. This allows for rapid charging of compatible devices such as smartphones and tablets.

Эскертүү: The hub's ports can function as dedicated charging ports even when not connected to a host computer, provided the hub itself is powered.

Техникалык тейлөө

The StarTech.com USB C Hub is designed for durability in industrial environments. To ensure optimal performance and longevity:

Аппаратты чаңдан жана таштандылардан таза жана таза кармаңыз. Тазалоо үчүн жумшак, кургак чүпүрөктү колдонуңуз.
Avoid exposing the hub to extreme temperatures or humidity.
Ensure all cable connections are secure, especially those utilizing the screw-lock feature.
Do not attempt to open the enclosure or modify the device, as this will void the warranty.

Проблемаларды чечүү

Көйгөй	Мүмкүн болгон себеп / Чечим
Devices not recognized or disconnecting frequently.	Ensure the hub is properly powered using either the AC adapter or terminal block. Verify the host cable (USB-C to C or USB-C to A) is securely connected to both the hub and the computer. Tighten screw-locks if applicable. Try connecting the device to a different port on the hub. Test the device directly on your computer to rule out device-specific issues. Компьютериңиздин USB драйверлери жаңыртылганын текшериңиз.
Жай маалымат берүү ылдамдыгы.	Confirm that both the connected device and the host port on your computer support USB 3.2 Gen 2 (10 Gbps) for maximum speed. Ensure you are using the included high-quality USB cables. Avoid connecting too many high-bandwidth devices simultaneously if experiencing slowdowns.
Devices not charging or charging slowly.	Verify the hub is receiving adequate power from its power adapter or terminal block. Check if the device supports BC 1.2 charging. The total power draw across all ports is 30W. If multiple power-hungry devices are connected, charging speed may be affected.

Техникалык шарттар

Өзгөчөлүк	Деталь
Модель номери	HB31C3A1CME
Бренд	StarTech.com
Порттар	3x USB-A (10Gbps), 1x USB-C (10Gbps)
Хост байланышы	1x USB-C (supports USB-C or USB-A host via included cables)
Маалыматтарды өткөрүү ылдамдыгы	10 Гбит/сек чейин (USB 3.2 Gen 2)
Артка шайкештик	USB 3.2 Gen 1 (5 Gbps), USB 2.0 (480 Mbps)
Power Source	Self-powered (36W AC Adapter or 7-24V DC Terminal Block)
Заряддоо колдоо	BC 1.2 (12W/2.4A per port, 30W total shared)
ESD коргоо	15kV Air, 8kV Contact
Тоскоолдуктан коргоо	350 Вт
Коргоочу материал	Металл
Монтаждоо	Built-in mounting ears
Өлчөмдөрү (LxWxH)	6 x 2.3 x 0.9 дюйм (15.24 x 5.84 x 2.29 см)
Салмагы	9.9 унция (280.7 грамм)
Операциялык системанын шайкештиги	OS Independent (Windows, macOS, Linux, iPadOS, Chrome OS, Android)
Host Port Compatibility	USB4, Thunderbolt 3, Thunderbolt 4, USB 3.0, USB 2.0

Кепилдик жана колдоо

The StarTech.com 4-Port USB C Hub (HB31C3A1CME) is backed by a 2 жылдык кепилдикStarTech.com ошондой эле төмөнкүлөрдү камсыз кылат free lifetime 24/5 multi-lingual North American based technical support.

For technical support or warranty inquiries, please visit the official StarTech.com webсайтка же алардын колдоо тобуна түздөн-түз кайрылыңыз.

StarTech.com has been a trusted choice for IT professionals for over 30 years, providing reliable hardware connectivity solutions.
