Продукт бүттүview
The M-Wave SP-C3 Spring-Loaded Seat Post is designed to enhance riding comfort by absorbing shocks and vibrations from the terrain. This black aluminum seat post features a 40 mm spring travel and includes a scale for precise height adjustments, making it suitable for various cycling applications, particularly city bikes.
Негизги өзгөчөлүктөрү:
- Spring-loaded design for enhanced comfort.
- Dimensions: 30.9 mm diameter x 350 mm length.
- Integrated scale for accurate height adjustments.
- 40 mm of suspension travel.
- Туруктуу алюминий конструкциясы.

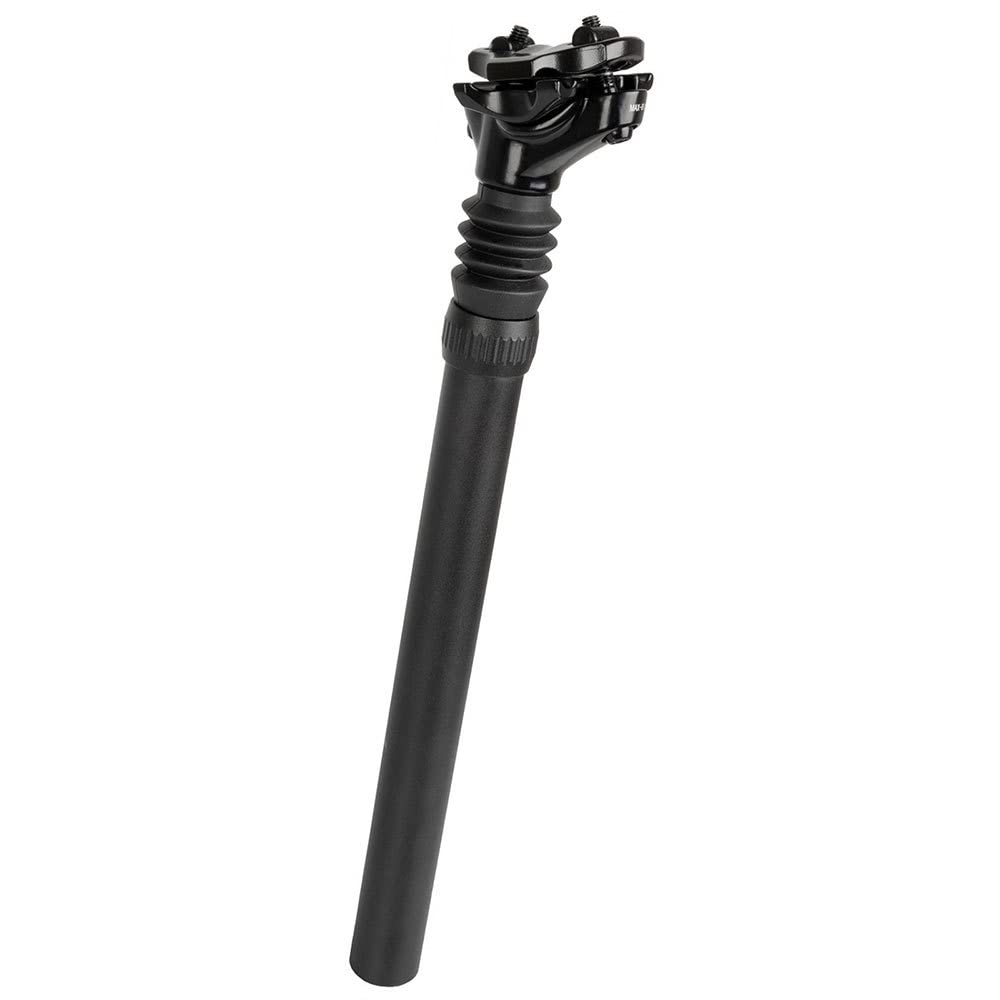

Figure 1: M-Wave SP-C3 Spring-Loaded Seat Post. This image displays the black aluminum seat post, highlighting its suspension mechanism at the top and the main shaft with height markings.
Орнотуу жана орнотуу
Proper installation of your M-Wave SP-C3 seat post is crucial for safety and performance. If you are unsure about any step, consult a professional bicycle mechanic.
Керектүү куралдар:
- Hex key set (typically 5mm or 6mm for seat post clamp, and potentially smaller for saddle clamp bolts).
- Grease (for seat post insertion).
- Момент ачкычы (так тартуу үчүн сунушталат).
Орнотуу кадамдары:
- Шайкештикти текшерүү: Ensure your bicycle frame's seat tube inner diameter matches the seat post's diameter (30.9 mm). Using an incorrect size can damage the frame or seat post.
- Clean Seat Tube: Thoroughly clean the inside of the bicycle's seat tube to remove any dirt or debris.
- Майды колдонуу: Apply a thin layer of bicycle-specific grease to the lower portion of the seat post that will be inserted into the frame. This prevents seizing and creaking.
- Орундуктун мамысын киргизүү: Carefully slide the M-Wave SP-C3 seat post into the bicycle's seat tube. Do not force it. Ensure the minimum insertion mark on the seat post is always inside the frame.
- Бийиктигин тууралоо: Adjust the seat post to your desired riding height. Use the integrated scale markings on the seat post for consistent adjustments.
- Tighten Seat Clamp: Secure the seat post by tightening the bicycle's seat post clamp bolt. Refer to your bicycle frame manufacturer's recommended torque specifications. Overtightening can damage the seat post or frame; undertightening can lead to the seat post slipping.
- Ээр орнотуу: Attach your bicycle saddle to the top clamp mechanism of the M-Wave SP-C3 seat post. Adjust the saddle's angle and fore/aft position for optimal comfort and pedaling efficiency. Tighten the saddle clamp bolts securely, adhering to recommended torque values.
Эскертүү: Always ensure the seat post is inserted beyond its minimum insertion line for safety.
Иштөө жана жөндөө
The M-Wave SP-C3 seat post is designed to provide suspension for a smoother ride. Its operation is largely automatic, reacting to road imperfections.
Suspension Function:
- The internal spring mechanism provides 40 mm of vertical travel, absorbing impacts from bumps and uneven surfaces.
- The suspension activates automatically under rider weight and road conditions.
Бийиктигин тууралоо:
To adjust the seat post height:
- Loosen the bicycle's seat post clamp.
- Carefully slide the seat post up or down to the desired height. Use the etched scale markings for precise and repeatable adjustments.
- Ensure the minimum insertion line remains within the frame.
- Отургуч постун катуулатыңыз clamp to the manufacturer's recommended torque.
Техникалык тейлөө
Regular maintenance will prolong the life and ensure optimal performance of your M-Wave SP-C3 seat post.
Тазалоо:
- Wipe down the exposed portion of the seat post and the suspension boot regularly with a clean, damp кездеме.
- Avoid using harsh chemicals or abrasive cleaners, which can damage the finish or seals.
Майлоо:
- Periodically inspect the suspension boot for cracks or damage.
- If the suspension action feels stiff or noisy, a small amount of silicone-based lubricant can be applied to the exposed stanchion (the moving part of the suspension) just above the boot. Do not use petroleum-based lubricants, as they can degrade rubber seals.
Текшерүү:
- Regularly check all bolts (saddle clamp bolts, seat post clamp bolt) for proper tightness.
- Inspect the seat post for any signs of cracks, bends, or damage, especially after a fall or impact. Replace immediately if damage is found.
- Ensure the seat post does not slip down into the frame during riding. If it does, re-tighten the seat clamp to the correct torque.
Проблемаларды чечүү
This section addresses common issues you might encounter with your M-Wave SP-C3 seat post.
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Seat post slips down into frame. | Отуруучу пост clamp is not tight enough. Incorrect seat post diameter. Grease on seat tube/post is excessive or incorrect type. | Tighten seat clamp to recommended torque. Verify seat post diameter (30.9 mm). Clean seat tube and post, apply thin layer of appropriate grease or carbon paste if frame is carbon. |
| Creaking noise from seat post area. | Insufficient grease on seat post. Loose saddle clamp bolts. Loose seat post clamp. | Remove, clean, and re-grease seat post. Check and tighten saddle clamp bolts. Check and tighten seat post clamp. |
| Suspension feels stiff or unresponsive. | Dirt or debris on stanchion. Lack of lubrication. | Clean exposed stanchion. Apply a small amount of silicone-based lubricant to the stanchion. |
| Suspension feels too soft or bottoms out easily. | This model has a fixed spring rate. | The M-Wave SP-C3 does not offer adjustable spring preload. If the suspension is consistently too soft for your weight, consider a seat post designed for heavier riders or with adjustable spring rates. |
If you encounter issues not listed here or if solutions do not resolve the problem, please contact M-Wave customer support.
Продукт спецификациялары
| Бренд | M-Wave |
| Модель аты | Sp-c3 |
| Бөлүмдүн номери | CVR1191 |
| UPC | 887539032852 |
| Түс | Кара |
| Материал | Алюминий |
| Өлчөмү | ø 30.9 x 350 мм |
| Продукциянын өлчөмдөрү (W x H) | Туурасы 1.22" x Бийиктиги 13.78" (болжол менен 30.9мм x 350мм) |
| Элементтин өлчөмдөрү (L x W x Y) | 1.22 x 1.22 x 13.78 дюйм |
| Элемент Салмагы | 0.6 килограмм |
| Пакет Салмагы | 0.62 килограмм |
| Spring Travel | 40 мм |
| Камтылган компоненттер | 1 seat post |
| Сунушталган колдонуучулар | Unisex |
| Велосипед түрүнүн шайкештиги | City Bike |
Кепилдик жана колдоо
Өндүрүүчүнүн Кепилдиги:
The M-Wave SP-C3 Spring-Loaded Seat Post comes with a 2 жылдык Өндүрүүчүнүн Кепилдиги. Бул кепилдик нормалдуу колдонуудагы материалдардагы жана жасалгадагы кемчиликтерди камтыйт. Кепилдик дооматтары үчүн сатып алганыңыздын далилин сактап коюңуз.
The warranty does not cover damage resulting from improper installation, misuse, neglect, accidents, modifications, or normal wear and tear.
Кардарларды колдоо:
For technical assistance, warranty claims, or any questions regarding your M-Wave SP-C3 seat post, please contact M-Wave customer support. Refer to the official M-Wave webакыркы байланыш маалыматы үчүн сайт же сатып алуу документтери.
When contacting support, please have your product model name (Sp-c3) and part number (CVR1191) ready.
