Продукт бүттүview
This manual provides essential information for the installation, operation, and maintenance of the American Standard / Trane OEM ServiceFirst Hard Start Kit, model TTR748A100A0. This kit is designed to assist the compressor in starting, particularly in HVAC systems where additional starting torque is required.
Сүрөт 1: Алдыңкы view of the American Standard/Trane HardStart Kit, showing the capacitor, relay, and wiring connections. Two mounting screws are visible at the bottom.

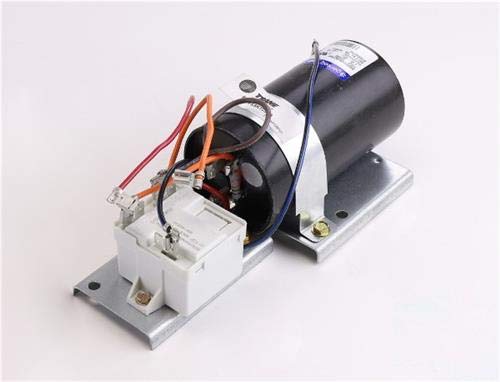

Сүрөт 2: Каптал view of the American Standard/Trane HardStart Kit, illustrating the mounting bracket and the overall compact design of the unit.
Image 3: Official "Trane OEM Component" seal, indicating the authenticity and quality of the part.
Негизги өзгөчөлүктөрү:
- OEM Hard Start Kit
- Америкалык стандарт / Trane OEM / Кызматтын биринчи компоненти
- Replaces / Supersedes: KIT-1477, KIT1477, BAYKSKT250A, CPT00091, CPT-0091 and Others
- Commonly Found in American Standard Units: TTB724B100A1, TTR718A100A0, TTR724A100A0, TTR736A100A0, TTR742A100A0, TTR748A100A0, TTR760A100B0, TWB712A100A1, TWB718A100A1, TWB721A100A1, TWB724A100A2, TWB727A100A1, TWB730A100A1, TWB736A100A1, TWB742A100A1, TWB748A100A1, TWB760A100A1, TWD742A100A1, TWD742B100A0, TWD748A100A1, TWD760A100A1
Коопсуздук маалыматы
ЭСКЕРТҮҮ: Installation and servicing of HVAC equipment can be hazardous due to electrical components and refrigerant pressures. This hard start kit must be installed by a qualified HVAC technician. Failure to follow these instructions could result in property damage, personal injury, or death.
- Always disconnect power to the HVAC unit before beginning any installation or maintenance.
- Тиешелүү жеке коргоочу шаймандарды (ЖКК), анын ичинде коопсуздук көз айнектерин жана кол каптарды кийиңиз.
- Бардык электр тетиктерин туура жерге туташтырууну камсыз кылыңыз.
- Do not attempt to repair damaged components. Replace them with genuine OEM parts.
Орнотуу жана орнотуу
This section outlines the general steps for installing the HardStart Kit. Refer to your specific HVAC unit's service manual for detailed wiring diagrams and safety procedures.
Керектүү куралдар:
- Бурагычтар топтому (Phillips жана жалпак баштуу)
- Зым кыргычтар/кесүүчү
- Multimeter (for electrical verification)
- Nut driver or wrench set
Орнотуу кадамдары:
- Электр энергиясын өчүрүү: Turn off all power to the outdoor HVAC unit at the circuit breaker or disconnect switch. Verify power is off using a multimeter.
- Access Compressor Compartment: Carefully remove the access panel(s) to the compressor and electrical components of your HVAC unit.
- Identify Existing Components (if applicable): If replacing an existing hard start kit, carefully note the wiring connections before disconnecting. Take photos for reference.
- Mount the New Kit: Securely mount the TTR748A100A0 HardStart Kit within the compressor compartment using the provided screws or existing mounting points. Ensure it is stable and does not interfere with other components.
- Зым байланыштары:
- Connect the appropriate wires from the hard start kit to the compressor's run capacitor and the compressor's common terminal, as per the wiring diagram specific to your HVAC unit.
- Ensure all connections are tight and secure. Refer to the wiring diagram provided with your HVAC unit or the hard start kit for precise connections.
- Коопсуз зымдар: Route and secure all wiring to prevent chafing or contact with moving parts.
- Жабуу бөлүм: Replace all access panels securely.
- Күчтү калыбына келтирүү: Turn on power to the HVAC unit at the circuit breaker or disconnect switch.
Иштөө принциптери
The TTR748A100A0 HardStart Kit is an auxiliary electrical component designed to provide an additional boost of torque to the compressor motor during startup. This is particularly beneficial for:
- Older compressors that may struggle to start.
- Units operating in high ambient temperatures.
- Systems with long refrigerant lines.
- Compressors that frequently short-cycle.
The kit typically consists of a potential relay and a start capacitor. When the compressor attempts to start, the relay temporarily connects the start capacitor into the circuit, providing a surge of current to the start winding. Once the compressor reaches a certain speed, the relay disconnects the start capacitor, allowing the compressor to run on its main (run) capacitor.
This process is automatic and requires no user intervention after proper installation. The kit operates only during the brief startup phase of the compressor.
Техникалык тейлөө
The TTR748A100A0 HardStart Kit is a sealed component and generally requires no routine maintenance. However, periodic inspection during regular HVAC system servicing is recommended.
Inspection Points (during professional HVAC service):
- Визуалдык текшерүү: Check for any signs of physical damage, such as cracks, bulges (on the capacitor), or discoloration.
- Зымдарды туташтыруу: Бардык электр байланыштары коопсуз жана коррозиядан таза экенин текшериңиз.
- Монтаждоо коопсуздугу: Verify that the kit is still securely mounted and not vibrating excessively.
- Операциялык текшерүү: A qualified technician can verify the kit's operation during compressor startup using appropriate diagnostic tools.
If any issues are observed, the kit should be replaced by a qualified technician. Do not attempt to repair internal components.
Проблемаларды чечүү
Бул бөлүмдө жалпы көйгөйлөрдү чечүү боюнча көрсөтмөлөр берилген. Татаал маселелер үчүн ар дайым квалификациялуу HVAC адисине кайрылыңыз.
| Симптом | Мүмкүн себеп | Recommended Action (for qualified technician) |
|---|---|---|
| Compressor hums but does not start (short cycling) | Faulty hard start kit, weak capacitor, or relay failure. | Test capacitor capacitance and relay operation. Replace kit if faulty. Check compressor windings. |
| Unit trips circuit breaker on startup | Incorrect wiring, short circuit in kit, or compressor issue. | Verify wiring connections. Test for shorts. Inspect compressor. |
| No change in compressor starting behavior after installation | Incorrect installation, kit not compatible, or underlying compressor issue. | Re-check wiring. Confirm kit compatibility. Diagnose compressor. |
Эскертүү: Troubleshooting electrical components requires specialized knowledge and tools. Do not attempt repairs if you are not a qualified HVAC technician.
Техникалык шарттар
| Атрибут | Нарк |
|---|---|
| Бренд | Trane / Америка стандарты |
| Модель номери | TTR748A100A0_ OEMReplacementHardStartKit |
| Бөлүк түрү | OEM Replacement Hard Start Kit |
| Элемент Салмагы | 5 фунт |
| Алмаштырат / Алмаштырат | KIT-1477, KIT1477, BAYKSKT250A, CPT00091, CPT-0091 and Others |
Кепилдик жана колдоо
As an OEM (Original Equipment Manufacturer) component, this Trane HardStart Kit is typically covered by the warranty terms provided by Trane or American Standard for their genuine replacement parts. Warranty periods can vary, and specific details should be obtained from the point of purchase or directly from Trane/American Standard.
For technical support, warranty claims, or to locate a qualified service technician, please contact your authorized Trane or American Standard dealer or visit their official website. Always provide the model number of your HVAC unit and the part number of the hard start kit when seeking support.
Маанилүү: Unauthorized installation or repair may void your equipment's warranty.
Байланыш маалыматы:
- For Trane support: www.trane.com/residential/en/contact-us/
- For American Standard support: www.americanstandardair.com/contact-us/
