1. Продукт бүтүп калдыview
The Gallagher S6 Solar Electric Fence Charger is a compact and portable solar energizer designed for effective containment and protection in various settings. It is suitable for gardens, chicken coops, goat pens, and pet enclosures, offering a reliable solution without the bulk of larger units. This energizer is ideal for homesteads and backyard setups, providing consistent power delivery for small livestock, poultry, and pet management.
Image 1.1: The Gallagher S6 Solar Electric Fence Charger, a compact solar-powered unit.
2. Коопсуздук боюнча маанилүү маалымат
ЭСКЕРТҮҮ: Бул продуктту колдонуудан мурун бардык көрсөтмөлөрдү окуп чыгыңыз.
- Do not connect the energizer to any other power source than specified.
- Keep electric fence lines clear of vegetation and debris to prevent short circuits.
- Ensure proper grounding as specified in the setup section to prevent electric shock hazards.
- Avoid touching the electric fence with bare hands or any part of the body.
- Бул продукт Калифорния штатында рак жана тубаса кемтик же башка репродуктивдүү зыян алып келген химиялык заттарды камтыйт. Колдон кийин колду жуу.
- Балдар жетпеген жерде сактаңыз.
3. Пакеттин мазмуну
Пакетте бардык компоненттер бар экенин текшериңиз:
- Gallagher S6 Solar Energizer Unit
- Fence Lead with Clip
- Колдонуучунун колдонмосу (бул документ)
- Internal Lithium Battery (pre-installed)

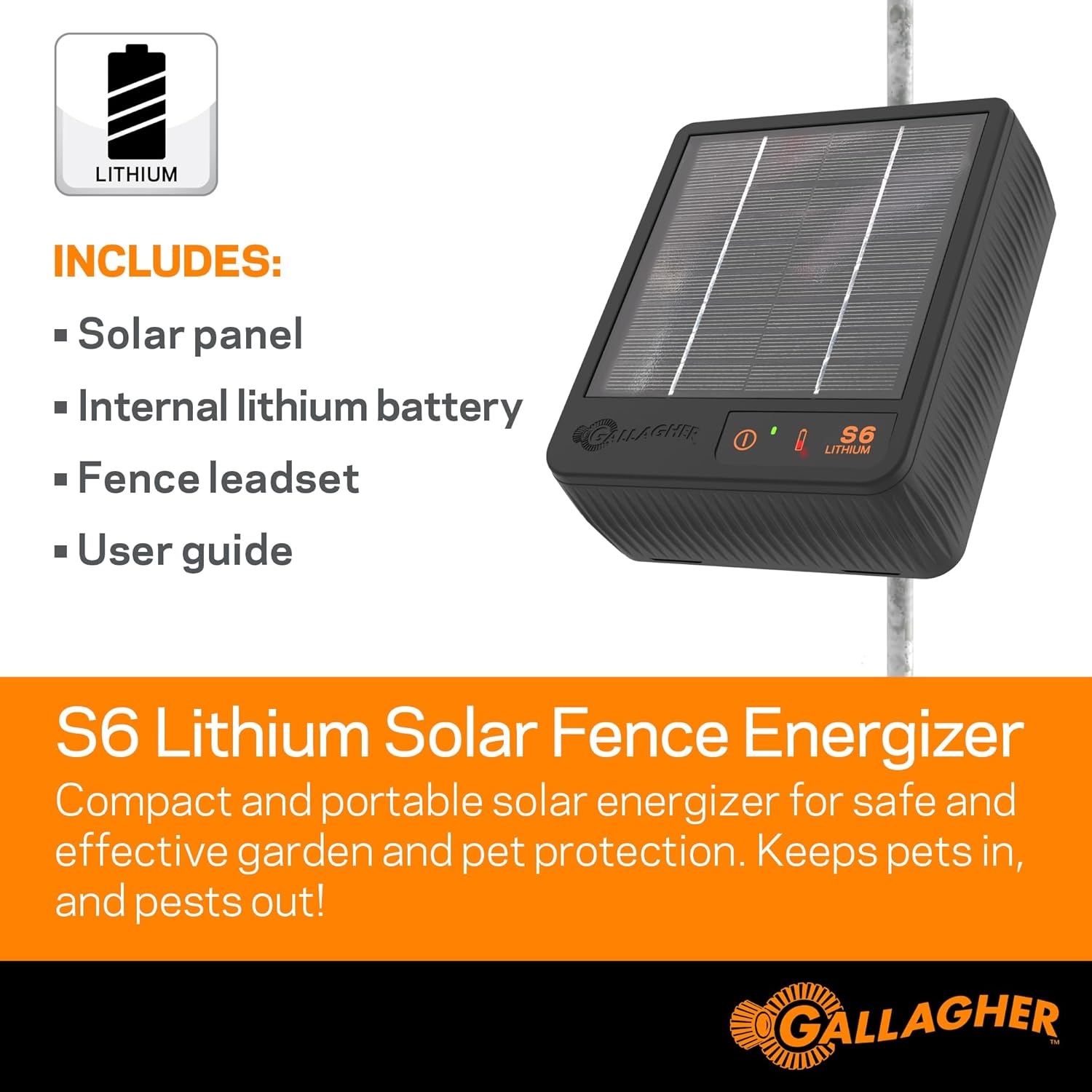

Image 3.1: Visual representation of the Gallagher S6 Solar Fence Energizer and its included components: solar panel, internal lithium battery, fence lead set, and user guide.
4. Орнотуу жана орнотуу
The Gallagher S6 is designed for straightforward installation. Follow these steps for optimal performance:
- Grounding Rod Selection: Obtain an unpainted grounding rod with a diameter of up to 0.5 inches (not included). The energizer mounts directly onto this rod, which also serves as the electrical ground. No other grounding method is supported.
- Grounding Rod Installation: Drive the grounding rod into the soil. For best performance, it should be driven at least 18 inches deep. In dry or sandy areas, deeper installation may be required to ensure adequate grounding. This unit does not mount to T-posts.
- Энергизаторду орнотуу: Slide the Gallagher S6 unit onto the top of the installed grounding rod. Ensure it is securely seated.
- Connecting the Fence Lead: Attach the provided fence lead with the clip to your electric fence line. The energizer will then deliver power to the fence.

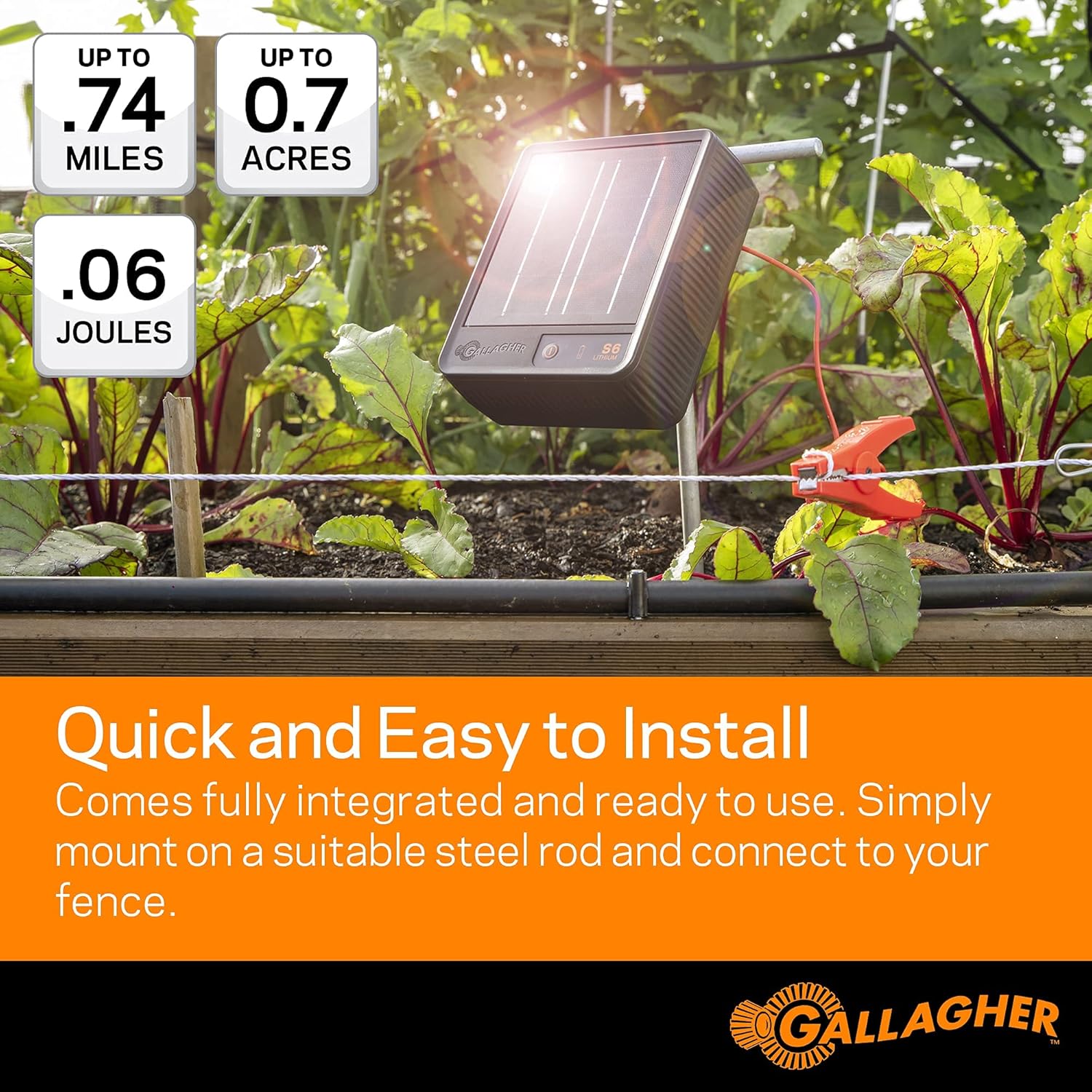

Image 4.1: The Gallagher S6 energizer installed in a garden, mounted on a grounding rod and connected to a fence line.
Image 4.2: The Gallagher S6 unit with its solar panel exposed to sunlight, indicating its self-charging capability.
5. Операция
The S6 Solar Electric Fence Charger is designed for continuous, low-maintenance operation:
- Күн энергиясы: The built-in solar panel charges a high-efficiency lithium battery. This battery can sustain operation for up to 3 weeks without direct sunlight, making it suitable for various weather conditions and seasonal setups.
- Consistent Power Delivery: Digital pulse control ensures a steady voltage output to the fence. This maintains dependable day-and-night fence performance, even through light vegetation.
- Автоматтык иштетүү: Once installed and exposed to sunlight, the unit will automatically charge and energize the fence. The green indicator light confirms operation.
Image 5.1: The Gallagher S6 energizer operating in an outdoor environment, demonstrating its water-resistant case and lightning protection for reliable performance in all weather conditions.
6. Техникалык тейлөө
Regular maintenance ensures the longevity and effectiveness of your Gallagher S6 energizer:
- Күн панелин тазалоо: Periodically clean the solar panel surface with a soft, damp cloth to remove dust, dirt, or debris. A clean panel ensures maximum solar charging efficiency.
- Туташуу текшерүүлөрү: Regularly inspect all connections, including the grounding rod connection and the fence lead clip, to ensure they are secure and free from corrosion. Loose connections can reduce fence performance.
- Өсүмдүктөрдү башкаруу: Keep the fence line clear of vegetation. Contact with plants can reduce the effectiveness of the electric fence by drawing power from the system.
- Батареяга кам көрүү: While the lithium battery is designed for durability, ensure the unit receives adequate sunlight for charging, especially after prolonged periods of overcast weather.
7. Кыйынчылыктарды
If your Gallagher S6 Solar Electric Fence Charger is not performing as expected, consider the following:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| No power/No pulse light | Заряддоо үчүн күн нуру жетишсиз Батарея заряды бүттү Туура эмес байланыштар | Relocate unit to an area with more direct sunlight Allow several days for battery to recharge Check all connections for tightness and corrosion |
| Алсыз же ыраатсыз шок | Excessive vegetation on fence line Начар негиздөө Fence shorting out | Clear vegetation from fence line Ensure grounding rod is driven deep enough (at least 18 inches) and is unpainted Inspect fence for breaks, loose insulators, or contact with conductive materials |
| Бирдик заряддалбай жатат | Кир күн панели Prolonged lack of sunlight | Күн панелинин бетин тазалоо Ensure unit is placed in an area receiving maximum daily sunlight |
8. Техникалык шарттар
- Модел: S6 Lithium Solar
- Бөлүмдүн номери: GALLAGHER - G349404
- Материал: Металл
- Элементтин өлчөмдөрү (L x W x Y): 5.7 x 5 x 6.7 дюйм
- Элемент Салмагы: 2.4 фунт
- Кубат булагы: Solar (with internal Lithium Polymer battery)
- Батарея клеткасынын түрү: Литий-фосфат
- UPC: 644493349408
9. Кепилдик жана колдоо
The Gallagher S6 Solar Electric Fence Charger is backed by a 3-year manufacturer warranty. For technical assistance, product inquiries, or warranty claims, please contact Gallagher North America. Support services are based in Kansas City, MO, providing U.S.-based assistance.
