Introduction
This manual provides essential instructions for the setup, operation, and maintenance of your Karlsson KA5768GY Modern Cuckoo Wall Clock. Please read this guide thoroughly before use to ensure proper functionality and longevity of your product.

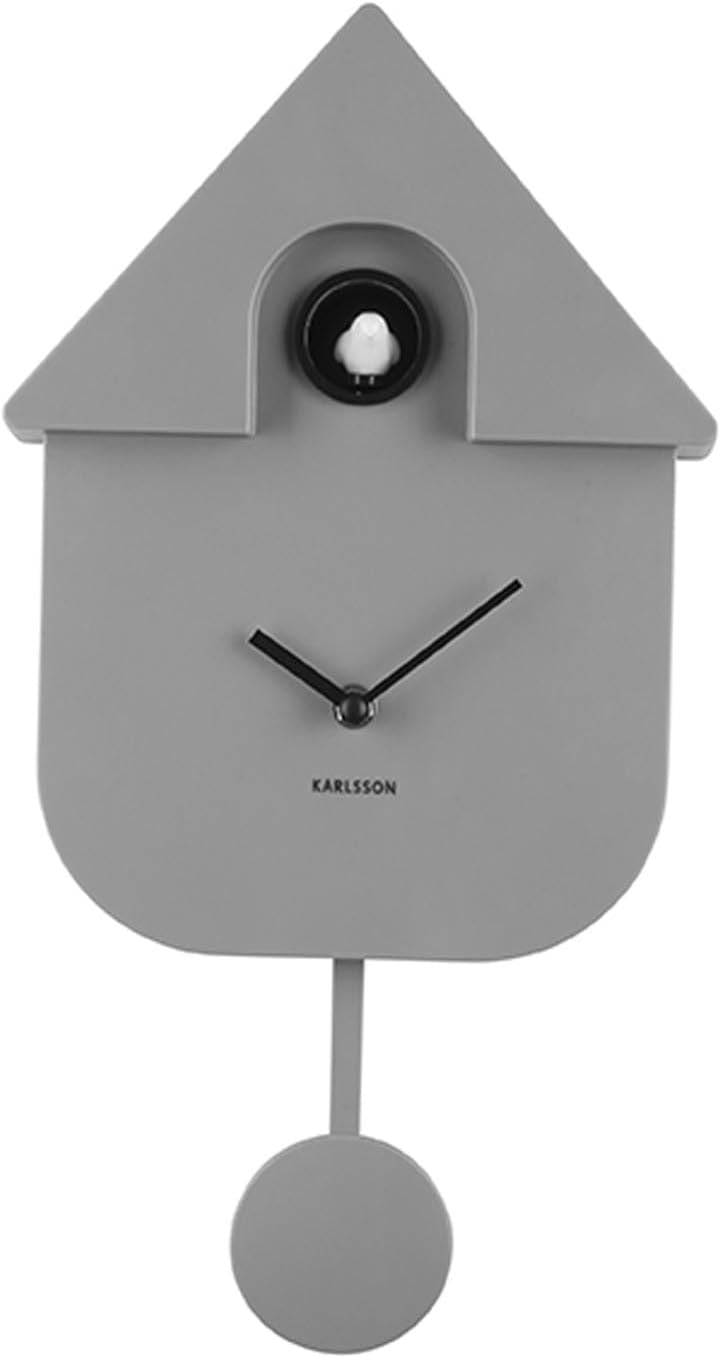

Сүрөт: алдыңкы view of the Karlsson KA5768GY Modern Cuckoo Wall Clock. This image displays the clock's modern design, featuring a grey finish, minimalist clock hands, and the small bird figure positioned above the clock face.
Жайгашуу
1. таңгактан чыгаруу
Carefully remove all components from the packaging. Verify that all parts are present: the clock unit and the pendulum.
2. Батареяны орнотуу
The Karlsson KA5768GY clock requires 3 АА батарейка (not included). Follow these steps:
- Сааттын артындагы батарея отсегин табыңыз.
- Батарея уясынын капкагын ачыңыз.
- Туура полярдуулукту (+/-) камсыз кылуу менен 3 AA батарейкасын салыңыз.
- Батарея уясынын капкагын бекем жабыңыз.
Сүрөт: Арткы view of the clock, illustrating the battery compartment and the designated hanging point for wall mounting.
3. Убакытты белгилөө
Убакытты коюу үчүн:
- Gently turn the minute hand clockwise using the small dial on the back of the clock until the correct time is displayed.
- Avoid turning the hands counter-clockwise, as this may damage the mechanism.
4. Attaching the Pendulum
Carefully attach the pendulum to the hook located at the bottom of the clock unit. Ensure it swings freely.
5. Дубалга орнотуу
The clock is designed for wall mounting. Use a suitable screw or hook (not included) in your desired location. The clock features a hanging hole on the back for secure placement.
Иштөө нускамалары
Убакытты сактоо
The Karlsson KA5768GY features an analog display with a silent timekeeping mechanism, ensuring quiet operation throughout the day and night.
Cuckoo Feature
The clock includes an hourly bird feature. A small bird emerges from its opening and emits a chirping sound at the top of each hour. This is a distinct bird sound, not a traditional 'cuckoo' call.
Сүрөт: деталдуу view of the clock's upper section, highlighting the bird figure in its housing, which activates hourly.
Night Mode (Automatic Shut-off)
The clock is equipped with an automatic night mode feature. The hourly bird chirping sound will automatically cease during nighttime hours to prevent disturbance. The exact duration of the silent period is pre-programmed and cannot be adjusted manually.
Техникалык тейлөө
Тазалоо
To clean your clock, gently wipe the surface with a soft, dry cloth. Avoid using abrasive cleaners, solvents, or chemical sprays, as these can damage the ABS material and finish.
Батареяны алмаштыруу
When the clock hands slow down, the bird feature becomes inconsistent, or the sound weakens, it is time to replace the batteries. Refer to the 'Battery Installation' section for instructions. Always replace all three batteries simultaneously with new, high-quality AA batteries.
Проблемаларды чечүү
- Саат так убакытты сактабайт:
Check if the batteries are fresh and correctly installed. If the issue persists, replace the batteries. Ensure the hands are not obstructed. - Bird feature not working or inconsistent:
Verify that the batteries are fresh. The bird feature may not operate during the automatic night mode. If the problem occurs during daytime, replace the batteries. - No sound from the bird:
Confirm that the clock is not in its automatic night mode. Ensure batteries are fresh. - Pendulum not swinging:
Ensure the pendulum is correctly attached and has enough clearance to swing freely without obstruction.
Техникалык шарттар
| Бренд | Карлссон |
| Модель номери | KA5768GY (Manufacturer Model: PTG-KA5768GY) |
| Түс | Боз |
| Өлчөмдөрү (L x W x Y) | 30.8 x 3.81 x 24 см |
| Салмагы | 560 грамм |
| Материал | Акрилонитрил бутадиен стирол (ABS) |
| Power Source | 3 x AA батарейкалар (киргизилген эмес) |
| Дисплей түрү | Аналог |
| Өзгөчөлүктөр | Silent timekeeping mechanism, Hourly bird chirping, Automatic night mode for sound. |
Кепилдик жана колдоо
Кепилдик маалымат
Specific warranty details for the Karlsson KA5768GY clock are typically provided by your retailer at the time of purchase or can be found on the official Karlsson webсайт. Сураныч, кепилдик дооматтар үчүн сатып алуу далилиңизди сактап коюңуз.
Запастык бөлүктөр
Information regarding the availability of spare parts for this product is currently unavailable. For any repair or replacement inquiries, please contact your retailer or Karlsson customer service.
Кардарларды колдоо
For further assistance, technical support, or inquiries not covered in this manual, please refer to the contact information provided by your retailer or visit the official Karlsson webсайт.
