OWON SP6103 Single Channel DC Power Supply User Manual

1. Киришүү

The OWON SP6103 is a high-performance single-channel linear DC power supply designed for various applications requiring stable and precise power. This unit provides a maximum output of 60V and 10A, with a total power output of 300W. It features a 3.7-inch TFT LCD for clear display of parameters, low ripple and noise, and essential protection functions such as over-voltage (OVP) and over-current (OCP) protection. The SP6103 supports both Constant Voltage (CV) and Constant Current (CC) output modes and includes an RS232 port for remote control via SCPI commands.

2. Коопсуздук нускамалары

To ensure safe operation and prolong the lifespan of your OWON SP6103 power supply, please read and adhere to the following safety guidelines:

• Кубат булагы: Connect the unit only to a power source that matches the voltage and frequency specified on the product label. Ensure the power cord is properly grounded.
• Вентиляция: Do not block the ventilation openings on the sides and rear of the unit. Adequate airflow is essential to prevent overheating.
• Курчап турган чөйрө: Operate the power supply in a dry, well-ventilated indoor environment. Avoid exposure to moisture, dust, direct sunlight, or extreme temperatures.
• Туташуу жүктөө: Always connect the load to the output terminals before turning on the output. Ensure correct polarity.
• Чыгуу терминалдары: Do not touch the output terminals when the output is active. High voltage and current can cause electric shock.
• Тейлөө: Бардык тейлөөлөрдү квалификациялуу кызматкерлерге тапшырыңыз. Агрегатты өзүңүз ачууга же оңдоого аракет кылбаңыз.
• Тазалоо: Disconnect the power cord before cleaning. Use a soft, dry cloth. Do not use liquid cleaners or aerosols.

3. Продукт бүтүп калдыview

3.1 алдыңкы панели

The front panel provides all controls and the display for operating the power supply.

3.1-сүрөт: алдыңкы панелдин макети

• Дисплей: 3.7-inch TFT LCD showing output voltage, current, power, OVP/OCP settings, and status indicators.
• Кубат которгучу: Main power toggle for the unit.
• Система баскычы: Системанын жөндөөлөрүнө жана конфигурацияларына кирет.
• Эстутум баскычы: Used to save and recall output settings.
• Keylock Button: Кокусунан өзгөрүүлөрдүн алдын алуу үчүн алдыңкы панелдин башкаруу элементтерин кулпулайт.
• Чабыттоо баскычтары (өйдө, ылдый, солго, оңго, ОК): Used for menu navigation and parameter adjustment.
• Туткасы: Тtage жана учурдагы параметрлер.
• Күйгүзүү/өчүрүү баскычы: Toggles the output power to the terminals.
• Чыгуу терминалдары: Red (+) for positive, Green (Ground) for chassis ground, Black (-) for negative output.

3.2 тарап View жана Вентиляция

The side panels feature ventilation grilles to ensure proper cooling of the internal components.

Figure 3.2: Side Ventilation

4. Орнотуу

Follow these steps to set up your OWON SP6103 power supply:

1. Пакеттен чыгаруу: Этияттык менен анын таңгагынан электр менен жабдууну алып салыңыз. Транзит учурунда аппараттын бузулуу белгилерин текшериңиз.
2. Жайгашкан жери: Place the unit on a stable, level surface, ensuring adequate space around the ventilation openings for proper airflow.
3. Кубат туташуу: Connect the provided AC power cord to the power input on the rear panel of the SP6103, then plug the other end into a grounded AC outlet.
4. Баштапкы күйгүзүү: Flip the main power switch on the front panel to the 'ON' position. The display should illuminate.
5. Туташуу жүктөө: Before activating the output, connect your load to the output terminals. Connect the positive (+) terminal of your load to the red (+) terminal of the power supply, and the negative (-) terminal of your load to the black (-) terminal of the power supply. If grounding is required, connect to the green (Ground) terminal.

5. Иштөө нускамалары

5.1 Setting Voltage жана Current

To set the desired output voltage жана учурдагы:

1. Ensure the output is OFF (the 'On/Off' button LED is off).
2. Use the navigation buttons (Left/Right) to select the parameter you wish to adjust (Voltage or Current). The selected parameter will be highlighted.
3. айлантыңыз баскыч to adjust the value. Press the OK button to confirm the value or move to the next digit for fine adjustment.
4. Repeat for both voltage жана учурдагы чектөөлөр.

5.2 Activating Output

Каалаган томду койгондон кийинtage and current limits, press the On/Off button to activate the output. The LED on the button will illuminate, and the actual output voltage жана ток көрсөтүлөт.

5.3 Constant Voltage (CV) / Constant Current (CC) Mode

The SP6103 automatically operates in either Constant Voltage (CV) or Constant Current (CC) mode depending on the load. If the load resistance is high, the unit will operate in CV mode, maintaining the set voltage. If the load resistance is low, causing the current to reach the set limit, the unit will switch to CC mode, maintaining the set current and reducing the output voltage.

5.4 Over-Voltage Protection (OVP) and Over-Current Protection (OCP)

The SP6103 includes OVP and OCP features to protect the connected load and the power supply itself.

• Setting OVP/OCP: Access the OVP/OCP settings through the System menu or dedicated display area. Use the navigation buttons and knob to set the desired protection thresholds.
• Triggering Protection: Эгерде чыгаша томtage or current exceeds the set OVP or OCP limits, the output will automatically shut down, and an indicator will appear on the display.
• Resetting Protection: To clear a protection trigger, turn off the output, resolve the condition that caused the trigger, and then turn the output back on.

5.5 Эстутум функциялары

The Эс button allows you to save and recall frequently used voltage and current settings. Consult the on-screen prompts for saving to and recalling from memory slots.

5.6 Keylock Function

басыңыз топчусу button to disable the front panel controls, preventing accidental changes to the output settings during operation. Press it again to unlock.

5.7 RS232 Байланыш

The SP6103 features an RS232 port for remote control and data logging. It supports Standard Commands for Programmable Instruments (SCPI). Refer to the detailed programming manual (if available from the manufacturer) for specific SCPI commands and communication protocols.

6. Техникалык тейлөө

The OWON SP6103 requires minimal maintenance to ensure optimal performance:

• Тазалоо: Regularly clean the exterior of the unit with a soft, dry, lint-free cloth. Do not use abrasive cleaners or solvents. Ensure the unit is powered off and unplugged before cleaning.
• Вентиляция: Periodically check that the ventilation openings are free from dust and debris. Use compressed air to gently clear any blockages if necessary.
• Сактагыч: Узак мөөнөткө колдонулбаганда, кубат менен камсыздоону салкын, кургак жерде, тике күн нурунан жана өтө температурадан алыс сактаңыз.

7. Кыйынчылыктарды

If you encounter issues with your OWON SP6103, refer to the following common problems and solutions:

8. Техникалык шарттар

The following table outlines the key technical specifications for the OWON SP6103 DC Power Supply:

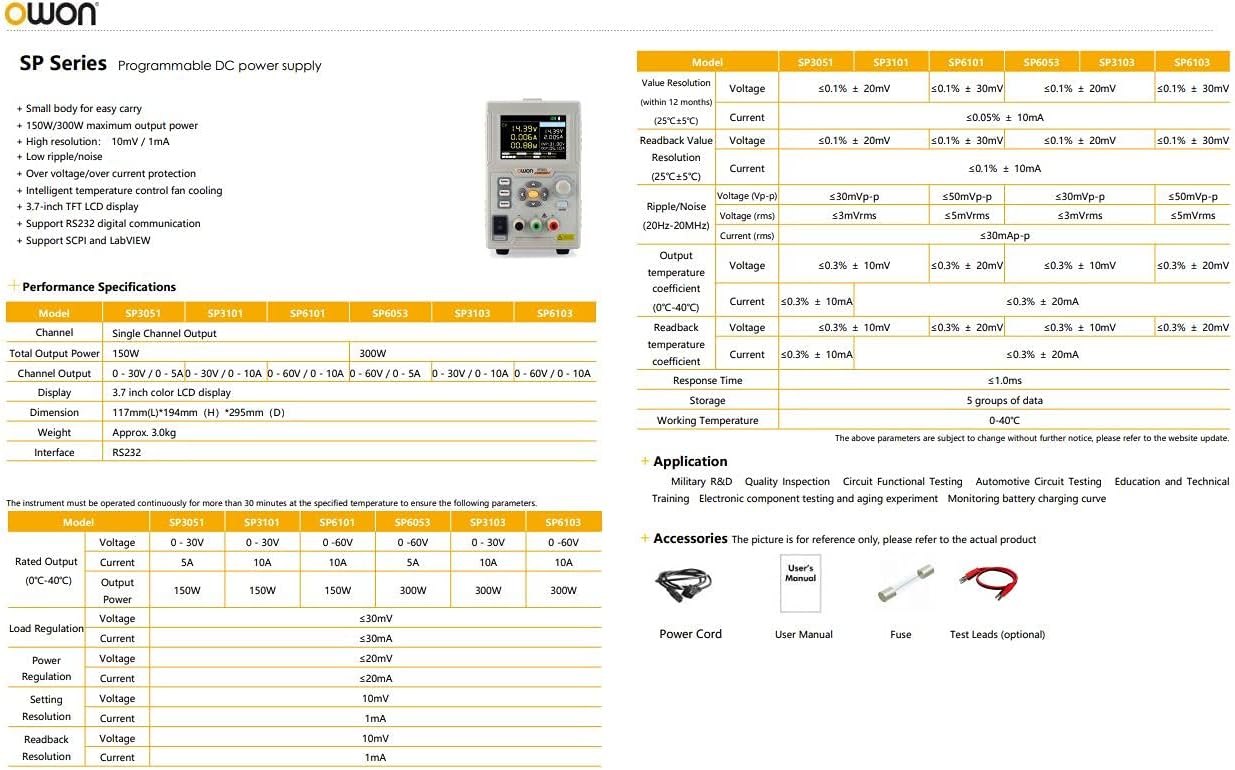

Figure 8.1: OWON SP Series Specifications Overview

9. Кепилдик жана колдоо

For warranty information, technical support, or service inquiries, please contact your authorized OWON dealer or the manufacturer directly. Keep your purchase receipt as proof of purchase for warranty claims. Specific warranty terms and conditions may vary by region and retailer.
