BLS T401 6000K and T402 4000K LED Closet Lights User Manual

Introduction

Thank you for choosing BLS LED Closet Lights. This manual provides detailed instructions for the installation, operation, and maintenance of your BLS T401 (6000K Clean White) and T402 (4000K Neutral White) motion sensor LED lights. Please read this manual thoroughly before use to ensure proper function and longevity of your product.

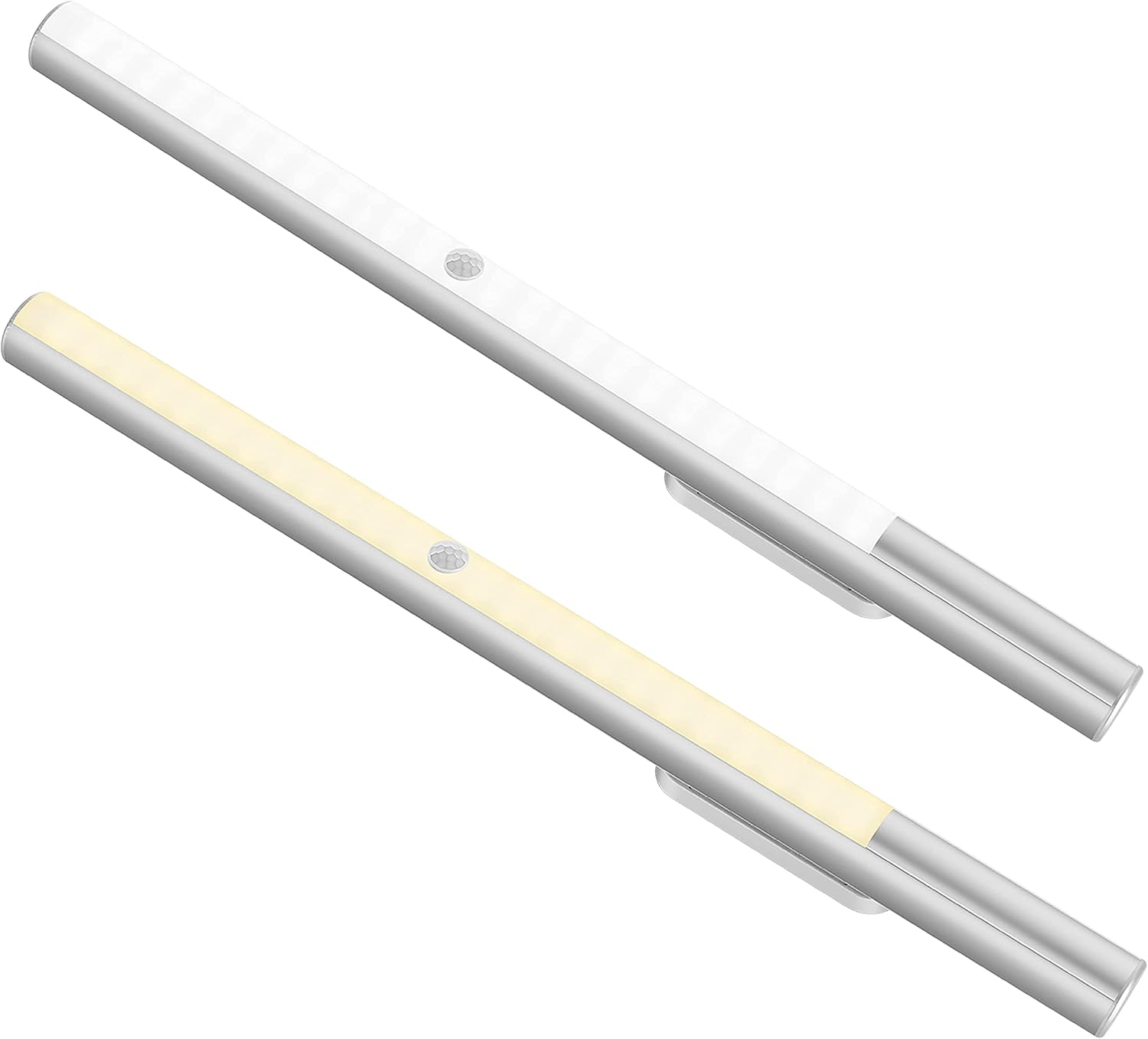

Image: Two BLS LED closet lights, one with 6000K clean white illumination and the other with 4000K neutral white illumination. Both lights feature a motion sensor in the center.

Продукт бүттүview

Кутуда эмне бар

• 2 Rechargeable LED Lights (T401 and T402 models)
• Монтаждоо үчүн бурамалар
• 3M Adhesive Tape for mounting

Негизги өзгөчөлүктөрү

• Зымсыз орнотуу: Easy mounting with screws, 3M adhesive tape, or built-in magnets. No hard wiring required.
• Батареянын узак иштөө мөөнөтү: Built-in 4000mAh UL certified rechargeable battery provides up to 180 days of use in AUTO mode (based on 10 uses/day, 20 seconds/use).
• Акылдуу кыймыл сенсору: Activates in dark and low-light environments. Constant-Sense technology keeps the light on as long as motion is detected, turning off 18 seconds after motion ceases. Sensor sensitivity can be adjusted by rotating the light.
• ON/OFF/AUTO Sliding Switch: Simple control with three modes for various applications. Integrated light sensor prevents activation in bright conditions to save battery.
• Жарыктык: 200 люмен.
• Ачык түстөр: T401 provides 6000K Clean White, T402 provides 4000K Neutral White.

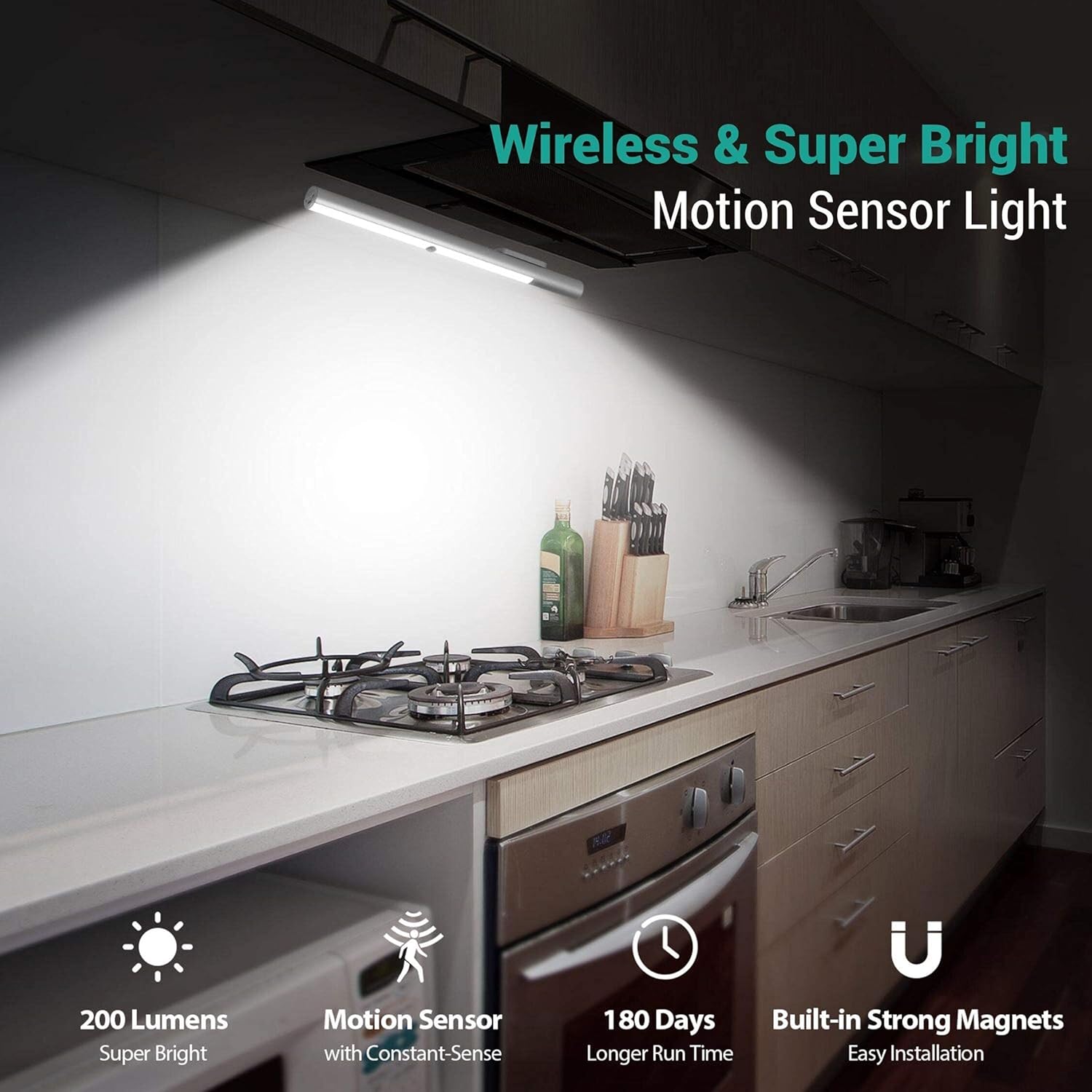

Image: An installed BLS LED light under a kitchen cabinet, demonstrating its illumination. Key features such as 200 lumens, motion sensor, 180-day run time, and built-in magnets are visually represented.

Image: A visual comparison highlighting the BLS light's extended 180-day battery life due to its 4000mAh rechargeable battery, contrasted with other lights that have shorter run times and smaller battery capacities.

Орнотуу жана орнотуу

Your BLS LED lights offer multiple installation options for convenience.

Орнотуу ыкмалары:

1. Магниттик тиркеме: The lights have built-in strong magnets. Simply attach the light directly to any iron surface.
2. Adhesive Tape Mounting:
   • Каалаган орнотуучу беттин кургак жана чаңсыз же майсыз экенин текшерүү үчүн аны кылдаттык менен тазалаңыз.
   • Peel off the protective film from one side of the 3M adhesive tape and attach it to the metal mounting bracket (if using the removable bracket).
   • Peel off the protective film from the other side of the adhesive tape and firmly press the bracket onto the desired surface.
   • Attach the LED light to the magnetic bracket.
3. Бурама орнотуу:
   • Position the metal mounting bracket on the desired surface.
   • Бурама тешиктерди белгилеңиз.
   • Зарыл болсо, пилоттук тешиктерди бургула.
   • Берилген бурамалар менен кронштейнди бекитиңиз.
   • Attach the LED light to the magnetic bracket.

Ensure the mounting location allows for optimal motion sensor detection and light distribution.

Image: A four-panel diagram illustrating the installation process. Panel 1 shows screw mounting, Panel 2 shows magnetic attachment to an iron surface, Panel 3 shows the light installed under a cabinet, and Panel 4 shows the light attached to a refrigerator.

Иштөө нускамалары

The BLS LED light features a simple ON/OFF/AUTO sliding switch for mode selection.

Режим тандоо:

• AUTO режими: In this mode, the light will automatically turn on when motion is detected in dark or low-light conditions. It will remain on as long as motion is present and turn off approximately 18 seconds after motion ceases. The integrated light sensor prevents activation in bright environments to save battery.
• КҮЙҮК режими: Жарык кыймылга же айланадагы жарык шарттарына карабастан, үзгүлтүксүз күйүп турат.
• ӨЧҮРҮҮ РЕЖИМИ: Жарык өчүк бойдон калат.

Кыймыл сенсорунун жөндөөсү:

The sensitivity and detection angle of the motion sensor can be influenced by the light's orientation. Rotating the light can help optimize its detection range and prevent unwanted activations or missed detections. The sensor has a 120-degree detection angle and can detect motion up to 10 feet away.

Image: A composite image detailing the BLS LED light's features, including the motion sensor, USB charging port, ON/OFF/AUTO switch, and built-in magnets. A diagram visually explains the motion sensor's 120-degree detection angle and 10-foot range, along with its operational logic.

Батареяны заряддоо:

When the light dims or stops functioning, it indicates a low battery. Connect the light to a standard USB power source using a compatible charging cable (not explicitly listed as included, but implied by "rechargeable light"). The charging indicator (if present, usually a small LED) will show charging status and turn off when fully charged.

Техникалык тейлөө

• Тазалоо: Wipe the light gently with a soft, dry cloth. Do not use abrasive cleaners or solvents, as they may damage the finish or electronic components.
• Батареяга кам көрүү: Recharge the battery regularly to maintain optimal performance. Avoid fully discharging the battery for extended periods. If storing the light for a long time, charge it to about 50% and recharge every few months.
• Курчап турган чөйрө: This product is designed for indoor use. Avoid exposing it to extreme temperatures, high humidity, or direct water contact.

Проблемаларды чечүү

Техникалык шарттар

Кепилдик жана колдоо

BLS provides an 18-month quality assurance warranty for this product. For any questions, technical support, or warranty claims, please contact BLS customer service. You can typically find contact information on the product packaging or through the seller's page on the platform where you purchased the item.

Сатуучу: BLS LED

Сураныч, кепилдик максаттары үчүн сатып алганыңыздын далилин сактап коюңуз.
