VIVOSUN GIY 3x3 Grow Tent Kit Instruction Manual

1. Киришүү

Thank you for choosing the VIVOSUN GIY 3x3 Grow Tent Kit. This comprehensive system is designed to provide an optimal environment for indoor plant cultivation. This manual provides detailed instructions for the setup, operation, and maintenance of your new grow tent kit, ensuring a successful and efficient growing experience.

2. Коопсуздук маалыматы

• Электр коопсуздугу: Ensure all electrical components are properly connected and grounded. Do not operate with damaged cords or plugs. Keep electrical connections away from water.
• Вентиляция: Maintain adequate airflow to prevent heat buildup and ensure proper plant respiration.
• Салмак сыйымдуулугу: Do not exceed the maximum weight capacity of the tent's hanging bars (100 lbs) to prevent structural failure.
• Жайгашкан жери: Place the grow tent on a flat, stable surface away from flammable materials and direct heat sources.
• Балдар жана үй жаныбарлары: Keep children and pets away from the grow tent and its electrical components.

3. Пакеттин мазмуну

Your VIVOSUN GIY 3x3 Grow Tent Kit includes the following components:

• 1 x 3x3 ft Grow Tent (36"L x 36"W x 72"H) with observation window and floor tray
• 1 x 200W LED Grow Light (VS2000)
• 1 x 4-inch Inline Fan Package (including fan, carbon filter, and ducting)
• 1 x Temperature Humidity Monitor
• 1 x 3x3 ft Elastic Trellis Netting with hooks
• 5 x 5-gallon Grow Bags
• 1 x 6.5-inch Gardening Pruning Shears
• 1 x 7-day Programmable Timer

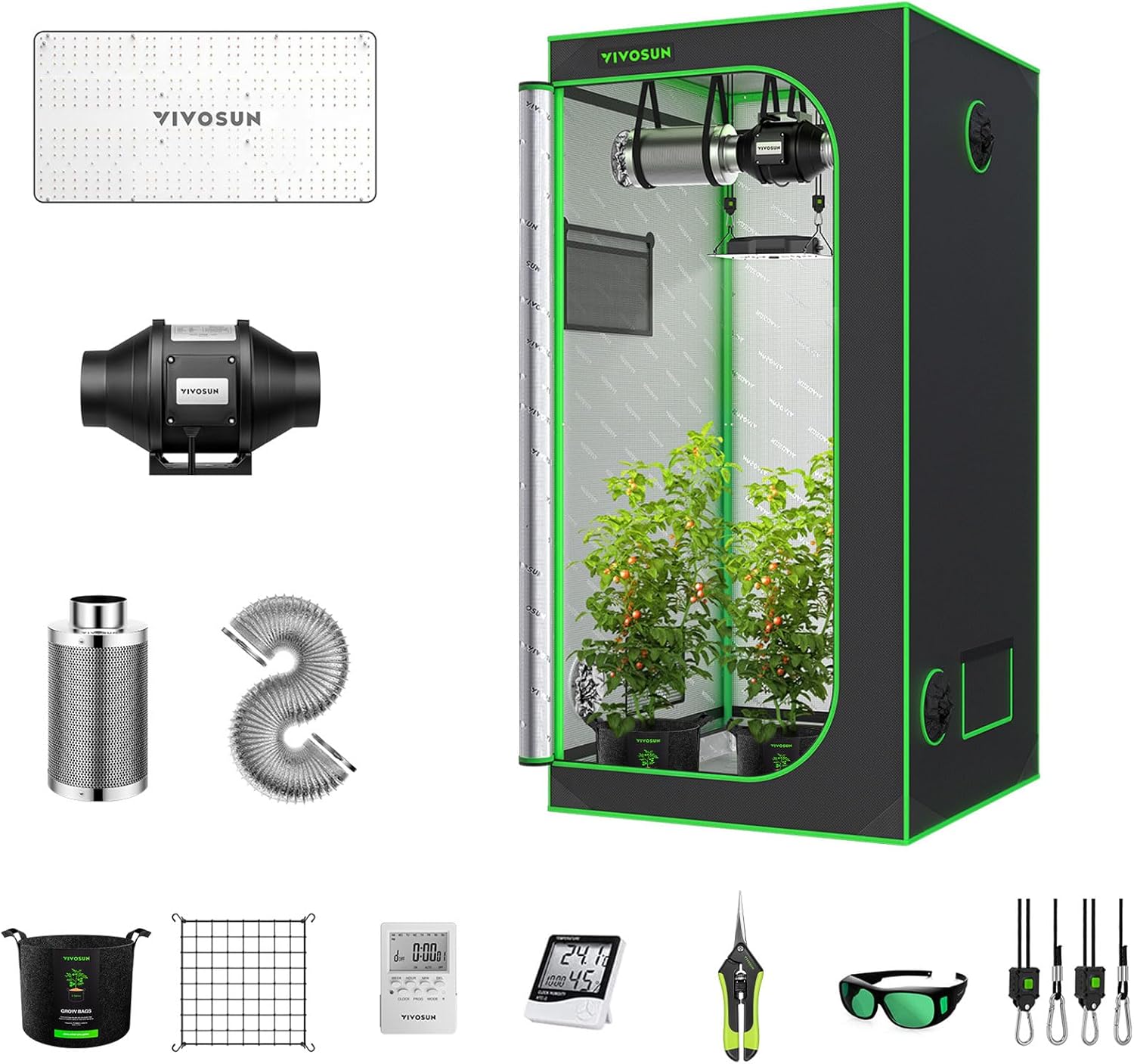

Figure 1: All components included in the VIVOSUN GIY 3x3 Grow Tent Kit.

4. Орнотуу нускамалары

4.1. Grow Tent Assembly

1. Рамка монтажы: Connect the metal poles using the tool-free corner connectors to build the tent frame. Ensure all connections are secure.
2. Капка орнотуу: Drape the tent fabric over the assembled frame. Carefully pull the fabric down, ensuring the zippers align correctly.
3. Floor Tray: Place the removable Mylar floor tray inside the tent. This tray is waterproof and easy to clean.
4. Hanging Bars: Install the top hanging bars. These sturdy bars can support up to 100 lbs for your lighting and ventilation equipment.

Figure 2: Illustration of the grow tent frame assembly.

Figure 3: Close-up of the double-stitched zipper designed to prevent light leaks.

4.2. LED Grow Light Installation

1. Жарыкты илип: Use the provided hangers to suspend the VS2000 LED grow light from the tent's top hanging bars. Adjust the height according to your plant's growth stage.
2. Туташуу кубаты: Plug the LED light into the programmable timer, and then plug the timer into a power outlet.

Figure 4: The VS2000 full-spectrum LED grow light.

4.3. Ventilation System Setup

1. Assemble Fan and Filter: Connect the 4-inch inline fan to the carbon filter using the provided ducting and clamps.
2. Монтаждоо: Hang the assembled fan and filter unit from the tent's top bars. Ensure it is securely fastened.
3. Түтүк: Connect the ducting from the fan to one of the tent's exhaust ports. Secure with clamps.
4. Күч: Plug the inline fan into a power outlet.

Figure 5: The 4-inch inline fan and carbon filter for air circulation.

Figure 6: Various configurations for setting up the ventilation system within the grow tent.

4.4. Кошумча буюмдарды жайгаштыруу

• Temperature Humidity Monitor: Place the monitor inside the tent at plant canopy level to accurately track environmental conditions.
• Grow Bags: Fill the 5-gallon grow bags with your preferred growing medium and place your plants inside.
• Trellis Netting: Attach the elastic trellis netting to the tent poles using the hooks. This supports plants as they grow.

Видео 1: Бүттүview of the VIVOSUN 2x2 ft. Grow Tent Kit, demonstrating setup and features. While a different size, the assembly principles are similar.

5. Иштөө нускамалары

5.1. LED Grow Light (VS2000)

• Күйгүзүү/өчүрүү: Use the programmable timer to set the desired light cycle (e.g., 18 hours on/6 hours off for vegetative growth, 12 hours on/12 hours off for flowering).
• алсыздатуу: The VS2000 LED light features a dimmer knob to adjust light intensity. Start with lower intensity for seedlings and gradually increase as plants mature.
• Спектр: The VS2000 provides a full-spectrum light, suitable for all stagөсүмдүктөрдүн өсүшү.

Figure 7: The dimmer control on the VS2000 LED grow light.

5.2. Inline Fan

• Аба агымы: The 4-inch inline fan provides 190 CFM airflow, ensuring fresh air exchange and preventing stale air.
• Жытты көзөмөлдөө: The carbon filter effectively eliminates odors from the grow tent.
• Ылдамдыкты көзөмөлдөө: Adjust the fan speed as needed to maintain optimal temperature and humidity levels.

5.3. Temperature Humidity Monitor

Use the monitor to keep track of the temperature and humidity inside your grow tent. Adjust fan speed and ventilation as necessary to maintain ideal conditions for your specific plants.

5.4. Программалануучу таймер

Program the 7-day timer to automate your light cycles. Refer to the timer's specific instructions for detailed programming steps.

6. Техникалык тейлөө

• Чатырды тазалоо: Regularly wipe down the interior Mylar lining and the removable floor tray with a damp cloth to maintain reflectivity and hygiene.
• Көмүртек чыпкасы: The carbon filter will eventually lose effectiveness. Replace the carbon filter sleeve or the entire filter unit as needed, typically every 6-12 months depending on usage.
• LED жарык: Keep the LED light surface clean from dust and debris to ensure maximum light output. Use a soft, dry cloth.
• Grow Bags: After each grow cycle, clean and sterilize reusable grow bags or replace them to prevent disease transmission.

7. Кыйынчылыктарды

• Жарык агып чыгуулары: Ensure all zippers are fully closed and the tent fabric is taut. Check ducting ports for proper sealing.
• Жогорку температура: Increase inline fan speed, ensure exhaust is clear, or consider adding an oscillating fan inside the tent.
• Жогорку нымдуулук: Increase inline fan speed to exhaust more humid air. Ensure proper air circulation within the tent.
• Төмөнкү температура/нымдуулук: Reduce inline fan speed, ensure intake ports are not excessively open, or consider using a small heater/humidifier if necessary.
• LED жарыгы иштебейт: Check power connections, ensure the timer is correctly set and functioning, and verify the dimmer is not set to off.

8. Техникалык шарттар

9. Кепилдик жана колдоо

VIVOSUN products are designed for durability and performance. This product is covered by a 30-day easy returns policy. For any questions, troubleshooting assistance, or warranty claims, please contact VIVOSUN Customer Support through the retailer where the product was purchased or visit the official VIVOSUN webбайланыш маалыматы үчүн сайт.
