Waterco 25500

Waterco Waterking хлораторунун модели 25500 колдонуучусунун колдонмосу

Модель: 25500

Introduction

The Waterco Waterking Chlorinator Model 25500 is designed to provide efficient and consistent chlorination for your pool or spa, ensuring clean and safe water. This manual provides detailed instructions for installation, operation, maintenance, and troubleshooting to help you get the most out of your chlorinator.

Waterco Waterking Chlorinator Model 25500

Сүрөт: алдыңкы view of the Waterco Waterking Chlorinator Model 25500, showing the main body, lid, and plumbing connections.

Коопсуздук маалыматы

Please read and adhere to all safety warnings and precautions before installing, operating, or maintaining the chlorinator.

Орнотуу жана орнотуу

  1. Пакеттен чыгаруу: Carefully unpack all components and verify them against the packing list.
  2. Жайгашкан жерди тандоо: Choose a suitable location for installation. The chlorinator should typically be installed after the pool filter and heater (if present), but before any other equipment that could be damaged by concentrated chlorine. Ensure there is adequate space for maintenance and refilling.
  3. Сантехникалык байланыштар: The Waterking Chlorinator is designed for inline installation. Ensure proper plumbing connections using appropriate PVC cement and primer for secure, leak-free joints. Pay attention to the flow direction indicated on the unit.
  4. Waterco Waterking Chlorinator showing flow direction

    Сүрөт: каптал view of the chlorinator, highlighting the "FLOW" arrow indicating the correct water flow direction for installation.

  5. Айыруу убактысы: Allow sufficient curing time for all plumbing connections as per the adhesive manufacturer's instructions before pressurizing the system.
  6. басым сыноо: After curing, slowly open isolation valves to pressurize the system and check for any leaks.

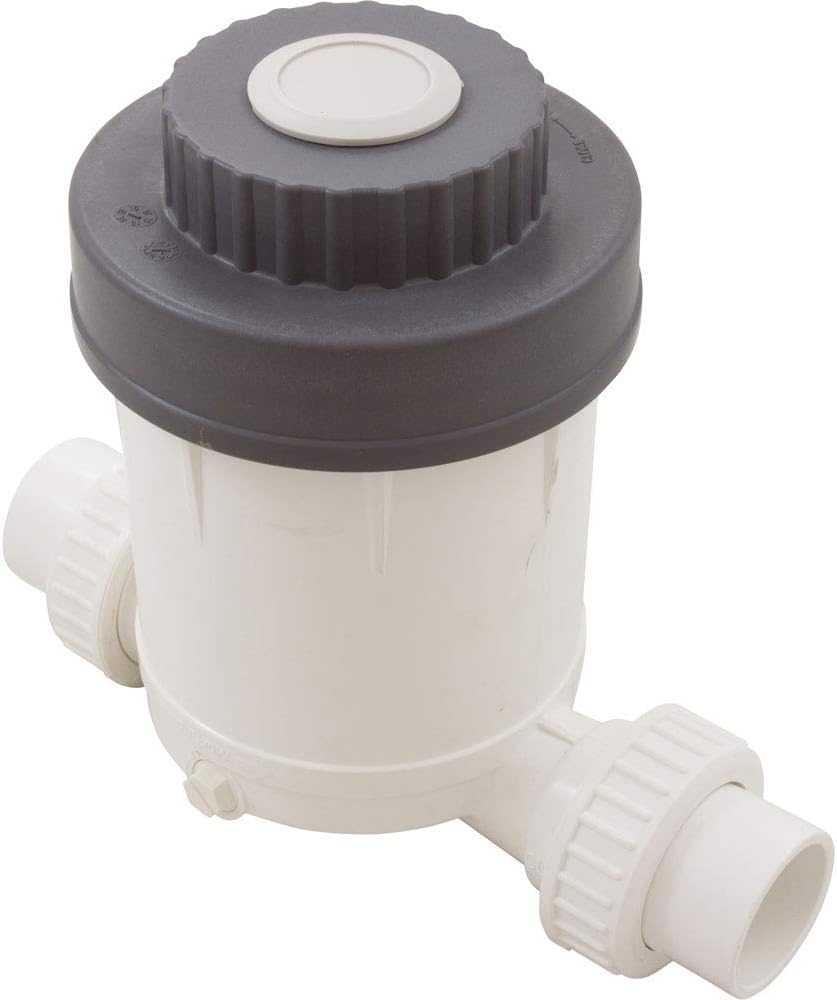

Waterco Waterking Chlorinator side view

Сүрөт: каптал view of the Waterco Waterking Chlorinator, showing the inlet and outlet connections.

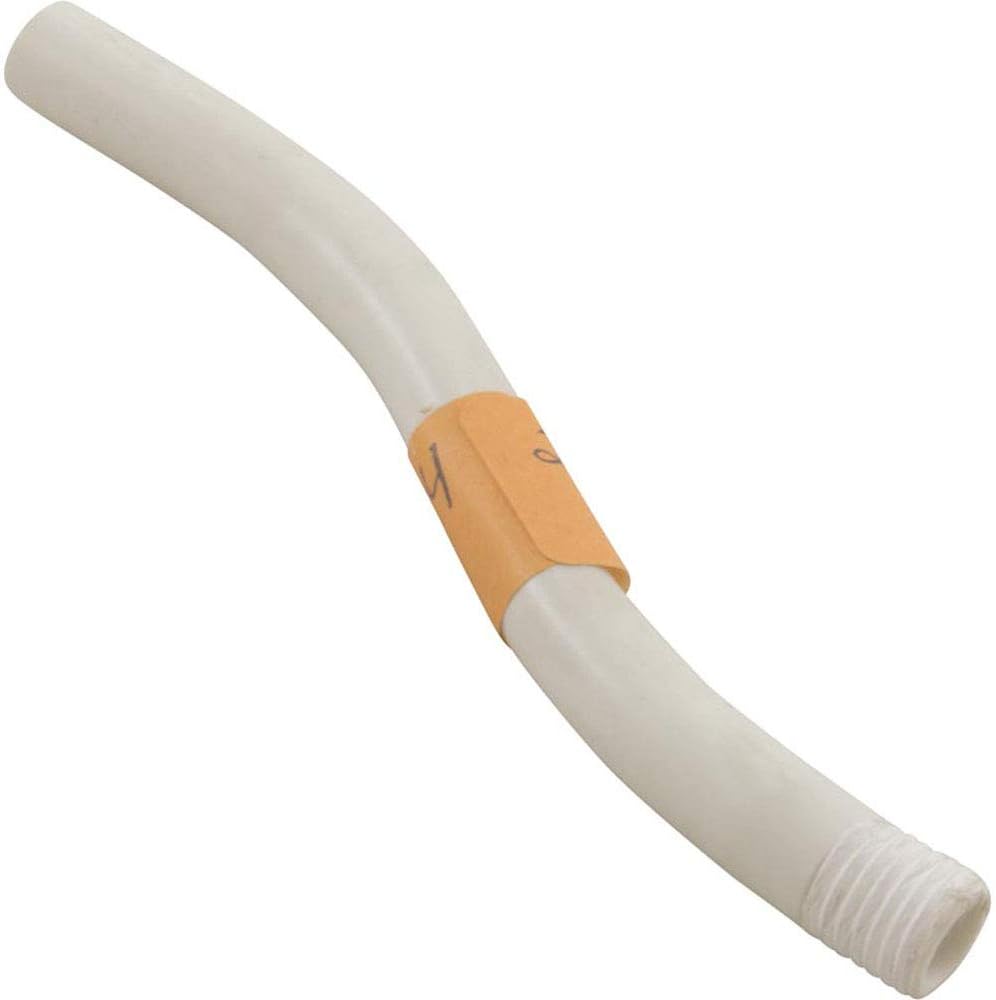

Waterco Chlorinator plumbing accessory

Сүрөт: мурункуample of a plumbing accessory or pipe section that may be used during installation of the chlorinator.

Иштөө нускамалары

  1. Толтурууга даярданыңыз: Ensure the pool pump is turned off and the system is depressurized. Turn the chlorinator's control dial to the "OFF" position.
  2. Ачык капкак: Carefully unscrew the lid of the chlorinator. Be aware of any residual chlorine fumes.
  3. Add Chlorine: Add only slow-dissolving trichlor tablets or sticks to the chlorinator chamber. Do not use granular chlorine, calcium hypochlorite, or other chemicals, as this can cause damage or dangerous reactions. Fill to the recommended level, typically not exceeding 80% capacity.
  4. Коопсуз капкак: Replace the lid securely, ensuring the O-ring is properly seated to create a watertight seal. Hand-tighten only.
  5. Set Feed Rate: Turn the control dial to the desired "RATE OF FEED" setting. Start with a lower setting (e.g., 1 or 2) and adjust as needed based on your pool's chlorine demand and water testing results.
  6. Waterco Waterking Chlorinator rate of feed dial

    Сүрөт: Жакын план view of the chlorinator's control dial, showing settings from "OFF" to "HI" for adjusting the chlorine feed rate.

  7. Насосту баштоо: Turn on your pool pump. The chlorinator will now begin dispensing chlorine into your pool water.
  8. Monitor Water Chemistry: Regularly test your pool water for chlorine levels and pH. Adjust the feed rate dial as necessary to maintain optimal water chemistry (typically 1-3 ppm free chlorine and pH 7.4-7.6).

Техникалык тейлөө

Проблемаларды чечүү

КөйгөйМүмкүн себепЧечим
Хлордун аз чыгышы
  • Empty or low chlorine tablets
  • Feed rate dial set too low
  • Insufficient water flow through chlorinator
  • Blockage in chlorinator or plumbing
  • Refill with recommended chlorine tablets.
  • Increase the feed rate setting.
  • Check pool pump operation and filter cleanliness.
  • Inspect and clear any blockages in the chlorinator or connecting pipes.
Water Leaking from Lid
  • Lid not securely tightened
  • Damaged or improperly seated O-ring
  • Excessive system pressure
  • Ensure lid is hand-tightened securely.
  • Inspect O-ring for damage; clean and lubricate, or replace if necessary. Ensure it is seated correctly.
  • Check pool system pressure; ensure it is within normal operating limits.
Chlorinator Clogging
  • Use of incorrect chlorine type (e.g., granular)
  • Accumulation of undissolved chemical residue
  • Only use slow-dissolving trichlor tablets or sticks.
  • Turn off pump, depressurize, and clean the chlorinator chamber thoroughly.

Техникалык шарттар

АтрибутДеталь
БрендWaterco
Модель аты25500
ӨндүрүүчүWaterco
Пакеттин өлчөмдөрү11 x 10 x 7 дюйм
Элемент Салмагы5 фунт
ASINB094J66SVZ
Элемент моделинин номери25500

Кепилдик жана колдоо

For specific warranty information regarding your Waterco Waterking Chlorinator Model 25500, please refer to the documentation included with your purchase or visit the official Waterco webсайт. Сатып алуу квитанциясын кепилдик дооматтары үчүн сатып алуунун далили катары сактаңыз.

For technical support, troubleshooting assistance beyond this manual, or to inquire about replacement parts, please contact Waterco customer service directly. Contact details can typically be found on the manufacturer's webсайтында же продуктунун таңгагында.
