1. Киришүү
Thank you for choosing the BarcaLounger Leighton Power Recliner. This manual provides essential information for the safe assembly, operation, maintenance, and troubleshooting of your new recliner. Please read these instructions thoroughly before use and retain them for future reference.
The Leighton Power Recliner features a dual-motor system for independent control of the back and ottoman, a power headrest, power lumbar support, and a power lift function. It is designed for comfort and ease of use.
2. Коопсуздук маалыматы
- Always assemble the chair according to the provided instructions. Improper assembly can lead to instability and injury.
- максималдуу салмак сыйымдуулугунан ашпаңыз 400 фунт (181 кг). Exceeding this limit can damage the recliner and cause injury.
- Be cautious when using the lift function. Ensure the area around the chair is clear to avoid obstructions or injury to bystanders.
- Keep the chair on a stable, level surface to prevent tipping.
- Балдарды жана үй жаныбарларын креслонун кыймылдуу бөлүктөрүнөн алыс кармаңыз.
- Do not allow children to play on or with the recliner.
- Ensure the power cord is not pinched or damaged. Do not operate the recliner with a damaged cord or plug.
- Unplug the recliner from the power outlet before cleaning or performing any maintenance.
3. Пакеттин мазмуну
Upon unpacking, please verify that all components are present and undamaged. While specific component lists may vary, a typical package includes:
- Реклайнер базасы
- Арткы бөлүгү
- Электр кабели
- Hand Controller
- Көрсөтмө (бул документ)
4. Орнотуу жана чогултуу
Assembly of your BarcaLounger Leighton Power Recliner is designed to be straightforward. It typically involves attaching the backrest to the base and connecting the power supply.
4.1 Пакеттен чыгаруу
- Таңгактан бардык компоненттерди этияттык менен алып салыңыз. Таңгактоочу материалдарды продукт сизге канааттанганга чейин сактап коюңуз.
- Place the recliner base in the desired location, ensuring it is on a level surface and has sufficient clearance for reclining and lifting functions.
4.2 Attaching the Backrest
- Align the metal brackets on the backrest with the corresponding posts on the recliner base.
- Slide the backrest down firmly until it locks into place. You may hear a click.
- Ensure the backrest is securely attached by gently pulling upwards.
4.3 Кубат туташтыруу
- Locate the power cord and connect it to the power input on the recliner base.
- Электр шнурын жерге туташтырылган электр розеткасына сайыңыз.
- Ensure the hand controller is connected to the appropriate port, usually located on the side of the chair or near the power input.


5. Иштөө нускамалары
Your Leighton Power Recliner is operated using a convenient hand controller, allowing for precise adjustments to your seating position.
5.1 Hand Controller Functions
The hand controller typically features buttons for:
- Recline/Incline (Back & Ottoman): Controls the movement of the backrest and ottoman. Since it's a dual-motor system, these can often be adjusted independently.
- Күчтүү баштык: Adjusts the angle of the headrest for optimal neck support.
- Power Bel: Provides adjustable support for the lower back.
- Power Lift: Gently raises the chair to assist in standing up.
- Башкы бет баскычы: Returns the chair to its original, upright position.

5.2 Reclining and Footrest Operation
- To extend the footrest and recline the backrest, press and hold the appropriate recline button on the hand controller.
- Release the button when you reach your desired position.
- To return to the upright position, press and hold the incline button or the 'Home' button.



5.3 Power Headrest and Lumbar Adjustment
- Use the dedicated buttons on the hand controller to adjust the power headrest and lumbar support independently.
- Adjust to your preferred comfort level.


5.4 Power Lift Function
The power lift function is designed to assist users in standing up from the recliner.
- From the upright position, press and hold the lift button on the hand controller.
- The chair will gently tilt forward and lift, allowing you to stand up with ease.
- To lower the chair, press and hold the opposite button until it returns to the seated position.
6. Техникалык тейлөө жана кам көрүү
Туура кам көрүү креслоңуздун иштөө мөөнөтүн жана көрүнүшүн узартат.
6.1 Тазалоо

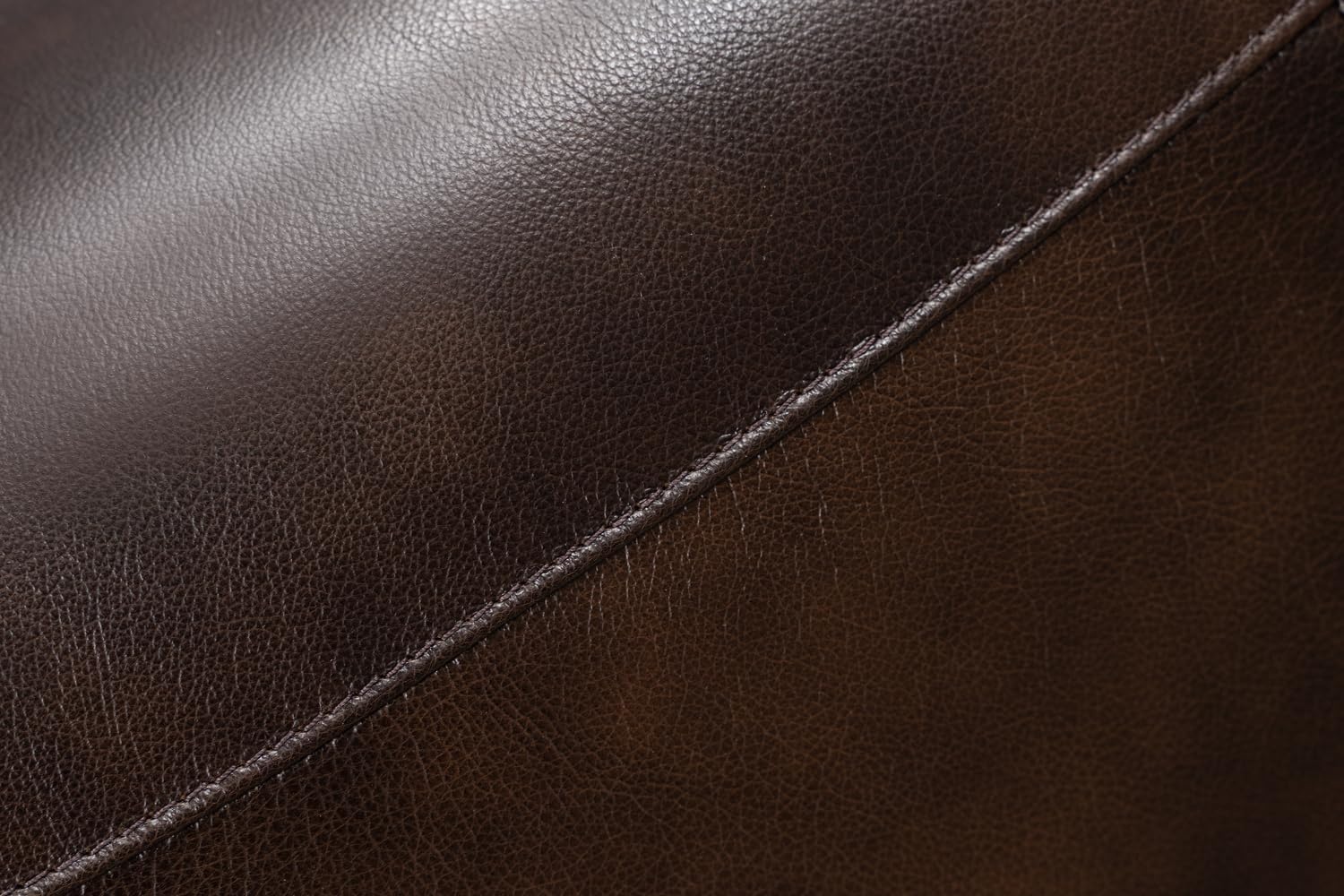

- Териге кам көрүү: The recliner is upholstered in leather. For general cleaning, wipe with a soft, damp cloth. For spills, spot wash immediately with a clean, absorbent cloth. Avoid harsh chemicals or abrasive cleaners, as these can damage the leather. Refer to specialized leather cleaning products for deeper cleaning, following their instructions carefully.
- Frame and Mechanism: Periodically inspect the frame and reclining mechanism for any loose screws or components. Tighten as necessary. Do not lubricate the mechanism unless specifically instructed by the manufacturer.

6.2 Жалпы тейлөө
- Avoid placing the recliner in direct sunlight or near heat sources, as this can cause the leather to fade or dry out.
- Do not sit on the arms or back of the recliner.
- Электр шнурунун эскирүү же бузулуу белгилерин дайыма текшерип туруңуз.
7. Кыйынчылыктарды
If you encounter issues with your recliner, refer to the following common troubleshooting steps:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Recliner does not operate (no power). | Power cord unplugged or loose. No power to outlet. | Ensure power cord is securely plugged into both the chair and a working wall outlet. Check circuit breaker. |
| Recliner makes unusual noises. | Loose hardware. Obstruction in mechanism. | Inspect for loose bolts and tighten. Check for any objects caught in the mechanism. |
| Backrest or footrest not moving smoothly. | Obstruction. Mechanism issue. | Ensure no objects are impeding movement. If issue persists, contact customer support. |
| Lift function not engaging. | Power issue. Overload. | Verify power connection. Ensure weight capacity is not exceeded. |
If these steps do not resolve the issue, please contact BarcaLounger customer support.
8. Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Бренд | BarcaLounger |
| Модель аты | Leighton |
| Модель номери | 23PHL-3085-3712-86 |
| Түс | Tonya Brown |
| Продукциянын өлчөмдөрү (D x W x Y) | 36.6"D x 32.3"W x 43.3"H |
| Элемент Салмагы | 128 фунт (58 кг) |
| Максималдуу салмак боюнча сунуш | 400 фунт (181 кг) |
| Материал | Leather (Upholstery), Foam (Fill) |
| Артка стили | Plush Pub Back |
| Arm Style | Тегеректелген |
| Өзгөчөлүктөр | Dual Motor Power Recline, Power Headrest, Power Lumbar, Power Lift |
| Продукцияга кам көрүү боюнча нускамалар | Spot Wash |
| UPC | 850017201897 |
9. Кардарларды колдоо кызматы
For further assistance, parts, or warranty inquiries, please contact BarcaLounger customer service. Refer to your purchase documentation or the official BarcaLounger webакыркы байланыш маалыматы үчүн сайт.
Колдоо кызматына кайрылганда, моделиңиздин номерин айтып коюңуз (23PHL-3085-3712-86) and date of purchase readily available.
