ZWO ASI462MC Astronomy Camera User Manual

1. Киришүү

The ZWO ASI462MC is a high-sensitivity color astronomy camera designed for capturing images of solar system objects such as the Moon and planets, as well as for electronically-assisted astronomy (EAA) of deep-sky objects. It features an advanced 2.1 megapixel CMOS sensor (IMX462) with a resolution of 1936x1096 pixels and a pixel size of 2.9 microns. The camera offers high quantum efficiency and infrared sensitivity, allowing for detailed astrophotography with low noise and reduced exposure times. Its USB3.0 interface enables fast data transfer rates of up to 136 frames per second at full resolution.

This camera is intended for use with a refractor or reflector telescope mounted on a motorized equatorial mount capable of accurate sky tracking. It is not designed for visual observation through a telescope eyepiece. Additional accessories like an autoguider or focal reducer may be required for optimal results. All necessary software and drivers are available for download from the manufacturer's official webсайт.

2. Пакеттин мазмуну

Verify that all items listed below are present in your ZWO ASI462MC camera package.

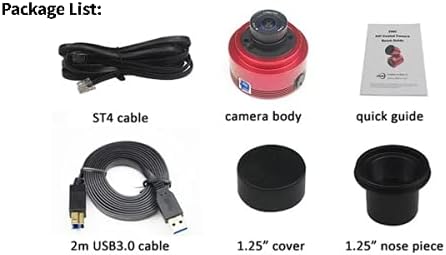

The image shows all items included in the ZWO ASI462MC package: the camera body, a 2m USB3.0 cable, an ST4 cable, a 1.25" cover, a 1.25" nose piece, and a quick guide.

• ZWO ASI462MC камера корпусу
• 2-meter USB3.0 Cable
• ST4 жетектөөчү кабели
• 1.25 дюймдук капкак
• 1.25-inch Nose Piece
• Quick колдонмо

3. Негизги өзгөчөлүктөрү

The ZWO ASI462MC camera offers several advanced features for astrophotography:

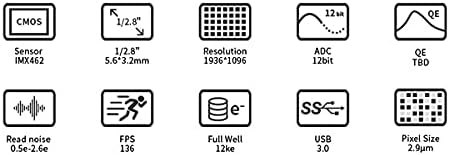

An infographic detailing the camera's core specifications: CMOS Sensor IMX462, 1/2.8" sensor size (5.6x3.2mm), 1936x1096 resolution, 12bit ADC, TBD QE, 0.5e-2.6e Read noise, 136 FPS, 12ke Full Well, USB 3.0 interface, and 2.9µm Pixel Size.

• Сенсор: Advanced IMX462 CMOS sensor with 1936x1096 (2.1 megapixel) resolution and 2.9 micron pixels.
• Жогорку сезгичтик: Exceptional sensitivity in the infrared spectrum, enhancing detail capture for planetary imaging.
• Fast Transfer: USB3.0 interface provides high-speed data transfer up to 136 frames per second at maximum resolution.
• Интеграцияланган USB хабы: Includes a separate USB2.0 hub for powering accessories such as an autoguiding camera or electronic focuser.
• Туруктуу дизайн: Compact, lightweight, and attractive red anodized CNC aluminum body for robust field use.
• Ар тараптуу байланыш: Connects to 1.25-inch and 2-inch telescope focusers using the included T-threaded 1.25-inch nosepiece.
• Кубат булагы: Camera electronics draw power directly from your computer’s USB3.0 interface.
• Программалык шайкештик: Compatible with Mac OS X and Windows (32-bit and 64-bit) operating systems.

4. Орнотуу

Follow these steps to set up your ZWO ASI462MC camera:

1. Драйверлерди жана программалык камсыздоону орнотуу: Before connecting the camera, download and install the latest drivers and capture software from the official ZWO webсайт (www.zwoastro.com). This ensures proper recognition and functionality of the camera with your computer.
2. Attach Nosepiece: Screw the included 1.25-inch nosepiece onto the camera body. Ensure it is securely fastened.
3. Mount Camera to Telescope: Insert the 1.25-inch nosepiece into your telescope's focuser. Secure it with the focuser's thumbscrews. If your telescope requires a 2-inch connection, you may need an additional 2-inch adapter (not included) that accepts 1.25-inch accessories.
4. Connect USB3.0 Cable: Plug one end of the provided 2-meter USB3.0 cable into the camera's USB3.0 port and the other end into an available USB3.0 port on your computer. The camera will draw power directly from this connection.
5. ST4 багыттоочу кабелин туташтырыңыз (милдеттүү эмес): If you are using an autoguider, connect the ST4 guiding cable from the camera's ST4 port to your equatorial mount's autoguiding port.
6. Connect USB2.0 Accessories (Optional): Use the integrated USB2.0 hub on the camera to connect and power compatible accessories like an electronic focuser or another guiding camera.
7. Программаны ишке киргизүү: Open your preferred astronomy imaging software (e.g., SharpCap, FireCapture, ASICAP) and select the ZWO ASI462MC camera from the device list.

5. Камераны иштетүү

Once set up, the ZWO ASI462MC is ready for image acquisition. Optimal performance requires careful attention to exposure settings and telescope tracking.

This image displays the compact, red anodized aluminum body of the ZWO ASI462MC camera, highlighting its robust construction and the central sensor area.

• Фокустоо: Achieve precise focus using your telescope's focuser. Live view mode in your capture software will assist in this process.
• Exposure Settings: Adjust gain, exposure time, and frame rate within your capture software. For planetary imaging, short exposures and high frame rates are typically used to capture many frames, which are then stacked to reduce atmospheric distortion. For EAA, longer exposures may be used.
• Ак баланс: Set the appropriate white balance for accurate color representation. Many software packages offer automatic or manual white balance adjustments.
• Сүрөт тартуу: Begin capturing video sequences or still images. Ensure your telescope is accurately tracking the celestial object to prevent star trails or blurring.
• Маалыматтарды сактоо: Captured data can be saved in various formats (e.g., SER, AVI, FITS) depending on your software. Ensure sufficient storage space on your computer.
• Пост-процесс: Utilize specialized astronomy software (e.g., AutoStakkert!, Registax, PixInsight) to stack and process your captured images for enhanced detail and reduced noise.

6. Техникалык тейлөө

Proper maintenance ensures the longevity and optimal performance of your ZWO ASI462MC camera.

• Сенсордук терезени тазалоо: The camera features a protective optical window. If dust or smudges appear, use a specialized optical cleaning kit (blower, brush, lens cleaning solution, and microfiber cloth) designed for camera sensors. Do not touch the sensor window directly with your fingers.
• Камеранын корпусун тазалоо: Wipe the aluminum body with a soft, dry, lint-free cloth. Avoid using harsh chemicals or abrasive materials.
• Сактагыч: When not in use, store the camera in a clean, dry environment, preferably in its original packaging or a padded case, to protect it from dust, moisture, and physical damage. Use the included 1.25-inch cover to protect the sensor opening.
• Экологиялык шарттар: Avoid exposing the camera to extreme temperatures, high humidity, or direct sunlight for extended periods.

7. Кыйынчылыктарды

If you encounter issues with your ZWO ASI462MC camera, consider the following troubleshooting steps:

• Камера аныкталган жок:
  • Ensure USB3.0 cable is securely connected to both the camera and a USB3.0 port on your computer.
  • Verify that the correct drivers are installed. Reinstall drivers from the ZWO webзарыл болсо сайт.
  • Try a different USB3.0 port or cable.
  • Компьютериңизди өчүрүп күйгүзүңүз.
• Сүрөт жок же кара экран жок:
  • Check if the camera is selected in your capture software.
  • Ensure exposure settings (gain, exposure time) are appropriate for the light conditions.
  • Verify that the telescope's dust cap is removed and the focuser is set correctly.
• Poor Image Quality (Noise, Blurring):
  • Adjust gain and exposure settings to optimize signal-to-noise ratio.
  • Ensure precise focus.
  • Verify accurate tracking of your equatorial mount.
  • Check for dust on the sensor window or telescope optics.
• Программанын бузулушу:
  • Ensure your capture software is up-to-date.
  • Check for conflicts with other USB devices or software.

For further assistance, refer to the ZWO official website's support section or contact their customer service.

8. Техникалык шарттар

Detailed technical specifications for the ZWO ASI462MC camera:

This image includes technical diagrams showing the physical dimensions of the camera and a spectral response graph indicating the camera's sensitivity across different wavelengths (red, green, blue), highlighting its infrared sensitivity.

These graphs provide detailed performance data for the ASI462MC, showing the relationship between gain and read noise, full well capacity, and dynamic range, crucial for optimizing image acquisition settings.

9. Кепилдик жана колдоо

For information regarding the product warranty, please refer to the official ZWO website or the documentation included with your purchase. ZWO provides comprehensive customer support for their products.

Расмий ZWO Webсайт: www.zwoastro.com

боюнча website, you can find:

• Latest drivers and software downloads
• Detailed product manuals and guides
• Көп берилүүчү суроолор (FAQ)
• Technical support contact information
• Community forums for user discussions and tips

Always ensure you are using the latest software and drivers for optimal performance and compatibility.
