1. Киришүү
The Yealink YHS36 is a professional dual-ear headset designed for office workers, SOHO, or call center staff. It features HD Voice wideband technology and a noise-canceling microphone, ensuring clear communication. This headset is specifically designed for use with Yealink IP Phones via an RJ9 connection. Important: This headset is NOT a 3.5mm PC headset and is NOT intended for direct connection to computers or laptops.
2. Пакеттин мазмуну
Пакетиңизде бардык буюмдар бар экенин текшериңиз:
- Yealink YHS36 Dual Headset
- RJ9 Connectivity Cord
3. Продукт бүтүп калдыview
The YHS36 headset is engineered for comfort and durability, featuring a lightweight design and soft ear cushions for extended wear. Its key components include:
- Жөнгө салынуучу баш боосу: Коопсуз жана ыңгайлуу отуруу үчүн.
- Жумшак кулак жаздыкчалары: Designed for comfort during long periods of use.
- 330° ийилүүчү штанга рычагы: Allows for precise microphone positioning and durability.
- Ызы-чууну жокко чыгаруучу микрофон: Filters out background noise for clearer voice transmission.
- RJ9 туташтыргычы: For direct connection to compatible Yealink IP Phones.
Image 1: Yealink YHS36 Dual Headset showing the headset and its RJ9 connection cable.

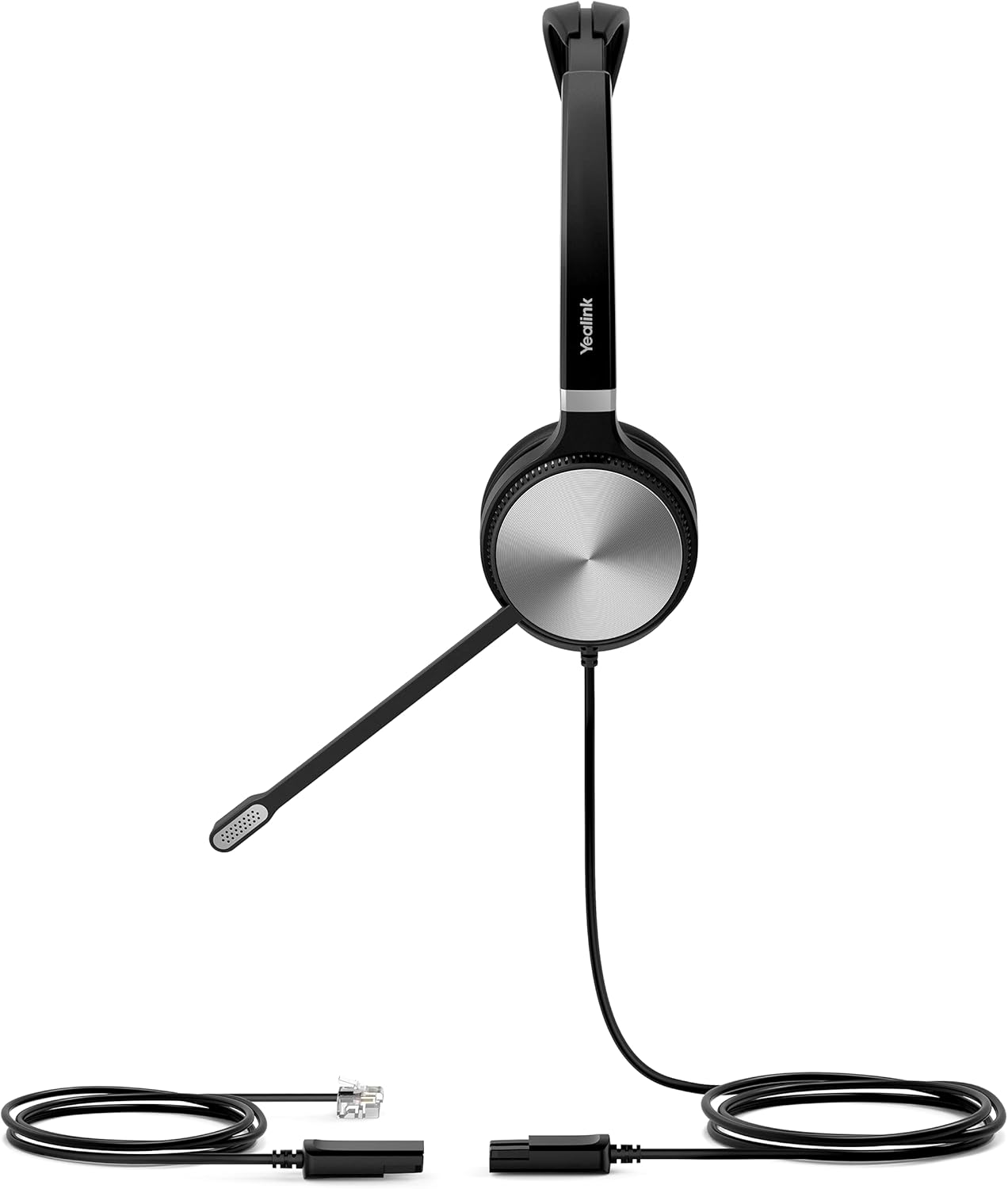

Сүрөт 2: Каптал view of the Yealink YHS36 Dual Headset, highlighting the ear cup and microphone boom arm.
4. Орнотуу
Follow these steps to set up your Yealink YHS36 Dual Headset:
- Гарнитураны туташтыруу: Locate the RJ9 headset port on your Yealink IP Phone. Plug the RJ9 connector of the YHS36 headset firmly into this port.
- Баш боосун тууралаңыз: Place the headset on your head. Adjust the headband by sliding the ear cups up or down until they rest comfortably over both ears.
- Микрофонду жайгаштырыңыз: Gently bend the 330° boom arm to position the microphone approximately 1-2 centimeters (0.4-0.8 inches) from the corner of your mouth. Ensure the microphone is aligned with your mouth for optimal voice pickup.
- Байланышты текшерүү: Make a test call to ensure both audio output and microphone input are functioning correctly.
5. Иштөө нускамалары
Once connected, the YHS36 headset integrates seamlessly with your Yealink IP Phone for call management.
- Чалууларды жасоо: Initiate calls directly from your Yealink IP Phone. Audio will automatically route to the headset.
- Чалууларга жооп берүү: Press the headset button on your Yealink IP Phone or answer directly from the phone's interface.
- Аяктаган чалуулар: Press the headset button on your Yealink IP Phone or hang up from the phone's interface.
- Үндү көзөмөлдөө: Adjust the listening volume using the dedicated volume controls on your Yealink IP Phone.
- Микрофондун үнүн өчүрүү: Use the mute function on your Yealink IP Phone to temporarily disable the microphone.
- ActiveProtection Technology: The headset incorporates ActiveProtection technology to safeguard users from acoustic injury by limiting sudden loud noises.
6. Техникалык тейлөө
Тийиштүү кам көрүү гарнитураңыздын узак мөөнөттүү иштешин жана иштешин камсыз кылат.
- Тазалоо: Гарнитураны тазалоо үчүн жумшак, кургак чүпүрөктү колдонуңуз. Кулак жаздыкчалары үчүн бир аз гamp кездемени колдонсо болот, бирок колдонуудан мурун алардын толугу менен кургак экенин текшериңиз. Катуу химиялык заттардан же абразивдүү материалдардан алыс болуңуз.
- Сактагыч: When not in use, store the headset in a clean, dry place, away from direct sunlight and extreme temperatures. Avoid tangling the cord.
- Колдонуу: Do not drop the headset or subject it to strong impacts. Avoid excessive bending or twisting of the cables.
7. Кыйынчылыктарды
If you encounter issues with your YHS36 headset, try the following solutions:
- Аудио жок/Төмөн үн:
- Ensure the RJ9 connector is securely plugged into the phone's headset port.
- Check the volume settings on your Yealink IP Phone.
- Verify that the headset function is activated on your phone.
- Микрофон иштебейт:
- Confirm the microphone boom arm is correctly positioned near your mouth.
- Check if the microphone is muted on your Yealink IP Phone.
- Ensure the RJ9 connection is secure.
- Үн сапаты начар:
- Check for any physical damage to the cable or headset.
- Ensure the microphone is not too close or too far from your mouth.
- Test with another Yealink IP Phone if possible to rule out phone-related issues.
If problems persist, please contact Yealink support or refer to your Yealink IP Phone's user manual for further assistance.
8. Техникалык шарттар
| Модель номери | 1308021 (YHS36) |
| Байланыш | RJ9 |
| Шайкештик | All Yealink Desk Phones |
| Аудио өзгөчөлүктөрү | HD Voice/Wideband speaker performance, Noise-canceling microphone, ActiveProtection technology |
| Микрофон бум колу | 330° bendable |
| Продукциянын өлчөмдөрү | 23.62 x 23.62 x 33.46 дюйм |
| Элемент Салмагы | 6 унция |
| Өндүрүүчү | Yealink |
9. Кепилдик маалыматы
For detailed warranty information regarding your Yealink YHS36 Dual Headset, please refer to the official Yealink website or contact your local Yealink distributor. Warranty terms and conditions may vary by region and purchase location.
10. Колдоо
If you require further assistance or have questions not covered in this manual, please visit the official Yealink support page or contact their customer service:
- Yealink расмий сайты Webсайт: www.yealink.com
- Колдоо бөлүмү: Look for a 'Support' or 'Downloads' section on their webКөп берилүүчү суроолор, микропрограмма жаңыртуулары жана байланыш маалыматы үчүн сайт.
