Introduction
Thank you for choosing the STIGA Collector 543 AE KIT cordless lawn mower. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new lawn mower. Please read this manual carefully before first use and keep it for future reference.
The STIGA Collector 543 AE KIT is a powerful and durable battery-powered lawn mower designed for efficient lawn care with a cutting width of 41 cm. It features a height-adjustable handle with a folding function for convenient storage and transport.
Коопсуздук нускамалары
Өрт, электр шок жана жеке жаракат алуу коркунучун азайтуу үчүн ар дайым негизги коопсуздук чараларын сактаңыз. Тез маалымдоо үчүн бул колдонмону колуңузда кармаңыз.
- Шайманды иштетүүдөн мурун бардык көрсөтмөлөрдү окуп чыгыңыз.
- Wear appropriate personal protective equipment (PPE) such as safety glasses, hearing protection, and sturdy footwear.
- Жумуш орду таштандылардан жана башка адамдардан, айрыкча балдардан жана үй жаныбарларынан тазаланганын текшериңиз.
- Never operate the mower in wet conditions or rain.
- Тазалоодон, тейлөөдөн мурун же машинаны кароосуз калтырганда батареяны ажыратыңыз.
- Do not modify the mower or use non-original parts.
- Чач чапкычты кургак, коопсуз, балдар жетпеген жерде сактаңыз.
Пакеттин мазмуну
Бардык компоненттер бар экенин жана бузулбаганын текшериңиз:
- STIGA Collector 543 AE KIT Lawn Mower Unit
- Чөп чогултуу баштыгы
- 48V 4Ah Battery (included)
- Battery Charger (included)
- Колдонуучунун Колдонмосу (бул документ)
Жайгашуу
1. Туткасы Ассамблея
The handle of the STIGA Collector 543 AE KIT is designed for easy assembly and folding. Unfold the handle into the operating position and secure it using the quick-release levers or knobs provided on the side of the handle supports. Ensure the handle is firmly locked in place before use.

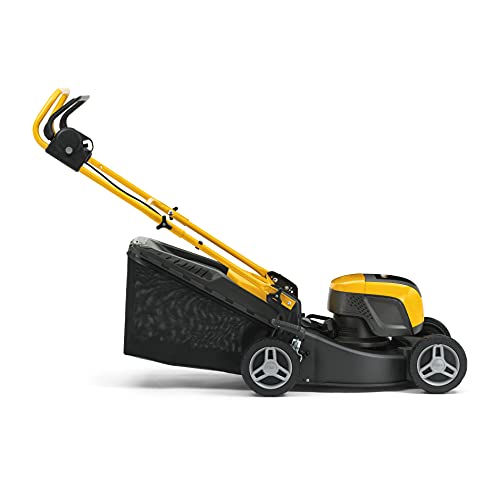

1-сүрөт: Каптал view of the STIGA Collector 543 AE KIT lawn mower, showing the handle in its extended position for operation. The handle can be folded for compact storage.
2. Чөп чогултуучу баштыктын тиркемеси
Lift the rear discharge flap of the mower. Hook the grass collection bag onto the designated slots under the flap. Ensure the bag is securely attached to prevent grass clippings from escaping during operation.

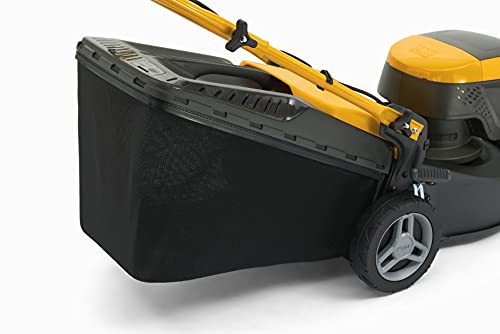

Сүрөт 2: Жакын пландан view of the grass collection bag, showing its attachment point at the rear of the mower. The bag is designed to efficiently collect clippings.
3. Батареяны орнотуу жана заряддоо
The STIGA Collector 543 AE KIT uses a 48V 4Ah battery. To install, open the battery compartment cover, typically located on top of the mower deck. Slide the fully charged battery into the compartment until it clicks into place. To charge, remove the battery and connect it to the provided charger. Refer to the battery charger's manual for specific charging instructions and indicators.

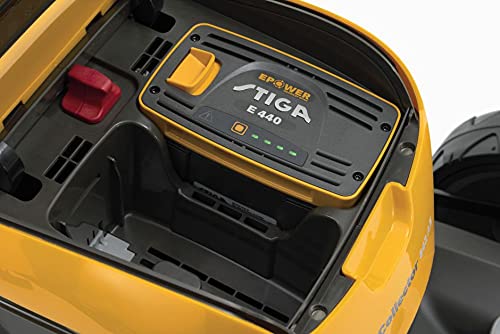

3-сүрөт: View of the battery compartment, showing the STIGA E 440 battery securely placed inside. The battery powers the mower's motor.
Иштөө нускамалары
1. Кесүү бийиктигин тууралоо
The STIGA Collector 543 AE KIT features a central cutting height adjustment lever. Locate the lever near one of the wheels (as shown in Figure 4). Pull the lever outwards and move it up or down to select the desired cutting height. Ensure all wheels are at the same height setting for an even cut.

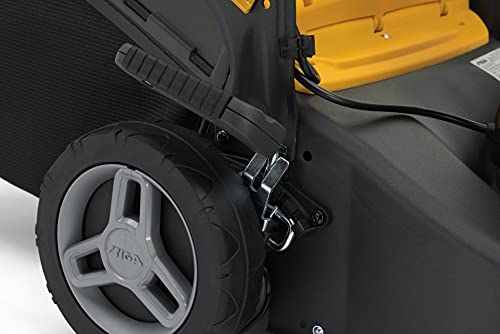

Figure 4: Detail of the rear wheel and the cutting height adjustment lever. This lever allows for quick and easy adjustment of the blade height.
2. Чөп чапкычты ишке киргизүү
Ensure the battery is fully charged and correctly installed. Press and hold the safety button (if present) on the handle, then pull the bail lever towards the handle. The motor should start. Release the safety button once the motor is running.
3. Чөп чабуу ыкмасы
Mow in overlapping rows to ensure complete coverage. For best results, avoid cutting more than one-third of the grass blade length at a time. If the grass is very tall, make two passes, raising the cutting height for the first pass. Mow when the grass is dry.
4. Чөп чапкычты токтотуу
Release the bail lever to stop the motor. Always remove the battery when the mower is not in use or before performing any adjustments or maintenance.
Техникалык тейлөө
Regular maintenance ensures the longevity and optimal performance of your STIGA lawn mower. Always disconnect the battery before performing any maintenance.
1. Чөп чапкычты тазалоо
After each use, clean the underside of the cutting deck to remove grass clippings and debris. Use a brush or a damp cloth. Do not use a high-pressure washer directly on the mower. Clean the grass collection bag regularly.
5-сүрөт: View of the cutting deck's underside, showing the blade area. Regular cleaning of this section is crucial for efficient mowing and preventing buildup.
2. Blade Inspection and Sharpening
Regularly inspect the cutting blade for sharpness and damage. A dull blade tears grass, leading to an unhealthy lawn. If the blade is dull or damaged, have it sharpened or replaced by a qualified service technician. Always wear heavy-duty gloves when handling the blade.
3. Батареяга кам көрүү
Store the battery in a cool, dry place, away from direct sunlight and extreme temperatures. For long-term storage, charge the battery to approximately 50% capacity. Do not store fully discharged batteries.
Проблемаларды чечүү
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Чөп чапкыч иштебейт | Battery not charged or improperly installed. Safety button/bail lever not engaged. | Charge battery fully and re-install. Ensure safety button is pressed and bail lever is pulled. |
| Начар кесүү көрсөткүчү | Dull or damaged blade. Cutting height too low for grass condition. Underside of deck clogged. | Inspect and sharpen/replace blade. Raise cutting height. Clean cutting deck. |
| Ашыкча термелүү | Bent or unbalanced blade. Loose components. | Inspect blade for damage; replace if bent. Check all fasteners for tightness. Consult service if problem persists. |
| Мотор иштөө учурунда токтойт | Батарея заряды бүттү. Ашыкча жүктөн коргоо иштетилди. | Recharge battery. Reduce load by raising cutting height or mowing smaller sections. |
Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Модел | STIGA Collector 543 AE KIT |
| Бөлүмдүн номери | 2L0431008/ST1 |
| Power Source | Батарея менен иштейт (48V) |
| Батарея камтылган | 48V 4Ah |
| Кесүү туурасы | 41 см |
| Handle Type | Height-adjustable with folding function |
| Салмагы | 18 килограмм |
| Продукциянын өлчөмдөрү | 13 x 18 x 17 cm (packaging/shipping dimensions, actual product dimensions may vary slightly) |
| Материал | Пластик |
| Түс | Көп түстүү (сары/кара) |
Кепилдик жана колдоо
For warranty information, please refer to the warranty card included with your product or visit the official STIGA webсайт. Кепилдик дооматтар үчүн сатып алганыңыздын далилин сактаңыз.
For technical support, spare parts, or service, please contact your authorized STIGA dealer or visit the STIGA support page. You can find more information on the STIGA Brand Store on Amazon.
