Introduction
The Logitech Wireless Presenter R500s is designed to help you deliver impactful presentations with ease. Its intuitive controls and bright red laser pointer allow for seamless navigation and highlighting of key points, boosting your confidence during any presentation. With 2.4 GHz wireless connectivity, you can move freely up to 20 meters from the receiver, engaging with your audience without being tethered to your computer. The plug-and-play design ensures quick setup, making it ready for use whenever you are.
Негизги өзгөчөлүктөрү
- Интуитивдик башкаруулар: Easy-to-find touch-keys for smooth slideshow navigation (forward/backward).
- Bright Red Laser Pointer: Class 1 laser for clear highlighting against most backgrounds.
- Кеңейтилген зымсыз диапазон: Up to 20 meters (65 feet) for freedom of movement.
- Plug-and-Play туташуусу: No software installation required; simply plug the USB receiver into a port.
- Кош байланыш: Connects via USB-A receiver or Bluetooth.
- Эргономикалык дизайн: Узак убакытка кармап турууга ыңгайлуу.
- Smart Automatic On/Off: Батареянын иштөө мөөнөтүн үнөмдөөгө жардам берет.
- Storable USB Receiver: Conveniently stores inside the presenter.
- Батареянын узак иштөө мөөнөтү: Up to 12 months on a single set of AAA batteries.
- Жалпы шайкештик: Works with Windows 10, 11 or later, macOS, and iOS.
Орнотуу колдонмосу
1. Батареяны орнотуңуз
The R500s requires two AAA batteries. Open the battery compartment, insert the batteries according to the polarity indicators, and close the compartment securely.
Image: The Logitech R500s Wireless Presenter shown with its accompanying USB receiver.
Image: The R500s presenter with the USB receiver detached, ready for connection.
2. Connect the USB Receiver
Remove the USB receiver from its storage slot within the presenter. Plug the USB receiver into an available USB-A port on your computer. The system will automatically detect and install the necessary drivers. No additional software is required for basic functionality.

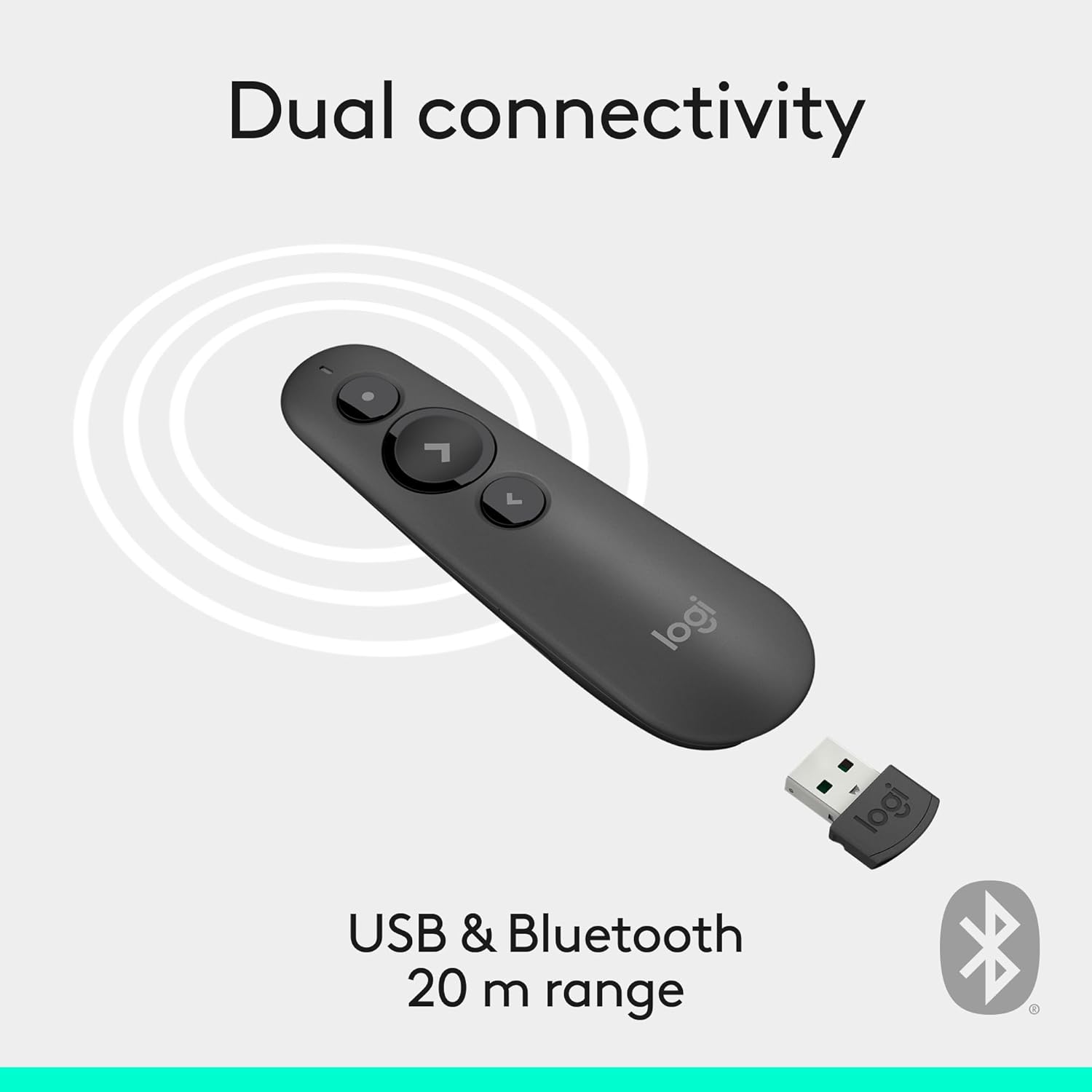

Image: Illustration of the R500s offering dual connectivity options: USB and Bluetooth.
3. Power On the Presenter
Locate the power switch on the side of the presenter and slide it to the 'On' position. The presenter is now ready for use.
Image: The R500s presenter positioned near a laptop, demonstrating its smart automatic on/off feature.
Иштөө нускамалары
Slide Navigation
The R500s features intuitive buttons for controlling your presentation slides:
- Forward Button (Large Arrow): Press to advance to the next slide.
- Backward Button (Small Arrow): Press to return to the previous slide.
Image: A hand comfortably holding the R500s presenter, highlighting its ergonomic design and button placement.
Laser Pointer Usage
To activate the red laser pointer, press and hold the dedicated laser button (usually a small dot icon). Release the button to turn off the laser.
Image: The R500s presenter projecting its red laser pointer onto a presentation graph, illustrating its use for highlighting.
Ыңгайлаштырылган баскычтар
The R500s offers customizable buttons for enhanced control. You can configure long-press actions for specific functions such as starting a presentation or blacking out the screen. Refer to the Logitech Presentation Software (available for download from the official Logitech website) for detailed customization options.
Image: A laptop screen displaying the Logitech software interface for customizing the R500s buttons and timer settings.
Техникалык тейлөө
Батареяны алмаштыруу
When the battery indicator on the presenter or in the Logitech software shows low power, replace the two AAA batteries. Ensure correct polarity when inserting new batteries.
Тазалоо
Wipe the presenter with a soft, dry cloth. Avoid using abrasive cleaners or solvents.
Проблемаларды чечүү
- Presenter Not Responding:
- USB кабыл алгычтын иштеген USB портуна бекем сайылганын текшериңиз.
- Check if the presenter is powered on.
- Батареялар аз же түгөнүп калса, алмаштырыңыз.
- USB ресиверди башка USB портуна сайып көрүңүз.
- For Bluetooth connection, ensure Bluetooth is enabled on your computer and the presenter is paired.
- Laser Pointer Not Working:
- Ensure the laser button is being pressed firmly.
- Батареянын деңгээлин текшериңиз.
- Note that laser visibility can vary on different screen types (e.g., some projection screens or large TVs may reduce visibility).
- Үзгүлтүктүү туташуу:
- Ensure you are within the 20-meter wireless range.
- Minimize obstructions between the presenter and the receiver.
- Башка түзмөктөрдөн күчтүү электромагниттик тоскоолдуктардан качыңыз.
Техникалык шарттар
| Бренд | Logitech |
| Модель аты | R500s |
| Элемент моделинин номери | 910-006518 |
| Байланыш технологиясы | 2.4GHz RF Wireless, Bluetooth |
| Зымсыз диапазон | 20 метрге чейин (65 фут) |
| Лазердик түрү | Class 1 Red Laser |
| Батарея түрү | 2 x AAA батарейкалар (киргизилген) |
| Батареянын орточо иштөө мөөнөтү | 12 ай |
| Операциялык системанын шайкештиги | Windows 10, 11 or later; macOS; iOS |
| Аппараттык платформа | PC, Mac |
| Элемент Салмагы | 0.2 унция |
| Продукциянын өлчөмдөрү (LxWxH) | 1 x 1.4 x 4.9 дюйм |
Кепилдик жана колдоо
Logitech өнүмдөрү, адатта, чектелген жабдык кепилдиги менен келет. Кепилдиктин чоо-жайын, каттоону жана техникалык колдоону алуу үчүн, расмий Logitech колдоо кызматына кайрылыңыз. website or refer to the warranty card included with your product. You can also find FAQs and troubleshooting guides online.
