1. Киришүү
This manual provides essential information for the proper setup, operation, and maintenance of your DPA 4660 CORE Heavy-duty Omnidirectional Lavalier Microphone. Please read this manual thoroughly before using the product to ensure optimal performance and longevity.
Продукт бүттүview
The DPA 4660 CORE Heavy-duty Omnidirectional Lavalier Microphone is engineered for demanding environments where maximum security and durability are paramount. It features a robust design with a stainless steel housing, heavy-duty cable relief, and a thick 2.2 mm (0.09") Kevlar-reinforced cable, built to withstand constant twists, bends, and pulls. The microphone incorporates a 5.4 mm diameter pre-polarized condenser element with a Double Vent Protection System, providing extreme resistance to humidity and sweat. It delivers exceptional audio quality with a uniform and consistent sound profile, compatible with most professional wireless systems via its modular adapter system.

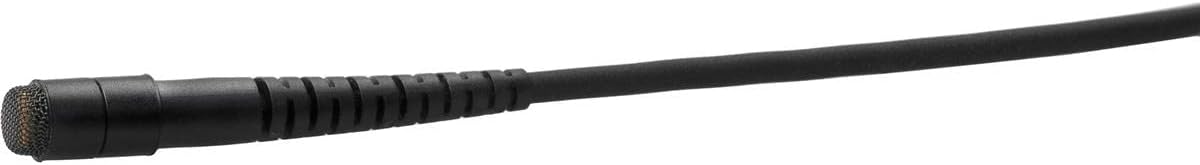

Сүрөт 1: Жакын пландан view of the DPA 4660 CORE Heavy-duty Omnidirectional Lavalier Microphone, showing the microphone capsule and the robust cable.
Кутуда эмне бар
- DPA 4660 CORE Heavy-duty Omnidirectional Lavalier Microphone
- Soft Boost Grid
- High Boost Grid
2. Орнотуу
Микрофонду туташтыруу
- Choose the appropriate grid: The microphone comes with two grids. The Soft Boost Grid provides a 3 dB soft boost at 8-20 kHz, while the High Boost Grid introduces a 10 dB soft boost. Select the grid that best suits your acoustic environment and desired sound profile.
- Attach the MicroDot Connector: The microphone features a MicroDot connector. Connect this to your chosen adapter for compatibility with various professional wireless systems or XLR inputs. Ensure the connection is secure.
- Secure the microphone: For optimal sound capture, clip the lavalier microphone to clothing, approximately 6-8 inches (15-20 cm) below the chin, ensuring it is not obstructed by fabric.
Микрофонду иштетүү
The DPA 4660 CORE microphone is a pre-polarized condenser microphone and requires phantom power (typically 48V) or a compatible power supply from your wireless transmitter or audio interface. Ensure your connected device provides the necessary power.
3. Иштөө нускамалары
Негизги операция
- Позициялоо: Place the microphone in a location that minimizes rubbing against clothing or other objects, which can cause unwanted noise.
- Пайда орнотуулары: Adjust the input gain on your mixer or wireless receiver to achieve an optimal signal level without clipping. The microphone has an audio sensitivity of 134 dB.
- Мониторинг: Always monitor the audio output to ensure clear sound capture and to identify any potential issues.
Көп багыттуу полярдык үлгү
The 4660 CORE features an omnidirectional polar pattern, meaning it picks up sound equally from all directions. This makes it ideal for situations where the sound source may move, or where ambient sound is desired. Be mindful of background noise in your environment.
4. Техникалык тейлөө
Тазалоо
- Wipe the microphone body and cable with a soft, dry cloth.
- өжөр кир үчүн, бир аз гamp cloth can be used, but ensure no moisture enters the microphone capsule.
- Катуу химиялык заттарды, эриткичтерди же абразивдүү тазалагычтарды колдонбоңуз.
Сактагыч
Store the microphone in a clean, dry place, away from extreme temperatures and humidity. Use the original packaging or a protective case to prevent damage during transport or storage.
Humidity and Sweat Resistance
Thanks to its Double Vent Protection System, the microphone is highly resistant to humidity and sweat. However, prolonged exposure to excessive moisture should still be avoided to ensure the longevity of the product.
5. Кыйынчылыктарды
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Үн чыгышы жок |
|
|
| Бурмаланган же түшүнүксүз үн |
|
|
| Үзүлбөгөн үн |
|
|
If the problem persists after attempting these solutions, please contact DPA customer support for further assistance.
6. Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Модель номери | CORE |
| Өндүрүүчү | DPA |
| Микрофон форма фактору | Lavalier |
| Полярдык үлгү | Көп багыттуу |
| Байланыш технологиясы | XLR (via MicroDot adapter, not included) |
| Аудио сезгичтиги | 134 дБ |
| Power Source | Corded Electric (requires phantom power) |
| Элемент Салмагы | 1.6 унция |
| Продукциянын өлчөмдөрү (L x W x Y) | 4.5 x 3.25 x 1.5 дюйм |
| Кабелдин калыңдыгы | 2.2 мм (0.09 дюйм) |
| Турак жай материалы | Дат баспаган болот |
| Өзгөчөлүктөр | Heavy-duty design, Kevlar-reinforced cable, Double Vent Protection System (humidity/sweat resistant), Acoustic response modification with included grids. |
7. Кепилдик жана колдоо
Кепилдик маалымат
DPA Microphones products are manufactured to the highest quality standards. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official DPA Microphones webсайт. Кепилдик дооматтар үчүн сатып алганыңыздын далилин сактаңыз.
Кардарларды колдоо
For technical support, service, or inquiries regarding your DPA 4660 CORE microphone, please contact DPA Microphones customer support through their official website or authorized distributors. Contact information can typically be found on the DPA Microphones webсайт.
