Introduction
The OCOOPA HotPal Rechargeable Hand Warmer is a portable and versatile device designed to provide warmth and serve as a power bank for your electronic devices. Constructed from durable aircraft-grade aluminum and ABS material, it features double-sided fast heating with three adjustable temperature levels, making it suitable for various outdoor activities and cold conditions. This manual provides essential information for the safe and effective use of your HotPal hand warmer.
Figure 1: OCOOPA HotPal Rechargeable Hand Warmer (Blue Two-Pack)
Продукт өзгөчөлүктөрү
- Double-sided Fast Heating: Provides rapid warmth on both sides of the device.
- Three Temperature Levels: Adjustable heat settings ranging from 95°F to 131°F (35°C to 55°C) to suit individual preferences.
- 5200mAh кайра заряддалуучу батарея: Offers extended operating time and doubles as a portable power bank.
- USB-C заряддоо порту: Convenient and fast charging for the hand warmer and external devices.
- Туруктуу курулуш: Made from aircraft-grade aluminum and ABS material for durability and a comfortable, anti-skid grip.
- Портативдик дизайн: Compact and lightweight, designed to fit comfortably in your pocket or hand.
Figure 2: Double-sided Heating Feature
Figure 3: Three Temperature Settings
Жайгашуу
Кутудан чыгаруу жана баштапкы төлөм
Upon receiving your OCOOPA HotPal hand warmer, carefully unbox all components. The package typically includes two HotPal rechargeable hand warmers, a carrying pouch, charging cables, and a USB converter. It is recommended to fully charge the device before its first use.
4-сүрөт: Пакеттин мазмуну
- Connect the provided USB-C charging cable to the hand warmer's charging port.
- Кабелдин экинчи учун USB кубат адаптерине (кошумча эмес) же компьютердин USB портуна туташтырыңыз.
- The indicator lights will illuminate to show the charging status. A full charge typically takes approximately 3 hours.
Иштөө нускамалары
Power On/Off and Heat Adjustment
The OCOOPA HotPal features a single button for easy operation.

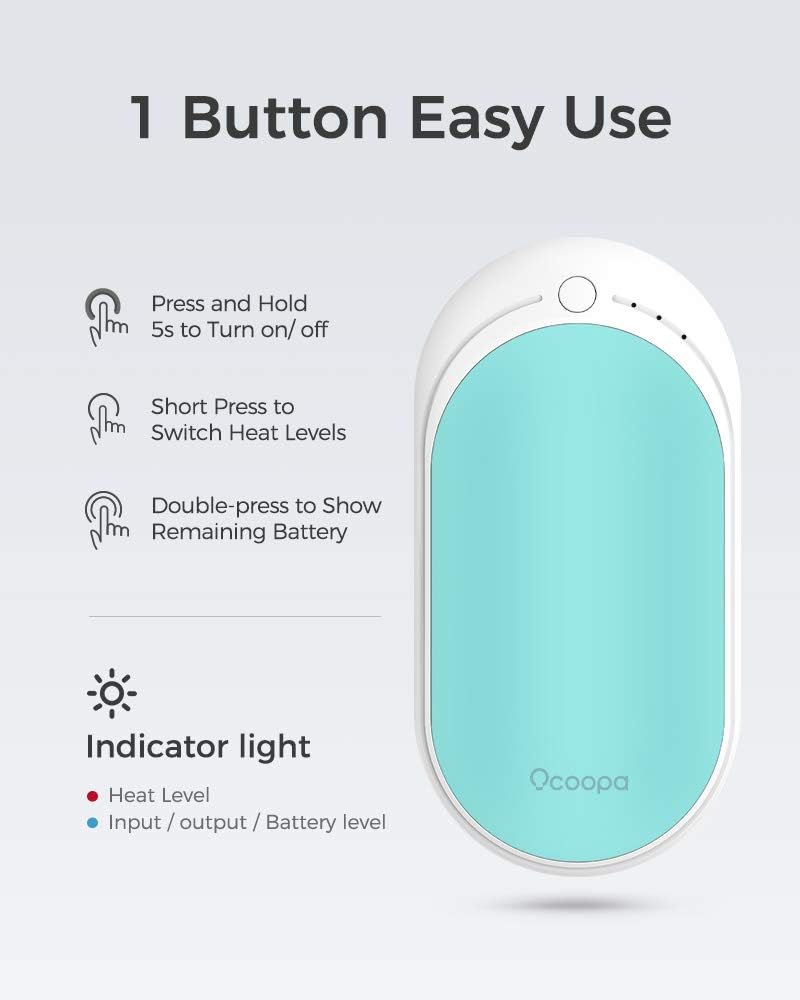

Figure 5: One Button Easy Use
- Күйгүзүү/өчүрүү үчүн: Press and hold the power button for approximately 5 seconds. The indicator lights will show the current heat level or turn off.
- To Adjust Heat Levels: Once powered on, short press the power button to cycle through the three heat settings:
- 1 Red Light: Low (95-107.6°F / 35-42°C)
- 2 Red Lights: Medium (104-118.4°F / 40-48°C)
- 3 Red Lights: High (118.4-131°F / 48-55°C)
- To Check Remaining Battery: Double-press the power button. The indicator lights will briefly show the battery level.
Power Bank катары колдонуу
The OCOOPA HotPal can also charge your mobile devices.
Figure 6: Power Bank Functionality
- Connect your device's charging cable to the USB-C port on the hand warmer.
- The hand warmer will automatically begin charging your device.
- Note that using the hand warming function simultaneously with the power bank function may reduce the overall battery life.
Техникалык тейлөө
Тазалоо жана сактоо
- Ensure the device is turned off and cool before cleaning.
- Бетти жумшак, кургак чүпүрөк менен сүртүңүз. Абразивдүү тазалоочу каражаттарды колдонбоңуз же түзмөктү сууга салбаңыз.
- Store the hand warmer in a cool, dry place away from direct sunlight and extreme temperatures.
- For long-term storage, charge the device to approximately 50% every three months to maintain battery health.
Проблемаларды чечүү
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Түзмөк күйбөй жатат. | Батарея аз же туура эмес күйгүзүү процедурасы. | Charge the device fully. Ensure you press and hold the power button for 5 seconds. |
| Түзмөк жылыбайт. | Not in heating mode or low battery. | Short press the power button to select a heat level. Charge the device if battery is low. |
| Device not charging external device. | Cable issue, external device issue, or low hand warmer battery. | Ensure the cable is securely connected. Try a different cable or external device. Charge the hand warmer. |
| Батареянын иштөө мөөнөтү кыска. | High heat setting usage, frequent power bank use, or aging battery. | Use lower heat settings when possible. Avoid simultaneous heating and charging. Battery capacity naturally decreases over time. |
Техникалык шарттар
| Спецификация | Деталь |
|---|---|
| Бренд | OCOOPA |
| Модель номери | ZLS-118S |
| Түс | Blue Two-Pack |
| Материал | Aircraft-grade Aluminum, ABS |
| Батарея сыйымдуулугу | 5200 мАч литий-ион |
| Заряддоо убактысы | Болжол менен 3 саат |
| Төмөнкү температура рейтинги | 95 градус Фаренгейт (35°C) |
| Жогорку температура рейтинги | 131 градус Фаренгейт (55°C) |
| Элемент Салмагы | 250 грамм |
| Элементтин өлчөмдөрү (LxWxH) | 2.09 x 1.07 x 4.23 дюйм |
| Камтылган компоненттер | 2*Hotpal rechargeable hand warmer, carrying pouch, charging cables, USB convertor |
Коопсуздук маалыматы
Түзмөккө зыян келтирбөө же жаракат алуунун алдын алуу үчүн төмөнкү коопсуздук көрсөтмөлөрүн окуп чыгып, аткарыңыз:
- Do not expose the device to extreme temperatures (above 140°F/60°C or below 0°F/-18°C) or direct sunlight for prolonged periods.
- Түзмөктү тешпеңиз, бөлүктөргө бөлбөңүз же өзгөртпөңүз.
- Keep away from water and other liquids. Do not operate with wet hands.
- Do not use if the device appears damaged or swollen.
- Балдар жана үй жаныбарлары жетпеген жерде сактаңыз.
- Берилген же тастыкталган заряддоо кабелдерин гана колдонуңуз.
- If the device becomes excessively hot, discontinue use immediately.
- Түзмөктү электрондук таштандылар боюнча жергиликтүү эрежелерге ылайык жоопкерчилик менен жок кылыңыз.
Figure 7: Internal Safety Features
Расмий продукт Video
Video 1: Giving the gift of warmth and comfort. This video demonstrates the OCOOPA HotPal hand warmer's features, including its quick heating, portability, and use as a power bank, showcasing its versatility for various situations and as a thoughtful gift.
Кепилдик жана колдоо
For warranty information, technical support, or any inquiries regarding your OCOOPA HotPal hand warmer, please refer to the warranty card included in your product packaging or visit the official OCOOPA store online:
Please have your model number (ZLS-118S) and purchase details ready when contacting support.
