Toorx имарат ичиндеги ылдамдыктагы велосипед SRX-80 EVO колдонуучусунун колдонмосу

1. Киришүү

Thank you for choosing the Toorx SRX-80 EVO Indoor Cycle Speed Bike. This manual contains important information regarding the assembly, operation, and maintenance of your fitness equipment. Please read it thoroughly before using the bike and keep it for future reference. Proper use and maintenance will ensure a long lifespan for your product and a safe, effective workout experience.

2. Коопсуздук боюнча маанилүү маалымат

WARNING: Before starting any exercise program, consult your physician. This is especially important for individuals over the age of 35 or those with pre-existing health problems.

• Жабдууну колдонуудан мурун ушул колдонмодогу бардык көрсөтмөлөрдү окуп чыгыңыз.
• Колдонуу учурунда балдарды жана үй жаныбарларын жабдуулардан алыс кармаңыз.
• The maximum user weight for this product is 140 кг. Бул чектен ашпаңыз.
• Place the indoor cycle on a stable, level surface. Ensure adequate space around the equipment for safe operation.
• Regularly inspect the equipment for wear and tear, especially bolts, nuts, and moving parts. Do not use the equipment if any components are damaged or worn.
• Кыймылдуу бөлүктөргө илинип калышы мүмкүн болгон кенен кийимдерден алыс болуңуз.
• Use the safety brake lever to quickly stop the flywheel in case of emergency or when dismounting.
• Do not attempt to modify the equipment. Any modifications may compromise safety and void the warranty.

3. Орнотуу жана чогултуу

The Toorx SRX-80 EVO Indoor Cycle is designed for straightforward assembly. While specific step-by-step instructions are typically provided in a separate assembly guide, this section outlines the general process and key components.

3.1 Пакеттен чыгаруу

Carefully remove all components from the packaging. Lay them out on a clean, flat surface. Verify that all parts are present according to the packing list (not provided in this manual).

3.2 Башкы Ассамблеянын кадамдары

1. Стабилизаторлорду тиркөө: Берилген болтторду жана шайбаларды колдонуп, алдыңкы жана арткы стабилизатор тилкелерин негизги рамага бекитиңиз.
2. Педалдарды орнотуу: The bike features 3-piece pedals. Ensure you attach the left pedal (L) to the left crank arm and the right pedal (R) to the right crank arm. Note that the left pedal often has a reverse thread.
3. Assemble Seat Post and Saddle: Insert the seat post into the frame and secure it. Attach the two-tone saddle to the seat post.
4. Assemble Handlebar Post and Handlebars: Insert the handlebar post into the frame and secure it. Attach the handlebars, which include a double bottle holder, to the post.
5. Connect Console: Connect the console cables to the main frame wiring. Mount the LCD console onto the handlebar assembly.

3.3 Leveling the Bike

The Toorx SRX-80 EVO is equipped with base leveling feet. After assembly, place the bike in its intended location. Adjust the leveling feet by rotating them until the bike is stable and does not rock on uneven surfaces.

Image: Rear leveling feet and transport wheels. Adjust these feet to ensure stability on uneven floors.

3.4 Transporting the Bike

The indoor cycle features transport wheels for easy relocation. To move the bike, firmly grasp the handlebars, tilt the bike forward until it rests on the transport wheels, and then roll it to the desired location. Ensure the area is clear of obstacles.

Image: Front transport wheels. These wheels facilitate easy movement of the indoor cycle.

4. Иштөө нускамалары

This section details how to adjust your Toorx SRX-80 EVO Indoor Cycle for a comfortable and effective workout, and how to use its features.

4.1 Түзөтүүлөр

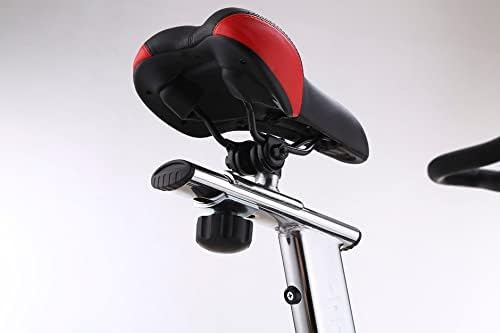

• Ээрди жөндөө: The two-tone saddle offers micrometric vertical and horizontal adjustment. Loosen the adjustment knobs, move the saddle to your desired position, and securely tighten the knobs. Ensure the saddle is at a height that allows a slight bend in your knee at the bottom of the pedal stroke.

Image: Saddle adjustment mechanism. Adjust both height and horizontal position for optimal comfort.

• Рулду тууралоо: The handlebar also features vertical and micrometric horizontal adjustment. Loosen the adjustment knobs, position the handlebars for comfort and proper posture, and then tighten the knobs firmly.

4.2 Каршылык көрсөтүү системасы

The SRX-80 EVO uses a pad braking system with felt pads for resistance. Resistance is adjusted manually via a micrometric knob.

• Resistance Adjustment Knob: Turn the knob clockwise to increase resistance and counter-clockwise to decrease it. Adjust resistance gradually to find your desired workout intensity.
• Safety Brake Lever: In case of emergency or to quickly stop the flywheel, press down firmly on the safety brake lever. This will bring the flywheel to an immediate halt.

Image: Resistance adjustment knob and safety brake. Use the knob to control intensity and the lever for quick stops.

4.3 Консоль функциялары

The integrated LCD console displays various workout data to help you monitor your progress.

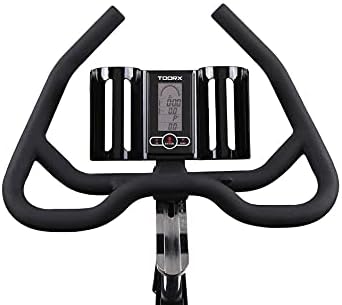

Image: LCD console. Displays key workout metrics during your session.

• Көрсөтүлгөн маалыматтар: The console typically shows:
  • Аралык: Машыгуу учурунда басып өткөн жалпы аралык.
  • Убакыт: Көнүгүү сессияңыздын узактыгы.
  • Калориялар: Болжолдуу күйгөн калория.
  • Импульстар: Your heart rate (requires heart rate band).
  • Ылдамдыгы: Учурдагы велосипед ылдамдыгы.
  • RPM: Мүнөтүнө айлануулар (педалдын каденциясы).
• Жүрөктүн кагышын көзөмөлдөө: The bike includes an integrated wireless receiver and a heart rate band. Wear the heart rate band as instructed by its separate manual to display your pulse on the console.

4.4 Педаль

The pedals are equipped with adjustable straps to secure your feet during your workout. Ensure your feet are properly secured before beginning to cycle.

Image: Pedals with adjustable straps. Secure your feet for a stable and efficient workout.

5. Техникалык тейлөө

Regular maintenance is crucial for the longevity and safe operation of your Toorx SRX-80 EVO Indoor Cycle.

• Тазалоо: After each use, wipe down the bike with a damp терди жана чаңды кетирүү үчүн чүпүрөк колдонуңуз. Абразивдүү тазалоочу каражаттарды же эриткичтерди колдонуудан алыс болуңуз.
• Текшерүү: Periodically check all bolts, nuts, and connections to ensure they are securely tightened. Pay particular attention to the pedals, crank arms, seat post, and handlebar post.
• Тормоздук колодкалар: Inspect the felt brake pads for wear. If they become excessively worn, they may need replacement to maintain effective resistance.
• Маховик: The bike features a 24 kg balanced flywheel. Keep the flywheel and its surrounding area clean and free of obstructions.

Image: Flywheel and belt cover. Keep this area clean for optimal performance.

6. Кыйынчылыктарды

This section addresses common issues you might encounter with your indoor cycle.

• Console Not Displaying Data:
  Мүмкүн болгон себеп: Батареялар аз же туура эмес орнотулган.
  Чечим: Check and replace the batteries in the console. Ensure they are inserted with the correct polarity. Check cable connections to the console.
• Иштөө учурундагы адаттан тыш үндөр:
  Мүмкүн болгон себеп: Бош компоненттер же сүрүлүү.
  Чечим: Stop exercising immediately. Inspect all bolts and nuts, especially around the pedals, crank arms, and frame, and tighten any that are loose. If the noise persists, contact customer support.
• Resistance Not Changing or Inconsistent:
  Мүмкүн болгон себеп: Resistance knob malfunction or worn brake pads.
  Чечим: Ensure the resistance knob is turning freely and engaging the brake pads. Inspect the felt brake pads for excessive wear. If worn, they may need replacement.
• Bike is Unstable or Wobbles:
  Мүмкүн болгон себеп: Тегиз эмес пол же туура эмес туураланган тегиздөө буттары.
  Чечим: Adjust the base leveling feet until the bike is stable on the floor. Ensure the bike is placed on a flat, even surface.

7. Продукттун спецификациялары

8. Кепилдик маалыматы

Specific warranty details for the Toorx SRX-80 EVO Indoor Cycle are not provided within the available product data. Please refer to the warranty card included with your purchase or contact the retailer/manufacturer directly for comprehensive warranty information.

9. Кардарларды колдоо кызматы

Specific customer support contact information is not provided within the available product data. For assistance with your Toorx SRX-80 EVO Indoor Cycle, please contact the retailer from whom you purchased the product or visit the official Toorx webколдоо булактары үчүн сайт.

Продукт бүттүview

Image: Toorx SRX-80 EVO Indoor Cycle. A comprehensive view of the fitness equipment.

Сүрөт: каптал view of the Toorx SRX-80 EVO. This angle shows the robust frame and flywheel design.
