1. Киришүү
This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your Vivi Electric Skateboard, Model H2S-2. Please read this manual thoroughly before first use to ensure proper handling and to maximize the lifespan of your product.
The Vivi Electric Skateboard is designed for recreational use by individuals who meet the specified weight and age requirements. It features a durable, one-piece body structure, a 350W brushless motor, and a wireless remote control for an intuitive riding experience.
2. Пакеттин мазмуну
Upon opening the package, please verify that all components are present and in good condition. If any items are missing or damaged, contact customer service immediately.
- Vivi Electric Skateboard (Model H2S-2)
- Зымсыз алыстан башкаруу
- Заряддагыч
- Multifunction T-Tool
- User Manual
- Warranty Extension Guide
Figure 2.1: Vivi Electric Skateboard with remote, T-tool, charger, and manuals.
3. Коопсуздук боюнча көрсөтмөлөр
WARNING: The Vivi Electric Skateboard is not a toy. Always prioritize safety when operating this product.
- Always wear appropriate safety gear, including a helmet, knee pads, elbow pads, and wrist guards.
- Operate the skateboard only on flat, paved surfaces free from obstacles, debris, and traffic.
- Do not ride in wet conditions, on uneven terrain, or at night without proper lighting.
- Ensure the battery is fully charged and the remote control is paired before each ride.
- Adhere to local laws and regulations regarding electric skateboard use.
- 155 фунттан (70 кг) ашпаңыз.
4. Орнотуу
4.1 Алгачкы заряддоо
Before first use, fully charge the skateboard's battery. The 29.4V 2000mAh battery typically charges within 2 hours.
- Заряддоо түзүлүштү стандарттуу розеткага туташтырыңыз.
- Plug the charging cable into the skateboard's charging port.
- The indicator light on the charger will change to indicate charging status (e.g., red for charging, green for fully charged).
Figure 4.1: Illustration of battery capacity and charging time.
4.2 Алыстан башкарууну жупташтыруу
The remote control is pre-paired with the skateboard. After the first manual pairing, the machine will automatically pair on subsequent uses.
- Ensure both the skateboard and the remote control are powered off.
- Turn on the skateboard by long-pressing the power button for 5 seconds or sliding to power on.
- Алыстан башкарууну күйгүзүңүз.
- Press the "Match Button" on the remote control (refer to Figure 4.2). The remote and skateboard should connect automatically.

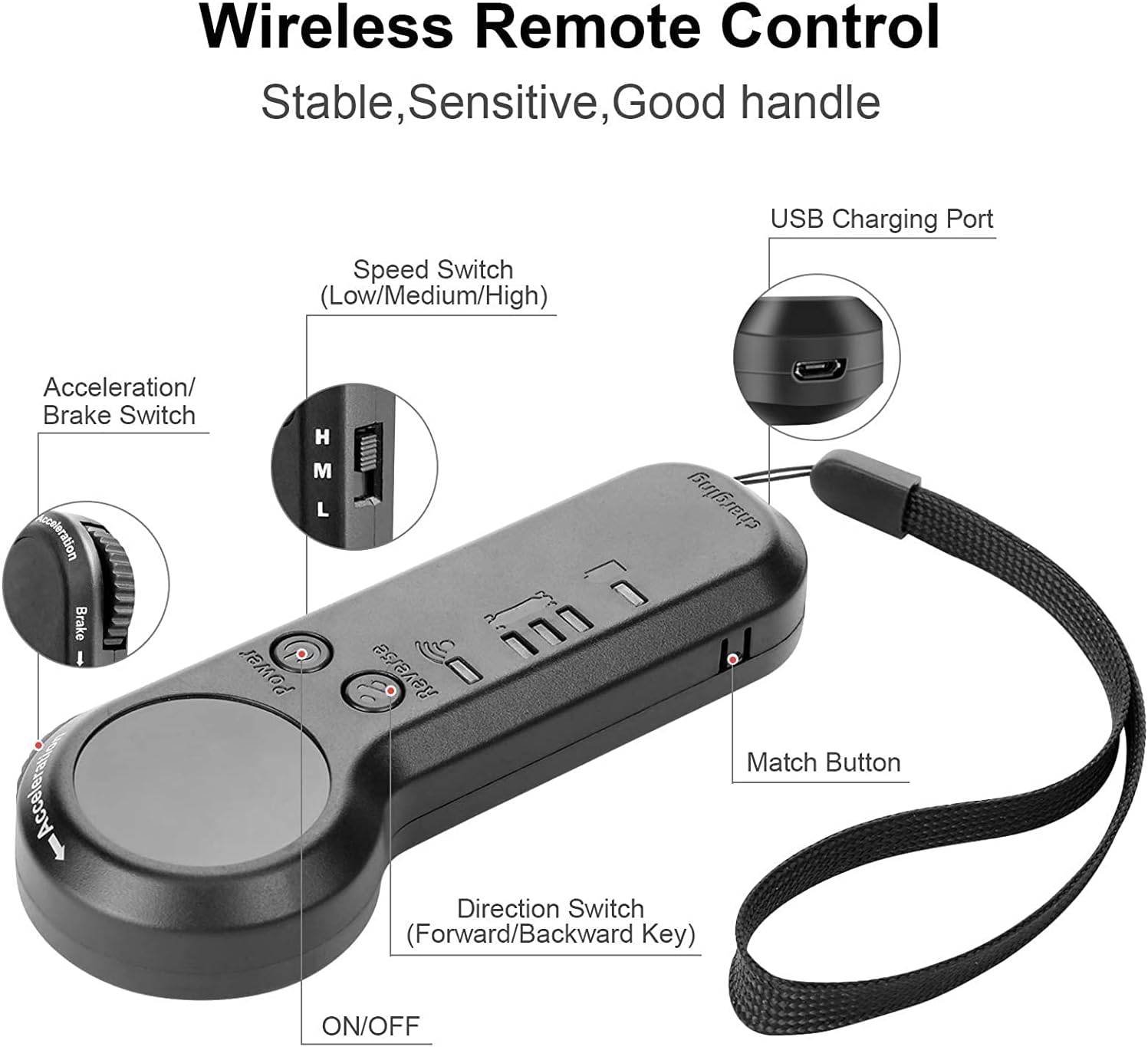

Figure 4.2: Wireless Remote Control layout, showing Speed Switch, USB Charging Port, Match Button, and Direction Switch.
5. Иштөө нускамалары
5.1 Күйгүзүү/өчүрүү
- To power on the skateboard: Long press the power switch for 5 seconds or slide the board to activate.
- To power off the skateboard: It will automatically shut down after 5 minutes of inactivity.
Figure 5.1: Powering on the skateboard by long pressing the switch or sliding.
5.2 Ылдамдык режимдери
The Vivi Electric Skateboard offers 3 speed modes, suitable for various skill levels, especially beginners. Use the speed switch on the remote control to adjust.
- Төмөн ылдамдык: Approximately 6.2 MPH (10 KM/H)
- Орто ылдамдык: Approximately 9.3 MPH (15 KM/H)
- Максималдуу ылдамдык: Up to 12.4 MPH (20 KM/H)
Video 5.1: Demonstration of the Vivi Electric Skateboard's 3 speed modes and remote control functionality.
5.3 Ылдамдануу жана тормоздоо
Use the acceleration/brake switch on the remote control to manage your speed and stop safely.
- Push the switch forward to accelerate.
- Pull the switch backward to brake. The steady brake system ensures controlled deceleration.
Figure 5.2: Rider demonstrating control and smooth operation of the skateboard.
5.4 Багыттарды башкаруу
The remote control allows for flexible turning and reversing.
- Use the direction switch (forward/backward key) to change the board's direction.
- Lean your body to steer the skateboard during turns.
6. Техникалык тейлөө
6.1 Жалпы кам көрүү
- Keep the skateboard clean and dry. Wipe down the deck and wheels after each use.
- Store the skateboard in a cool, dry place away from direct sunlight and extreme temperatures.
- Regularly inspect the wheels, trucks, and deck for any signs of wear or damage.
6.2 Wheel Maintenance
The 72mm detachable PU wheels are designed for durability and shock absorption. They can be replaced if worn.
Figure 6.1: Detachable wheel design for easy maintenance.
6.3 Griptape Care
The non-slip emery griptape provides secure footing. Keep it clean to maintain its effectiveness.
Figure 6.2: The non-slip emery griptape ensures rider stability.
7. Кыйынчылыктарды
If you encounter issues with your Vivi Electric Skateboard, refer to the table below for common problems and solutions. If the problem persists, contact customer service.
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Скейтборд күйбөй жатат | Аз батарея; Кубат баскычы жетишерлик көпкө басылган жок | Charge the battery; Press and hold the power button for 5 seconds. |
| Remote not controlling skateboard | Пульт жупташтырылган жок; Пульттун батареясы аз | Re-pair the remote (Section 4.2); Charge the remote control. |
| Кыскартылган аралык же ылдамдык | Low battery; Overload; Riding uphill | Fully charge the battery; Ensure rider weight is within limits; Ride on flat surfaces. |
| Unusual noises from wheels/motor | Debris in wheels; Loose components | Clean wheels and motor area; Tighten any loose screws using the T-tool. |
8. Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Модель аты | H2S-2 |
| Мотор | 350W щеткасыз мотор |
| Максималдуу ылдамдык | 12.4 миль/саат (20 км/саат) |
| Батарея | 29.4V 2000 мАч |
| Заряддоо убактысы | Болжол менен 2 саат |
| Круиздик полигон | Up to 5 Miles (8 KM) |
| Максималдуу жүктөө сыйымдуулугу | 155 фунт (70 кг) |
| Палубанын узундугу | 27.6 дюйм |
| Палубанын кеңдиги | 7.1 дюйм |
| Wheel Size | 2.8 дюйм (72 мм) |
| Дөңгөлөк материалы | Полиуретан (PU) |
| Griptape | Non-Slip Emery |
| Продукциянын өлчөмдөрү (LxWxH) | 27.6 x 7.1 x 5.5 дюйм |
| Продукт Салмагы | Болжол менен 12.6 фунт (5.7 кг) |
Figure 8.1: Product dimensions for the Vivi Electric Skateboard.
9. Кепилдик жана колдоо
Vivi offers a 6 айлык кепилдик for the electric skateboard. For any questions, technical support, or warranty claims, please contact our customer service team. We provide 24-hour online customer service to assist you.
Кошумча жардам алуу үчүн, сураныч, баш багыңыз Amazon'догу Vivi дүкөнү.
