MCS 60-Inch Floating Fireplace Mantel User Manual

1. Киришүү

This manual provides detailed instructions for the installation, use, and maintenance of your MCS 60-Inch Floating Fireplace Mantel. Designed to create a warm and inviting centerpiece, this mantel combines stylish aesthetics with functional design. Please read this manual thoroughly before beginning installation to ensure proper setup and safe operation.

Key features of your mantel include:

• Стильдүү жана функционалдык: Creates a warm and inviting centerpiece for your fireplace with a rich espresso color finish.

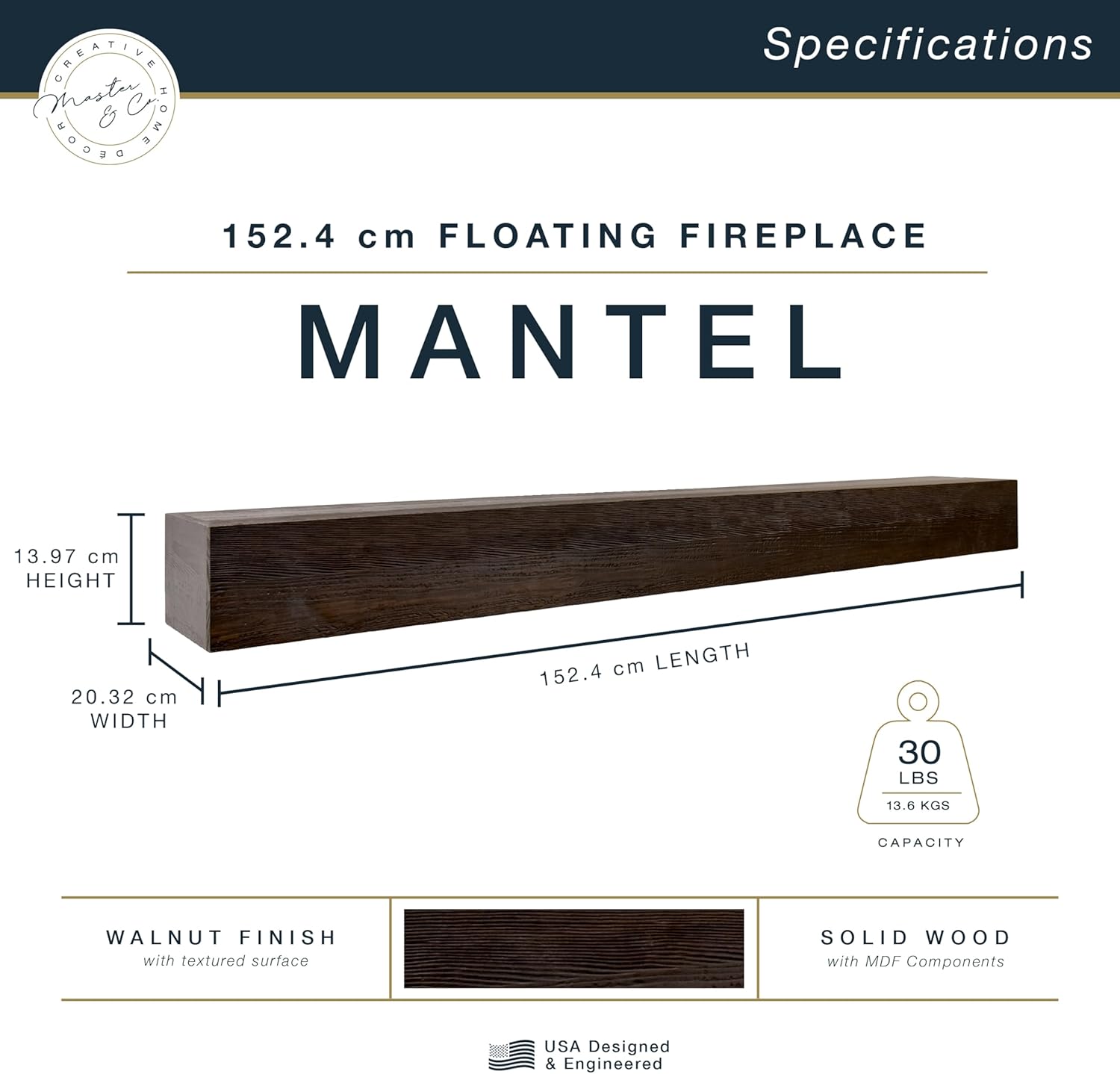

• Өлчөмдөрү: Measures 60 inches long by 8 inches wide by 5.5 inches high, capable of supporting up to 30 lbs of weight.
• Сапаттуу курулуш: Crafted from sturdy pine wood on the top, front, and sides. The hollow back is reinforced with MDF for simplified hanging.
• Easy To Hang: Designed for easy installation with included wooden cleat, mounting hardware, and clear instructions.

2. Коопсуздук маалыматы

Маанилүү: Wood and MDF are considered combustible materials. Heat clearances must be adhered to when installing over a fireplace. Check your local building codes and the manufacturer's instructions for your specific fireplace insert or stove to determine safe installation distances.

Ensure the mounting surface is structurally sound and capable of supporting the mantel's weight (approximately 24.4 pounds) plus any items placed on it (up to 30 pounds).

3. Пакеттин мазмуну

Орнотууну баштоодон мурун бардык компоненттер бар экендигин текшериңиз:

• 1 x MCS 60-Inch Floating Fireplace Mantel
• 1 x Wood Cleat
• 4 х дубал казыктары
• 4 х тегерек баш бурамалар
• 4 x Flat Head Screws
• 1 x Hanging Instructions Sheet

4. Орнотуу жана орнотуу

The MCS Floating Fireplace Mantel utilizes a wood cleat hanging system for secure installation. For detailed step-by-step instructions, please refer to the included hanging instructions sheet and the official Орнотуу боюнча колдонмо (PDF).

Орнотуу кадамдары:

1. Дубалды даярдоо: Identify the desired mounting location. Ensure it is a structurally sound surface and consider the safety clearances from your fireplace. Use a stud finder to locate wall studs if possible for optimal support.
2. Attach Wood Cleat to Wall: Position the wood cleat at the desired height. Mark the drilling points through the pre-drilled holes on the cleat. Drill pilot holes into the wall. Insert wall anchors if drilling into drywall. Securely attach the wood cleat to the wall using the appropriate screws (round head screws for the cleat).
3. Slide Mantel Over Cleat: Carefully slide the mantel over the attached wood cleat. The hollow back of the mantel is designed to fit snugly over the cleat.
4. бекиткичтерди орнотуу: Once the mantel is in place, secure it to the wood cleat using the flat head screws through the pre-drilled holes on the top surface of the mantel.

5. Колдонуу

Your MCS Floating Fireplace Mantel is designed for decorative display and light storage. It can accommodate up to 30 pounds of shelf decor. Use it to display photos, artwork, candles, or other decorative accessories to enhance your living space.

6. Техникалык тейлөө

To maintain the appearance and longevity of your mantel, simply wipe it with a dry cloth. Avoid using harsh chemicals or abrasive cleaners, as these may damage the finish.

7. Кыйынчылыктарды

If you encounter any issues during installation or use, please review the installation steps and ensure all hardware is securely fastened. For further assistance, refer to the official Installation Manual (PDF) or contact MCS customer support.

8. Техникалык шарттар

9. Кепилдик жана колдоо

For information regarding product warranty, returns, or to contact customer support, please visit the official MCS website or refer to the documentation provided at the time of purchase. You can also visit the MCS Store on Amazon көбүрөөк маалымат алуу үчүн.
