1. Коопсуздук боюнча маанилүү маалымат
Before operating the IKRA KSE 2400-40 electric chainsaw, it is crucial to read and understand all safety warnings, instructions, illustrations, and specifications provided in this manual. Failure to follow all instructions listed below may result in electric shock, fire, and/or serious injury. Keep all warnings and instructions for future reference.
- Ар дайым тиешелүү жеке коргонуу шаймандарын (ЖКК), анын ичинде коопсуздук көз айнектерин, угууну коргоочу кол каптарды жана бекем бут кийимдерди кийиңиз.
- Жумуш аймагы тоскоолдуктардан, жакын адамдардан жана үй жаныбарларынан таза болушун камсыз кылыңыз.
- Араны нымдуу шарттарда же күйүүчү суюктуктар же газдар бар жерде иштетпеңиз.
- Иштеп жатканда ар дайым чынжырлуу арааны эки колуңуз менен бекем кармаңыз.
- Disconnect the chainsaw from the power supply before performing any maintenance, cleaning, or when not in use.
2. Продукт бүтүп калдыview
The IKRA KSE 2400-40 is a powerful and efficient electric chainsaw designed for various wood cutting tasks. Manufactured in Europe, it features a robust 2400 Watt motor and an Oregon anti-vibration chain for optimal performance.
Image: The IKRA KSE 2400-40 electric chainsaw, shown with its guide bar and chain, alongside two additional replacement chains. The power cord and plug are visible, indicating its electric nature.
Негизги өзгөчөлүктөрү:
- Жогорку аткаруу: 2400 Watt motor with a chain speed of 12 m/s.
- Oregon Quality: Equipped with an Oregon anti-vibration chain and sprocket nose bar, providing a 40 cm cutting length. Includes two replacement chains.
- Колдонуучунун ыңгайлуулугу: Ergonomic handle with 'Soft Grip' for comfortable handling, reinforced professional metal gears for durability, and high torque for efficient cutting with minimal effort.
- Оңой иштетүү: Tool-free chain mounting and tensioning system.
- Автоматтык майлоо: Features automatic chain lubrication with a visible oil level indicator to ensure consistent oiling.
3. Орнотуу жана чогултуу
The IKRA KSE 2400-40 chainsaw is designed for straightforward assembly. Follow these steps to prepare your chainsaw for use:
3.1 Пакеттен чыгаруу
Carefully remove all components from the packaging. Verify that all parts listed in the 'Components Included' section of this manual are present and undamaged. Retain packaging materials for potential future storage or transport.
3.2 Штанганы жана чынжырды орнотуу
- чынжырчанын электр булагынан ажыратылганын текшериңиз.
- Locate the chain cover and loosen the retaining knob. The tool-free design allows for easy removal.
- Carefully place the chain around the sprocket and guide bar, ensuring the cutting edges are facing the correct direction (refer to the chain direction arrow on the chainsaw body).
- Align the guide bar with the mounting studs and slide it into position.
- Replace the chain cover and hand-tighten the retaining knob.
- Adjust the chain tension using the integrated tensioning dial. The chain should be snug but still able to be pulled freely around the guide bar by hand. Ensure there is no excessive slack.
3.3 Чынжырды майлоо
The chainsaw features an automatic chain lubrication system. Before first use and periodically during operation, ensure the oil reservoir is filled with appropriate chain oil.
Сүрөт: жакын план view of the IKRA KSE 2400-40 electric chainsaw, highlighting the transparent oil level indicator window on the side of the unit. This allows users to easily monitor the chain oil level.
- Locate the oil filler cap on the top of the chainsaw body.
- Unscrew the cap and fill the reservoir with high-quality chain and bar oil. Do not overfill.
- Капкакты коопсуз алмаштырыңыз.
- Regularly check the oil level using the transparent oil level indicator window during operation. Refill as needed.
4. Иштөө нускамалары
Proper operation of the IKRA KSE 2400-40 chainsaw ensures safety and efficiency. Always prioritize safety and follow these guidelines:
4.1 Операцияга чейинки текшерүүлөр
- Verify that the chain is properly tensioned and lubricated.
- Inspect the power cord for any damage or cuts.
- Ensure all handles and guards are securely in place.
- Confirm the work area is clear and stable.
4.2 Баштоо жана токтотуу
- Connect the chainsaw to a suitable power outlet (230 Volts).
- To start, firmly grasp the front and rear handles. Depress the safety lock-off button (if present) and then squeeze the trigger switch.
- To stop, release the trigger switch. The chain will stop immediately.
4.3 Кесүү техникасы
The ergonomic design and soft grip handle facilitate both vertical and horizontal cutting. Always maintain a stable stance and control of the chainsaw.

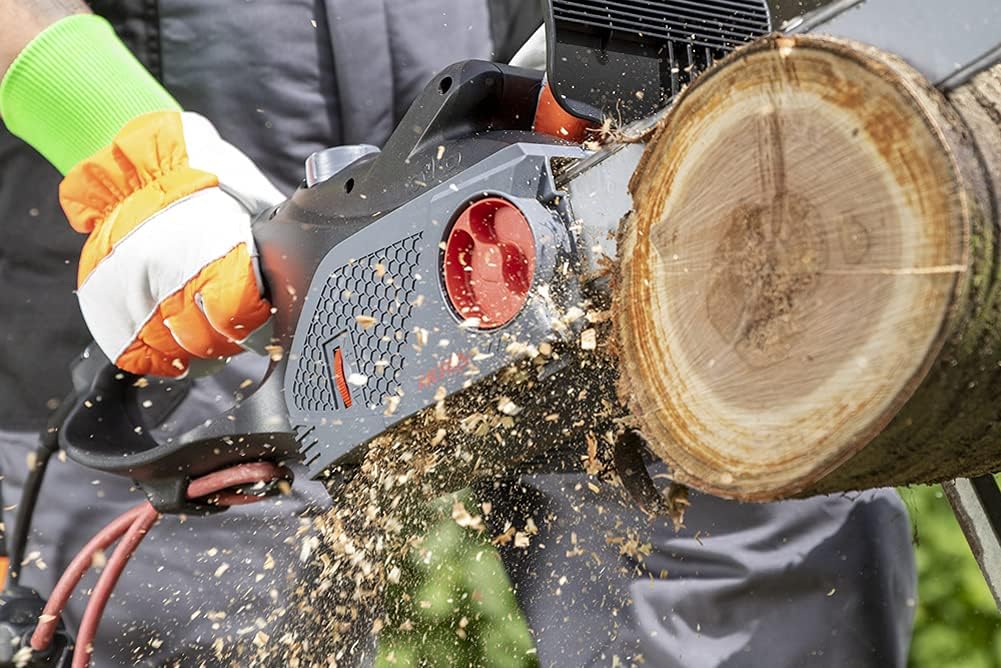

Image: A person wearing protective gloves and clothing is operating the IKRA KSE 2400-40 electric chainsaw to cut through a large log, demonstrating the tool's cutting action and the resulting sawdust.
- Кыюу: For felling small trees, plan your escape route and make appropriate cuts (notch and felling cut).
- Аяктоо: Remove branches from a felled tree. Work from the base towards the top, cutting smaller branches first.
- Букинг: Cut a felled log into smaller sections. Ensure the log is stable and supported to prevent pinching the bar.
- Avoid cutting into the ground, as this will dull the chain quickly.
5. Техникалык тейлөө
Regular maintenance ensures the longevity and safe operation of your IKRA KSE 2400-40 chainsaw. Always disconnect the power before performing any maintenance.
5.1 Чынжырды курчутуу
A sharp chain is essential for efficient and safe cutting. When the chain starts to produce fine sawdust instead of chips, or requires excessive force to cut, it needs sharpening. Refer to a specialized guide or professional service for proper chain sharpening techniques.
5.2 Гид тилкесин тейлөө
Periodically clean the guide bar groove to remove sawdust and debris. Flip the guide bar regularly to ensure even wear on both sides.
5.3 Cleaning the Chainsaw
After each use, clean the chainsaw body, guide bar, and chain. Use a brush or compressed air to remove sawdust and wood chips. Do not use water or solvents that could damage electrical components.
5.4 Сактоо
Store the chainsaw in a dry, secure location, out of reach of children. Ensure the chain is lubricated before storage to prevent rust. Use the chain guard to cover the bar and chain.
6. Кыйынчылыктарды
This section addresses common issues you might encounter with your IKRA KSE 2400-40 chainsaw.
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Chainsaw башталбайт. | Электр менен камсыздоо жок; коопсуздук ачкычы иштебейт; зым бузулган. | Check power connection; ensure safety switch is pressed before trigger; inspect and replace damaged cord. |
| Чынжыр кыймылдабайт. | Chain brake engaged; chain too tight; debris in sprocket area. | Disengage chain brake; adjust chain tension; clean sprocket area. |
| Начар кесүү көрсөткүчү. | Чынжырдын өңү өчкөн; чынжырдын туура эмес тартылышы; майлоо жетишсиз. | Sharpen or replace chain; adjust chain tension; refill oil reservoir. |
| Excessive smoke or burning smell. | Motor overload; insufficient chain lubrication. | Reduce cutting pressure; ensure oil reservoir is full and automatic lubrication is working. Discontinue use if problem persists and seek professional service. |
7. Техникалык шарттар
| Спецификация | Нарк |
|---|---|
| Модель номери | 23514120-AZ2 |
| Күч | 2400 Ватт |
| Тtage | 230 вольт |
| Chain Speed | 12 м/с |
| Гид тилкесинин узундугу | 40 см (400 мм) |
| Салмагы | 4.9 килограмм |
| Өлчөмдөрү (L x W x Y) | 81 x 26 x 22 см |
| Ызы-чуу деңгээли | 104 дБ |
| Компоненттер камтылган | 1x Chainsaw, 1x User Manual, 2x Replacement Anti-Vibration Chains |
8. Кепилдик жана колдоо
The IKRA KSE 2400-40 electric chainsaw comes with a 3 жылдык өндүрүүчүнүн кепилдиги, сапатын жана ишенимдүүлүгүн камсыз кылат. Бул кепилдик кадимки колдонуудагы материалдардагы жана жасалгалоодогу кемчиликтерди камтыйт.
For warranty claims, technical support, or spare parts inquiries, please contact IKRA customer service through their official website or the retailer where the product was purchased. Please have your model number (KSE 2400-40) and proof of purchase ready when contacting support.
